MX GEN2 SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL

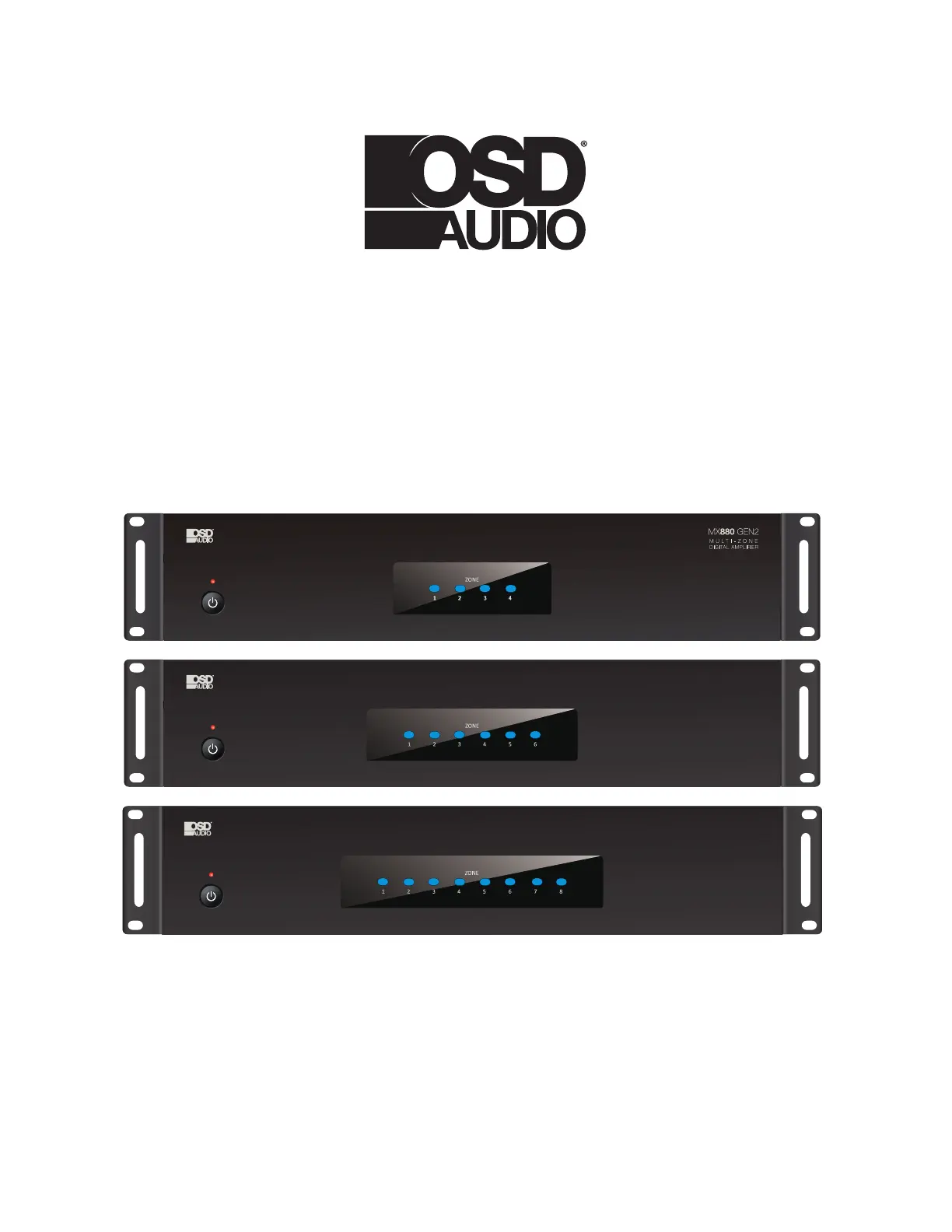

MX GEN2 | MX GEN2 | MX GEN2880 1280 1680
MX GEN21280
M U L T I - Z O N E
D I G I TA L A MP L I F I E R
MX GEN21680
M U L T I - Z O N E
D I G I TA L A M P L I F I E R
WARNING
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
• TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY IN-
SERT.
Thislightingashwitharrowhead
symbol,withinanequilateraltriangle,
isintendedtoalerttheusetothepres-
enceofun-insulateddangerousvoltage
withintheproductsenclosurethatmay
beofsucientmagnitudetoconstitute
ariskofelectricshocktopersons.
Theexclamationpointwithinthe
equilateraltriangleisintendedtoalert
theusertothepresenceofimportant
operatingandmaintenance(servicing)
instructionsintheliterature
accompanyingappliance.
Thislightingashwitharrowhead
symbol,withinanequilateraltriangle,
isintendedtoalerttheusetothepres-
enceofun-insulateddangerousvoltage
withintheproductsenclosurethatmay
beofsucientmagnitudetoconstitute
ariskofelectricshocktopersons.
IMPORTANT SAFTEY INSTRUCTIONS
1.Readtheseinstructions.
2.Keeptheseinstructions.
3Readallwarnings.
4FollowallInstruction.
5.Donotusethisapparatusnearwater.
6.Cleanonlywithdrycloth.
7.Donotblockanyventilationopenings.Installinaccordancewiththemanufacturersinstructions.
8.Donotinstallnearheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus(includingampliers)that
produceheat.
9.Donotdefeatthesafetypurposeofthepolarizedorgroundingtypeplug.Apolarizedplughastwobladeswithone
widerthantheother.Agroundingtypeplughastwobladesandathirdgroundingprong.Iftheprovidedplugsdoesnot
tintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.
10.Protectthepowercordfrombeingwalkedonorpinchedparticularlyattheplugs,conveniencereceptacles,andat
thepointwheretheyexitformtheappliance.
11.Onlyuseattachmentsoraccessoriesspeciedbythemanufacturer.
12.Unplugtheapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
13.Referallservicingtoqualiedpersonnel.Servicingisrequiredwhentheapparatushasbeendamagedinanyway,
suchaspowersupplycordorplugisdamaged,liquidhasbeenspilledorobjectshavefallenintotheapparatus,the
apparatushasbeenexposedtorainormoisture,doesnotoperatenormally,orhasbeendropped.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MX GEN2 SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL
MX GEN21280
M U L T I - Z O N E
D I G I TA L A M P L I F I E R
MX GEN21280
M U L T I - Z O N E
D I G I T AL A M PL IF I E R
1. Power/Standby LED
ThisLEDlightsredwhenanyzoneisactiveorthe
amplierisinstandbymode.
Front Panel
2. Zone Button LED - Turns Zones On/O
Blue:ThisLEDlightsBluewhenCorrespondingZoneButtonisdepressed,
andstayslitwhileanaudiosignalispresent.
Standby:Aftertheaudiosignalispausedorturnedofor5minutesthe
zonewillgointostandby,TheBlueLEDwillturnoandwillremainin
standbyifthecorrespondingZoneButtonisdepressed.Thezonewillcome
outofstandbywhenAudioSignalbecomesactiveagainandBlueLED
comesbackon.
Red:ThecorrespondingZoneLEDwillbeRedifthereisaShortCircuit
PresentontheSpeakerOutput.
Rear Panel
1. Bus 12VDC Trigger In/Out
TheBus12VDCTriggerInisusedtoactivateallzonesthatare
usingtheBusInputanddisablesotherzonetriggersorsignal
sensingonthosezoneswhenitisused.WhentheBus12VDC
Triggerisused,allBus-controlledzoneLEDswillbeblueandac-
tive.IftheBusTriggerInhas12Vappliedtoit,onlythe12VBus
TriggerOutwillhave12VandtheZoneTriggerOutputswillnot.
2. Bus Inputs/Outputs
TheBusLineInputsareoptionalinputsthatcanbeusedtocon-
nectasinglesourcetomultiplezones.TheBusLineOutputsare
passive,andpassthroughthecorrespondingoftheBusInputs.
Thesecanbeusedtodaisychainthesourcetootherampliers
inthesystem.
3. Line/Bus Switch
SwitchestheinputtolocalLineIn,toBus1or
Bus2.
4. Line Input
TheLineaudioinputforeachzoneisadedicatedsensinginput
thatwillactivatethezonewhenanaudiosignalfromasourceis
present.
5. 12VDC Trigger In/Out (Each Zone)
TheZone12VTriggerInisusedtoactivateaspeciczone.The
ZoneTriggerOutcanbeusedtotriggerother12Vdevices.The
delayandaudiosensingarebypassedwhenthe12VZoneTrig-
gerInputisused.WhenaZoneTriggerisactive,thezoneLED
willbeblue.IfnovoltageispresentintheZoneTrigger,theZone
LEDwillbeo.StandbyModeTheamplierwillgointoStandby
modewhentherisno12Vsignalpresent.
6. Speaker Outputs
Theminimumspeakerimpedanceis4ohmsforStereoModeand
8ohmsforBridgeMode.
7. Stereo/Bridge Switch
SelectstheoutputmodeofeachzoneforstereoorBridge
operation.
8. Gain Controls
LeftandRightgaincontrolforeachzoneadjustthesoundinde-
pendently;OnlyusingtheLeftcontroltoadjustthesoundlevel
whenusedinBridgeMode. thedefaultgainissettozeroNote:
volume.Pleaseadjustforeachchanneltosetthemaxvolume
levelforeachzone.Typically,onceyousetityouforgetit.Instead
relyingonyoursourcedevicetocontrolthemastervolume.
9. Voltage Switch
AC115VorAC230Vdualvoltageselector.
10. AC Input
Applythecorrectvoltagebeforeoperatetheamplier.
MX GEN2 SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL
2
6
1 2 3 954
1087
1
