Sida 1/7
TX401-B TX402-B
QUAD SPLIT
User Manual
V010000
2022-9-14
OSEE TECHNOLOGY LTD.
Address:
No.22 Building, No.68 zone, Beiqing Road, Haidian District,
Beijing, China
Post Code:
100094
Tel:
(+86) 010-62434168
Fax:
(+86) 010-62434169
Web:
http://www.osee-dig.com/
E-mail:
sales@osee-dig.com
TX401-B/TX402-B
1
Chapter 1 Product Overview
TX401-B/TX402-B is a professional quad split instrument. It supports high quality
quad split displays for multiple environment with high quality display and swift switch
for various display modes.
TX401-B/TX402-B has compact and beautiful structure design, offering local control
buttons and embedded web configuration functionality, and supports Ethernet loop out
functionality, which is convenient for multiple TX401-B/TX402-B integration controlled
by only one control computer.
TX401-B/TX402-B is suitable in office work environment and cabinet mounting
environment, it is widely used in the following fields: command and dispatch center,
video conference center, broadcast master control, studio, broadcasting vehicle and
so on.
Model
Inputs
Outputs
TX401-B
4CH HDMI Video Input
4CH GPI Input
1CH SDI Video Output
1CH HDMI Video Output
TX402-B
4CH SD/HD/3G-SDI Video Input
4CH GPI Input
1CH SDI Video Output
1CH HDMI Video Output
Features
Supports 4 channels of signal inputs with LED indicators and one power input
indicator
Supports four kinds of output formats: 1080P50, 1080P59.94, 1080I50,
1080I59.94
Supports four kinds of screen display modes: four uniform size screens, one
big left with three right small, one big right with three left small, one big top
with three bottom small
Supports TSL3.1/4.0, TSL5.0 protocol
4ch GPI interfaces, one RS-422 interface, one ETHERNET interface
Embedded Web Server, supports web interview

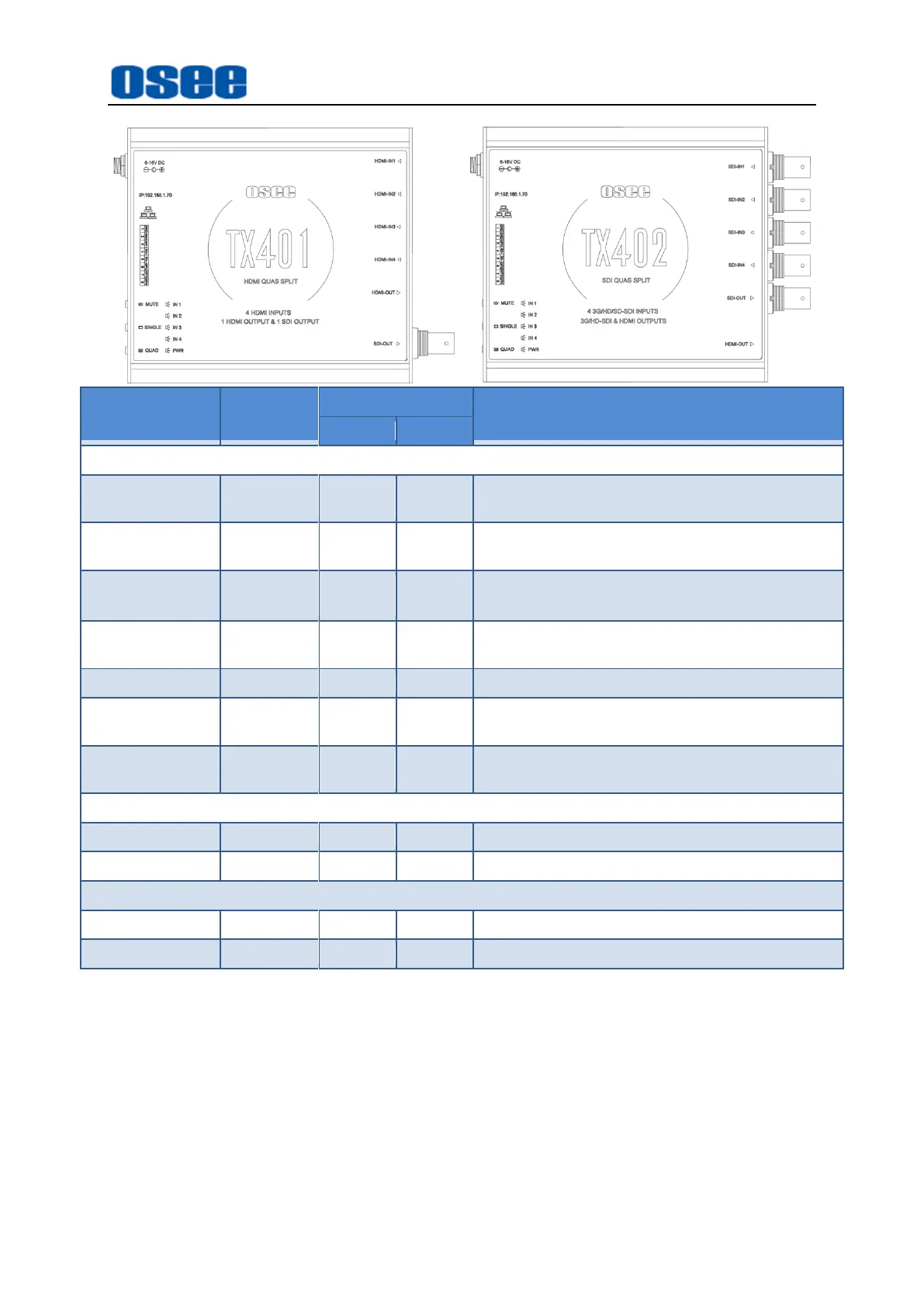

Chapter 2 TX401-B/TX402-B Features
2.1 Control Buttons and Interfaces
There are a series of control buttons, interfaces and indicators at the left side of the
device, besides, a series of interfaces at the right side of the device.
TX401-B/TX402-B
2
Name
Position
Quantity
Description
TX401-B
TX402-B
Interfaces
HDMI Input
Right Side
4
--
Input formats: HDMI, DVI-D, Labeled as HDMI
IN1, HDMI IN2, HDMI IN3, HDMI IN4
HDMI Output
Right Side
1
1
Output formats: 1080P50/P59.94, 1080I50/I59.94,
Labeled as HDMI OUT
SDI Input
Right Side
--
4
Input formats: HD/SD/3G-SDI
，
Labeled as SDI
IN1, SDI IN2, SDI IN3, SDI IN4
SDI Output
Right Side
1
1
Output formats: 1080P50/P59.94, 1080I50/I59.94,
Labeled as SDI OUT
Power Input
Right Side
1
1
DC6~16V External Power(12V/1A)
Configuration
Ethernet
Left Side
1
1
RJ45
GPI/Serial
Communication
Left Side
1
1
RJ45, RS422 Standard, only received; TTL level
Operating Buttons
Reset
Left Side
1
1
Restore the factory settings
Controls
Left Side
3
3
Mute, Single, Quad
Indicators
Power
Left Side
1
1
Labeled as PWR
Input Signal
Left Side
4
4
Labeled as IN1, IN2, IN3, IN4
Operating Buttons
MUTE:
Mute button, click this button to enable or disable the audio play.
SINGLE：
Single mode button, click this button to switch to display only one
picture for one signal source on whole screen in SINGLE mode.
QUAD：
Quad mode button, click this button to switch to display quad split
windows, including four uniform size screens display, one big with three small
screens display. The latter including one big left with three right small, one big
