Sida 1/20

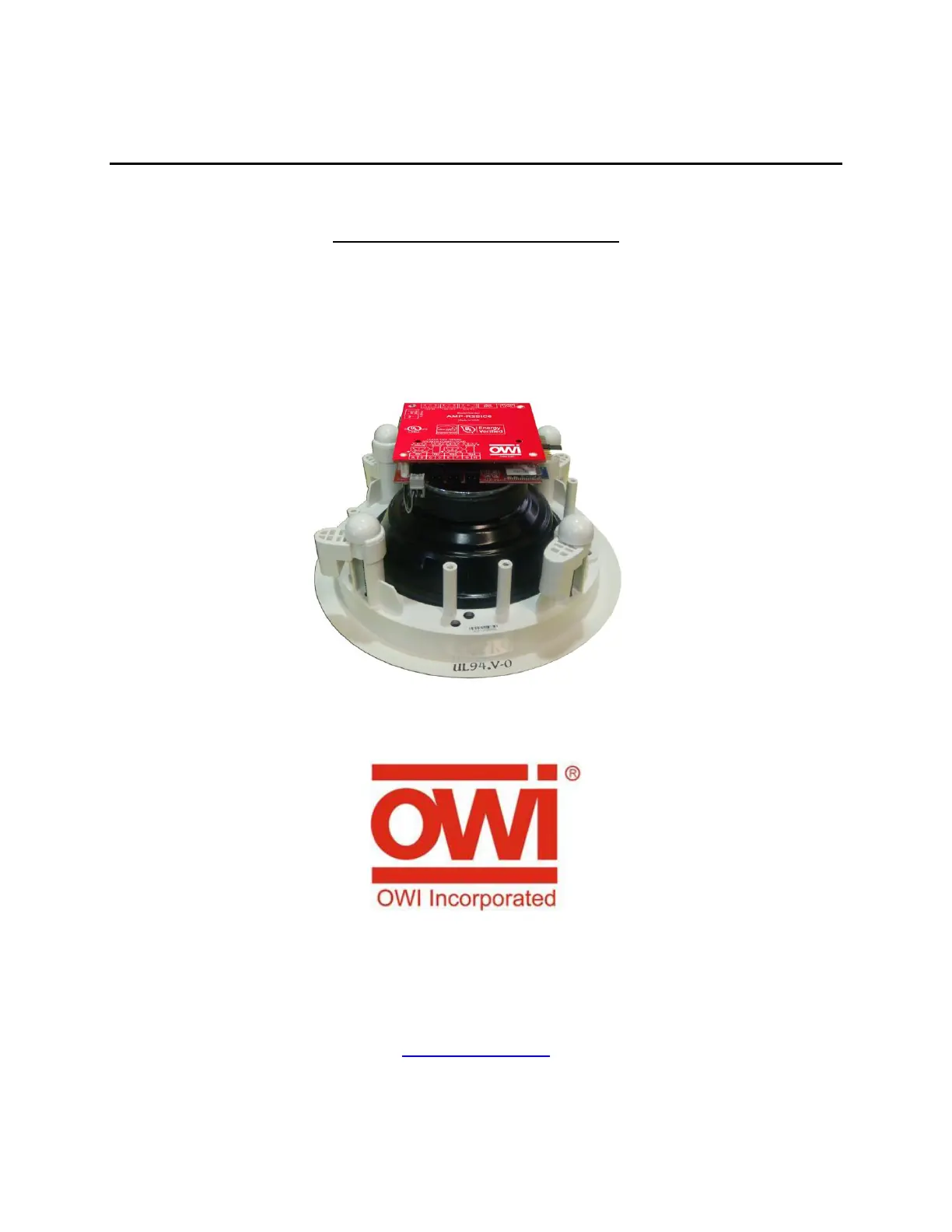

OWI INC
USER MANUAL: Model AMP-BT2SIC AMP-BT2SIC6: 5 /
Speaker Combination Models
AMP-BT2SIC51 / AMP-BT2SIC52 / AMP-BT2SIC 54
AMP-BT2SIC51SVC / AMP-BT2SIC52SVC / AMP-BT2SIC54SVC
AMP-BT2SIC61 / AMP-BT2SIC62 / AMP-BT2SIC 64
AMP-BT2SIC61SVC / AMP-BT2SIC62SVC / AMP-BT2SIC64SVC
Established 1978
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746-1207 USA
Tel. 310-515-1900 Fax 310-515-1606
info@owi-inc.com
www.owi-inc.com
Technical Support 310- -1900 515
OWI User Manual: Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
OWI INC. 2 www.owi-inc.com
PROPRIETARY NOTICE
The OWI Inc. product information and design disclosed herein were originated by and are the property of OWI
Inc. OWI Inc. reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto,
and to any article disclosed therein, except to the extent right(s) are expressly granted to others.
COPYRIGHT NOTICE
This manual is Copyright 2014 by OWI Inc. All rights reserved. Reproduction in whole or in part without written
prior permission from OWI, Inc. is prohibited.
UNPACKING AND INSPECTION NOTICE
Immediately upon receipt of the equipment, inspect the shipping container and the contents carefully for any
discrepancies or damage. Should there be any, notify the freight company and OWI, Inc. or the dealer where
purchased at once.
LIMITED WARRANTY
1. This product has been thoroughly tested and inspected at the factory. It is warranted for one year from the
date of purchase.
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE
EVIDENCE AT TIME SERVICE IS SOUGHT.
2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced
or repaired without cost within the warranty period.
3. This warranty will be considered void if the unit is dropped, misused, abused and altered in any manner,
overdriven with excess amplification exceeding manufacturer’s specification, improperly serviced or
accidentally damaged.
4. OWI Inc. shall have no liability whatsoever for consequential damages. The sole responsibility at the discretion
of OWI Inc. under this warranty shall be limited to the repair of the product or replacement thereof Any and all .
implied warranties including the implied warranty of merchantability are limited to the duration of this express
limited warranty.
OWI, Inc. is NOT liable for incidental or consequential damages of any kind.
5. IMPORTANT: This warranty is void unless the attached card is completed and mailed to OWI Inc. within 10
days following the date of purchase. Units must be sent to OWI Inc. or to the dealer where purchased.
RETURN SHIPPING INSTRUCTIONS Obtain a RETURN AUTHORIZATION from: ,
OWI Inc., Kingsview Ave, Carson, CA 90746 17141 .
Phone (310) 515-1900 Fax (310) 515-1606 ,
FCC Notice: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his or own
expense.
Modifications not expressly approved by the manufacturer could void the user’s authority to be operated under
FCC rules.
OWI User Manual: Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
OWI INC. 3 www.owi-inc.com
Table of Contents
Description
Page
Proprietary, Copyright Notices
2
Unpacking and Inspection
2
Warranty Information
2
Return Shipping Instructions
2
Table of Contents
3
Important Safety Instructions
4 - 5
Introduction
6
Specifications
7 - 8
Illustration: Connection and Control
9
Chained Self Amplified Speakers Wiring
10
Bluetooth Operation
11
One, Two, Four Speaker Combination Wiring
12
Input Connectors Wiring
13
Volume Control Wiring Diagram
14
Installation
15 - 18
Warranty
19
Back Cover
20
OWI User Manual: Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
OWI INC. 5 www.owi-inc.com
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wider blade or the third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit the apparatus.
11. Only use attachment/accessories specified by the manufacturers.
Portable Cart Warning
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped. The user should not attempt to service this OWI product
beyond those means described in this operating manual. All other servicing should be referred to the
OWI Service Department.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
16. To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other
outlet unless the blades can fully be inserted to prevent blade exposure.
17. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some
hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government’s
Occupational Safety and Health Administration (OSHA) has specified the permissible noise level
exposures shown in the following chart. According to OSHA, any exposure in excess of these
permissible limits could result in some hearing loss. To ensure against potentially dangerous
exposure to high sound pressure levels, it is recommended that all persons exposed to equipment
capable of producing high sound pressure levels use hearing protectors while the equipment is in
operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the
equipment in order to prevent a permanent hearing loss if exposure is in excess of the limits set forth
here.
18. OWI recommends that this apparatus be placed on a switched power outlet, one that switches both
sides and has contact separation of at least 3 millimeters.
End of IMPORTANT SAFETY INSTRUCTIONS
OWI User Manual: Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
OWI INC. 7 www.owi-inc.com
SPECIFICATIONS (MODEL AMP-BT2SIC5 / AMP-BT2SIC6)
BLUETOOTH SPECIFICATIONS
AMP-BT2SIC5 AMP-BT2SIC6/
Certified SIG Bluetooth Version 3.0
Frequency Range 2.40 2.48 MHz–
Supports A2DP, AVRCP, HFP/HSP and SPP
Password Protected
ELECTRICAL AMPLIFIER
SPECIFICATIONS
AMP-BT2SIC5
AMP-BT2SIC6
Input voltage, nominal
(25 watts) 15 volts DC
(25 watts) 15 volts DC
Input current, operating (15VDC)
1.667 amperes peak
1.667 amperes peak
Input volt-amperes, peak (15VDC)
25 volt-amperes
25 volt-amperes
Input voltage, maximum
16.5 volts, DC
16.5 volts, DC
Frequency Response,
EQ set to flat
50Hz to 15 kHz
50Hz to 15 kHz
Bass
±10dB@50Hz
±10dB@50Hz
Treble
±10dB@10kHz
±10dB@10kHz
THD + Noise
<1% at 15 watts, “A”
weighted
<1% at 15 watts, “A”
weighted
S/N
>90 dB
>90 dB
Max Power Output ( V in) 28
2 times watts or a total 20
of watts 40
2 times 20 watts or a total of
40 watts
DC Power, Standby
1.5 watts
1.5 watts
AC Power, Sleep Mode (Energy
Star)
less than 1 watt
less than 1 watt
DC Power,
Short Circuit protected
Yes
Yes
Over current protected
Yes
Yes
Over voltage protected
Yes
Yes
Over temperature protected
Yes
Yes
Minimum Load Impedance
4.0 Ω (Two 8 Ω Speakers
in parallel)
4.0 Ω (Two 8 Ω Speakers in
parallel)
Minimum Input impedance, Priority in
20,000 Ω
20,000 Ω
Minimum Input impedance, Bal. Line in
820 Ω
820 Ω
Minimum Input impedance, mini-jack
2300 Ω
2300 Ω
Dynamic Mic input impedance
300 Ω
300 Ω
Warranty
1 year
1 year
OWI User Manual: Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
Model AMP-BT2SIC5 / AMP-BT2SIC6 Speaker Amplifier
OWI INC. 9 www.owi-inc.com
Illustration: Connection and Control
