Advanced Amplier Interface
for Select Ford Vehicles
AP4-FD32
The AP4-FD32 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the digital
A2B audio data in conjunction with CAN data, the AP4-FD32 delivers a variable 5v RMS pre-amp output with fading,
balance, equalization, and level control capabilities. The module also retains audio from other vehicle features such
as factory navigation prompts, safety chimes, Bluetooth and voice activation. A data bus controlled remote amplier
turn on wire is also provided by the AP4-FD32. The module also provides a variable 2-channel ber optic digital audio
output (TOSLINK).
Introduction and Features
Important Notes
1. This interface is only compatible in vehicles equipped with an A2B data bus controlled premium sound system. To verify
compatibility, look for a B&O badge on the door speakers or dash speakers.

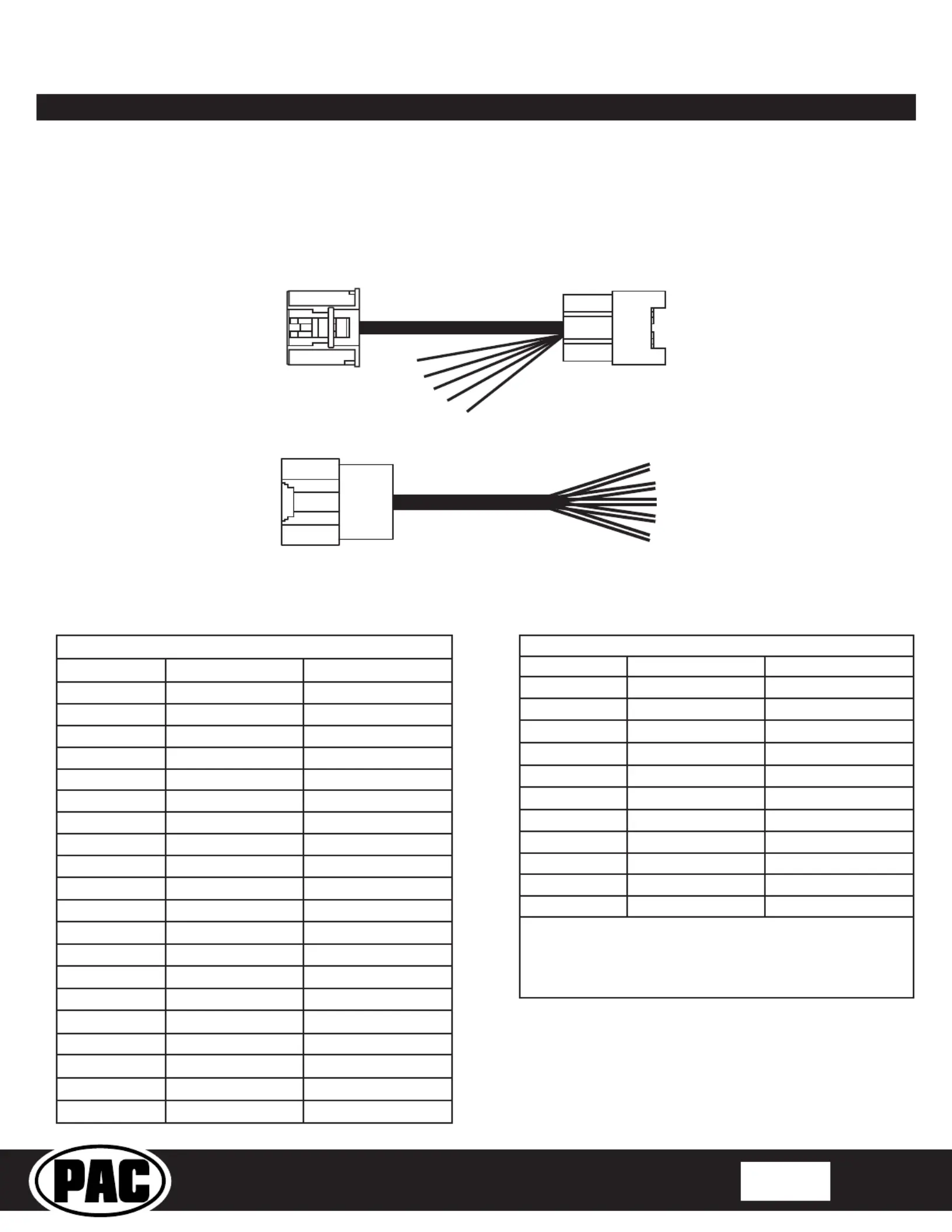

2. The AP4 interface installs at the factory amplier location. Included T-Harness installs behind radio to access factory
speaker wiring not available at factory amplier.
3. The factory amplier will be disconnected and will no longer power the vehicle speakers. An aftermarket amplier must be
added to power the vehicle's speakers. For example, you cannot only add a subwoofer, as the factory speakers that were
connected to the factory amplier will no longer function.
4. On most Ford models, some of the vehicle speakers will be connected to the radio module in addition to the external
amplier. These speakers will also stop working when the factory amplier is disconnected and will need to be powered by
an aftermarket amplier.
5. The chime volume and minimum volume levels are set to 50% by default. If this level is adequate, no additional adjustment
is required. Please refer to the Setup and Conguration section on page 4 for more details.
6. The level control knob must be connected in order to manually adjust the minimum volume settings.
7. The remote output is rated at 2A of current. If more current is needed, an external relay must be used.
8. Channels 5 and 6 are non-fading outputs. The output level of channels 5 and 6 can be controlled using the supplied level
control knob.
9. No adjustments can be made manually using the programming button, or the factory SWC, when the module is connected
to a PC.

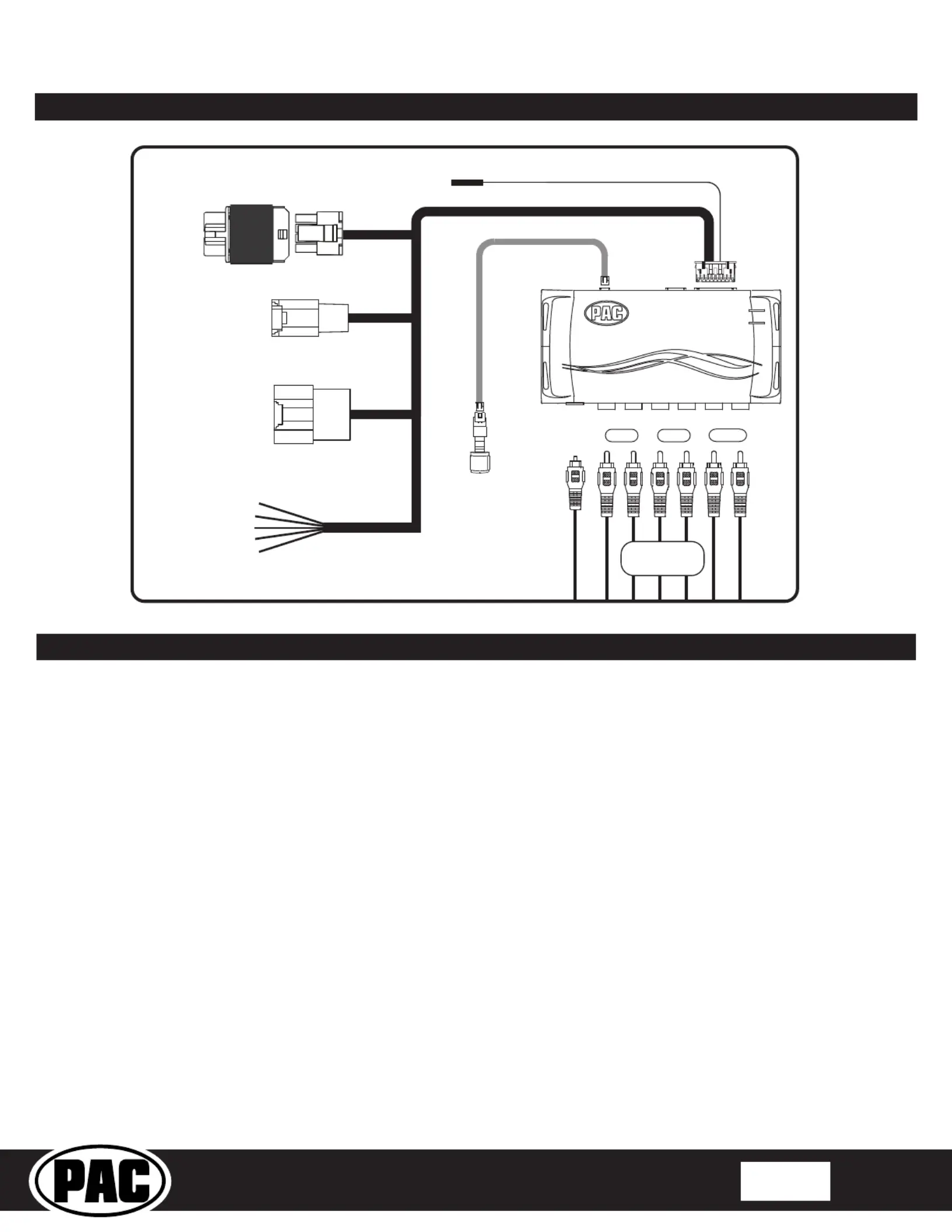

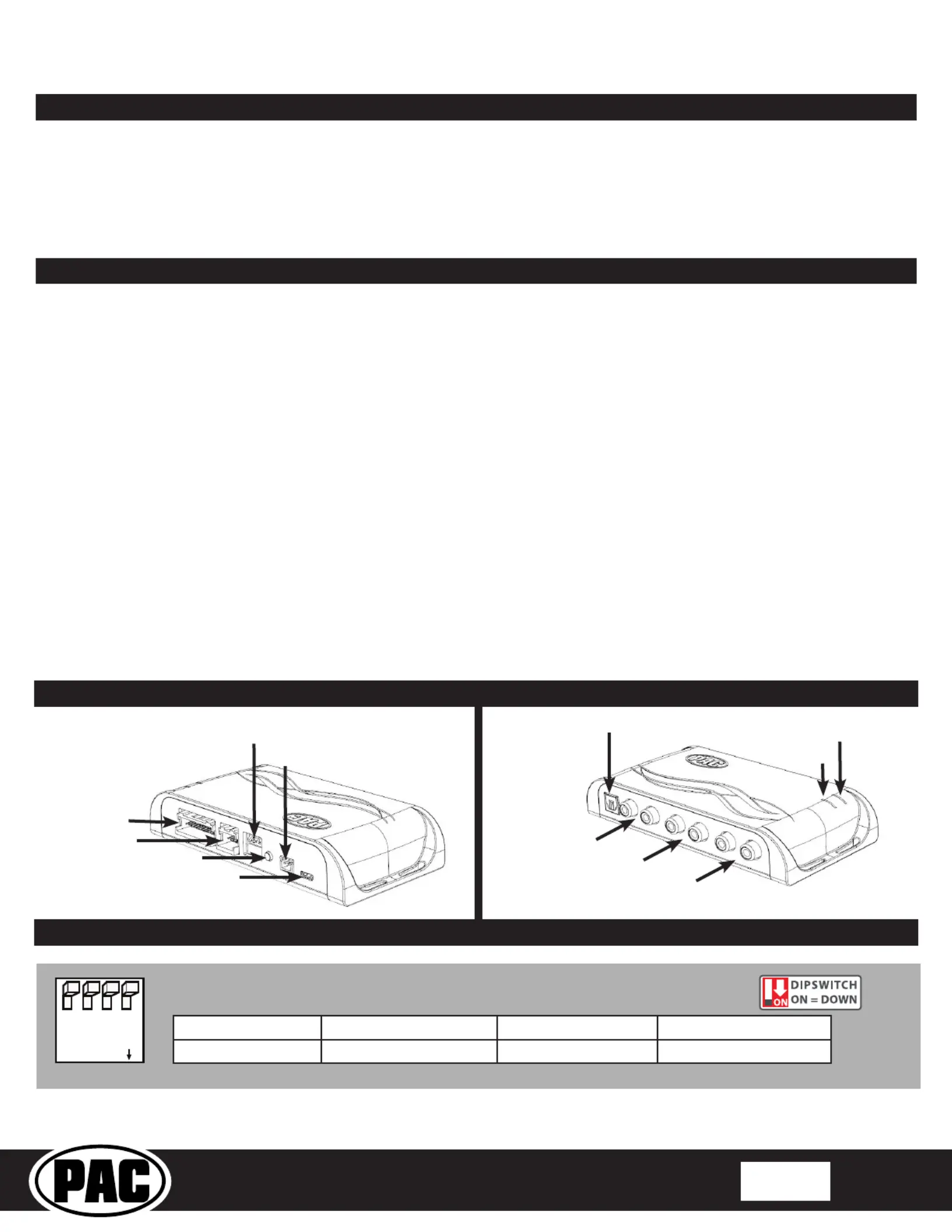

Module Layout
LED 1
Interface Connector 1
Expansion Port
TOSLINK Output
Programming Button
Feature Select
DIP switches
Front Output
Ch. 1(L) and 2(R)
Non-Fading Level Control
Knob Connection
USB Connection
Rear Output
Ch. 3(L) and 4(R)
SUB (Non-Fading)
Ch. 5 and 6
LED 2
DIP
1 2 3 4
ON
Two Channel Mode 5v / 4v Preout Not Used Not Used
1 2 3 4
Set DIP switches to the ON position to activate the corresponding features.
Set DIP switches to the OFF position for any features that are not desired.
