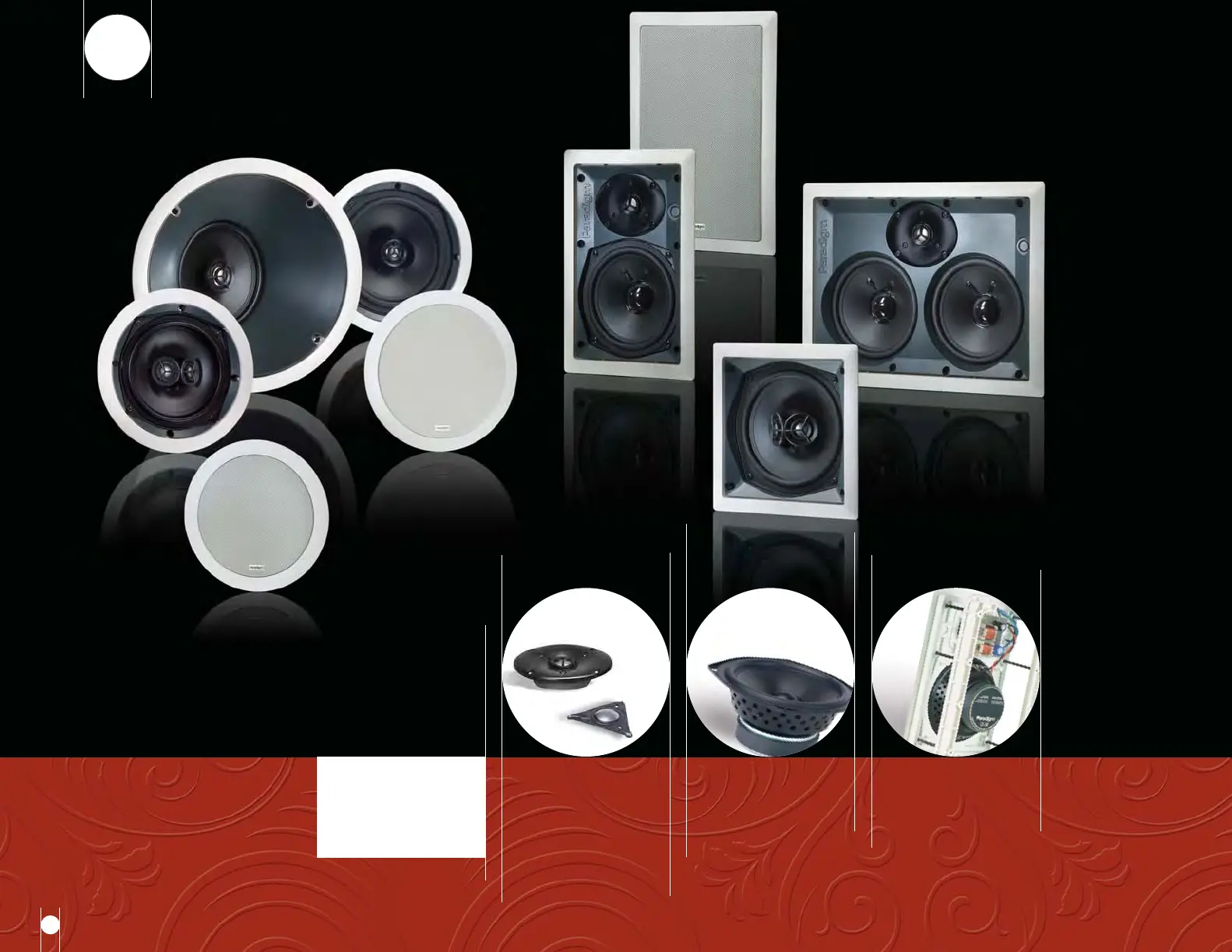

CS-50R

CS-150

CS-80R

CS-160

CS-LCR

CS-60SQ-SM

CS-60R-SM

CS-60R-30

CS-60R

WHITE, PAINTABLE

High-Strength IRP™Injection-

Molded Ribbed Polymer Chassis

solve the flexibility problem and

dramatically reduce resonances and

vibrations behind the wall or ceiling.

Superior Mineral-Filled Poly-

propylene Cones with oversized

magnets. Deliver authentic, detailed

midrange performance with solid

extended bass.

Superior PTD™Pure-Titanium

Domes with ferro-fluid cooling and

damping deliver extended smooth high-

frequency performance with superb

clarity across a wide listening area.

Full-perimeter bracket design

Unlike typical mounting ears, brackets

cover the full diameter or height and

width of the speaker chassis to effectively

sandwich and strengthen the area around

the mounting hole.

BEHIND THE SCENES

Why settle for look-alike in-wall/in-ceiling speakers—those that at first glance look similar, but in the end can’t perform,

when you can get the superior sound of CS Series speakers. Extended high-frequency performance, a detailed and

authentic midrange and full-bandwidth bass bring the high-performance sound of CS Series speakers to any room

in your home. Also ideal for use in offices, restaurants, etc.

SOLO PERFORMERS: CS-60R-SM & CS-60SQ-SM

• Two PTD™Pure-Titanium High-Frequency Domes offset at 30° angles

• Dual Voice-Coil Mineral-Filled Polypropylene Bass/Midrange Cone

“SM” (stereo/mono) speakers offer rich pure-fidelity dual-channel L/R sound from a single speaker. Their Dual-

Directional Soundfield™provides wider-than-normal dispersion making them ideal for use in small rooms less suited

to a stereo pair (Fig.1), or where a single speaker is preferred. In larger spaces, using multiple “SM” speakers

eliminates the sound imbalances that occur with separate stereo speakers as people move around, or are seated closer

to one speaker than the other (Fig. 2). Ideal for use as in-wall/in-ceiling surround and/or rear speakers (Fig. 3).

GUIDED SOUNDFIELD™SYSTEM: CS-60R-30

The CS-60R-30’s Guided Soundfield™system allows you to guide a wide arc of sound toward a specific area of

the room, much the same way we guide a floodlight to fill an area with light. Drivers sit at a 30° angle from the

ceiling enabling you to adjust the direction of sound (Fig. 4), without compromising the crucial sound dispersion

pattern between drivers, or the interaction between drivers and baffle, thereby preserving sonic integrity. These speakers

are also ideal for use as surround and/or rear speakers. Guiding the sound towards the sides or rear of the room

creates an enveloping, reverberant soundfield (Fig.5) similar to that provided by Paradigm’s ADP

™technology.

VC-150 Volume Control

(see the specification pages for full details) Fig. 1

Top view of rooms:

Fig. 2 Fig. 3 Fig. 4 Fig. 5

Fig. 1 Fig. 2 Fig. 3

PLACEMENT

Your high quality home deserves high quality sound!

Fig. 4 Fig. 5

2-driver, 2-way in-ceiling, drivers mounted at 30° relative to

mounting surface, IRP™chassis/mounting bracket

2nd-order electro-acoustic at 2.5 kHz

25-mm (1 in) PTD™dome

165-mm (6-1/2 in) mineral-filled polypropylene cone

55 Hz (DIN)

±2 dB from 70 Hz – 20 kHz

±2 dB from 70 Hz – 15 kHz

89 dB / 85 dB

15 – 80 watts

50 watts

Compatible with 8 ohms

29.3 cm / 11-1/2 in

12.0 cm / 4-3/4 in

26.3 cm / 10-6/16 in

12 L / 0.42 cu ft

2.4 kg / 5.3 lb each

White, paintable

PB-10R; retrofit included

2-driver, 2-way in-ceiling/in-wall, coaxially mounted high-

frequency driver, IRP™chassis/mounting bracket

2nd-order electro-acoustic at 2.5 kHz

25-mm (1 in) PTD™dome

210-mm (8 in) mineral-filled polypropylene cone

45 Hz (DIN)

±2 dB from 60 Hz – 20 kHz

±2 dB from 60 Hz – 18 kHz

90 dB / 86 dB

15 – 90 watts

60 watts

Compatible with 8 ohms

26.4 cm / 10-6/16 in

7.6 cm / 3 in

23.2 cm / 9-2/16 in

16 L / 0.56 cu ft

2.0 kg / 4.4 lb each

White, paintable

PB-9R; retrofit included

2-driver, 2-way in-wall/in-ceiling, IRP™chassis/

mounting bracket

2nd-order electro-acoustic at 2.5 kHz

19-mm (3/4 in) PTD™dome

140-mm (5-1/2 in) mineral-filled polypropylene cone

60 Hz (DIN)

±2 dB from 75 Hz – 20 kHz

±2 dB from 75 Hz – 18 kHz

88 dB / 84 dB

15 – 80 watts

50 watts

Compatible with 8 ohms

25.5 cm x 17.5 cm / 10-1/16 in x 6-14/16 in

5.4 cm / 2-2/16 in

23.2 cm x 15.2 cm / 9-2/16 in x 6 in

6 L / 0.22 cu ft

1.2 kg / 2.5 lb each

White, paintable

PB-6x9; retrofit included

2-driver, 2-way in-wall/in-ceiling, IRP™chassis/

mounting bracket

2nd-order electro-acoustic at 2.5 kHz

19-mm (3/4 in) PTD™dome

165-mm (6-1/2 in) mineral-filled polypropylene cone

55 Hz (DIN)

±2 dB from 70 Hz – 20 kHz

±2 dB from 70 Hz – 18 kHz

89 dB / 85 dB

15 – 90 watts

60 watts

Compatible with 8 ohms

28.1 cm x 20.0 cm / 11-2/16 in x 7-14/16 in

6.0 cm / 2-6/16 in

25.8 cm x 17.7 cm / 10-2/16 in x 6-15/16 in

12 L / 0.42 cu ft

1.6 kg / 3.5 lb each

White, paintable

PB-7x10; retrofit included

3-driver, 2-way in-wall left/center/right, IRP™chassis/

mounting bracket

2nd-order electro-acoustic at 2.5 kHz

19-mm (3/4 in) PTD™dome

Two 140-mm (5-1/2 in) mineral-filled polypropylene cones

60 Hz (DIN)

±2 dB from 75 Hz – 20 kHz

±2 dB from 75 Hz – 18 kHz

89 dB / 85 dB

15 – 100 watts

70 watts

Compatible with 8 ohms

23.1 cm x 31.8 cm / 9-2/16 in x 12-1/2 in

6.4 cm / 2-1/2 in

20.8 cm x 29.5 cm / 8-3/16 in x 11-10/16 in

12 L / 0.42 cu ft

2.7 kg / 5.9 lb each

White, paintable

PB-8x12; retrofit included

Design

Crossover

High-Frequency Driver

Bass/Midrange Driver(s)

Low-Frequency Extension*

Frequency Response:

On-Axis

30˚Off-Axis

Sensitivity – Room/Anechoic

Suitable Amplifier Power Range

Maximum Input Power†

Impedance

External Dimensions: (D or H x W)

Minimum Mounting Depth**

Cutout Dimensions: (D or H x W)

Minimum Internal Volume Required

Weight (unpacked)

Finish

Pre-Construction Bracket (sold sep.)

CS-50R CS-60R CS-60R-SM CS-60SQ-SM

2-driver, 2-way in-ceiling/in-wall, coaxially mounted

high-frequency driver, IRP™chassis/mounting bracket

2nd-order electro-acoustic at 3.0 kHz

19-mm (3/4 in) PTD

™dome

140-mm (5-1/2 in) mineral-filled polypropylene cone

60 Hz (DIN)

±2 dB from 75 Hz – 20 kHz

±2 dB from 75 Hz – 18 kHz

88 dB / 84 dB

15 – 70 watts

40 watts

Compatible with 8 ohms

19.4 cm / 7-10/16 in

5.7 cm / 2-1/4 in

16.6 cm / 6-9/16 in

6 L / 0.22 cu ft

1.2 kg / 2.5 lb each

White, paintable

PB-7R; retrofit included

2-driver, 2-way in-ceiling/in-wall, coaxially mounted

high-frequency driver, IRP™chassis/mounting bracket

2nd-order electro-acoustic at 3.0 kHz

19-mm (3/4 in) PTD™dome

165-mm (6-1/2 in) mineral-filled polypropylene cone

55 Hz (DIN)

±2 dB from 70 Hz – 20 kHz

±2 dB from 70 Hz – 18 kHz

89 dB / 85 dB

15 – 80 watts

50 watts

Compatible with 8 ohms

22.1 cm / 8-3/4 in

6.0 cm / 2-6/16 in

19.3 cm / 7-10/16 in

12 L / 0.42 cu ft

1.6 kg / 3.5 lb each

White, paintable

PB-8R; retrofit included

Single speaker system with stereo L/R inputs, 3-driver,

2 x 2-way in-ceiling/in-wall, coaxially mounted high-

frequency drivers, IRP ™chassis/mounting bracket

Two 2nd-order electro-acoustic at 3.0 kHz

Two 19-mm (3/4 in) PTD™domes

Dual voice-coil, 165-mm (6-1/2 in) mineral-filled

polypropylene cone

52 Hz (DIN)

±2 dB from 70 Hz – 20 kHz

±2 dB from 70 Hz – 15 kHz

89 dB / 85 dB

15 – 80 watts Mono;

15 – 40 watts/channel Stereo Input

50 watts

Compatible with 4 ohms Mono;

8 ohms/channel Stereo Input

22.1 cm / 8-3/4 in

6.0 cm / 2-6/16 in

19.3 cm / 7-10/16 in

12 L / 0.42 cu ft

1.6 kg / 3.5 lb each

White, paintable

PB-8R; retrofit included

Single speaker system with stereo L/R inputs, 3-driver,

2 x 2-way in-wall/in-ceiling, coaxially mounted high-

frequency drivers, IRP ™chassis/mounting bracket

Two 2nd-order electro-acoustic at 3.0 kHz

Two 19-mm (3/4 in) PTD™domes

Dual voice-coil, 165-mm (6-1/2 in) mineral-filled

polypropylene cone

52 Hz (DIN)

±2 dB from 70 Hz – 20 kHz

±2 dB from 70 Hz – 15 kHz

89 dB / 85 dB

15 – 80 watts Mono;

15 – 40 watts/channel Stereo Input

50 watts

Compatible with 4 ohms Mono;

8 ohms/channel Stereo Input

20.0 cm x 20.0 cm / 7-14/16 in x 7-14/16 in

7.1 cm / 2-3/4 in

17.8 cm x 17.8 cm / 7 in x 7 in

12 L / 0.42 cu ft

1.6 kg / 3.5 lb each

White, paintable

PB-7x7; retrofit included

Design

Crossover(s)

High-Frequency Driver(s)

Bass/Midrange Driver

Low-Frequency Extension*

Frequency Response:

On-Axis

30˚ Off-Axis

Sensitivity – Room/Anechoic

Suitable Amplifier Power Range

Maximum Input Power†

Impedance

External Dimensions: (D or H x W)

Minimum Mounting Depth**

Cutout Dimensions: (D or H x W)

Minimum Internal Volume Required

Weight (unpacked)

Finish

Pre-Construction Bracket (sold sep.)

CS Series

CS-60R-30 |GUIDED SOUNDFIELD™ SYSTEM CS-80R CS-150 CS-160 CS-LCR
