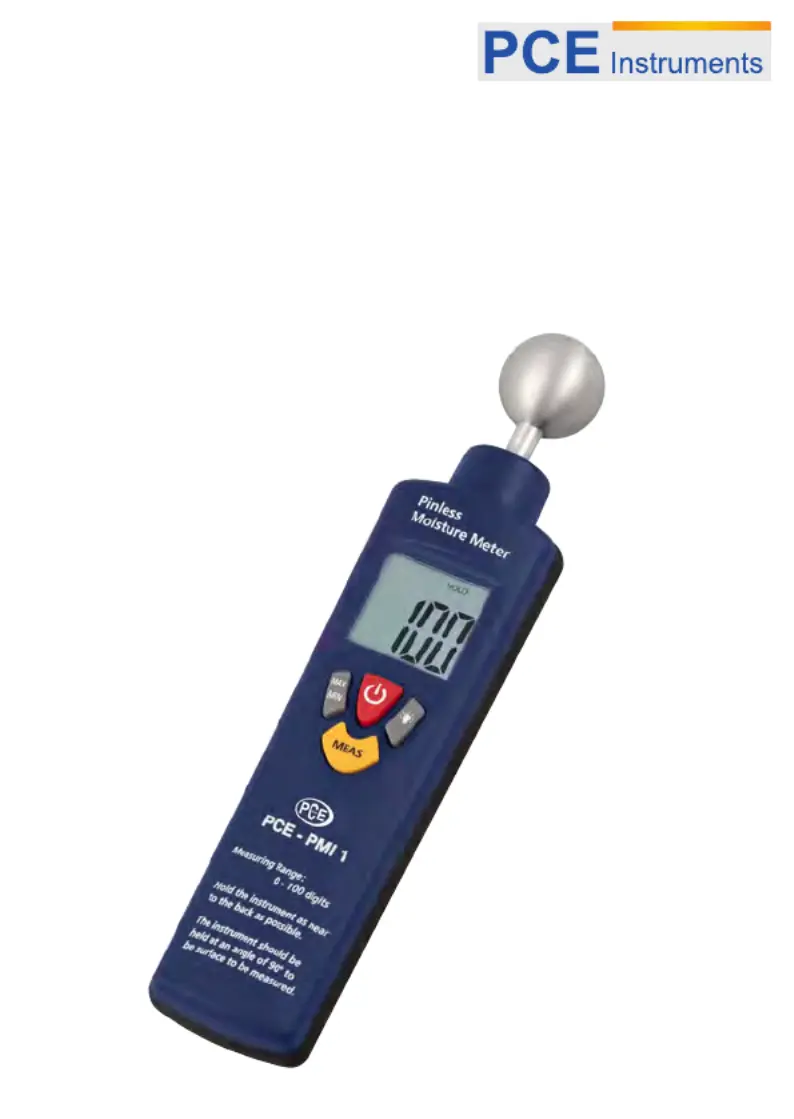

Moisture Analyser
User Manual
PCE-PMI 1
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
11
The NON-Contact Moisture Meter is an electronic dampness
indicator with a measuring process working on the principle
of high frequency measurement. The instrument is used for
non-destructively tracing dampness in building materials of
all kinds as well as for detecting damp distribution in walls,
ceilingsandoors.Itisparticularlysuitableforpre-testing
the readiness of building materials for covering prior to
CM measurement.
Features
- Quickly indicate the moisture content of materials
- Depth of penetration about 20-40mm.
- Low battery indication
- Auto Power O
- MAX/MIN Function
- Measure and HOLD Function
- White Backlit LCD Display
Specication
Specications:
Sensor Type: metal spheroid
MeasuringRange: 0to100
MaxResolution: 1
Battery: 9V battery
Dimensions: 180 mm×45mm×35mm
Weight: 180g
12
◄
2
1
◄
3
◄
4
◄
5
◄
6
◄
7
◄
Adjustment
The instrument is calibrated fully electronically and readjust-
ment is not necessary.
Safety remarks
These is a risk of injury if the metal ball comes into contact
with live parts. Do not use the instrument in the immediate
vicinity of older equipment or equipment equally sensitive to
high frequencies (e.g.functioning medicinal equipment).Use
the instrument only for measuring the dampness in harde-
ned building materials by bringing the ball into contact with
the surface.
Instrument Check
Hold the instrument as near to the back as possible. Press
the “MESA” button and hold the instrument with the ball in
the air. The displayed value must be between -5 and +5.
Front Panel Description
1. Metal Ball
2. MAX/MIN Button
3. LCD Display
4. Power ON/OFF Button
5. Backlight Button
6. MEAS Button
7. Battery Cover
Produktspecifikationer
| Varumärke: | PCE Instruments |
| Kategori: | Mätutrustning |
| Modell: | PCE-PMI 1 |
