Aeroqual Series 900 User Guide
Page | 1
Spain
PCE Ibérica S.L.
CIF
B02363497
Calle Mayor, 53
02500 Tobarra
Albacete
Spain
Tel.: +34 967 543
548
Fax: +34 967 543 542
info@pce-iberica.es
www.pce-instruments.com/espanol
Chile
PCE Instruments SA Chile
RUT 76.154 7.05 -2
Calle Santos Dumont N° 738, Local 4
Comuna de Recoleta
Santiago de Chile
Chile
Tel. +56 : 2 2405 3238
Fax: +56 2 2873 3777
info@pce-instruments.cl
www.pce-instruments.com/chile
PCE Instruments
Page | 2
Aeroqual Series 900 User Guide
Contents
1. Description ..................................................................................................................................... 3
1.1. S930 Components 3..................................................................................................................
1.2. Components not supplied but required ................................................................................... 3
2. Conguration ................................................................................................................................. 3
2.1. Using the Aeroqual USB to RS485 converter ......................................................................... 3
2.2. Conguring the S930 using the PC software .......................................................................... 4
2.2.1. Changing the Port ID ....................................................................................................... 4
2.2.2. Alarms ............................................................................................................................. 4
2.2.3. Control ............................................................................................................................. 4
2.2.4. 4-20mA output scale ....................................................................................................... 5
2.2.5. Upload ............................................................................................................................. 5
2.2.6. Download 5 ........................................................................................................................
3. Operation ....................................................................................................................................... 5
3.1. Description of Outputs ............................................................................................................. 5
3.2. Operation as a Relay Controller .............................................................................................. 6
3.2.1. Procedure ........................................................................................................................ 6
3.3. Operation as a 4-20 mA transmitter ........................................................................................ 6
3.3.1. Procedure ........................................................................................................................ 7
3.4. Operation as a RS485 Transmitter ......................................................................................... 8
3.4.1. Connecting via RS485 8 ....................................................................................................
3.4.2. Network Settings ............................................................................................................. 8
4. S930 Specications 9......................................................................................................................
5. Gas Measurement Guidelines ...................................................................................................... 9
6. Troubleshooting .......................................................................................................................... 10
7. Diagnostics .................................................................................................................................. 11
8. RS485 Protocol ............................................................................................................................ 11
9. Care and Maintenance ................................................................................................................ 17
9.1. Disposal / Recycling .............................................................................................................. 17
1 Appendix 0. ...................................................................................................................................... 18
10.1. Copyright ........................................................................................................................... 18
10.2. Software License ............................................................................................................... 18
10.3. Terms and Conditions ....................................................................................................... 18
10.4. Statements of Compliance ................................................................................................ 18
Page | 3
Aeroqual Series 900 User Guide
1. Description
The Aeroqual Series 930 Fixed Gas Monitor is designed to measure and control gas concentrations
and to communicate to a variety of hardware systems.
The monitor can operate as a relay controller with user controlled set points, a 4-20 mA gas
transmitter as well as communicate via RS485 on a network. They can also connect to PC data
logging and networking software to allow for real-time network capability to be set up and logged data
to be stored. The software can be found at our website www.aeroqual.com.
1.1. S930 Components
The following components are supplied with the S930 Fixed Gas Monitor:
Series 93 base unit0
Temperature and Relative Humidity Sensor (Optional)
Integrated display (Optional)
Strobe & Siren (Optional)
RS485 to USB converter for PC conguration (Optional)
Please check all components have been your distributor. that these supplied and contact
Replacement sensor heads other accessories be and can purchased separately.
Note: All sensor heads deteriorate over time. We recommend recalibration once a year and
replacement every two years or when the “sensor aging” or “sensor failure” diagnostics
appear. Sensors require more frequent maintenance if run continuously at site.
1.2. Components not supplied but required
24VDC 1A power supply for powering the Series 930
2. Conguration
The Series 930 alarm and 4-20mA output scale settings can be congured via the Fixed Monitor
Conguration software. The PC software can be found on our website at www.aeroqual.com.
To congure the instruments y compu yo will eed a RS232/RS485 or USB/RS485 onverter. b ter u n n c
There are many RS232/RS485 converters ailable e mark howev only ertain ds will av on th et er c bran
function well with the Aeroqual products. Aeroqual supply can a USB/RS485 converter suitable for
conguring the instruments. Please contact your account manager for more information.

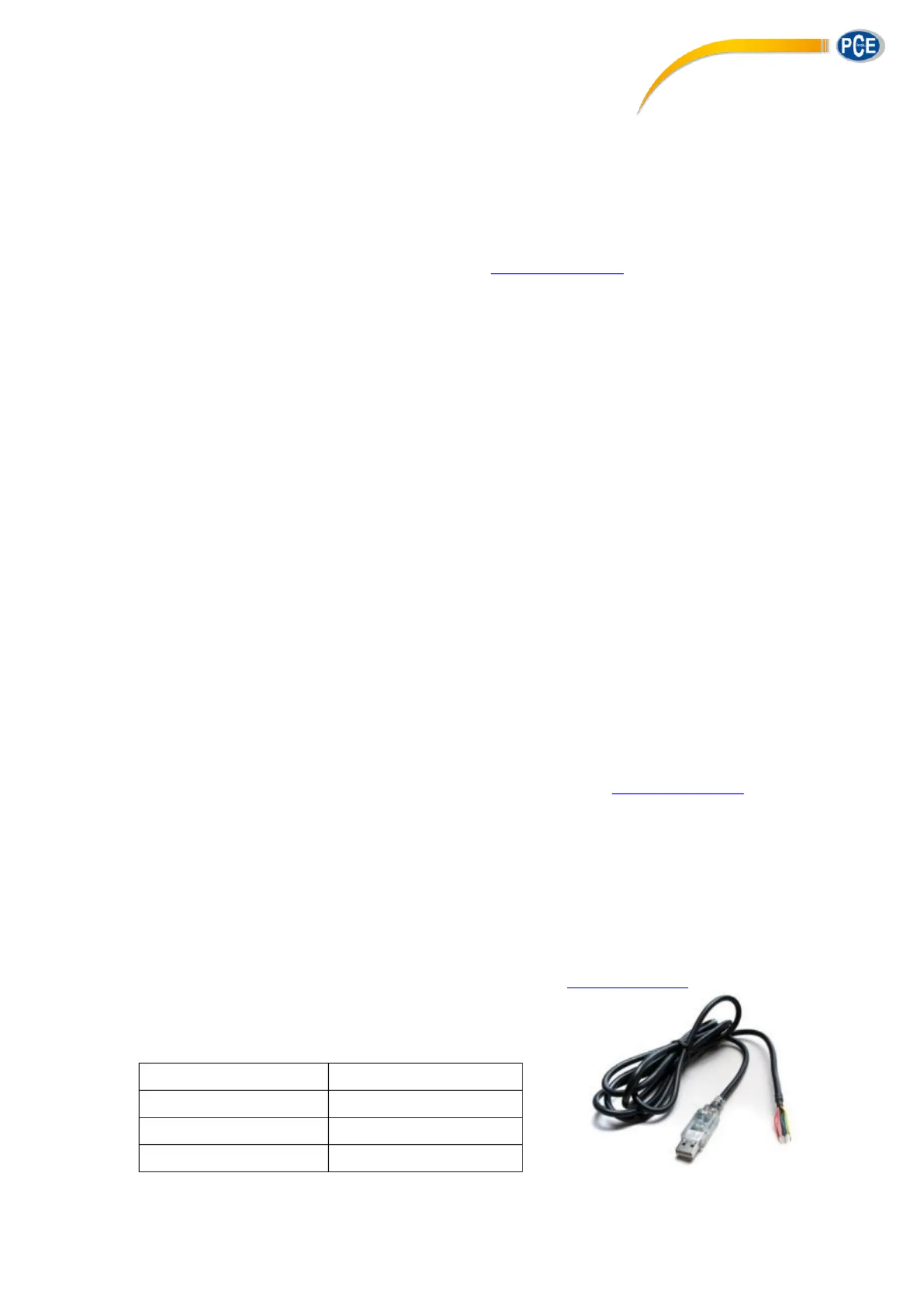

2.1. Using the Aeroqual USB to RS485 converter
The USB-RS485 converter cable provides a USB to RS485 serial interface with customised end
connectors. The drivers required can be downloaded for free from www.ftdichip.com.
Note: Aeroqual S930 monitors communicate via 2 wire RS485 so the
converter must be congured to RS485 2W.
USB to RS485 wiring
S930 Output
GND (Black)
GND
Data+ (A) (Orange)
RS485A
Data- (B) (Yellow)
RS485B
