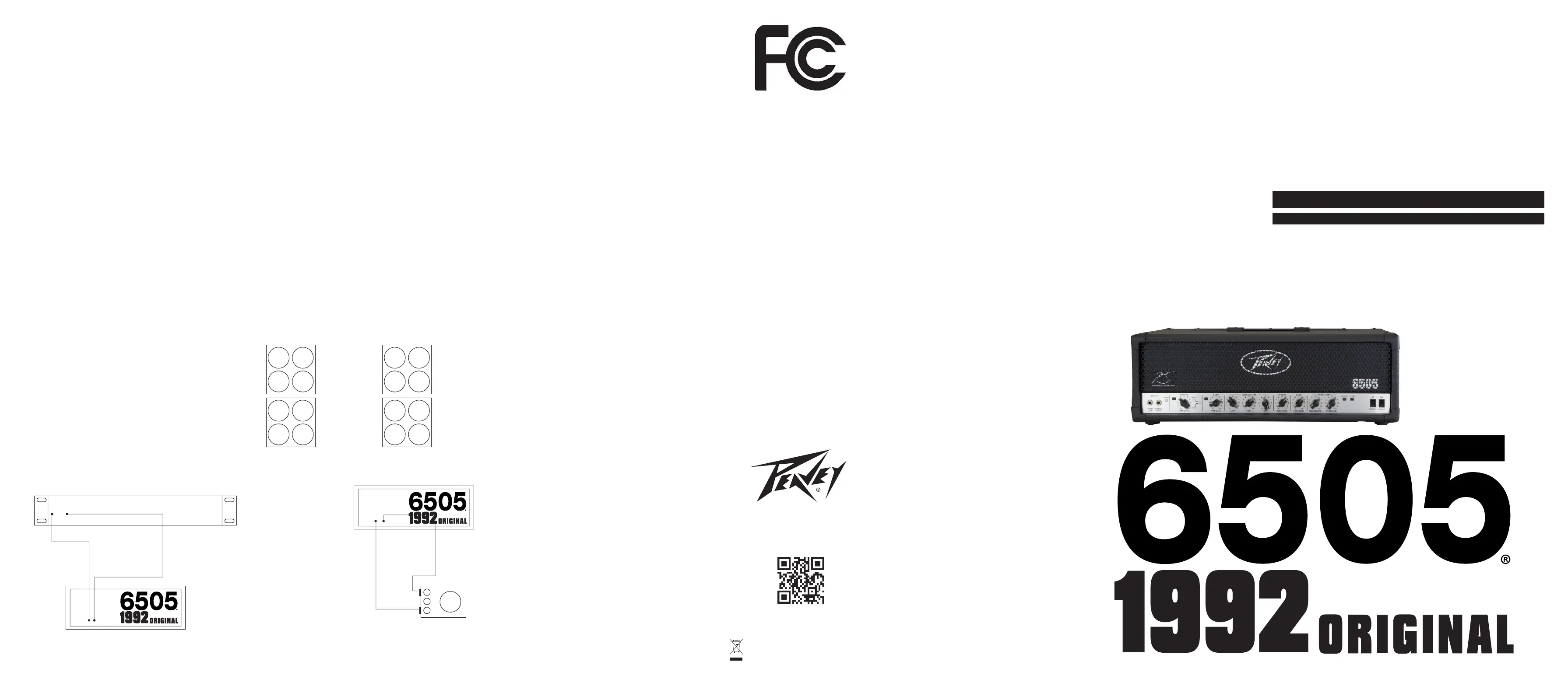

OPERATING GUIDE
SPEAKER CONNECTION
When connecting the amplifier to the speaker enclosure,
make. sure to set the impedance selector switch on the rear
of the unit to the impedance that matches your enclosure.
When two enclosures of equal impedance are used, set the
switch to one half the impedance of one enclosure (e.g.
two 16 ohm enclosures: set switch to 8 ohms; two 8 ohm
enclosures: set switch to 4 ohms). The 6505 1992 Original
is designed to operate into a minimum of 4 ohms.
EFFECTS PATCHING
USING THE EFFECTS LOOP
TO PATCH EXTERNAL,NON
GAIN PRODUCING
EFFECTS DEVICES
(DIGITAL DELAY, REVERS,
CHORUS, ETC.)
8 OHMS
SET SWITCH
TO 4 OHMS
8 OHMS
16 OHMS
SET SWITCH
TO 8 OHMS
16 OHMS
EFFECT(S) ARE
SELECTABLE USING
1992 ORIGINAL
6505 1992
Original REMOTE
FOOTSWITCH (See
section on REMOTE
FOOTSWITCH JACK)
FROM OUTPUT OF
RACK EFFECTS UNIT
TO 1992 ORIGINAL
6505 1992 Original
EFFECTS RETURN
INPUT
FROM 1992
ORIGINAL 6505
1992 Original SEND
OUTPUT TO INPUT
OF RACK EFFECTS
UNIT
IN OUT
SEND RETURN
RACK MOUNT EFFECTS UNIT
BACK PANEL
FLOOR PEDAL
OUT
IN
FROM OUTPUT OF
EFFECTS PEDAL
TO 1992 ORIGINAL
6505 1992 Original
EFFECTS RETURN
INPUT
FROM 1992
ORIGINAL 6505
1992 Original SEND
OUTPUT TO INPUT
OF EFFECTS PEDAL
SEND RETURN
SPECIFICATIONS
POWER AMPLIFIER SECTION
Rated Power & Load:
120 W RMS into 16, 8, or 4 ohms
Power @ Clipping:
(Typically @ 5% THD, 1 kHz, 120 V AC line)
130 W RMS into 16, 8, or 4 ohms
(Bias must be reduced to measure)
Frequency Response:
+0, -3 dB, 50 Hz to 20 kHz, @ 100 W RMS into 8
ohms
Hum & Noise:
Greater than 75 dB below rated power
Power Amp EQ:
Active Presence: +10 dB 2 kHz
Active Resonance: +10 dB @ cabinet resonant
frequency
Power Consumption: (Domestic)
400 watts 50/60 Hz, 120 V AC
PREAMP SECTION
The following specs are measured @ 1 kHz with the
controls preset as follows:
Low & High EQ @ 0
Bright out
Lead & Rhythm Post @ 10
Presence & Resonance @ 0 dB
Nominal levels with Pre Gains @ 5
Minimum levels with Pre Gains @ 10
Preamp High Gain Input:
Impedance: Very high Z, 470K ohms
LEAD CHANNEL (with channel select in)
Nominal Input Level: -80 dBV, -1 mV RMS
Minimum Input Level: 92 dBV. /025 mV RMS
CLEAN CHANNEL: (with channel select out)
Nominal Input Level: +34 dBV, 20 mV RMS
Minimum Input Level: -50 dBV, 3 mV RMS
Maximum Input Level: 0 dBV, 1.0 V RMS
(Subtract 16 dB with Crunch switch in)
Preamp Low Gain Input: (-6 dB pad)
Impedance: High Z 44K ohms
All levels are increased by +6 dB
Effects Send:
Load Impedance: 47K ohms or grater
Nominal Output: -10 dBV, 300 mV RMS
Effects Return:
Impedance: Very high Z, 470K ohms
Designed Level: -10 dBV, 300 mV RMS
Preamp Output:
Load Impedance: 47K ohms or grater
Nominal Output: +10 dBV, 3 V RMS
Remote Footswitch:
Special 2 button unit with LED indicators (supplied)
Channel select & Effects loop bypass
System Hum & Noise @ Nominal Level:
(Clean channel)
120 Hz to 20 kHz unweighted)
Greater than 74 dB below rated power
Equalization:
Custom Low, Mid & High passive type EQ Push
Bright, (Rhythm channel only)
+6 dB @ 2 kHz
Push Crunch (Rhythm channel only) Increases gain
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
www.peavey.com
Warranty registration and information for U.S. customers available online at
www.peavey.com/warranty
or use the QR tag below
Features and specications subject to change without notice.
Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278
FCC/ICES Compl
iancy Statement
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s). Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
that may cause undesired operation.
Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2) I’utilisateur de I’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the
equipment.
Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.
•
Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
T
he equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
