Sida 1/16
www.peavey.com
Elements® Pole
Mounting System
Installation Manual
Elements
®
Pole Mounting System
Installation Manual

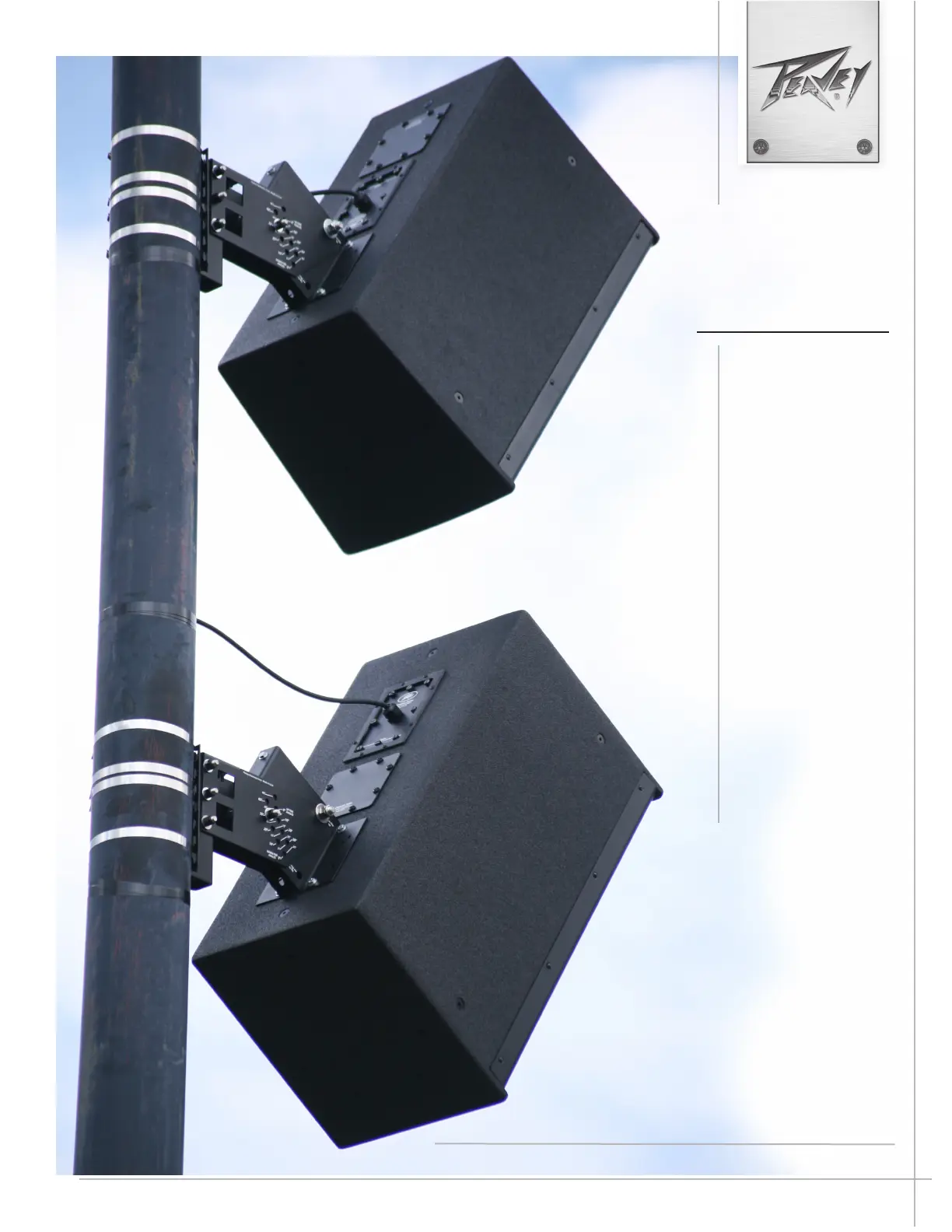

The Elements® Pole Mounting System is a simple and straightforward pole mounting solution
for the Peavey® Elements Series speaker. With its customizable angle adjustment, it can support
installations in a wide range of locations.
INSTALLER IS SOLELY RESPONSIBLE FOR THE FOLLOWING:
• Complying with all applicable building codes (local and/or national)
• Making sure that the Elements Pole Mounting System is appropriate for the specified install.
• Using only parts supplied by Peavey.
• Ensuring the safe installation of Pole Mounting System
CAUTION: Before attempting to suspend these speakers, consult a certified structural engineer. The
speaker can fall from improper suspension, resulting in serious injury and property damage.
CUSTOMER SUPPORT
Thorough reading of the Installation manual is necessary for a successful and safe installation.
Any additional assistance can be obtained by contacting our Customer Service team
toll-free at 877-732-8391or via email at customerservice@peavey.com.
PARTS DEPARTMENT
To order replacement parts, please call us at (800) 752-7896 (toll free in the US) or 601-483-5365.
The Parts Department extension is 1386. Our business hours are 8 a.m. - 5 p.m. Central Time,
Monday - Friday. Hold times may be long during peak hours. If you have to wait on hold, feel
free to leave a name and number and one of our Parts Sales Coordinators will contact you as
soon as possible. Payment can be made via credit card, or we can ship COD to a place of business
only.
TOOLS REQUIRED FOR ASSEMBLY
• Wrenches: 7/16, 9/16, ¾ socket driver, box-end or crescent wrench
• Flathead Screw driver
• Pliers used to pull cable tie tight against pole
• Sturdy platform or ladder – for safety, be sure to have a second person to help hold the speaker
during installation.
Elements
®
Pole Mounting System
Installation Manual
COMPONENT LIST
• Stainless steel cable straps Part number: 30903757 (x 4)
• Speaker Mount assembly
• Pole Mount assembly
• Speaker to Speaker Mount bolts with washers
Part Numbers:
Bolt: 31502137 (x 4)
Washer: 31502132 (x 4)
• Pole Mount assembly to Speaker Mount assembly bolts
Part numbers:
Bolt: 31502138 (x 3)
Nut: 31502134 (x 3)
Washer: 31502130 (x 6)
Spacers: 30908003 (x 2)
