Sida 1/4
PHR860II
Ceiling Speaker
Frame Construction Ceiling Installation
PHR860II
Ceiling Speaker
Frequency Response ..............70Hz - 13.2kHz,-10dB
Power Handling ............... 90W @8Ω......
Nominal Sensitivity.............. 90dB ±3dB ,1m,1W..
Transformer Taps.............. 50W, 25W, 12.5W, 6.25W, 3.1W, ......
70V capable(100V)
Component 8" woofer, PP cone .............................. and rubber
surround 0.875" soft dome tweeter
Crossover Frequency 4kHz..............
Outside Dimensions 275mm x 222mm...............
Cutout Diameter 243mm.....................
Weight .3.17kg/7lbs......................................
PEAVEY PHR860II Ceiling Speaker Specifications
2
Recommended filter type and point: 24 dB/oct.
Linkwitz-Riley at 70 Hz.
1
Take the cutout template from the packaging box and punch out
along the larger perforated circle. Place the cutout template
against the bottom of the ceiling and trace the inside of it.
Carefully cut out the ceiling material along the circle.
9.56"
243mm
2
Remove the top cover to contact the 4-position screw-terminal
barrier strip on the back of the speaker. Connect the speaker
wire to the 4-position screw-terminal barrier strip . Install the
catheter and secure the connection.
1
2
Set the rotary tap selector switch. Replace the top cover and
tighten the screws. connector a secondary support line from the
seismic tab to a secure support point.
3
Parallel Hookup Wiring Diagram
ꜜ
Cover
ꜜ
To speaker
ꜜ
From
Power Amplifier
Enlarged to
Show Detail
5
5
Loosen the four screws on the front baffle (counter clockwise)
1/2 turn. Then tighten the screws (clockwise) until the dog legs
clamp the speaker to the ceiling. Then install the speaker grille.
Do not over tighten screws.CAUTION
Adjusting the tap selector
4
Remove the grille,
hole in the ceiling.
insertthe speaker through the bottom of the
Support
Line
power
amplifier
-
+
To speakers
Speaker1 Speaker2 Speaker3
LOOP
THRU
IN
IN LOOP
THRU
LOOP
IN
IN LOOP LOOP
IN
IN LOOP
3
4
3

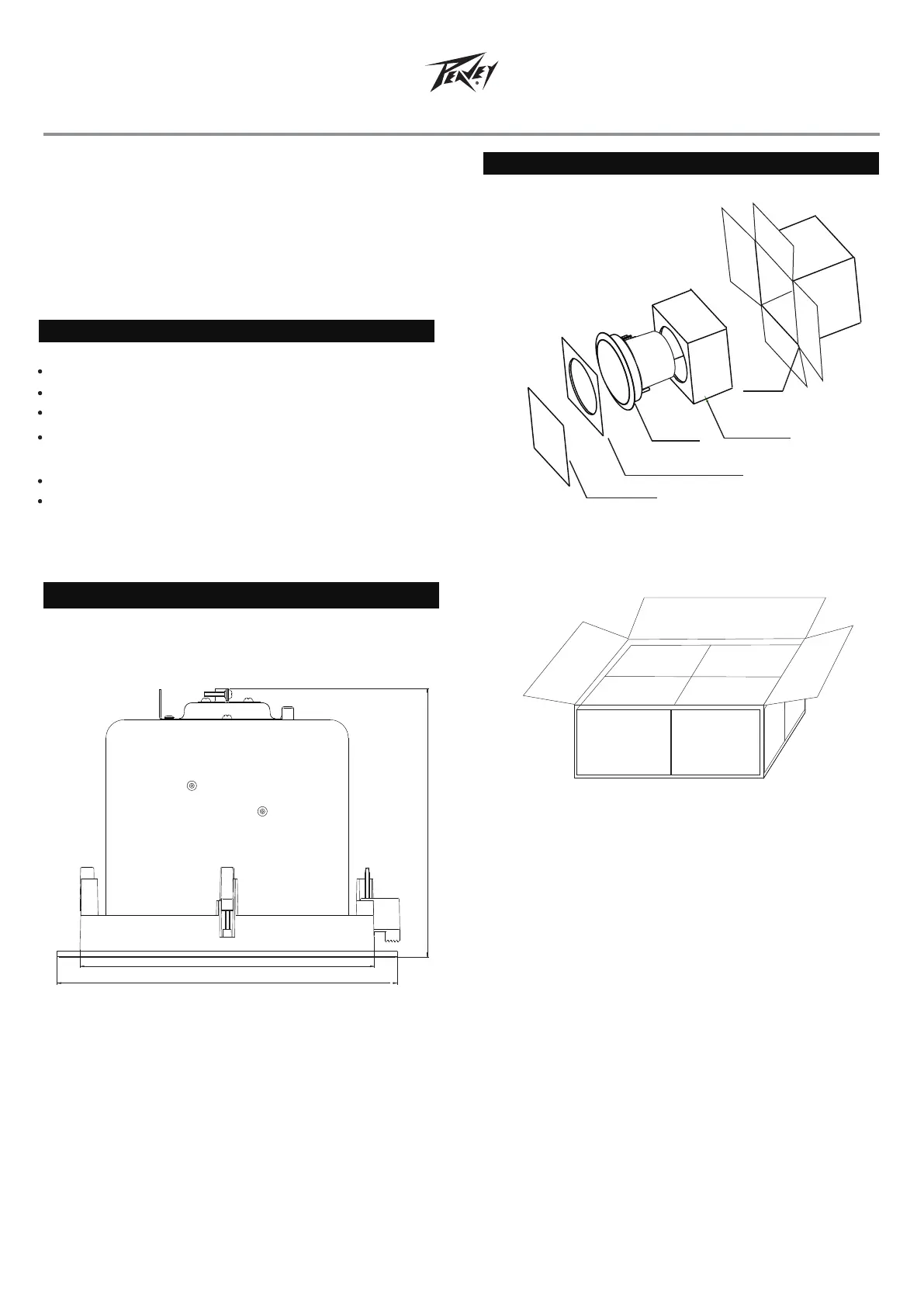

Product size diagram:
PHR860II
Ceiling Speaker
PACKAGING:
An carton boxed 4 units
Carton
Speaker
Paper Card
Opening paper cover
Paper Cover
Ultrathin fireproof cover design.
Magnetic suction type grille, easy to disassemble.
Integrated design used in various places.
Wide dynamic range can keep in large volume output without
distortion.
The logo can rotate 360 degrees.
With steel fire dome.
FEATURES:
The PHR860II tweeter can be aimed toward a desired listening
area, so the clarity of the announcements or music can be
improved. Carefully but firmly grasp the tweeter flange and aim
the tweeter in the desired angle.
DO NOT APPLY EXCESSIVE FORCE, OR THE TWEETER
MOUNTING POST MIGHT GET DAMAGED.
222
Unit: mm
243
275
