Sida 1/21
www.peavey.com

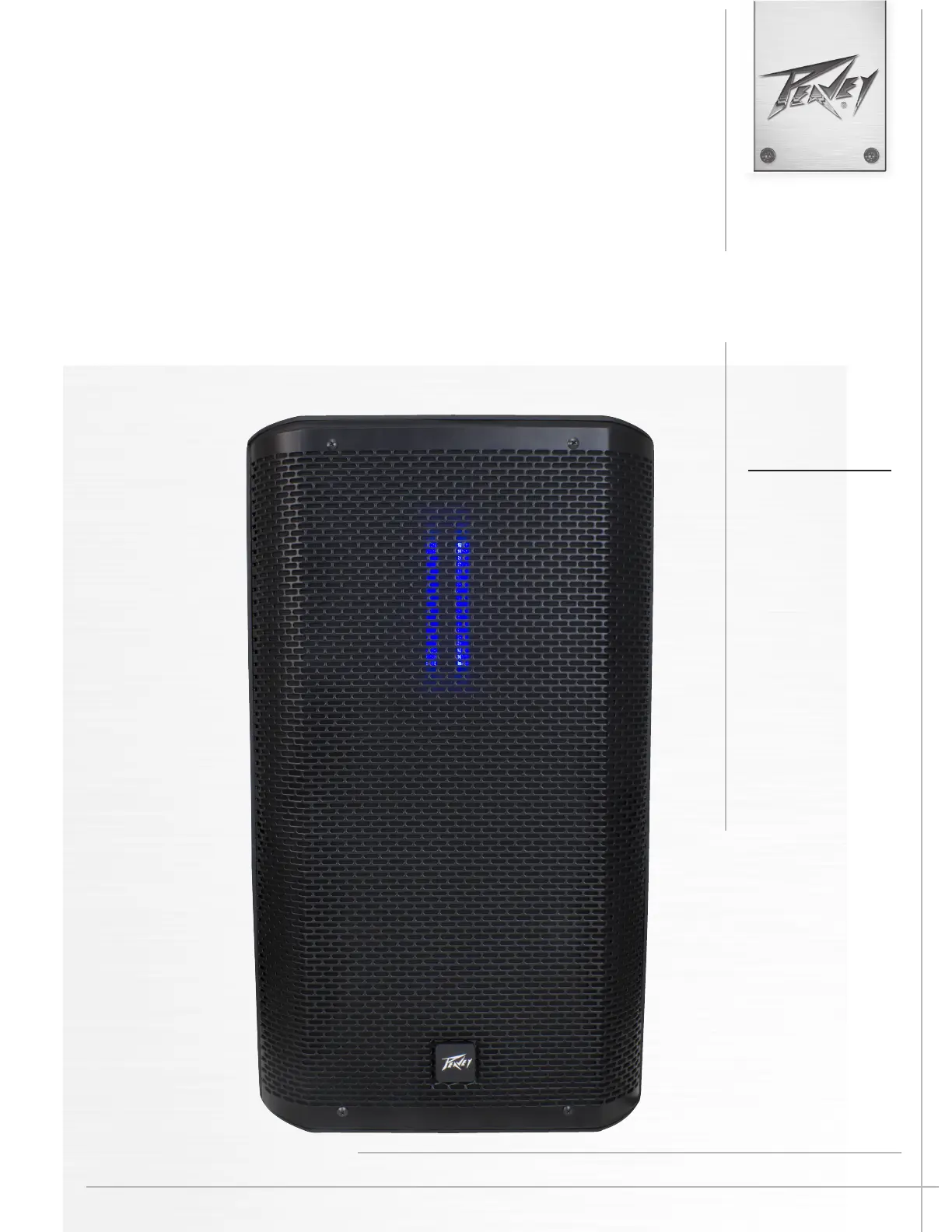

RBN™ 110
Powered Speaker System
Operating
Manual

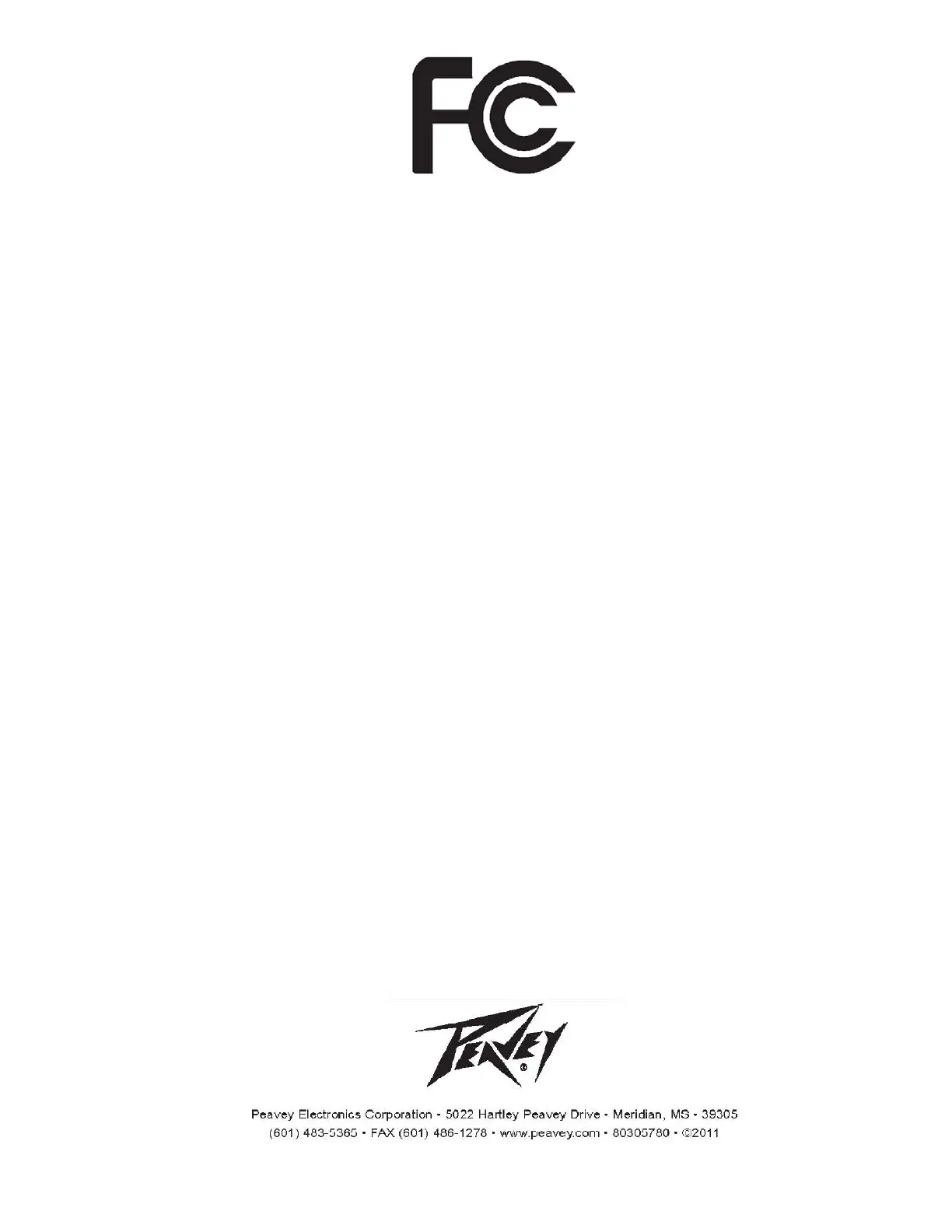

FCC/ICESCompliancyStatement
This Standard(s). device complies with Part 15 of the RSS FCC rules and Industry Canada license‐ exempt Operation is
subject following harmful interference, andtothe twoconditions:(1)thisdevicemaynotcause (2)thisdevicemust
accept any interference may operation. received, that cause undesired
Le conforme deprésent est appareil aux CNR Canada d’lndustrie applicables aux appareils radio exempts
licence. est autoriséeL’exploitation aux deux conditions suivantes: (1) I’appareil ne dedoit pas produire
brouillage, (2) I’utilisateur I’appareil brouillage leet de doitacceptertout radioélectriquesubi,mêmesi
brouillage susceptible fonctionnement.est d’encompromettrele
Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the
user’s authority to use the equipment.
Note – This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Rules. limits to provide reasonable protection against Part15oftheFCC These aredesigned
harmful in ainterference residentialinstallation. generates, uses, and radiate radioThisequipment can
frequency energy and, if installed and in accordance with instructions, harmful not used the maycause
interference to radio However, is communications. there no guarantee that interference will not occur in a
particularinstallation.If this equipment does cause harmful interference to radio or television reception,
which determined turning equipment and is to andcanbe by the off on,theuser encouraged try correctthe
interference followingbyoneormoreofthe measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
Introduction
ank you for purchasing the Peavey® RBN™110 powered speaker system, designed specically for the profes-
sional. e RBN™110 features a bi-amped power section that provides 550 watts of peak power for the woof-
er and 500 watts of peak power for the ribbon driver tweeter, both with DDT™ compression. Featuring a 10”
high-performance woofer and the RD™2.6 true ribbon driver, the RBN™110 provides two independent mixed
input channels, each with Gain control and a mic/line gain switch, and each channel features a combo jack with
1/4” TRS & female XLR and a balanced input with volume control. A DSP based crossover and processor pro-
vides extreme exibility for the user faced with common location acoustics conditions.
Features
* Bi-amplied powered speaker system
* 550 watts peak available woofer power, 500 watts peak available tweeter power
* Both power amps have DDT compression
* 10” High Performance woofer
* Peavey RD™ 2.6 ribbon driver tweeter on a low-coloration waveguide
* Peak SPL up to 125 dB with music!
* DSP based crossover, limiting and EQ
* EQ presets available via rotary encoder pushbutton select
* 9-band EQ and other system settings accessed via rotary encoder pushbutton select
* Dynamic bass boost function
* Up to 150 mS of architectural delay
* Fan cooled for maximum reliability
* Two independent mixed input channels, with Gain control and mic/line gain switch
* Each channel features a combo jack with 1/4” TRS & female XLR balanced input
* Input 2 has a 3.5 mm (1/8”) stereo media input jack
* Output connectors are male XLR
* One full handle on the right side, full handle on top rear
* Full length perforated steel grille with cloth backing
* Rugged polypropylene molded enclosure
* Pole mount built-in
* Low weight – Only 37 pounds!
* Flying point insert groups on top and side mate with VM™ 70 mounting bracket
Description
e Peavey® RBN™110 is a powered, bi-amplied, two-way speaker system engineered to provide very high
levels of performance in a compact powered loudspeaker. is two-way powered system is comprised of a 550
W peak switching power amplier driving a 10” High Performance woofer. e RD™2.6 true ribbon tweeter is
driven by a 500 W peak switching power amplier, and is coupled to a low coloration waveguide with a cover-
age pattern of 110° horizontal by 30° vertical.
e RBN™110 is capable of up to 125 dB peak SPL. e enclosure utilizes tough high-performance plastic in an
injection-molded modied-trapezoidal form, with a full-length coated perforated steel grille to oer an attrac-
tive yet durable powered speaker system. e cabinet and grille are black.
ENGLISH
