Dimensions (H x W x D):

Front: 43.50 in. x 16.75 in. x 16.85 in.

1105 mm x 426 mm x 428 mm

Rear Width: 11.58” – 294 mm

Net Weight:

87 Lbs. (39.5 kg)

* Specifications subject to change without notice.

Logo referenced in Directive 2002/96/EC Annex IV

(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and

is applied only to equipment manufactured after

13 August 2005

www.peavey.com

Warranty registration and information for U.S. customers available online at

www.peavey.com/warranty

or use the QR tag below

Features and specications subject to change without notice.

Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278

www.peavey.com

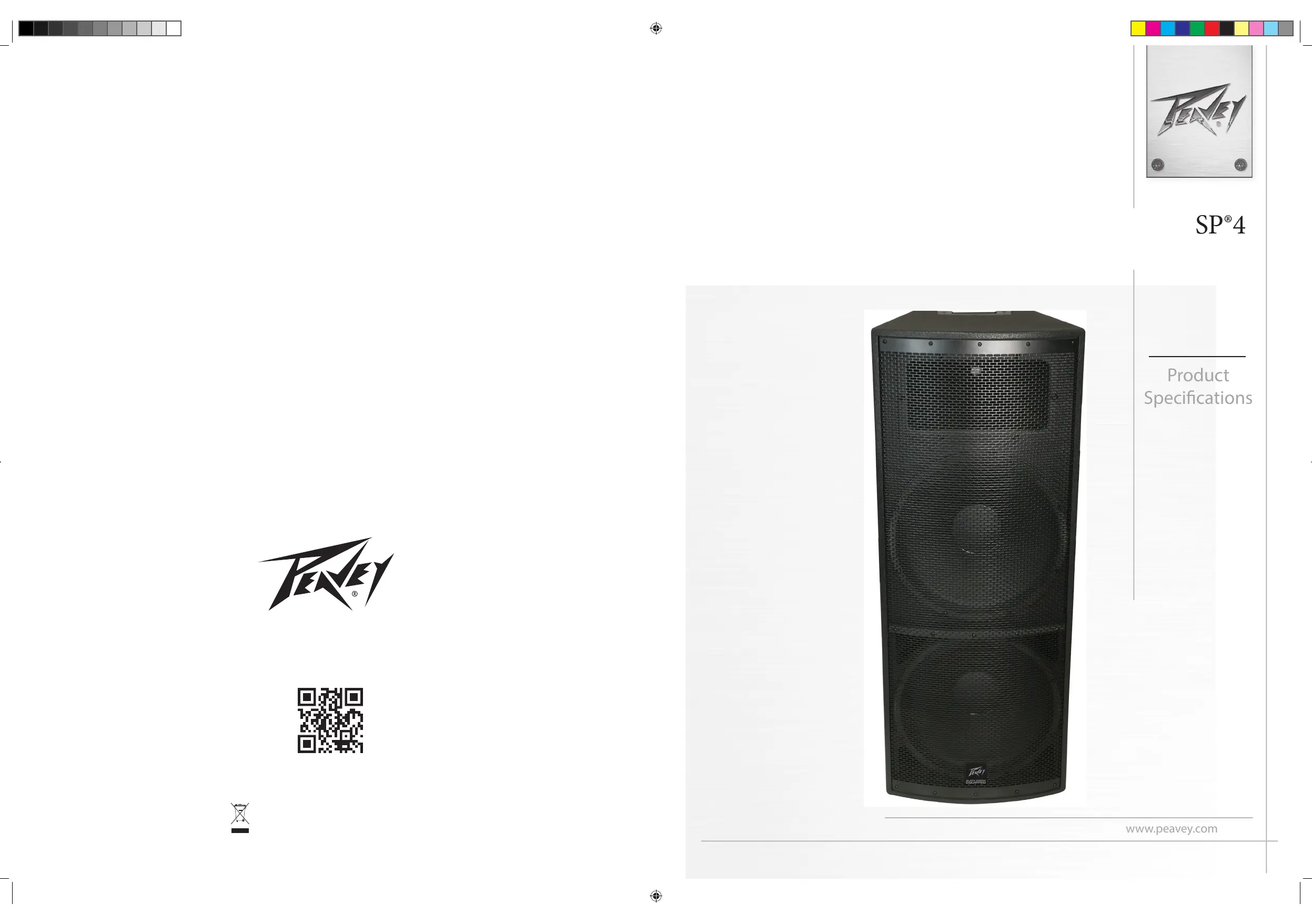

SP®4

Product

Specications

Acr16E.tmp 1Acr16E.tmp 1 2015-11-10 16:06:202015-11-10 16:06:20

Acr16E.tmp 2Acr16E.tmp 2 2015-11-10 16:06:202015-11-10 16:06:20

ENGLISH

SP®4

The SP 4 features the Peavey Quadratic Throat Waveguide with an RX™ 22CT compression driver loaded onto the constant directivity

waveguide. The SP 4 is a quasi-three way speaker system comprised of two of the 15” Black Widow® BWX series woofer, now with a

long throw voice coil.

The SP 4 has a trapezoidal-shaped enclosure, which reduces the buildup of standing waves inside the enclosure to minimize mid-bass

and mid-range coloration. The enclosure is constructed of plywood augmented with internal braces, Coated with a textured black

polyurethane finish. A full-length, wrap-around perforated steel grille protects the front of the enclosure. Multiple fly points are

provided to allow overhead rigging.

The quasi-three way system consists of the following driver components: two 15” Black Widow® BWX series woofer with a long throw

voice coil. The woofers are each capable of over 500 Watts of continuous power handling (AES Std 2-1984). The high frequencies are

handled by a 2” RX™22CT titanium diaphragm compression driver. This excellent driver is coupled to a Quadratic Throat Constant

Directivity Waveguide (U.S. Patent #6,059,069) to provide smooth, even response, low distortion and good high frequency dispersion.

This horn has an asymmetrical vertical polar response, aiming the main energy lobe down 10 degrees so it reaches the audience

instead of over their heads. This reduces ceiling reflections and ensures greater clarity and gain before feedback.

Full-range input connection to the system is made via two 1/4” phone jacks and one four-pin twist lock connector in parallel. Bi-amp

input is via a swappable plug and headers inside the input cup. The internal passive crossover features the Peavey-exclusive Sound

Guard protection circuit for the tweeter and an advanced topology crossover with high-performance components to provide high

power handling and reliability. Sound Guard provides long- and medium-term driver overload protection without impairing musical

transients or dynamics on either the mid-range or the tweeter when the system is used full range or when it is bi-amped.

The crossover provides driver roll-off and protection as well as driver EQ for the woofer and horn for a clean, clear and smooth

response. High-quality, reliable crossover components include polypropylene capacitors and high-current inductors. The optimal

integration of the crossover with the selected drivers results in a smooth frequency response from 69 Hz to 17 kHz.

Despite its compact dimensions, this system can produce very high sound levels and handle 2000 watts program power, resulting in

high articulation and long-term reliability.

FEATURES:

• Quasi-three way, full-range/bi-ampable Sound Reinforcement system

• Two 15” BWX Black Widow® 4” diameter VC woofers

• RX™22CT compression driver

• 2000 watts program, 4000 watts peak

• Patented Quadratic Throat Waveguide™ technology

• Asymmetrical horn aims the sound down 10° (at the audience, not over their heads)

• Sound Guard™ III tweeter protection

• Full-range inputs include one four-pin twist lock connector and two 1/4” phone jacks

• Bi-amp input via swappable headers inside input cup, through four-pin, twist lock connector.

• Trapezoidal plywood enclosure

• Multiple fly points

• Very small profile for a double 15” two-way speaker system

Flying/Rigging Information

Caution: Before attempting to suspend this speaker, consult a certified structural engineer. Speaker can fall from improper

suspension, resulting in serious injury and property damage. Do not suspend or mount any other product or device from this

enclosure! Maximum enclosure angle 30°. Use only the correct mating hardware. All associated rigging is the responsibility of

others.
