Sida 1/16

www.peavey.com

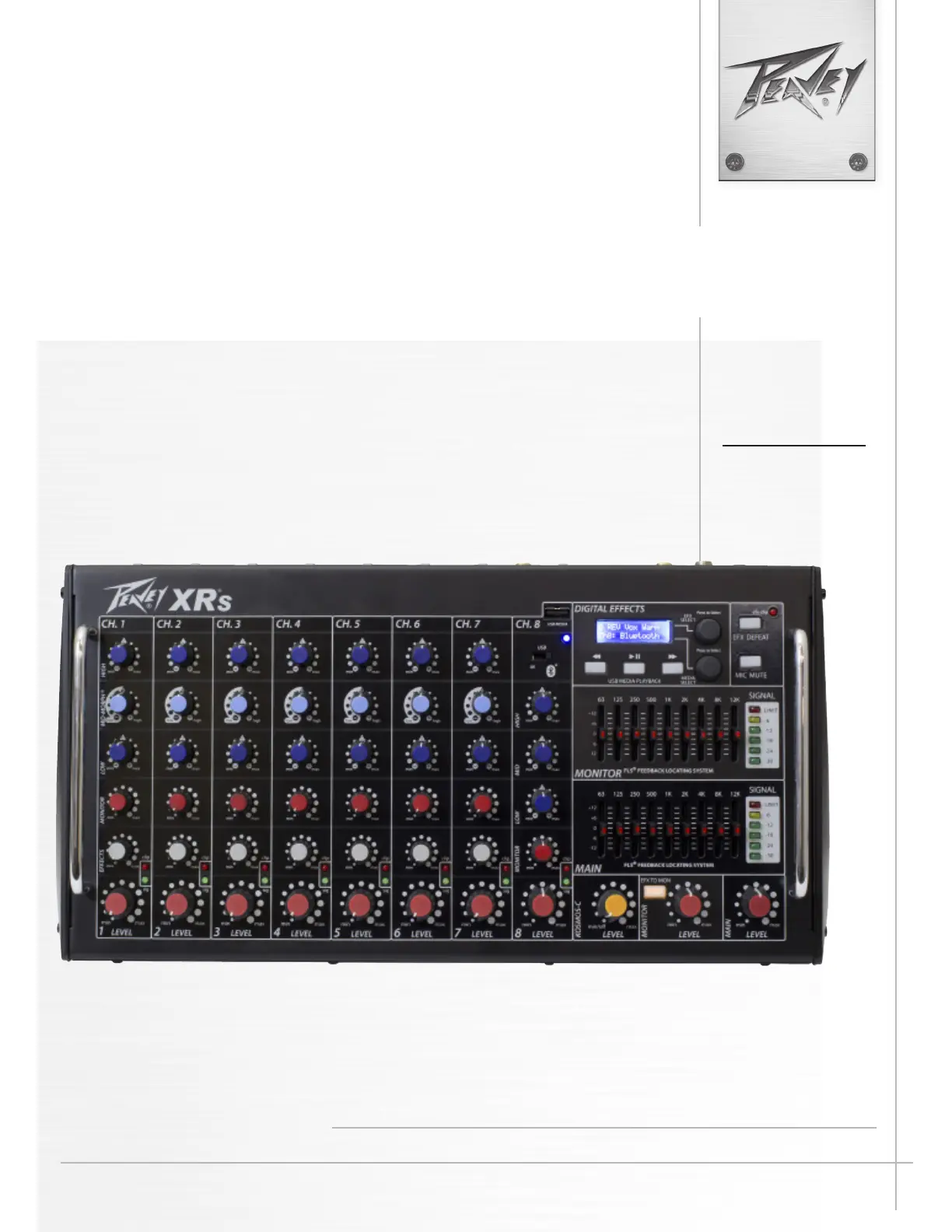

XR® s

Powered Mixer

Operating

Manual

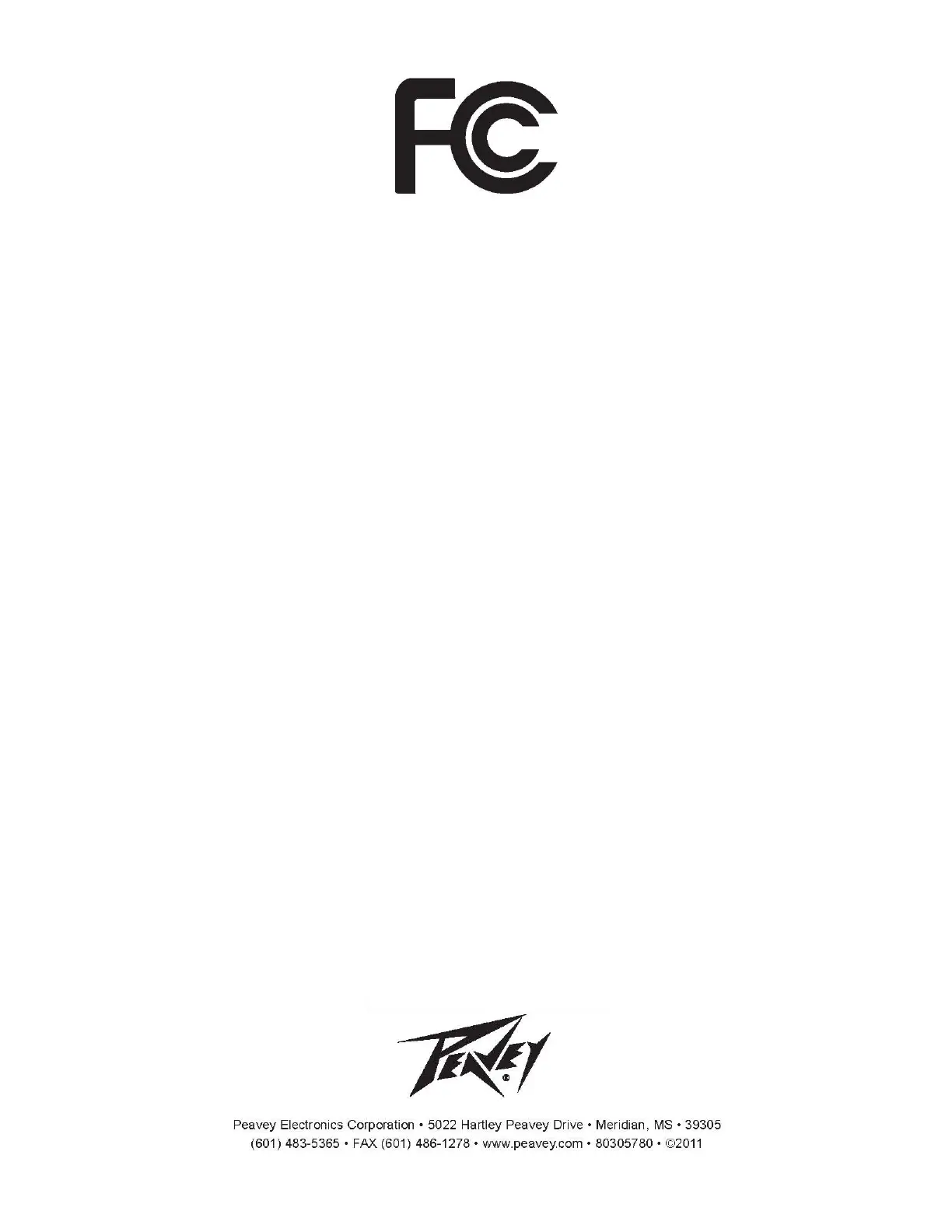

FCC/ICES Compliancy Statement

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s).

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, that may cause undesired operation.

Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de

brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void

the user’s authority to use the equipment.

Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm-

ful interference in a residential installation. This equipment generates, uses, and can radiate radio frequen-

cy energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try and correct the interfer-

ence by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution

The equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment.

ENGLISH

XR®s

Powered Mixer

Congratulations on the purchase of your new XR®s powered mixer from Peavey®. e Peavey XRs is a revolutionary all in one powered

mixer. Everything a musician or DJ needs providing up to eight combination XLR and ¼” inputs using Peavey’s award winning mic

preamps and dual 500 Watt ampliers for crystal clear audio reproduction. e Peavey XRs uses exclusive features like Mid-Morph to

accurately improve tone and clarity of vocals. Feedback is quickly and easily identied and removed with Peavey’s dual 9-band graphic

EQ’s combined with our patented and revolutionary FLS Feedback Locating System. e XRs is equipped with Peavey’s exclusive

Kosmos-C technology, which drastically enhances the low end of the audio spectrum. Built-in 24-bit digital eects compliment the

already feature packed unit.

Before you begin using your powered mixer it is very important to ensure that the product has the proper AC voltage

supplied. You can nd the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit.

FEATURES:

• FLS® Feedback Locating System

• Mid-Morph® EQ

• Kosmos®-C

• On-board 24- bit digital effects with mute button

• Digital effects parameter control

• Combination XLR and 1/4” input jacks

• Dual 9-Band Graphic EQ with FLS

• Master Mic Mute

• Footswitchable effects defeat

• Global 48 Volt Phantom Power

• RCA, 1/8” Media input

• Bluetooth® Streaming Audio In

• Selectable Main or Monitor dual power section

• RCA Record outputs

• LED Meter bridge

• Power amp sub-sonic filter

• Clip and signal presence LED indicators

• Main and Monitor 1/4” line level outputs

• DDT™ Speaker protection circuit

VENTILATION: For proper ventilation, allow 6” (15.5 cm) clearance on all sides.
