Peerless-AV ACC-MBC Bruksanvisning
Peerless-AV
Platt panelstöd
ACC-MBC
Läs gratis den bruksanvisning för Peerless-AV ACC-MBC (8 sidor) i kategorin Platt panelstöd. Guiden har ansetts hjälpsam av 11 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 6 recensioner. Har du en fråga om Peerless-AV ACC-MBC eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/8
12015-02-10 #:126-9049
300 lb
(136 kg)
MAX
ACC-MBC
40" - 48"
(102 - 122 cm)
Compatible with:
ENG DS-MBY942L-2X1
DS-MBY942L-3X1
DS-MBY947-2X1
DS-MBY947-3X1
22015-02-10 #:126-9049
ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is
included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface
will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not
overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity.
Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be
careful not to pinch fi ngers when operating the mount. For support please call customer care at 1-800-865-2112.
WARNING
Symbols
ENG
WARNING
ENG
#
Skip to step.
ENG
x3
Screws must get at least three
full turns and fi t snug.
ENG
Tools Needed for Assembly.ENG
1
2
ENG To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
+1/2
4
3
Do not overtighten screws.
ENG
7/16"
(11mm)
3/8"
(10mm)
32015-02-10 #:126-9049

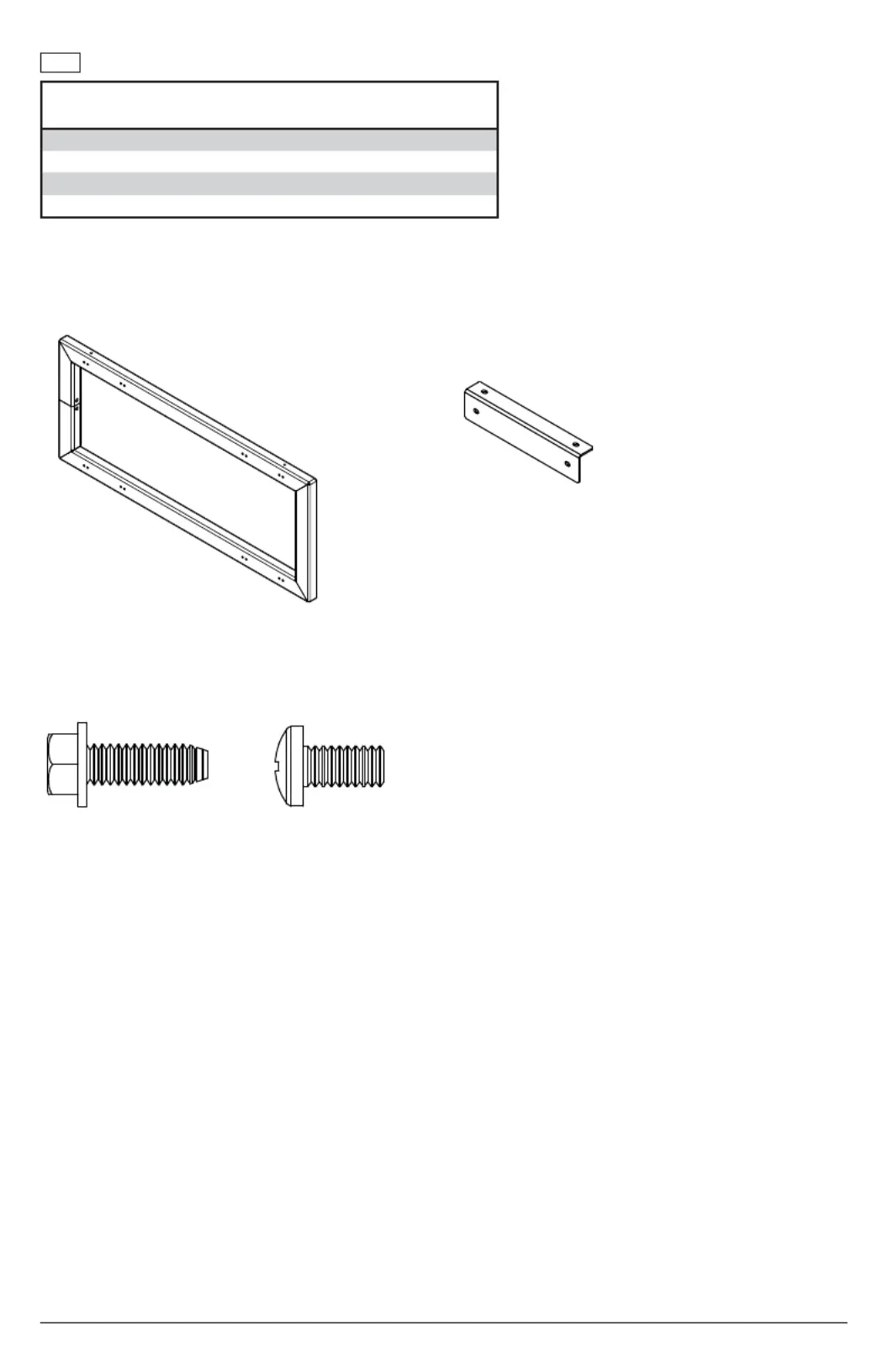

Parts (Before beginning, make sure you have all parts shown below).
ENG
Parts List
Part #Description Qty
AACC frame 1 146-1212
Bsupport bracket 4 146-1053
Chex head screw 24 520-1321
D1/4-20 x 1/2" phillips screw 2 510-9108
D (2)
C (24)
hex head screw
support bracket
1/4-20 x 1/2"
ACC frame
A B
