PRODUCT SPECIFICATION
camera solutions
C4066 / New 2-26-20
Sarix
®
IMP Indoor and Environmental Domes
UP TO 5 MP, H.265, H.264, WDR, DAY/NIGHT IP DOMES
Product Features
• H.265, H.264 Main, High, MJPEG video encoding
• Up to 5 MP resolution at 30 frames per second
• Up to 60 frames per second (ips) at 4 MP for 5 MP cameras
• Autofocus motorized remote zoom lens
• Integrated adaptive IR illumination up to 50 m (some models)
• Operating temperature up to 60°C (140°F) (environmental models)
• Micro SDHC and SDXC card up to 2 TB addressable, 128 GB testable
• Pelco Pro Analytics Suite including Adaptive Motion, Object
Counting, Motion Detection, Camera Sabotage
• Power over Ethernet (PoE or PoE+), 24 VAC, 12 VDC
• Pelco Smart Compression Technology
• All models vandal resistant to IK10
• Compatible with Pelco and third-party video management systems
• ONVIF Profile S, Profile G, Profile Q, and Profile T conformant
• Full 3-year warranty
Sarix Professional Range
Powerful, versatile, and affordable, the Sarix
®
Professional (P)
range cameras pack the most popular features and functionality of
Sarix technology into a wide range of indoor and outdoor options,
including bullet cameras and domes. There is also a vandal resistant
wedge camera and a box camera. Mix and match the performance
options and form factor you need for almost any lighting condition,
environment, and application.

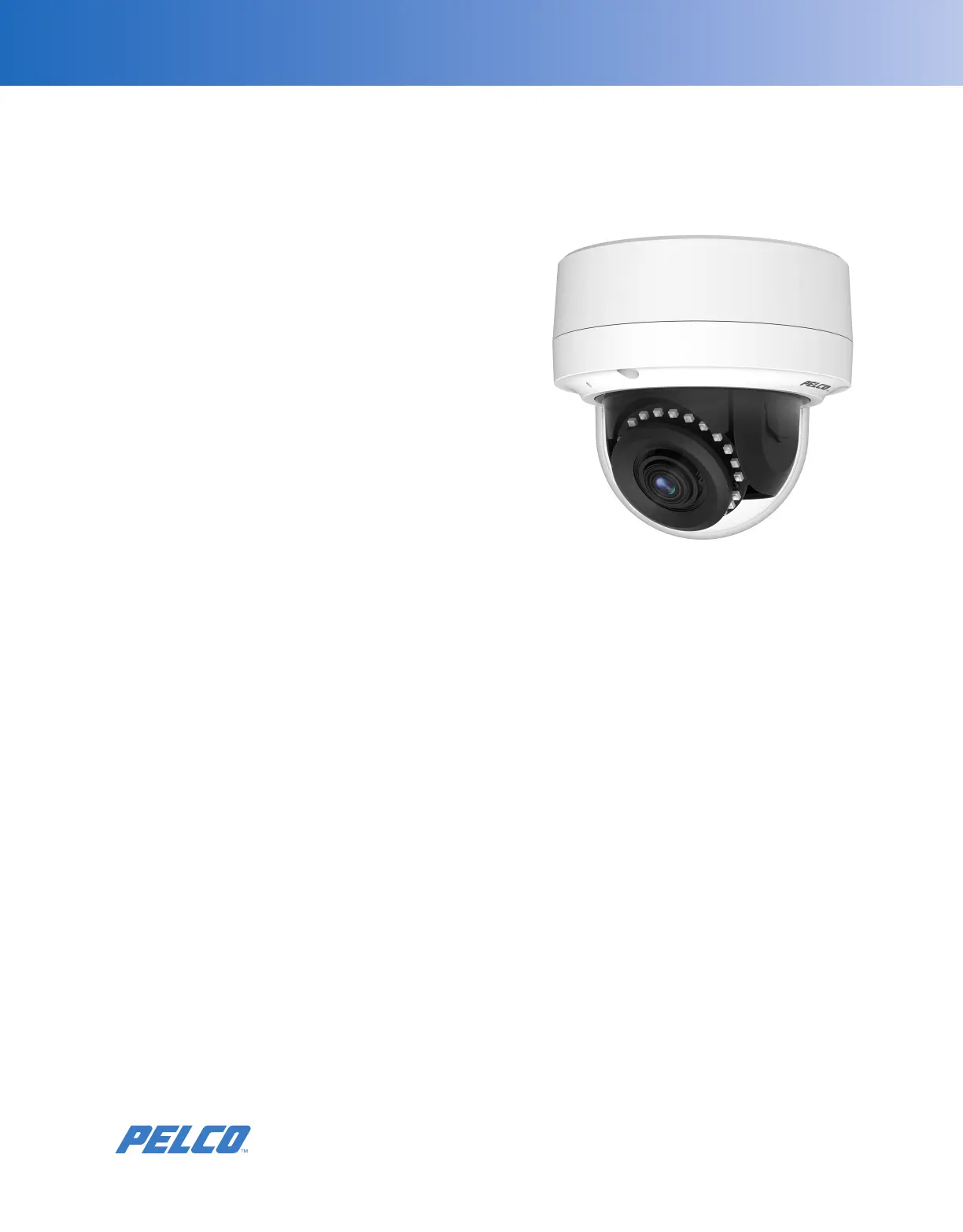

IMP Dome Series Camera
Within the Sarix Professional range, the Sarix IMP Series dome
cameras feature a remote zoom lens for wide angle or long range
surveillance needs. Autofocus capability ensures the camera can be
automatically refocused when needed. Additionally, the Sarix IMP
Series features advanced color science and true WDR, optional
adaptive IR illumination for increased visibility in difficult lighting
conditions. IK10 vandal resistant on both indoor and outdoor domes
and IP66/IP67 on the outdoor dome ensures enough robustness for
installation in challenging environments.
Video
Sarix Professional provides options for three simultaneous video
streams. The three streams can be compressed with efficient H.265,
H.264 High or Main profiles, or MJPEG formats. The streams can be
configured to a variety of frame rates and variable bit rates to
optimize image quality with bandwidth and storage efficiency. Pelco
Smart Compression is available on both H.264 and H.265, minimizing
storage and bandwidth utilization.
Edge Storage
Sarix Professional range cameras feature onboard edge storage
with a micro SDHC and SDXC card. Video clips of varying lengths can
be stored to the card upon alarm, or video can be written
continuously to the SD card in the case of network outage. Video can
be retrieved from the card through the FTP protocol or by using an
ONVIF Profile G compliant client.
Open and Integrated
Sarix Professional range cameras seamlessly connect to Pelco
video management systems such as VideoXpert
™
, VXToolbox,
Endura
®
version 2.0 (or later), and Digital Sentry
®
version 7.3 (or
later). Sarix Professional range cameras integrate with major
third-party systems through the open Pelco API or the ONVIF Profile
S, Profile G, Profile Q, and Profile T standards.
Standard Web Interface
Pelco cameras use a standard Web browser interface for easy
remote setup and administration. Controls are optimized for
convenient one-step camera configuration for features including
color, exposure, flicker control, backlight compensation, and
streaming.
TECHNICAL SPECIFICATIONS
BACK BOX FEATURES
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
Indoor Surface Mount
• Aluminum Body and Trim Ring; Polycarbonate Bubble
• RAL 9003
• IK10 (20J) Impact Resistance
• IEEE802.3af PoE, 18 ~ 32 VAC, 12 +/-10% VDC
• IR Illumination 50 m
• IP 64 Ingress Protection
Environmental Surface Mount
• Aluminum Body and Trim Ring; Polycarbonate Bubble
• RAL 9003
• Type 4X, When Used with IMP3EBAP
• IK10 (20J) Impact Resistance
• IEEE802.3at PoE, 18 ~ 32 VAC, 12 +/-10% VDC
• IR Illumination 50 Meters
• IP66, IP67 Ingress Protection
12.41
(4.88)
8.73
(3.44)
6.19
(2.44)
13.50
(5.31)
6.21
(2.45)
3.67
(1.44)
12.41
(4.88)
8.73
(3.44)
6.19
(2.44)
13.50
(5.31)
6.21
(2.45)
3.67
(1.44)
9003
18.0
(7.09)
12.0
(4.72)
8.1
(3.19)
3.5
(1.38)
11.15
(4.39)
14.0
(5.5)
14.0
(5.5)
4.375
(1.72)
4.15
(1.63)
2.85
(1.12)
11. 0
(4.33)
2.3
(0.9)
4.1
(1.61)
4.1
(1.61)
2.3
(0.9)
0.3
(0.12)
Ø 3.0
(1.18)
M4
Ø 0.43
(0.170)
17.95
(7.07)
16.3
(6.41)
6.0
(2.4)
6.34
(2.50)
6.79
(2.67)
19.1
(7.52)
3.43
(1.35)
3.0
(1.18)
2.3
(0.9)
4.4
(1.73)
4.15
(1.63)
8.15
(3.21)
21.59
(8.50)
M4
M3
M4
NPT 1 1/2"-11.5
15.07
(5.93)
8.30
(3.27)
Ø 4.4
(1.73)
5.0
(1.96)
10.01
(3.98)
8.3
(3.27)
4.6
(1.81)
IMP3PMB-1I WALL MOUNT BRACKET
IMP3PM-1E PENDANT MOUNT
IMP3ICM-1E IN-CEILING BRACKET
Color: RAL 9003
Color: RAL 9003
Color: RAL 9003
Ø 22.21
(8.75)
ØA
0.73
(0.29)
1.45
(0.57)
IMP3ICM-1E CEILING PLATE
Color: RAL 9003
