EQ9.0
User Manual
EQ9.0
USER MANUAL

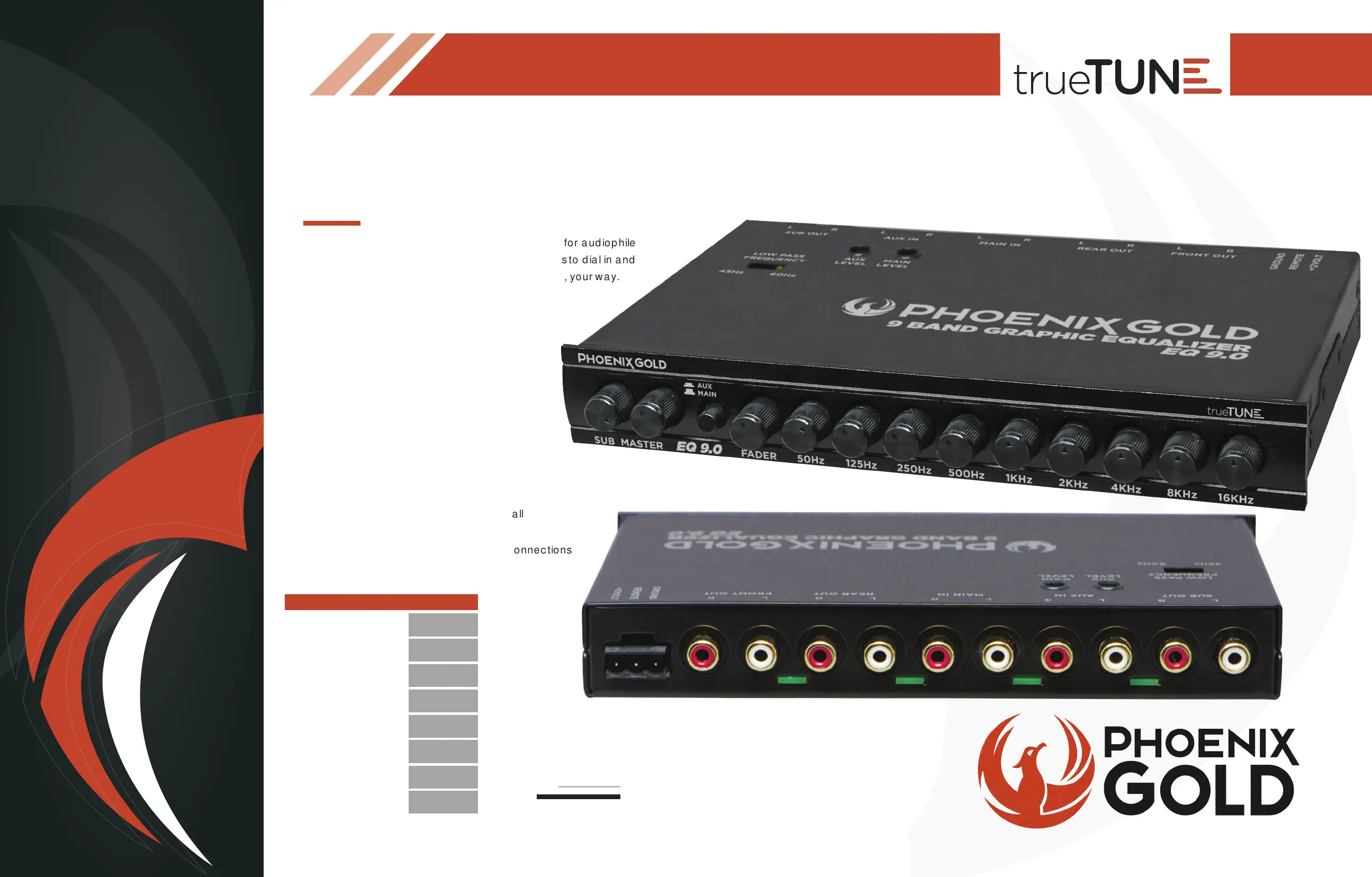

EQ9.0, 9 band graphic equalizer. Precision tuning for audiophile
perfectionists. EQ9.0 gives you 9 bands/frequencies to dial in and
tweak your car audio system, delivering your music, your way.
EQ9.0
//////////
SPECIFICATIONS
- Low output impedance
- High input impedance
- Flat frequency response
- High output voltages
- Excellent signal to noise ratio
- Panel mount RCAs
- Poly caps and low tolerance resistors in all
signal path circuits
- Removable terminal block for all input connections
FEATURES:
featuring:
0.01%
13V
9V
20KΩ
50Ω
>94dB
Maximum Input Voltage
Input Impedance
Maximum Output Voltage
THD
Output Impedance
Signal to Noise
±10dB
Band Adjustment
12dB
Crossover Slope (Per Octave)

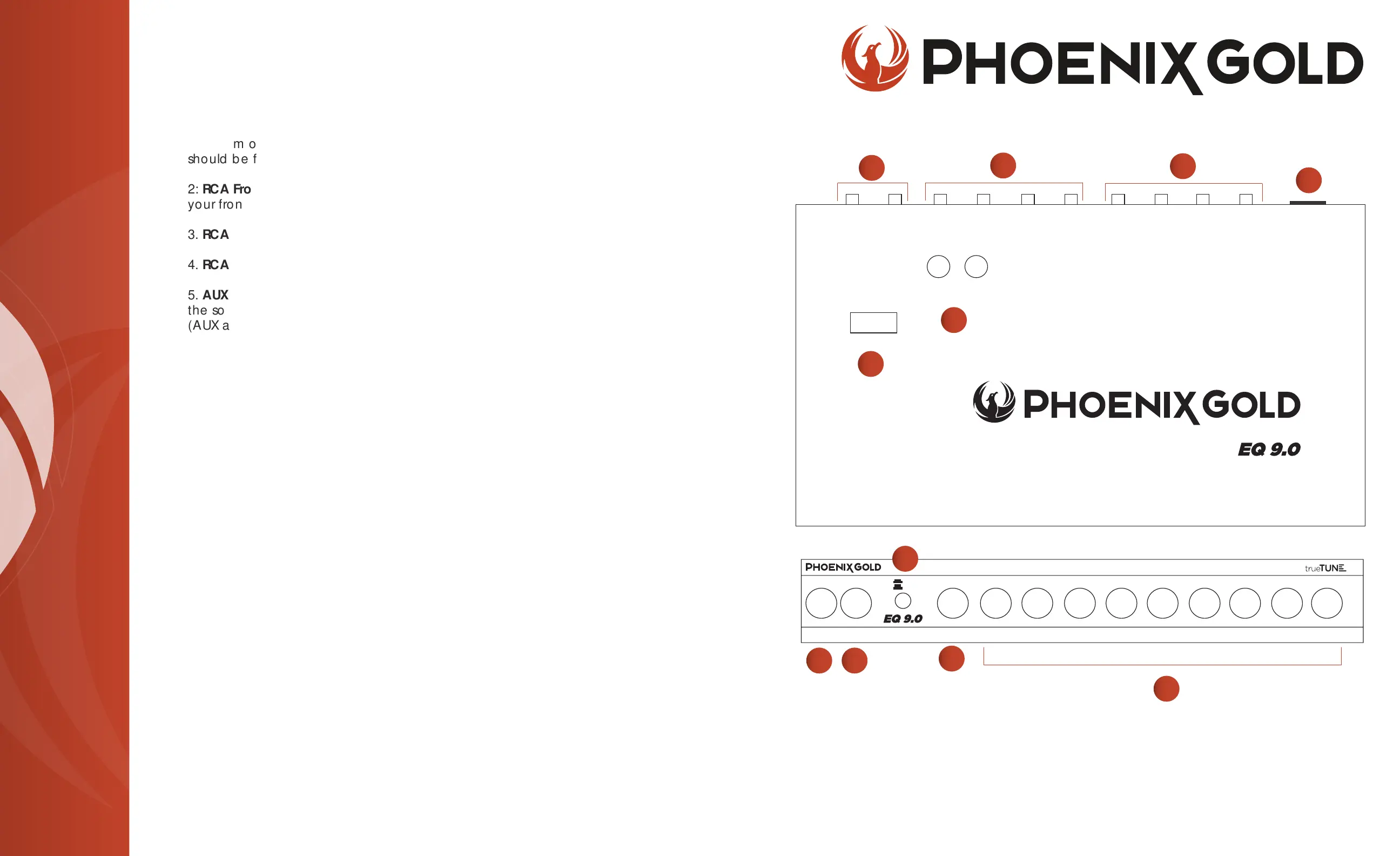

1. Power Connections for input power, chassis ground, and remote turn-on, use a
minimum of 18 gauge copper wire for power and ground connections; power wire
should be fused with 1 Amp fuse
2: RCA Front & Rear Outputs RCA output jacks provide a fadeable-full range signal to
your front and rear amplifiers
3. RCA Inputs allow for a normal stereo signal input from various sources
4. RCA Sub Output provides a low pass signal to your bass amplifier
5. AUX Input Gain Adjustment is used to match the input level with the output level of
the source unit connected to the AUX input. When properly adjusted both sources
(AUX and Main) should play at the same volume level. The adjustments are individual
with one for the left and one for the right channel
6. Low Pass Frequency (LPF) Adjustment controls the cutoff frequency of the LPF on
the “Sub Out” channels, the crossover filter is switchable from 45Hz to 60Hz.
7. Subwoofer Level Adjustment raises and lowers the level of just the “Sub Out”
channels to fine tune level based on musical content
8. Volume Control raises and lowers the volume on all of the outputs simultaneously
9. Fader Adjustment allows you to adjust the level between the Front and Rear
channels
10. Input Selector Switch selects the Main/Aux
11. Equalizer Level Adjustment 9 individual controls at set at fixed frequencies of
50Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz and 16KHz with ±10dB of
adjustment one each
EQ9.0 USER MANUAL
9
5
7
2
6
1
9 BAND GRAPHIC EQUALIZER
SUB OUT
L R
AUX IN
L R
MAIN IN
L R
REAR OUT
L R
FRONT OUT
L R
GROUND
REMOTE
+12VOLT
AUX
LEVEL
MAIN
LEVEL
LOW PASS
FREQUENCY
45Hz 60Hz
50Hz 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz 8KHz 16KHzFADERSUB MASTER
AUX
MAIN
3
4
8
10
11
