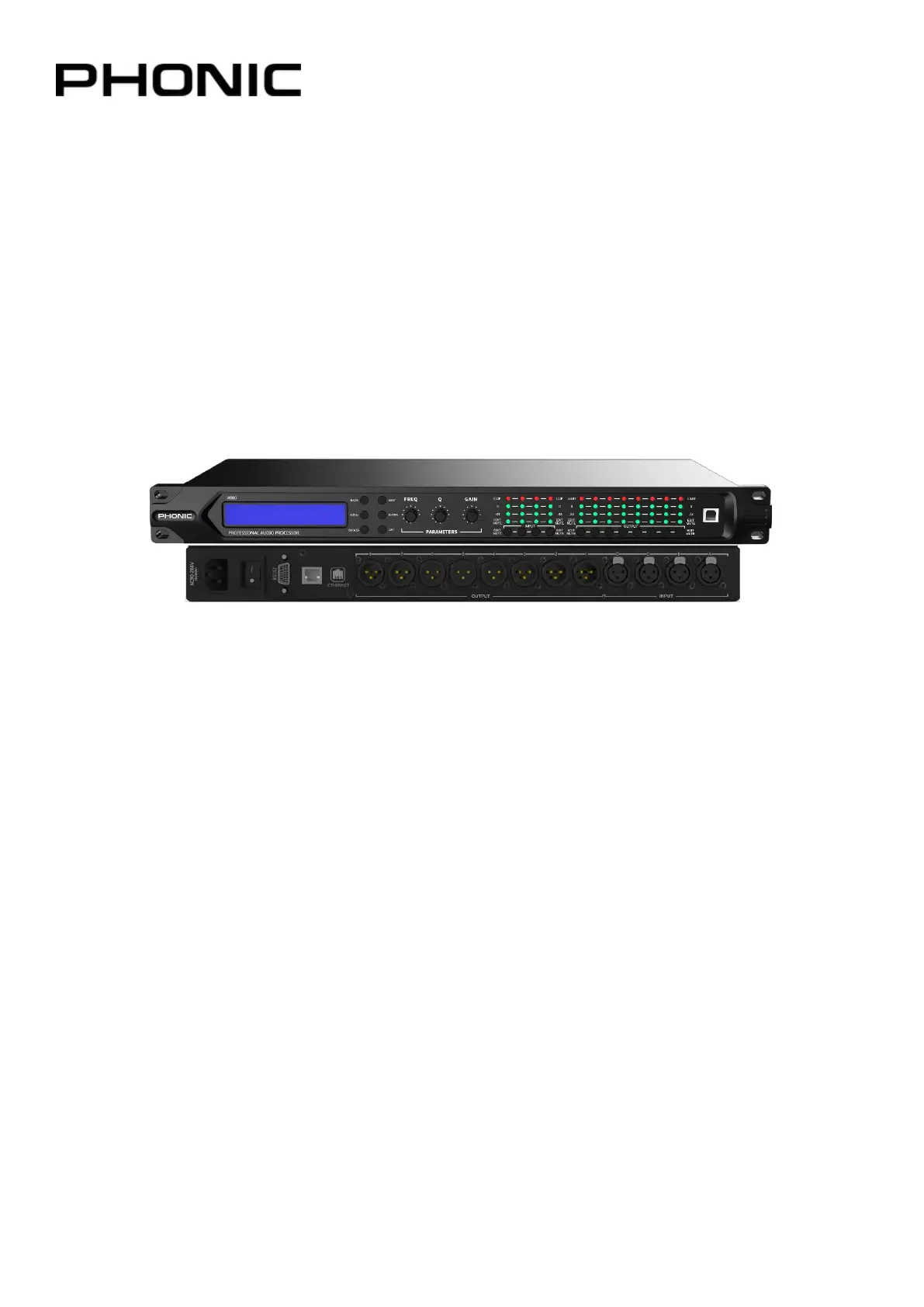

Professional Audio Processor
i4800/i3600 User Manual
Page 2 / 34
Ind e x
Chapter 1: Introduction .................................................................................................................................................... 3
Chapter 2: Technical Parameters ..................................................................................................................................... 3
2.1 Features ................................................................................................................................................................... 3
Chapter 3 Functional Structure ........................................................................................................................................ 5
3.1 LCD display function menu ...................................................................................................................................... 6
3.2 Control buttons ........................................................................................................................................................ 6
3.3 Input section ............................................................................................................................................................ 6
3.4 Output section ......................................................................................................................................................... 7
Chapter 4: Introduction to PC Software .......................................................................................................................... 7
Chapter 5: Software Installation ....................................................................................................................................... 7
5.1 Operating environment ........................................................................................................................................... 7
5.2 Software installation ................................................................................................................................................ 7
5.3 Software operating .................................................................................................................................................. 8
Chapter 6 Software Interface Description ........................................................................................................................ 9
6.1 Introduction to Interface Module ............................................................................................................................ 9
Chapter 7 Function Interface Introduction .................................................................................................................... 16
7.1 Main interface of input function ........................................................................................................................... 16
7.2 Test signal function ................................................................................................................................................ 16
7.3 Input noise gate ..................................................................................................................................................... 17
7.4 Input Parametric Equalizer (PEQ) .......................................................................................................................... 18
7.5 Dynamic EQ .............................................................................................................................................. 20
7.6 Input delay ............................................................................................................................................................. 21
7.7 Input and output with FIR .......................................................................................................................... 22
7.8 Matrix mixing ......................................................................................................................................................... 23
7.9 Output Parametric Equalizer (PEQ) ....................................................................................................................... 23
7.10 Output delay ........................................................................................................................................................ 24
7.11 Output compressor .............................................................................................................................................. 25
7.12 Output limiter ...................................................................................................................................................... 25
7.13 Output module .................................................................................................................................................... 26
7.14 Input and output channel volume monitoring .................................................................................................... 27
7.15 Channels link ........................................................................................................................................................ 27
7.16 Device list ............................................................................................................................................................. 28
7.17 Add device ........................................................................................................................................................... 28
7.18 Device Management ............................................................................................................................................ 29
7.19 Channel name management ............................................................................................................................... 29
7.20 Channels copy ...................................................................................................................................................... 30
7.21 Device Preset ....................................................................................................................................................... 31
7.22 Firmware upgrade ............................................................................................................................................... 31
Chapter 8 Introduction to Dante .................................................................................................................................... 33
Page 3 / 34
Chapter 1: Introduction
This series including i4800 and i3600 are professional speaker processors that can realize a variety of DSP functions. This
series of products are integrated with compressors, limiters, frequency dividers, d ynamic EQ, delayers, equalizers, input
and output with FIR phase correction, and audio mixers. The matrix can be quickly debugged and monitored through
the beautiful and intuitive software, which provides a broad operating space for the construction and operation of
professional audio amplification systems. D4 represents the function of configuring 4 channels of Dante network audio
input and output interfaces.
Applications
▲Are na
▲Stadium
▲Professional performance
▲Auditorium
▲Multi- functional hall
▲Conference system
Chapter 2: Technical Parameters
2.1 Features
▲ i3600 provides with 3 input channels and 6 output channels, i4800 provides with 4 input channels and 8 output
channels
▲ Uncompromising top audio performance
▲ Unique and precise 96kHz/24bit digital signal processing
▲ Analog and Dante™ (optional) inputs and outputs
▲ Ethernet remote control through PHONIC's PiWare drive free application
▲ Complete front panel user interface provides simple and intuitive local operation
▲ TCP/IP LAN remote control, support RS232 central control, easy system integration
▲ Designed, manufactured, tested and supported by PHONIC CORPORATION
2.2 Technical Parameters
DSP MO DULE
Signal processing
ADI SHARC 21489
Audio system delay
1.8 ms
D/A conversion
24- bit
Sampling Rate
96kHz
ANALOG AUDIO INPUTS AND OUTPUTS
Input channel
4 balanced inputs. Line level
Produktspecifikationer
| Varumärke: | Phonic |
| Kategori: | Inte kategoriserad |
| Modell: | i4800 |
