PDP-S61
Operating Instructions
Mode d’emploi
Bedienungsanleitung
Istruzioni di utilizzo
Handleiding
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
English
2
Thank you for buying this Pioneer product.
Please read through these operating instructions before using
your speaker system so you will know how to make the
most of its performance. After you have finished reading the
instructions, put them away in a safe place for future
reference.
CAUTION
About compatibility
This product is designed exclusively for use with the Pioneer
plasma television. For more information on compatibility,
please consult with your nearest Pioneer authorized dealer
or service center.
About installation and setting
• Do not lift up the display by the speakers. A speaker may
come off, so carry the display by holding it by the top and
its handle.
Installation
• Consult your dealer if you encounter any difficulties
with this installation.
• Pioneer is not liable for any damage resulting from
improper installation, improper use, modification, or
natural disasters.
CHECKING THE ACCESSORIES
• Speaker Cables × 2
• Speaker Mounting Fittings
• When installing the speaker, do not use any screws other
than those supplied, otherwise the speaker may come
off from the main unit and fall over.
• When installing the speaker, tighten the screws firmly.
• Please handle the speaker with sufficient care, as the
grille net and the cabinet can become damaged or broken
when they are subjected to strong external impacts.
• Placing a CRT computer screen or CRT monitor near to
the speaker may result in interference or color distortion.
If this happens, distance the monitor from the speaker.
About the input
• In order to prevent damage to the speaker system
resulting from input overload, please observe the
following precautions:
• Do not use the speaker with anything other than the
specified Pioneer plasma television. Doing so may result
in damage or fire.
• Be sure to turn the connected devices off and remove
the power cord from the wall outlet beforehand when
changing the connection or installation method.
• When using a tone control function to greatly emphasize
treble sounds, do not use excessive amplifier volume.
for TOP-Right
for BOTTOM-Right
• Speaker Mounting Screws
(M5 × 10 mm: Black) × 16
• Operating Instructions
for TOP-Left
for BOTTOM-Left
English
4

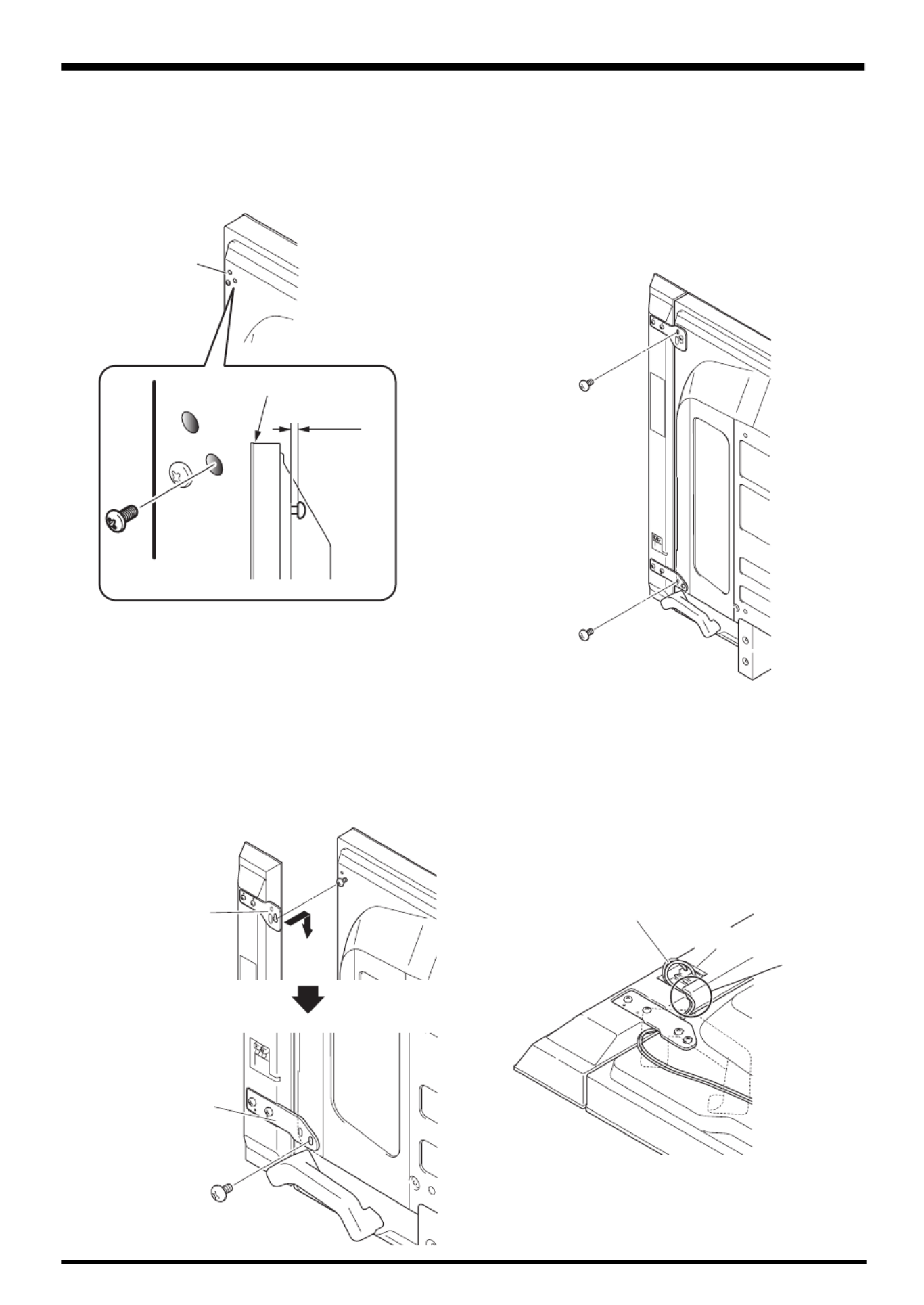

2. Screw an supplied screw into the
speaker mounting hole (lower of the
two) at the top, rear of the display.
Do not tighten it all the way yet. Leave it loose, with
about 5 mm left to tighten.
3. Hang the speaker mounting fitting
on the screw you installed at the top
by passing the wide part over it and
lowering into the slot; screw in the
lower screw temporarily.
After passing the wide part of the hole of the speaker
mounting fitting (top) over the screw, lower the
speaker onto it.
After passing the
wide part of the hole
over the screw, lower
the speaker.
4. Adjust the position of the speaker
and then tighten the upper and
lower screws firmly.
5. Tighten the two screws, at the top
and bottom for each speaker (total of
four screws), thus fixing the
speakers to the display.
6. Pass the supplied speaker cable
between the speaker and the plasma
television (below the speaker
mounting fitting) from below.
7. Connect the speaker cables to the
speaker (see next page).
8. Insert the cable in the groove on the
speaker.
9. Connect the other end of the speaker
cables to the rear of plasma
television (see next page).
Speaker
Mounting
Hole Top, rear of
Display
Top of Display
5 mm
Leave a space of about 5 mm
Tighten with the
provided screw the
bottom speaker
mounting fitting to the
display temporarily
(one place bottom).
Speaker Cable
Speaker Terminal
Insertion in
groove
