Simplicity Series 4K Displays User Guide
020-1343-00A
User Manual
Page | 1
Planar Simplicity Series 4K Displays
SL4364K
SL5564K
SL6564K
SL7564K
SL8664K
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 2
Copyright © March by Leyard Optoelectronics Co., Ltd. and Planar Systems, Inc. 2018
All rights reserved.
This document may not be copied in any form without permission from Leyard or Planar. Information
in this document is subject to change without notice.
Trademark Credits
Windows™ is a trademark of Microsoft Corp.
All other companies are trademarks or registered trademarks of their respective companies.
Disclaimer
The information contained in this document is subject to change without notice. Leyard and Planar
Systems, Inc. makes no warranty of any kind with regard to this material. While every precaution has
been taken in the preparation of this manual, the Company shall not be liable for errors or omissions
contained herein or for incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
Warranty and Service Plans
Planar warranty and service plans will help you maximize your investment by providing great support,
display uptime, and performance optimization. From post-sale technical support, to a full suite of
depot services, our services are performed by trained employees. When you purchase a Planar
product, you get more than a display; you get the service and support you need to maximize your
investment. To find the latest warranty and service information regarding your Planar product, please
visit http://www.planar.com/support or http://www.leyard.com/en/support/
Part Number: -1343-00A 020
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 3
Table of Contents
Introduction ............................................................................................................................. 7
1. Safety Information .............................................................................................................. 8
2. Safety Precautions ............................................................................................................. 8
2.1 Important Safety Instructions: ................................................................................... 9
3. Recommended Usage ..................................................................................................... 10
3.1 Burn-In Versus Temporary Image Retention ...........................................................10
3.2 Warranty Coverage ................................................................................................. 10
3.3 Important Waste Disposal Information .....................................................................11
3.4 Normal Usage Guidelines ........................................................................................11
4. VESA Mounts, General Description ................................................................................. 12
5. Cleaning the Display ........................................................................................................ 13

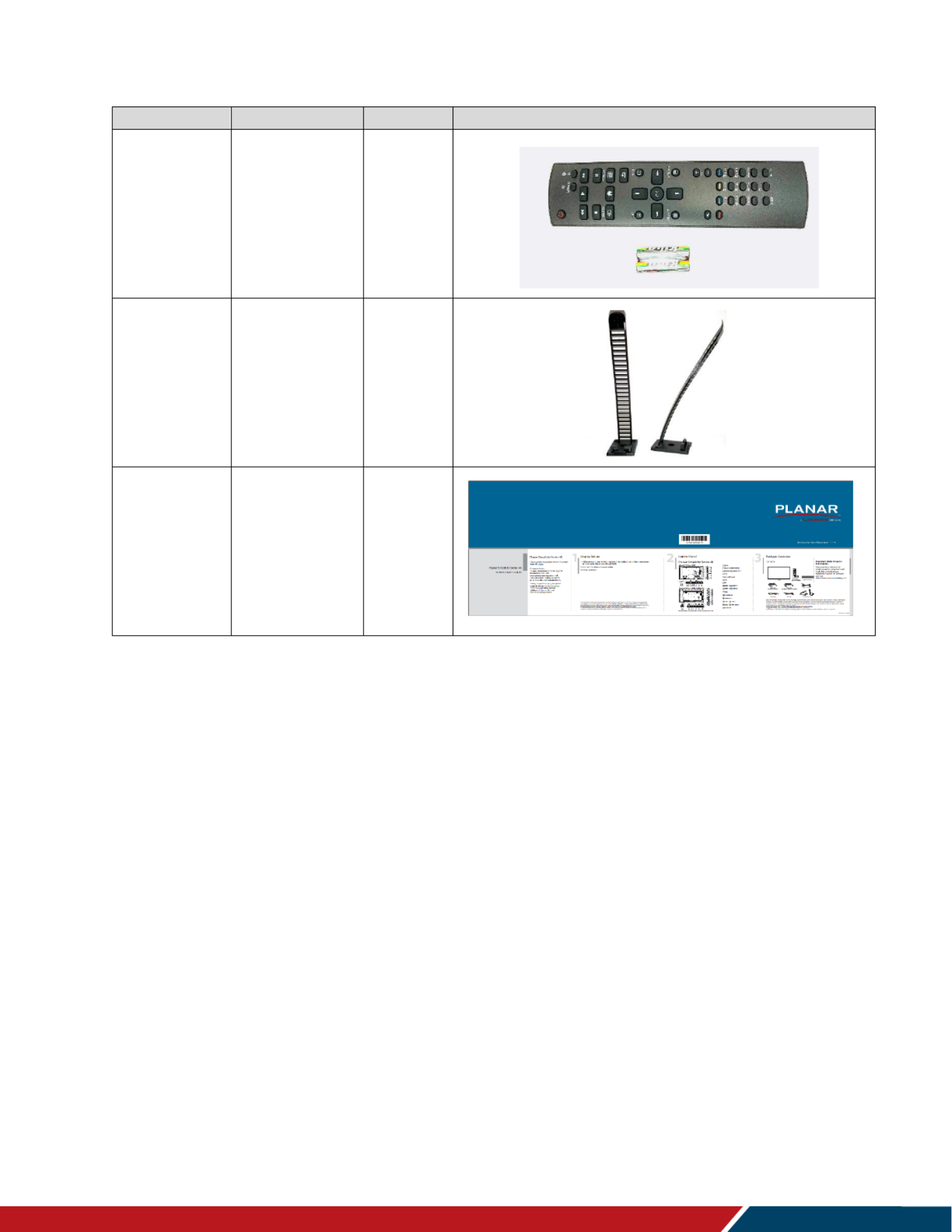

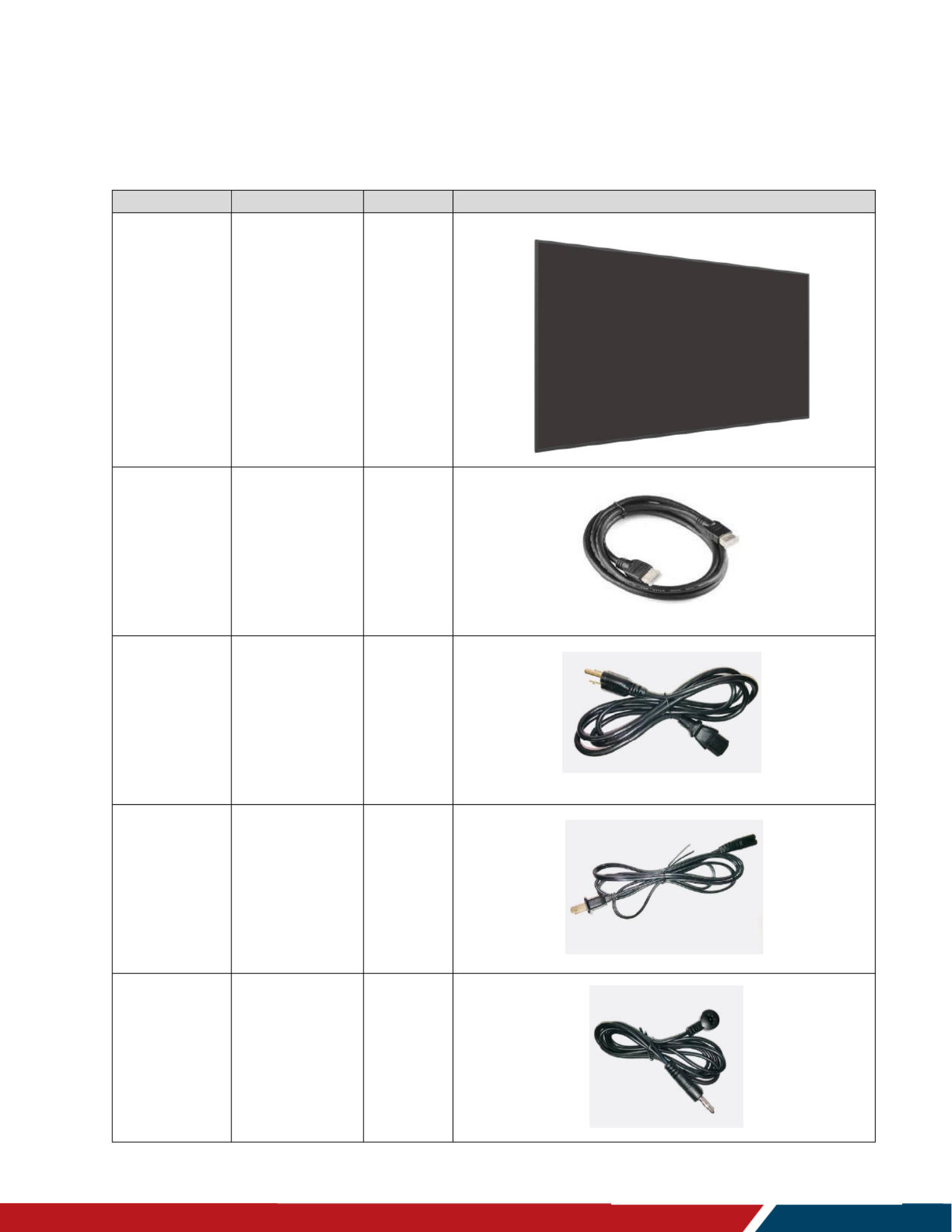

Package Contents ................................................................................................................ 14
6. Installing the Cable Clips ................................................................................................. 16

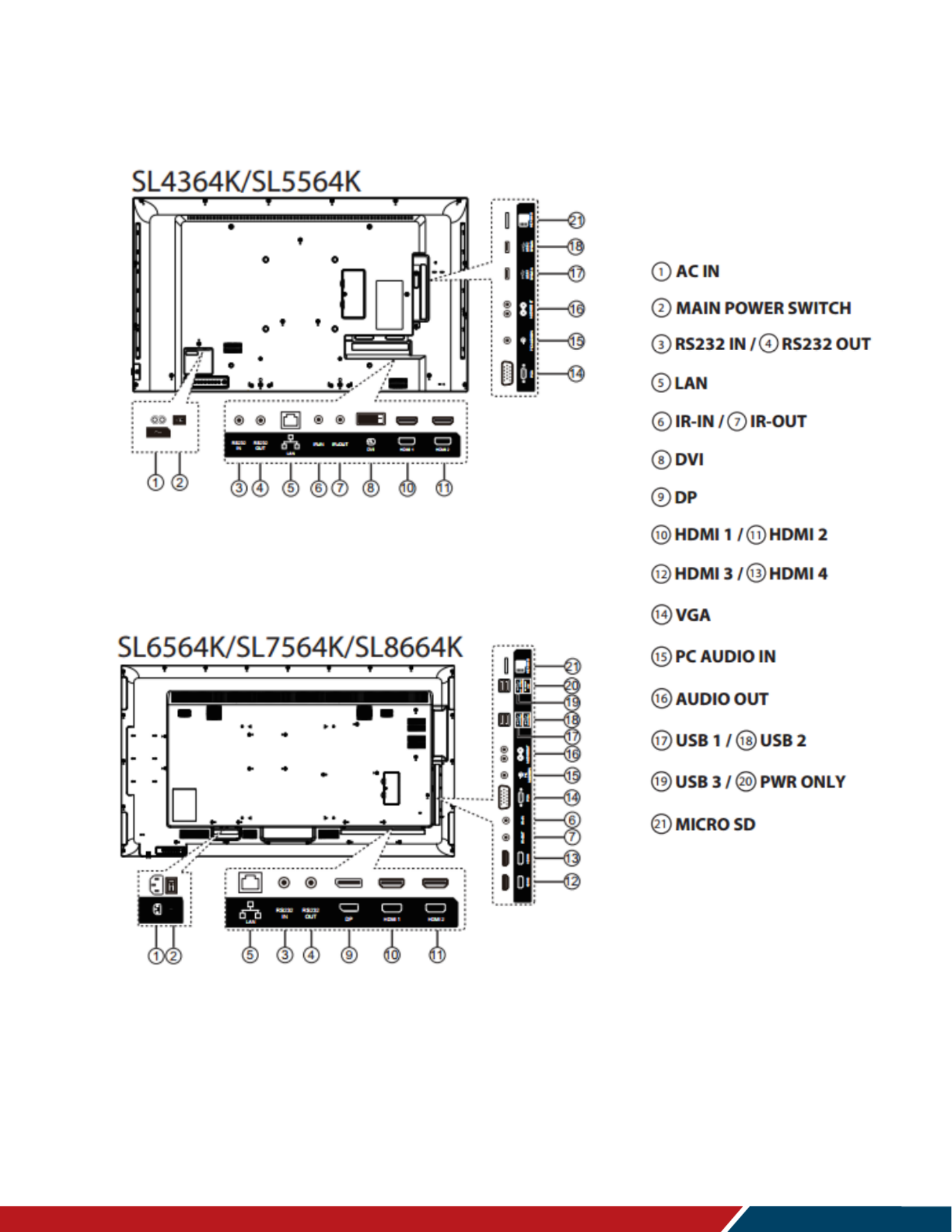

7. Planar Simplicity Series- Standard Inputs ........................................................................ 17
Installing the Display ........................................................................................................... 18
8. Before You Begin ............................................................................................................. 18
8.1 Tools/Equipment List ...............................................................................................18
8.2 Other Things You May Need ...................................................................................18
8.3 Plan Your Installation ...............................................................................................18
8.4 Prepare Your Installation Location ...........................................................................19
8.5 Cable Length Recommendations ............................................................................19

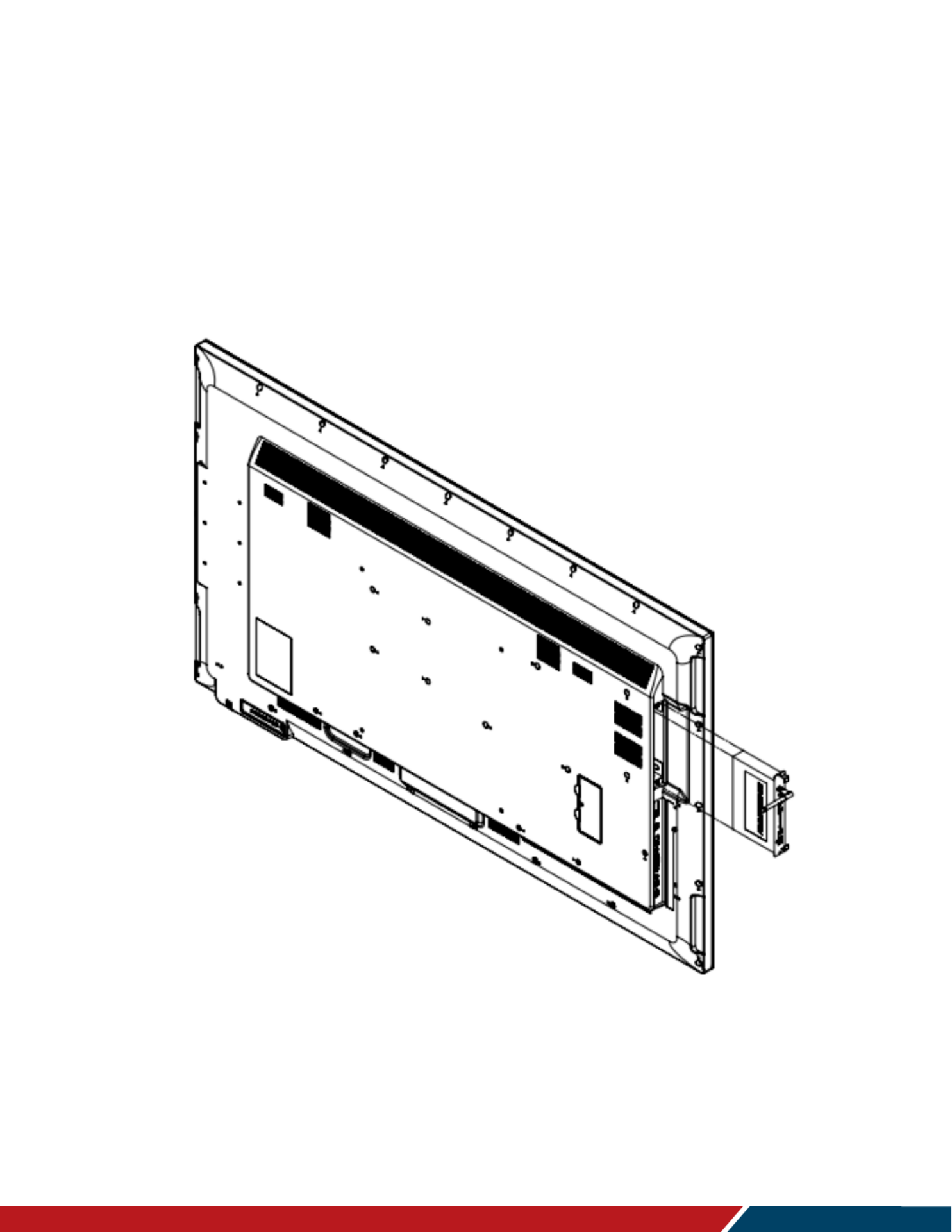

9. Installing OPS Expansion (Optional) ................................................................................ 20
Operating the Display .......................................................................................................... 21
10. OSD Keypad .................................................................................................................... 21
11. Remote Control Receiver ................................................................................................. 22
12. LED Indicators ................................................................................................................. 23
13. Using the Display in Flat or Tilted Orientation .................................................................. 24

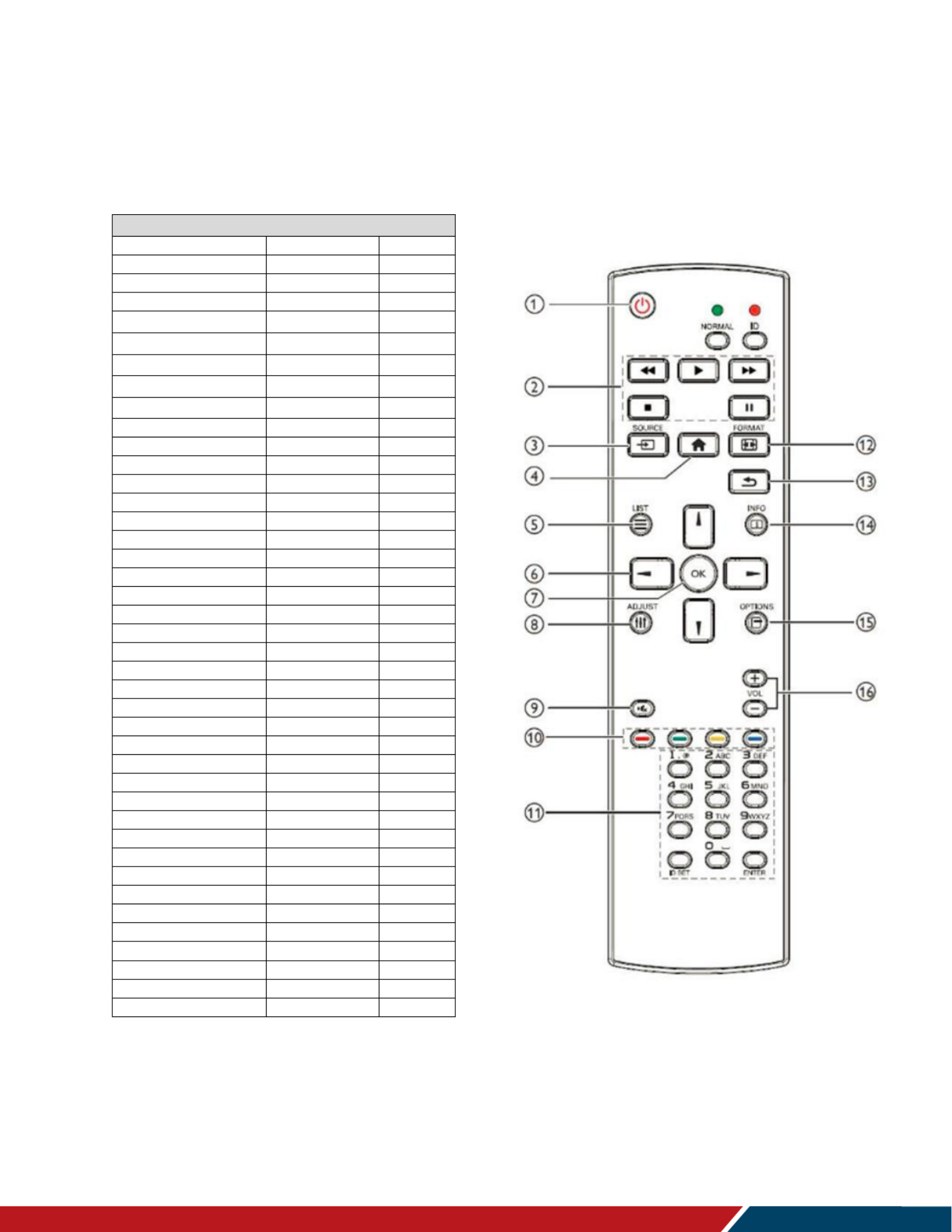

14. Using the Remote Control ................................................................................................ 25
15. Pairing the Remote Control to the Display ....................................................................... 26
16. Basic Remote Functions .................................................................................................. 27
16.1 Turning the Display On .....................................................................................27
16.2 Turning the Display Off .....................................................................................27
16.3 Adjusting the Volume .......................................................................................27
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 4
16.4 Selecting the Input Source ...............................................................................27
16.5 Navigating Through the Menus .........................................................................27
17. OSD Initial Settings Menu ................................................................................................ 28
17.1 Initial Configuration / Importing Settings ...........................................................28
18. Input Menu ....................................................................................................................... 33
18.1 Source Options ................................................................................................33
19. OSD Main Menu .............................................................................................................. 34
19.1 Picture ..............................................................................................................34
19.2 Screen ..............................................................................................................37
19.3 Audio ................................................................................................................40
19.4 Configuration 1 ................................................................................................. 42
19.5 Configuration 2 ................................................................................................. 44
19.6 Advanced Settings ...........................................................................................46

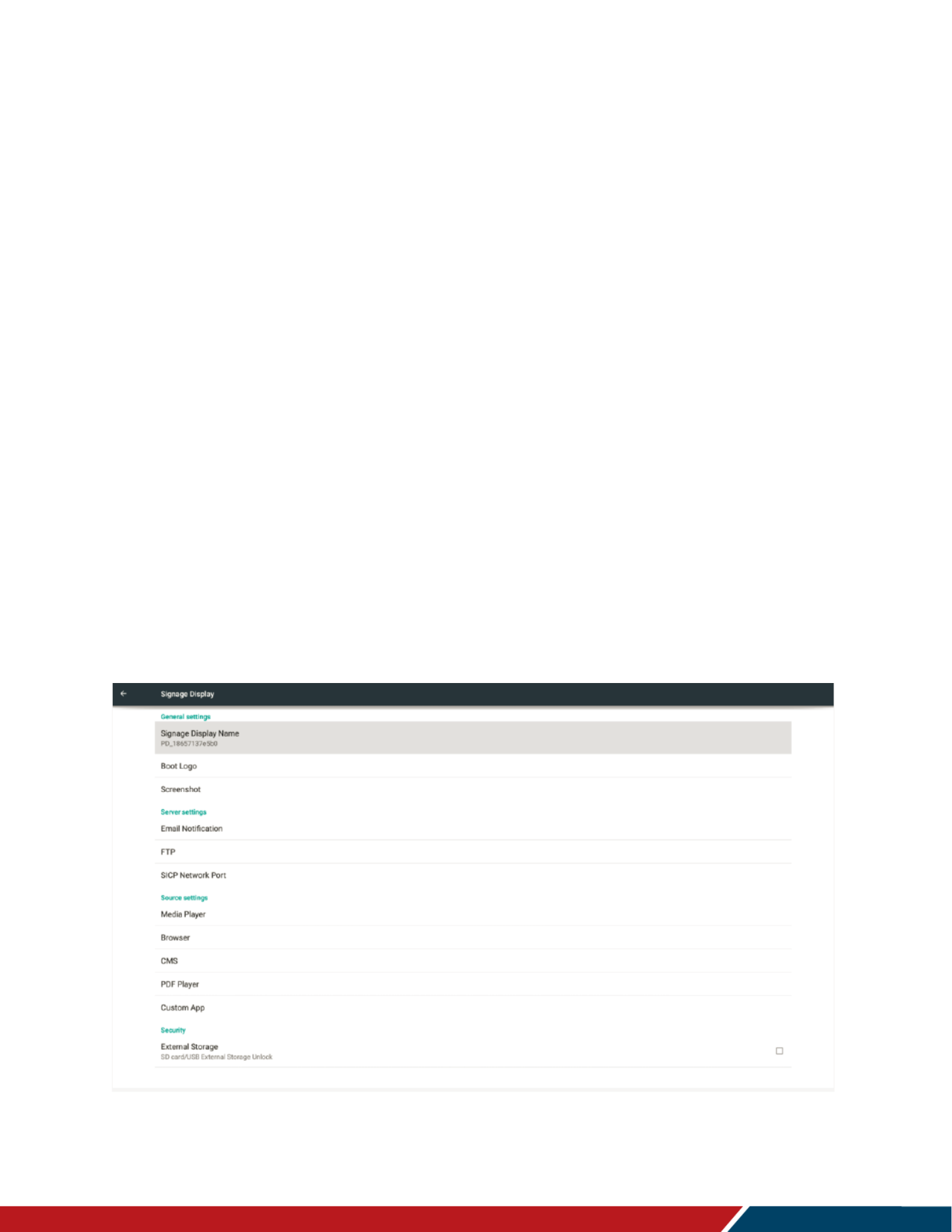

20. OSD Android Settings Menu ............................................................................................ 50
20.1 Android Main Menu ..........................................................................................50
20.2 Settings ............................................................................................................50
20.3 Apps .................................................................................................................60
20.4 Network ............................................................................................................60
20.5 Storage ............................................................................................................61
21. Media Player .................................................................................................................... 62
21.1 Supported Media Formats ................................................................................62
21.2 Main Menu .......................................................................................................64
22. Browser Menu .................................................................................................................68
22.1 Settings ............................................................................................................68
22.2 Boot on Source Functionality ............................................................................72
23. Content Management System .......................................................................................... 73
23.1 Initial Setup ......................................................................................................73
23.2 Login ................................................................................................................73
23.3 Main Menu .......................................................................................................74
External Control.................................................................................................................... 81
Signal Compatibility ............................................................................................................82
Color Subsampling Support .............................................................................................. 83
Specifications ....................................................................................................................... 84
Dimensions ............................................................................................................................ 86
SL4364K .......................................................................................................................... 86
SL5564K .......................................................................................................................... 87
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 5
SL6564K .......................................................................................................................... 88
SL7564K .......................................................................................................................... 89
SL8664K .......................................................................................................................... 90
Troubleshooting ................................................................................................................... 91
Accessing the Planar Technical Support Website ........................................................ 92
Index ....................................................................................................................................... 93
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 6
Introduction
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 7
Introduction
The Planar® Simplicity™ Series 4K line of displays for digital signage incorporates cutting-edge
4K at 60Hz streaming, media playback, a sleek design and commercial functionality into an
affordable 4K digital signage solution.
Ranging in size from 43" to 86", Planar Simplicity Series 4K displays eliminate the need for
additional hardware, reducing installation cost and complexity.
Featuring an elegant design with logo-free narrow bezel and slim profile, the Planar Simplicity
Series 4K is the ideal display solution for digital signage applications in retail stores, restaurants,
medical offices, corporate meeting areas and hospitality.
Designed for commercial installations, Planar Simplicity Series 4K comes standard with a full
array of connectivity and external control, including support for native 4K resolution at up to
60Hz via HDMI 2.0, enabling smooth motion video and mouse tracking. Compatible with new
and emerging 4K sources, the Planar Simplicity Series 4K uses HDCP 2 -compliant HDMI 2.0 .2
inputs.
Caution: This manual is intended for use by qualified service persons and end users with
experience installing LCD displays.
Introduction
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 8
1. Safety Information
Before using the Planar Simplicity Series 4K, please read this manual thoroughly to help protect
against damage to property, and to ensure personnel safety.
Be sure to observe the following instructions.
For your safety, be sure to observe ALL the warnings detailed in this manual.
For installation or adjustment, please follow this manual’s instructions, and refer all
servicing to qualified service personnel.
2. Safety Precautions
If water is spilled or objects are dropped inside the display, remove the power plug
from the outlet immediately. Failure to do so may result in fire or electrical shock. Contact
your dealer for inspection.
If the display is dropped or the chassis is damaged, remove the power plug from the
outlet immediately. Failure to do so may result in fire or electrical shock. Contact your
dealer for inspection.
WARNING! Wall mounts must be secure.
If the display is hung on a wall, the wall must be strong enough to hold it. Simply
mounting it to wallboard or wall paneling won’t be adequate or safe.
Caution: The screen could be damaged by heavy pressure.
Slight pressure on the LCD will cause distortion of the image. Heavier pressure will
cause permanent damage. Displays should be mounted where viewers cannot touch the
screen or insert small objects in the openings that will create hazards by contacting bare
conductive parts.
Caution: The front polarizer is soft and subject to scratches from sharp objects.
The polarizer is a thin sheet of film laminated to the outside layer of glass on the LCD
screen. Take care when handling items near the screen.
If the power cord or plug is damaged or becomes hot, turn off the main power switch
of the display. Make sure the power plug has cooled down and remove the power
plug from the outlet. If the display is still used in this condition, it may cause a fire or an
electrical shock. Contact your dealer for a replacement.
Introduction
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 9
2.1 Important Safety Instructions:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the display near water.
6. Clean the LCD screens with an LCD screen cleaner or LCD wipes.
7. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. When the provided plug does not fit into your outlet, consult an electrician for the
replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from Planar large format any
LCD display.
10. Only use the attachments/accessories specified by the manufacturer.
11. Unplug all displays during lightning storms or when unused for long periods of time.
12. In instances where a power surge has occurred and a display no longer has an image,
the display power will need to be reset.
13. You must follow all National Electrical Code regulations. In addition, be aware of local
codes and ordinances when installing your system.
14. Refer all servicing to qualified service personnel. Servicing is required when any of the
displays have been damaged in any way, such as the AC power cord or plug is
damaged, liquid has been spilled or objects have fallen into a product, the products have
been exposed to rain or moisture, do not operate normally or have been dropped.
15. Keep the packing material in case the equipment should ever need to be shipped.
16. Wall mounts must be secure. The wall must be strong enough to hold displays brackets,
cables and accessories. Seismic engineers should be consulted in areas prone to
earthquakes.
17. Slight pressure on the LCD will cause distortion of the image. Heavier pressure will
cause permanent damage. Displays should be mounted where viewers cannot touch the
screen or insert small objects in the openings that will create hazards by contacting bare
conductive parts.
18. The front polarizer is soft and subject to scratches from sharp objects. The polarizer is a
thin sheet of film laminated to the outside layer of glass on the LCD screen. Take care
when handling items near the screen.
Introduction
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 11
3.3 Important Waste Disposal Information
Please recycle or dispose of all electronic waste in accordance with local, state, and federal
laws. Additional resources can be found online at http://www.planar.com/about/green/.
The crossed-out wheelie bin symbol is to notify consumers in areas subject to Waste Electrical
and Electronic Equipment (WEEE) Directive 2012/19/EU that the product was placed on the
market after August 13, 2005 and must not be disposed of with other waste. Separate collection
and recycling of electronic waste at the time of disposal ensures that it is recycled in a manner
that minimizes impacts to human health and the environment. For more information about the
proper disposal of electronic waste, please contact your local authority, your household waste
disposal service, or the seller from whom you purchased the product.
3.4 Normal Usage Guidelines
Normal use of the LCD is defined as operating in the open air to prevent heat buildup, and
without direct or indirect heat sources such as lighting fixtures, heating ducts, or direct sunlight
that can cause the modules to experience high operating temperatures. For all modules, do not
block fans or ventilation openings. If the LCD module will be installed in a recessed area with an
LCD surround or enclosure, ensure adequate openings are applied for proper air flow and
ventilation.
At 3000 meters or below, the maximum ambient operating temperature for the LCD module
cannot be above 40º C nor below the minimum ambient operating temperature of 0º C. If one of
these conditions exists, it is up to the installer to ensure that module placement is changed,
thermal shielding is provided and/or additional ventilation is provided to keep the display within
its nominal operating parameters.
Cooling Requirements
For optimal performance, active cooling by the installer should be planned for when the ambient
temperature at the top of the wall is predicted to be above the specified ambient temperature for
the panel. Cooling may be done behind the displays and depending on the wall configuration.
Introduction
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 12
4. VESA Mounts, General Description
VESA mounts are used to secure the Planar Simplicity Series 4K display. The display can be
installed using a variety of VESA mounts available through Planar. If you do not have a VESA
mount, and would like to purchase one, contact Planar.
If you purchased a VESA mount, you should have a received a separate box with mounting
supplies and an installation manual. Follow these instructions carefully.
Keep in mind the following general installation guidelines:
Screw length is crucial and will vary depending on the type of mount you use. Total
screw length includes the penetration length, plus the length required, by the type of
VESA mount in use.
Caution: Shorter screws will result in insufficient mounting strength and longer screws could
puncture parts inside the display.
Prior to installation, make sure you know where all of the mounting points are located.
Follow all safety precautions outlined in the VESA Installation manual.
Verify the parts received with the list shown in the VESA Installation manual.
Package Contents
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 14
Package Contents
Part
Description
Number
LCD Display
One per box.
1
HDMI Cable
HDMI cable.
1
AC Power
Cord
Power cord
(SL6564K,
SL7564K,
SL8664K)
1
AC Power
Cord
Power cord
(SL4364K,
SL5564K)
1
IR Extender
Cable
Used to
receive signals
from the
remote control.
1
Package Contents
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 15
Part
Description
Number
Remote
Control
Used to control
the display
(AA batteries
included)
1
Cable Clips
Used to clamp
and organize
the cables.
2
Quick Start
Guide
Quick start
guide.
1
Package Contents
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 16

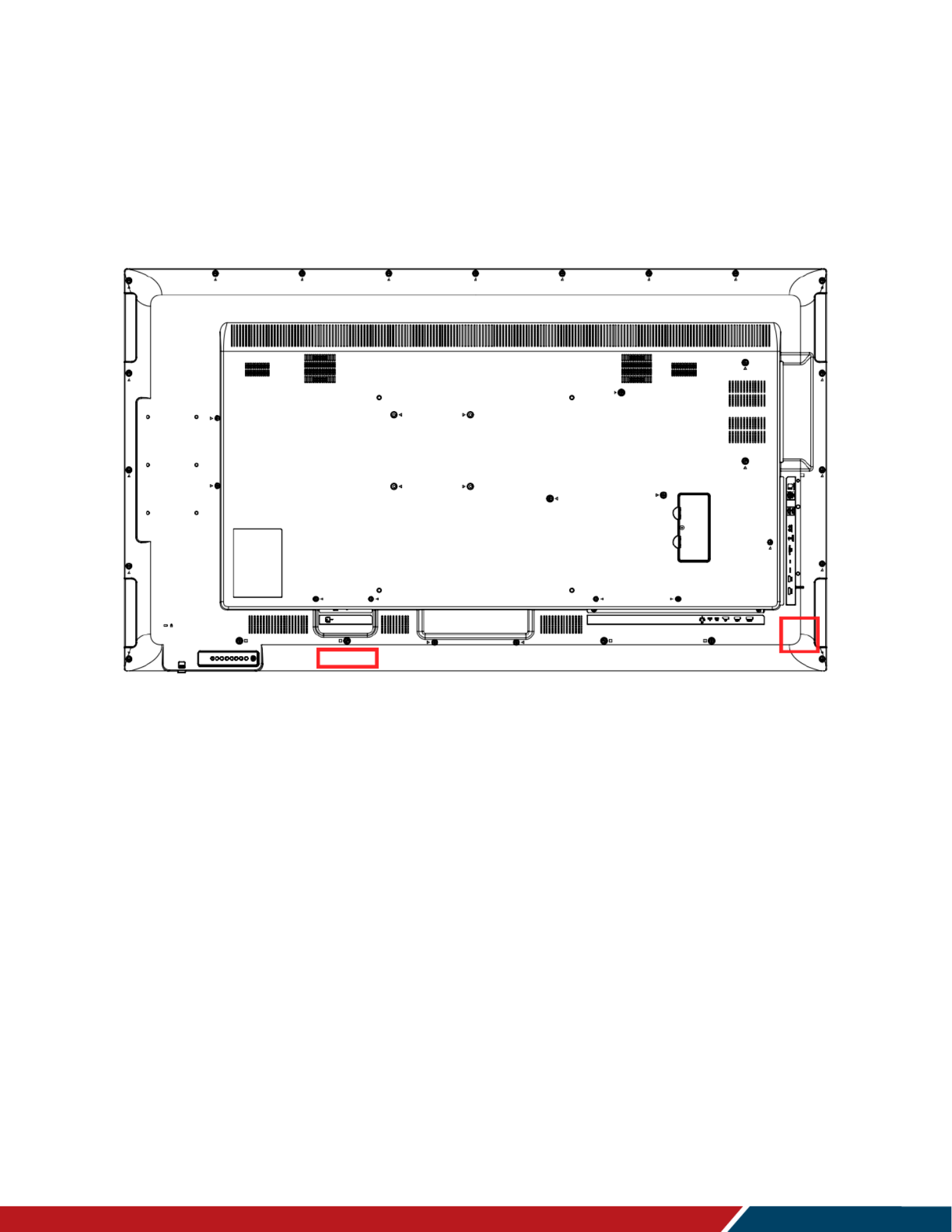

6. Installing the Cable Clips
Use the cable clips included in the Accessory Kit to assist with cable management. These clips
adhere into place using adhesive backing as shown in the image below.
Attach clips near HDMI and AC power cables to assist with cable routing and to release cable
strain.
Package Contents
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 17
7. Planar Simplicity Series- Standard Inputs
Installing the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 18
Installing the Display
This section explains how to install your display. We suggest that you read the entire section
before you attempt to install the unit.
8. Before You Begin
Make sure you have all the items in these lists before you begin unpacking and installing your
display(s).
8.1 Tools/Equipment List
Depending on your installation, you may need one or more of the following items:
String/string level
Digital/laser level
Ladders/lift
Back brace
Stud finder (if hanging display on a wall)
8.2 Other Things You May Need
LCD screen cleaner or LCD wipes - available at most electronics stores
At least two very strong people to help lift unit into place
8.3 Plan Your Installation
You should have a detailed plan of how the units are to be configured. The plan should include
calculations for the following:
Power maximums reference below by display size:
SL4364K: 8 units max per 20A circuit
SL5564K: 8 units max per 20A circuit
SL6564K: 5 units max per 20A circuit
SL7564K: 4 units max per 20A circuit
SL8664K: 3 units max per 20A circuit
Cable runs
Ventilation and cooling requirements
If hanging display on a wall, location of studs in the wall
Installing the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 20
9. Installing OPS Expansion (Optional)
Planar Simplicity Series displays are equipped with an expansion slot that supports the 4K
Intel® Open-Pluggable Specification (OPS). The slot supports OPS devices including s, SDI PC
modules etc.
To install an OPS device, remove the protective cover on the display and slide the device firmly
into position. When installed, the OPS device connects internally to the display. No external
video or power cables are required.
Note: OPS is only supported on the SL6564K, SL7564K and SL8664K models
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 22

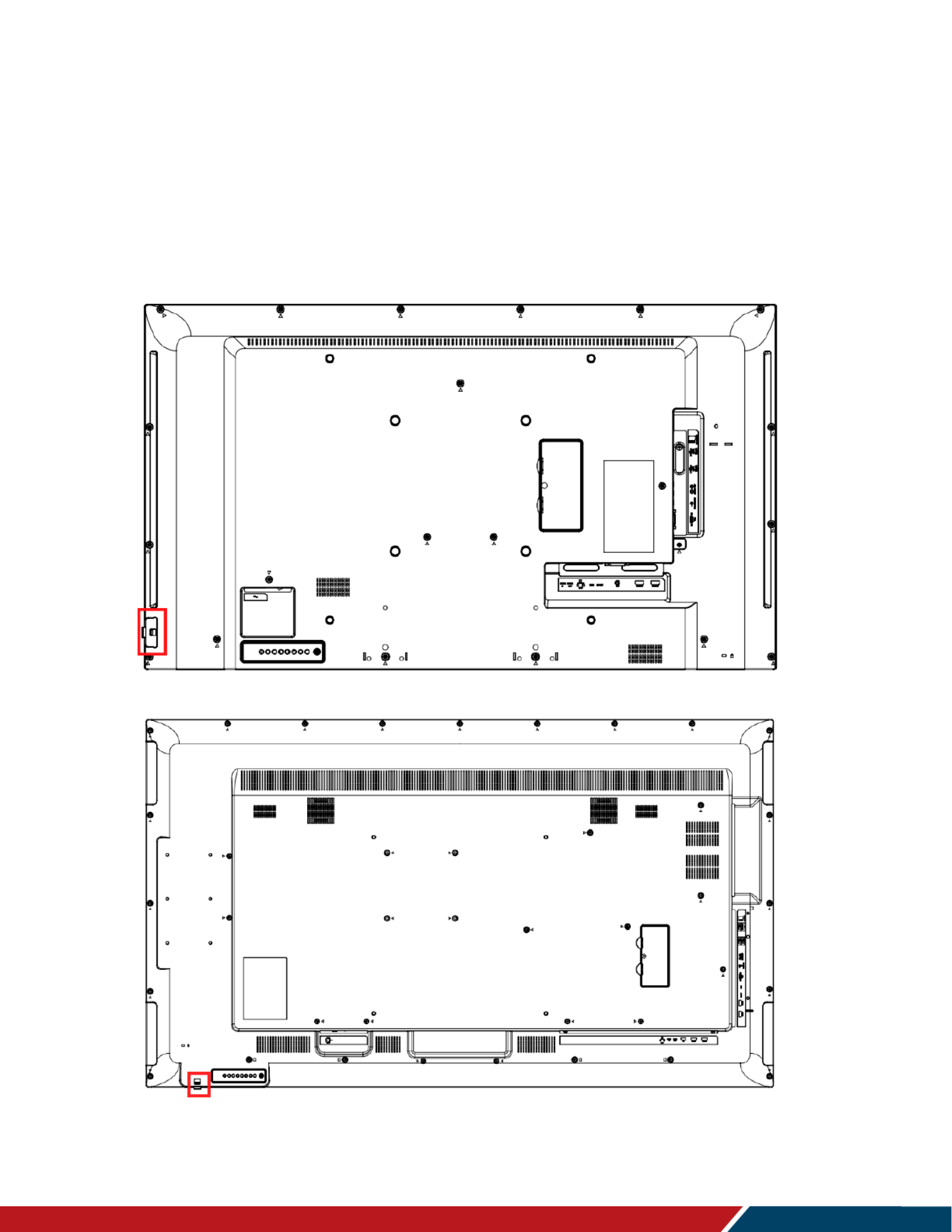

11. Remote Control Receiver
The remote control receiver is located near the keypad on the rear of the display. Use the IR
extender cable for operating the remote from the front of the display.
Note: This product also features an IR reception window. Pull the window out on the SL4364K,
and down on all other models, to increase front facing sensor visibility. See the drawings below
for reference.
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 23
12. LED Indicators
The LED indicator light is located on the rear of the display near the keypad. The following table
explains what the different colors and blink patterns mean.
LED On
Power Status
Condition
Green
Power on
Red
Standby
Power save mode
Red / Green Blinking
IR codes received
Off
AC off
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 24
13. Using the Display in Flat or Tilted Orientation
The display is not recommended for use in flat orientation for tabletop, floor, or ceiling
installations. LCD panels of this size are at risk of panel deflection, which can cause cosmetic
sagging, brightness uniformity issues, and a shortened life span. Installations where the display
is tilted downward or upward at an angle may also be prone to these issues and are not
recommended.
Note: Failure to follow these instructions will void the warranty.
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 25
14. Using the Remote Control
Below is a picture of the remote control and its corresponding hex codes. See the following
page for button descriptions and hex codes.
IR Remote Key Codes
Key Name
Address
Data
Power
0x00
0x0C
Normal
N/A
N/A
ID
N/A
N/A
⏪
0x00
0x2B
⏵
0x00
0x2C
⏩
0x00
0x28
⏹
0x00
0x31
⏸
0x00
0x30
Source
0x00
0x38
Home
0x00
0x54
Format
0x00
0xF5
Back
0x00
0x0A
List
0x00
0xCC
Info
0x00
0x0F
Up
0x00
0x58
Down
0x00
0x59
Left
0x00
0x5A
Right
0x00
0x5B
OK
0x00
0x5C
Adjust
0x00
0x90
Options
0x00
0x40
Vol +
0x00
0x10
Vol -
0x00
0x11
Mute
0x00
0x0D
[Red]
0x00
0x6D
[Green]
0x00
0x6E
[Yellow]
0x00
0x6F
[Blue]
0x00
0x70
1
0x00
0x01
2
0x00
0x02
3
0x00
0x03
4
0x00
0x04
5
0x00
0x05
6
0x00
0x06
7
0x00
0x07
8
0x00
0x08
9
0x00
0x09
0
0x00
0x00
ID Set
N/A
N/A
Enter
N/A
N/A
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 26
15. Pairing the Remote Control to the Display
The remote control can send commands to any display or to one specific display.
To send commands to all displays: Hold down the NORMAL button on the remote control
until the green LED lights. When NORMAL mode is active, the green LED above the NORMAL
button will blink when any key on the remote control is pressed.
To send commands to only one display: Hold down the ID button on the remote control until
the red LED lights. When the ID mode is active, the red LED above the ID button will blink
when any key on the remote control is pressed.
For initial setup of ID mode, perform the following steps:
1. In the OSD, change the Monitor ID setting to a unique value (see page 45).
2. On the remote control, hold down the ID SET button until the red LED above the ID
button turns on.
3. Us the 0-9 keys to enter the same value selected for the Monitor ID setting. Press the
ENTER key. The red LED will blink twice to confirm the ID code was successfully
accepted. The remote control will automatically change to ID mode.
4. Test that the pairing is successful by pressing a remote control key, such as the HOME
key. If the key is not accepted by the display, check the Monitor ID setting in the OSD
matches the ID code selected on the remote control.
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 27
16. Basic Remote Functions
16.1 Turning the Display On
1. Insert the power cord into the display and into the power outlet.
2. Ensure the AC switch is set to “—“.
3. Press the power button on the remote or keypad.
16.2 Turning the Display Off
With the power on, press the power button on the remote or keypad to put the LCD panel in a
standby mode. To turn off power completely, turn the AC switch to “O” or disconnect the AC
power cord from the power outlet.
Note: If there is no signal for a certain period of time, the LCD panel will automatically go into
standby mode.
16.3 Adjusting the Volume
1. Using the remote, press the VOL- or VOL+ to increase or decrease the volume.
2. Pressing the MUTE button temporarily turns off all sound. To restore the sound, press
the MUTE button again.
Note: The analog audio out is variable. S/PDIF is fixed.
16.4 Selecting the Input Source
Press the SOURCE button on the remote or press the INPUT button on the keypad. Use the
arrow buttons to select one of the following input sources and press OK:
SL4364K and SL5564K: HDMI 1, HDMI2, DVI, VGA, Media Player
SL6564K, SL7564K and 8664K: HDMI 1, HDMI 2, HDMI 3, HDMI 4, DisplayPort, SL
VGA, OPS, Media Player
Note: When the display cannot find a source, a “No signal” message will appear.
16.5 Navigating Through the Menus
1. With the power on, press MENU. The main menu appears.
2. Within the menu, use , , , , and OK to navigate through the menus and
adjust options.
3. Press to return to the previous menu. To exit the menu system, press HOME. BACK
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 28
17. OSD Initial Settings Menu
Use this menu to make initial setup adjustments to the OSD (On-Screen Display) menu and
other on-screen messages.
When this display is turned on for the first time, initial set-up is required. This process is
outlined in the following Initial Configuration section.
17.1 Initial Configuration / Importing Settings

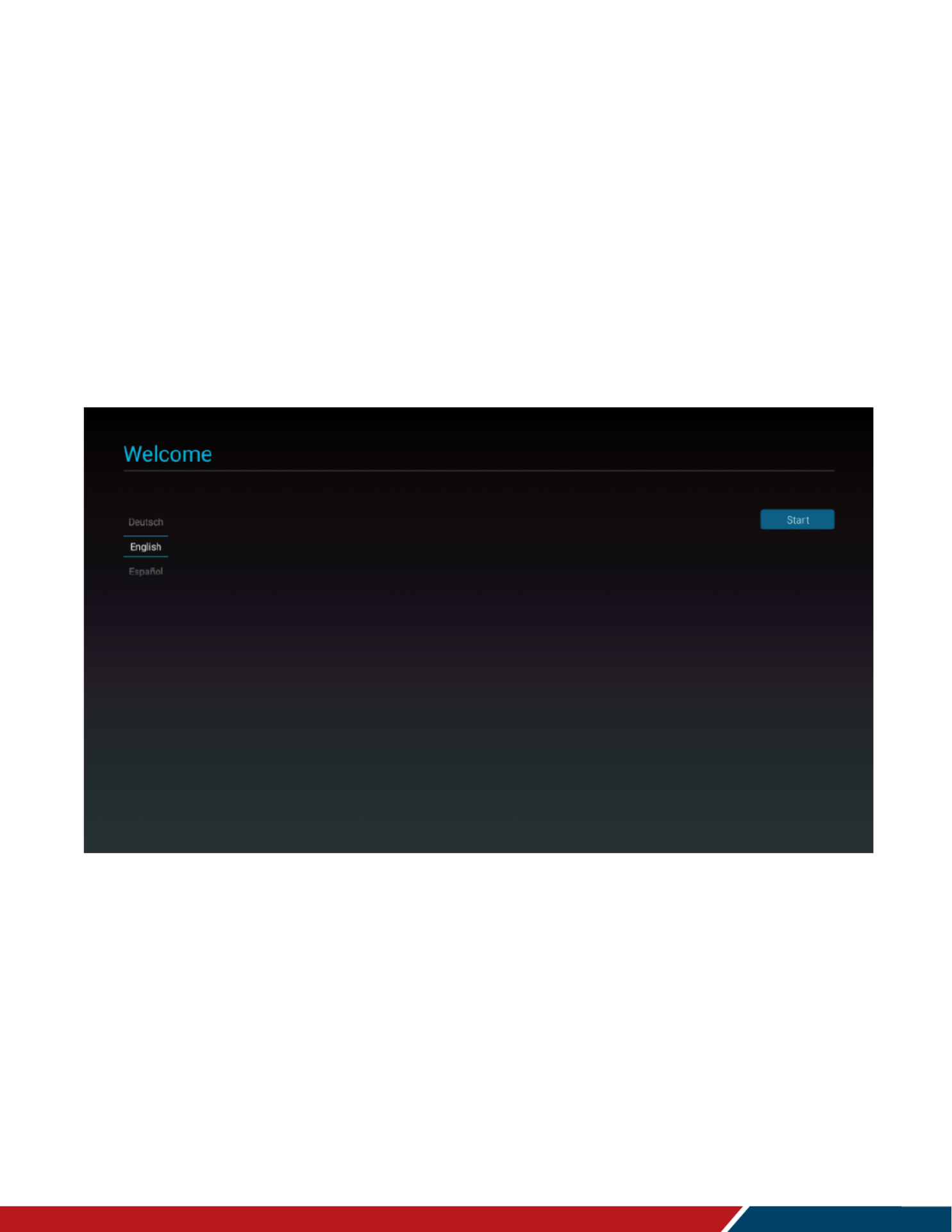

Welcome Page
1. Select a language and press start.
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 31

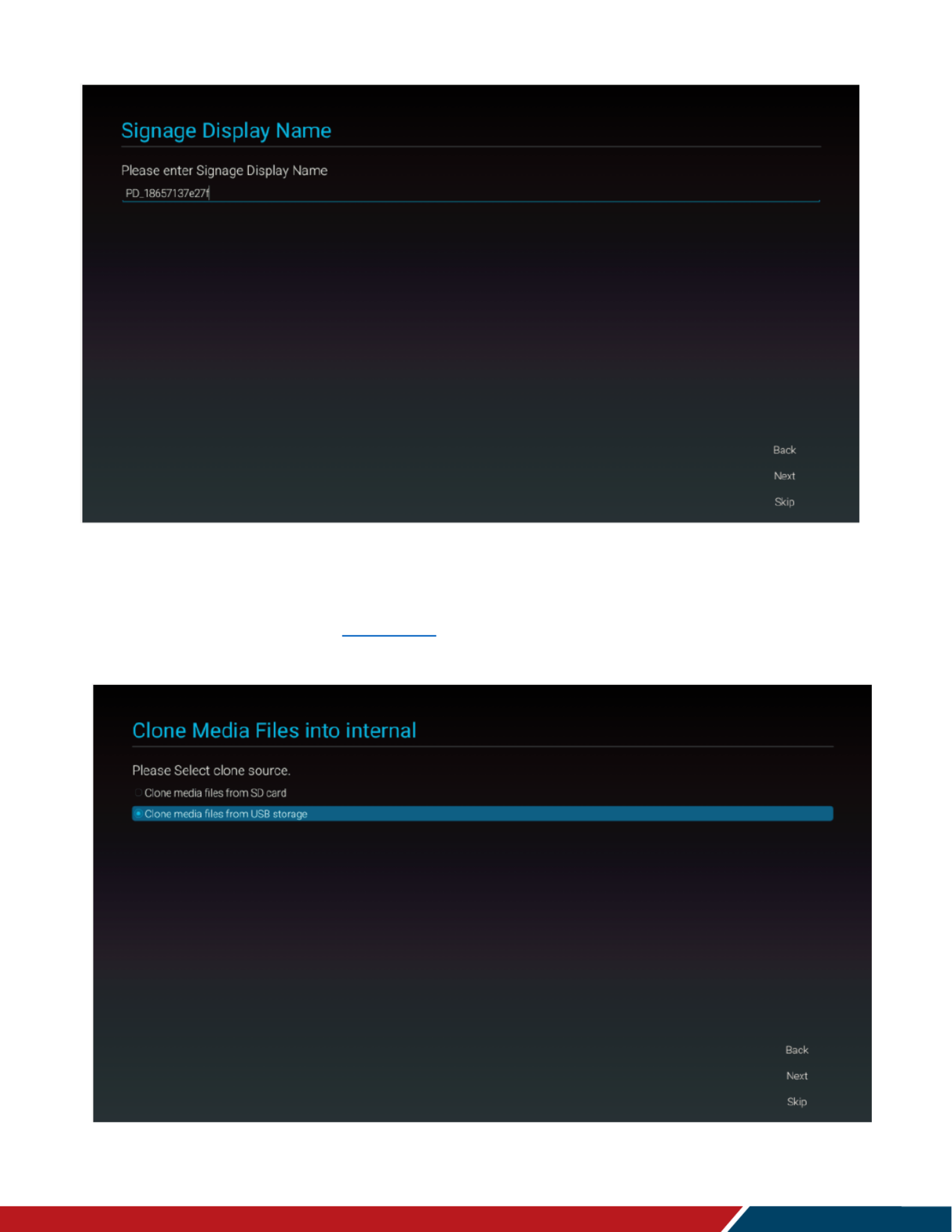

ii. Clone Media Files
1. Import media files previously saved to an SD card or storage USB
device using the Clone Media Files feature in the Android OSD
( see page 57).
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 32

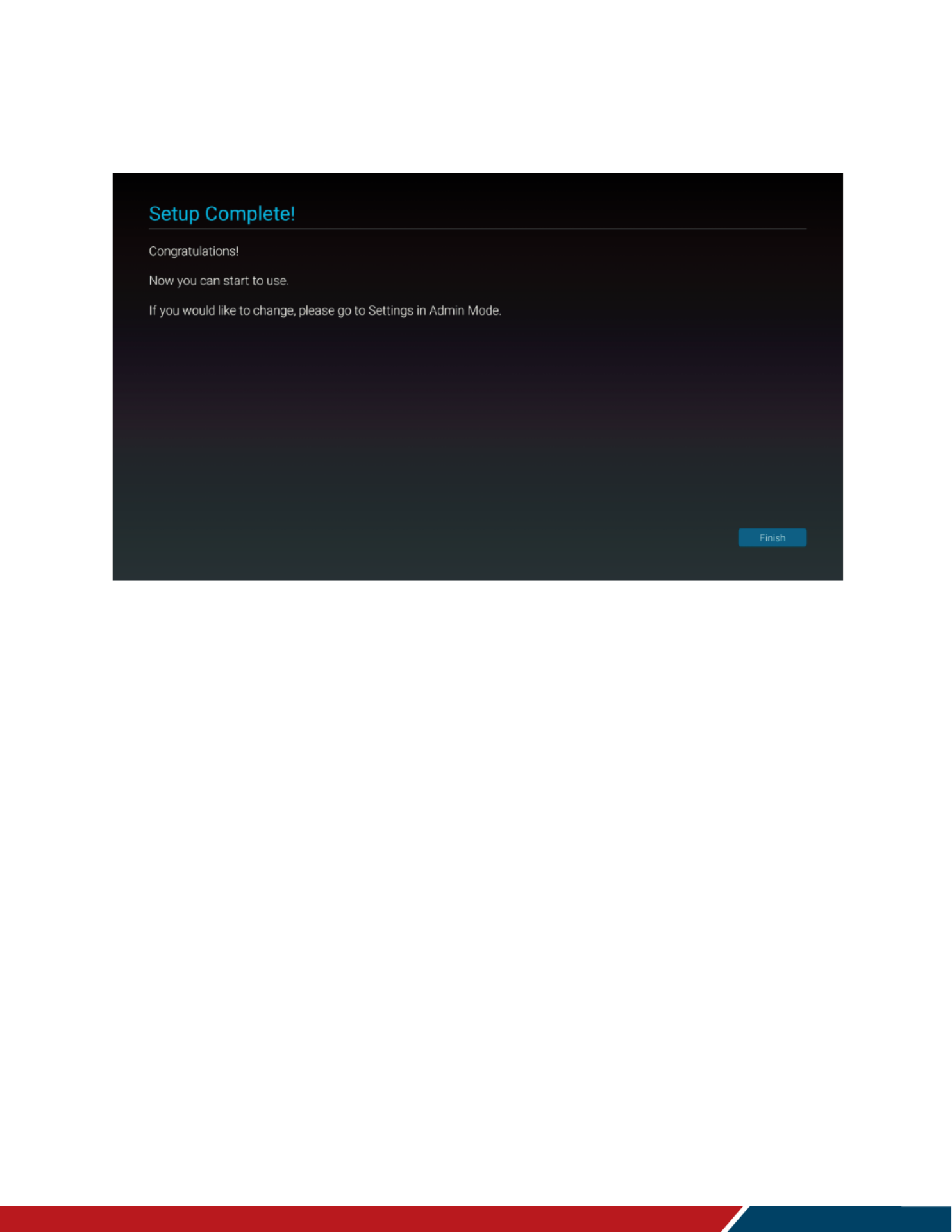

Setup Complete
7. Initial configuration is now complete. Press finish to begin using the display.
Operating the Display
Simplicity Series 4K Displays User Guide
020-1343-00A
Page | 51
Ethernet Configuration
o Connection Type
Enable dynamic IP mode or configure the static IP settings of the
display’s Ethernet port.
DHCP, Static IP Options:
Default: DHCP
o IP Address
The IP address used by the display’s network interface.
Configurable if Connection Type is set to Static IP.
o Netmask
The subnet mask used by the display’s network interface.
Configurable if Connection Type is set to Static IP.
o DNS Address
The address of the DNS server used by the display’s network interface.
Configurable if Connection Type is set to Static IP.
o Gateway
The default gateway used by the display’s network interface.
Configurable if Connection Type is set to Static IP.
MAC Address
o The MAC address of the display’s network interface.
Signage Display
Signage Display Name
o Assign a name to the display. By default, this is “PD_” plus the MAC address of
the display.
