User's Manual
MC-1610MR
MC-1610MR48
16-Slot Managed
Media Converter Chassis
1
Trademarks
Copyright © PLANET Technology Corp. 2009.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and
makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchant-
ability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inac-
curacies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET
makes no commitment to update or keep curr Manual, and reserves the right to make ent the information in this User’s
improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of haz-
ardous substances in electrical and electronic equipment, end users of electrical and electronic equipment
should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET Managed Media Converter Chassis User’s manual
MODELS: MC-1610MR / MC-1610MR48
REVISION: 1.0 (FEB .2009)
Part No.: EM-MC1610M_v1.0 (2080-AA1130-000)
2
TABLE OF CONTENTS
1. INTRODUCTION..............................................................................................................................5
1.1
P
ACKAGE
C
ONTENTS
......................................................................................................................................5
1.2
H
OW TO
U
SE
T
HIS
M
ANUAL
.............................................................................................................................5
1.3
A
BOUT THE
M
ANAGED
M
EDIA
C
ONVERTER
C
HASSIS
.........................................................................................6
1.4
F
EATURES
......................................................................................................................................................7
1.5
S
PECIFICATION
...............................................................................................................................................8
2. HARDWARE INSTALLATION.........................................................................................................9
2.1
F
RONT
P
ANEL
.................................................................................................................................................9
2.2
R
EAR
P
ANEL
.................................................................................................................................................11
2.3
M
ANAGED
M
EDIA
C
ONVERTER
C
HASSIS
I
NSTALLATION
...................................................................................12
2.3.1 Desktop Installation...............................................................................................................................................12
2.3.2 Rack Mounting ......................................................................................................................................................13
2.3.3 Slide Media Converter board into MC-1610MR /MC-1610MR48 Chassis Installation...........................................14
2.3.4 Centralize management Media Converter application...........................................................................................15
3. MANAGED MEDIA CONVERTER CHASSIS MANAGEMENT.....................................................17
3.1
O
VERVIEW
....................................................................................................................................................17
3.2
M
ANAGEMENT
M
ETHOD
.................................................................................................................................17
3.2.1 Local Console Management .................................................................................................................................17
3.2.2 Web Management.................................................................................................................................................19
3.3
A
SSIGNING AN
IP
A
DDRESS TO THE
M
ANAGED
M
EDIA
C
ONVERTER
C
HASSIS
....................................................21
4. CONSOLE INTERFACE ................................................................................................................22
4.1
CONNECT
TO
PC ......................................................................................................................................22
4.2
L
OGIN IN
.......................................................................................................................................................23
4.3
M
AIN
M
ENU SCREEN
.....................................................................................................................................23
4.4
G
ETTING
S
TARTED
........................................................................................................................................24
4.4.1 General Guidelines ...............................................................................................................................................24
4.4.2 Show command ....................................................................................................................................................25
4.4.3 Set command........................................................................................................................................................30
4.4.4 Factory default ......................................................................................................................................................35
4.4.5 Reboot ..................................................................................................................................................................36
4.4.6 Logout ...................................................................................................................................................................36
5. WEB MANAGEMENT.....................................................................................................................37
5.1
L
OGIN IN TO THE
M
ANAGED
M
EDIA
C
ONVERTER
C
HASSIS
...............................................................................37
5.2
M
ODULE
S
TATUS
..........................................................................................................................................39
5.2.1 Chassis Status ......................................................................................................................................................40
5.2.2 Converter Status ...................................................................................................................................................41
5.2.3 Location Setting ....................................................................................................................................................44
5.2.4 Redundant Backup Setting ...................................................................................................................................45
5.3
M
ANAGEMENT
...............................................................................................................................................46
5.3.1 System Information ...............................................................................................................................................48
5.3.2 IP Configuration ....................................................................................................................................................49
5.3.3 NTP Configuration ................................................................................................................................................50
3
5.3.4 Password Setting ..................................................................................................................................................51
5.3.5 Firmware Upgrade ................................................................................................................................................52
5.3.6 Factory Default......................................................................................................................................................54
5.3.7 Temperature .........................................................................................................................................................57
5.3.8 System Log ...........................................................................................................................................................58
5.3.9 System Reboot .....................................................................................................................................................59
5.4
SNMP ......................................................................................................................................................... 60
5.5
L
OGOUT
.......................................................................................................................................................62
6. LINK PASS THROUGH FUNCTION .............................................................................................64
6.1
L
INK
L
OSS
C
ARRY
F
ORWARD
(LLCF) ............................................................................................................64
6.2
L
INK
L
OSS
R
ETURN
(LLR) .............................................................................................................................65
7. TROUBLESHOOTING....................................................................................................................66
APPENDIX A NETWORKING CONNECTION ...................................................................................67
A.1
S
WITCH
'
S
RJ-45
P
IN
A
SSIGNMENTS
..............................................................................................................67
A.2
10/100M
BPS
,
10/100B
ASE
-TX.....................................................................................................................67
4
1. INTRODUCTION
1.1 Package Contents
Thank you for purchasing PLANET Managed Media Converter Chassis, the Managed Media Converter Chassis package shall
contain following contents:
Check the contents of your package for following parts:
z Managed Media Converter Chassis with one power supply installed p5-x1
z User's manual CD p5-x1
z Quick Installation Guide p5-x1
z RS-232 console cable p5-x1
z Power Cord x1
z Two Rack-Mounting Brackets with attachment screws p5-x1
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton including
the original packing material, and use them against to repack the product in case there is a need to return it to us for repair.
1.2 How to Use This Manual
The Managed Media Converter Chassis User’s Manual is structured as followings:
Section 2, Hardware Installation
It explains the functions of Managed Media Converter Chassis and how to install the Managed Media Converter Chassis.
Section 3, Managed Media Converter Chassis Management
It contains information about how to manage the Managed Media Converter Chassis.
Section 4, Console Interface
It contains information about the management function from the console interface of Managed Media Converter Chassis.
Section 5, Web Management
It contains information about the management function from the Web interface of Managed Media Converter Chassis.
Section 6, Link Pass Through Function
It contains detail explanation about the Link Pass Through function.
Section 7, Troubleshooting
It contains troubleshooting guide of Managed Media Converter Chassis.
Appendix A
It contains cable information of Managed Media Converter Chassis.
In the following section, the term “Managed Media Converter Chassis” means the MC-1610MR and MC-1610MR48.
5
1.3 About the Managed Media Converter Chassis
The MC-1610MR / MC-1610MR48 series provide 16-slots and one management system in a 19”-rack chassis, the
MC-1610MR / MC-1610MR48 series is designed for the applications such as FTTx installation for ISPs, telecoms, campuses
and enterprises. Various types of optic connectors, and fiber-optic wires on the distance basis are provides flexibly.
The 16-slots for optional FST-8 / GST-7 / GST-8 series Fast / Gigabit Ethernet Smart Media Converter installation makes
building a network solution of FTTH (Fiber to the Home), FTTB(Fiber to the Building) or FTTC(Fiber to the Curb) for ISPs,
enterprises and campuses, MC-1610MR / MC-1610MR48 series builds the FTTx easily. Therefore, the MC-1610MR /
MC-1610MR48 series will perfectly satisfy diverse demands while providing reliable and efficient network solution based on
distance and installation budgets.
With an independent power supply on each slot of the MC-1610MR / MC-1610MR48 series, any converter is hot-swappable
without causing an interruption to other converters; the FST and GST Series Smart Media Converter provide Media conversion
between copper to FX, SX and LX optical model for distance from 220m and up to 120km kilometers. The flexibility allows
MC-1610MR / MC-1610MR48 series to grow with the network and providing space efficient and cost-effective scalable solu-
tion.
The management function enables network administrators to monitor Media Converter connection status and configure the
converter via Web browser remotely or locally via an RS-232 console port. Its management function allow network adminis-
trator to monitor the slide in converter module connection status and configure the converter module. Through the
management interface, the entire status of the converters will be clearly demonstrated within the chassis form on / off and
status / statistics of ports. The MC-1610MR / MC-1610MR48 series is great ideal for telecom and corporate applications where
a number of fiber links need to be managed and controlled from a central location.
Power Redundant - MC-1610MR / MC-1610MR48 series supports the optional hot-swappable Redundant Power System
(RPS). The MC-1610MR equip with one 100~240V AC power supply unit and MC-1610MR48 equip with one DC -48V power
supply unit on its standard package, both MC-1610MR and MC-1610MR48 provide one spare power supply unit slot for option
redundant power supply installation. A redundant power supply is also provided to enhance the reliability with options of either
100~240V AC power supply unit or DC -48V power supply unit. The continuous power systems are specifically designed to
handle the demands of high tech facilities requiring the highest power integrity available. Also, -48V DC power supply im-
plemented make it as telecom level device that can be located at the electronic room.
Fiber-Optic Redundant Link - The redundancy back-up and error tolerance capability of the link can be greatly improved to
guarantee the network stability. The redundant link is designed for critical networks that require fibers or copper links to
automatically rapid recovery, such as ISPs, telecom, hospitals, banks and enterprises. If the port status of master converter is
link down, it forwards the packet to the slave converter’s port of the backup pair.
Temperature and FAN status Monitoring - The MC-1610MR / MC-1610MR48 series is equipped with temperature senor
and cooling fans to ensure reliable operation. Whenever the temperat an stop service, the Managed ure detects or cooling f
Media Converter Chassis display related information on the Web management interface.
6
1.4 Features
¾ Hardware
High quality 19”Rack-Mountable Chassis installation
Supports up to sixteen hot-swappable slide-in modular Media Converter
Supports the PLANET smart series Fast Ethernet and Gigabit Ethernet Media Converter FST-80x and GST-70x /
GST-80x
Two power slots at rear panel for redundant power support with options of 100~240V AC or -48V DC supplies
Bay power isolation ensure each bay is electrically isolated from each other
Up to two fans installation for increased air-flow for system cooling
One 10/100Mbps Fast Ethernet port and one RS-232 port for management
Management Fast Ethernet interface supports Auto-MDI / MDI-X for 10/100Base-TX port
LED indicators for system, power and fan status
EMI standards complies with FCC, CE class A
¾ System Management
Configurable through console, Web and SNMP
Provides SNMP status of converters with trap functions for any chassis and connectivity events.
Simple Network Management Protocol
• SNMP v1, v2c
• SNMP Trap
• Public MIB
• Private MIB
NTP Client (Time Zone Setting)
Remote Syslog and local System log
DHCP Client and DNS Client
Temperature detects display and alarm
Web Firmware Upgrade
Management account login session control
PLANET Smart Discovery Utility for deploy management
¾ Converter Management
Provides media Link / Connection Speed Duplex status for each module
Redundant Back up (Media Converter Link Redundant)
Reduces the effort of converter’s maintenance and management
7
1.5 Specification
Model MC-1610MR MC-1610MR48
Hardware Specification
Dimension (W x D xH) 440 x 88 x 350mm, 2U
Slot 16 open Slot( 15 x 80 x 26mm, W x D x H)
2 power slot s (one fixed, one vacant* )
Weight 7kg
Power requirement 100-240V AC, 1A, 50-60Hz DC -48V , 2A,
Range: -40V ~ -60V
Power Output 5V DC per slot, 2A maximum
Power consumption 10 Watts / 34BTU (1 x power sup-
ply , not include converters)
46.9 Watts / 160 BTU ( Full loading)
5.3 Watts / 18BTU (1 x power supply, not
include converters)
96 Watts / 327 BTU ( Full loading)
Operate environment 0~50 Degree C, 5%~90%RH
Storage environment -20~70 Degree C, 5%~90%RH
Emission FCC Class A, CE mark
Management Interface
Standards IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3x
Flow control
Fixed interface 10/100Base-TX port x1, RS-232 console port x1, Reset button p8-x1
Speed Ethernet: 10/20Mbps for half / full-duplex, Fast Ethernet: 100/200Mbps for half /
full-duplex
LED indicator System: MGM, Console, LNK/ACT, PWR ON x2, PWR FAIL x2, FAN FAIL p8-x2
Management Console, Web, SNMP v1/v2c
SNMP Trap Cold Start, MC copper link up/down, MC fiber link up/down.
Remark: The Managed Media Converter Chassis comes with one built-in power module, to install the second power module
into the vacant power slot, please consult your local dealer.
8
2. HARDWARE INSTALLATION
This section describes the functionalities of MC-1610MR / MC-1610MR48 components and guides how to install the device on
the desktop or shelf. Basic knowledge of networking is assumed; please read this chapter completely before continuing installs
the Managed Media Converter Chassis.
2.1 Front Panel
The Managed Media Converter Chassis provides one management module and 16-Slots for optional FST-8 / GST-7 / GST-8
series Fast / Gigabit Ethernet Smart Media converter installation.

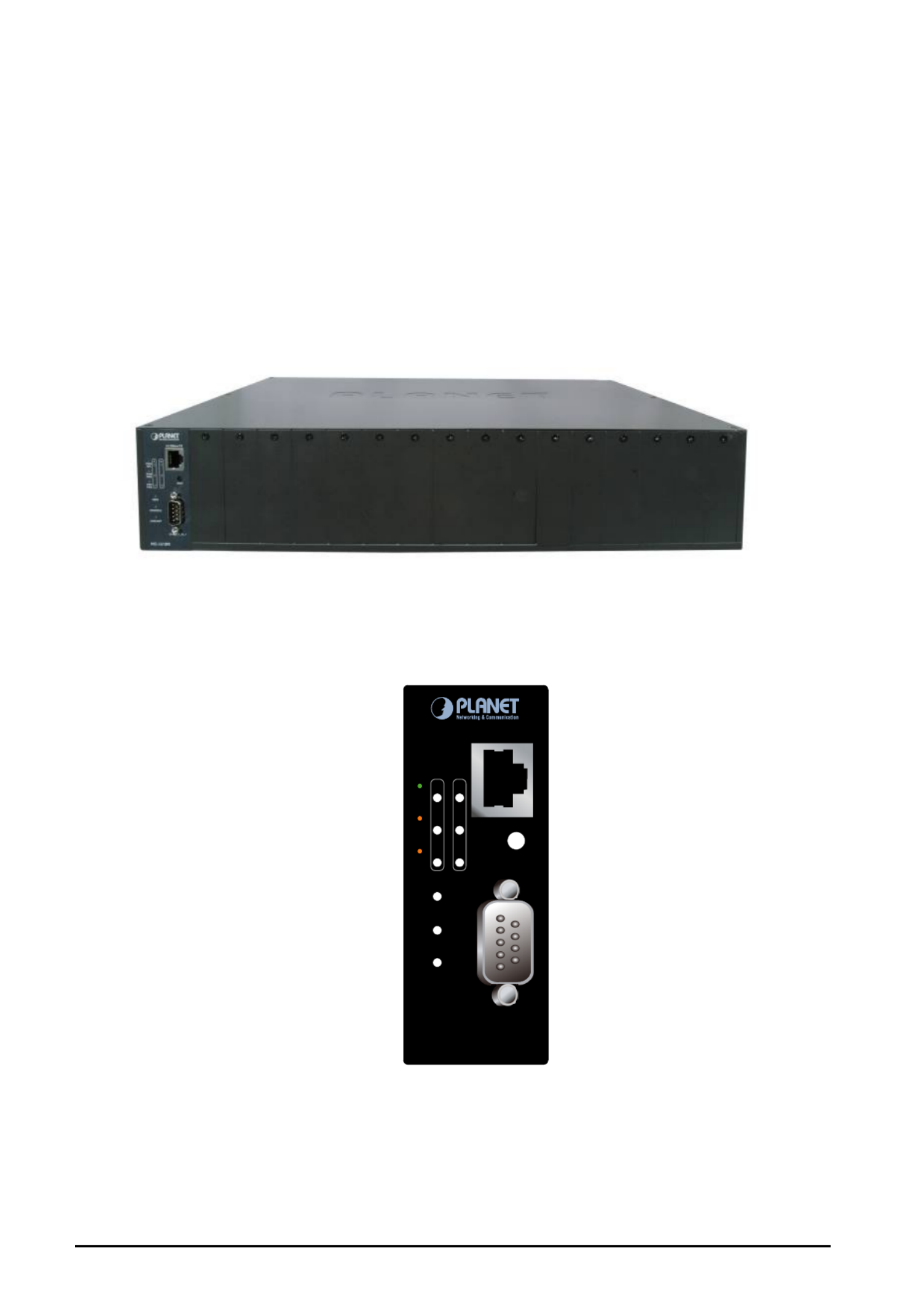

Figure 2-1: Managed Media Converter Chassis front panel
The LED indicators of the management module include power on, power fail, fan fail, MGM, Console and LNK/ACT. The
management module front panel in Figure 2-2 appears and the LED indicator in Table 2-1 appears.
1 2
10/100Base-TX
38400, 8, N, 1
RESET
PWR
ON
PWR
FAIL
FAN
FAIL
MGM
CONSOLE
LINK/ACT
MC-1610MR
Figure 2-2: Management module front panel
9
LED Indicators
LED Color LED Status Function
Lights On Indicate that the device has power.
PWR ON Green
Lights Off Indicate that the device not receive power.
Lights On Indicate that power is inserted and failed to work.
PWR FAIL Amber
Lights Off Indicate that power is inserted and work normal.
Lights On Indicate that fan is failed to work.
FAN FAIL Amber
Lights Off Indicate that fan is work normally.
Light blink Indicate that CPU is working.
MGM Green
Light Off Indicate that CPU is not working.
Light blink Indicate that console port is working.
CONSOLE Green
Light Off Indicate that console port is not working.
Light On The link through that port is successfully established.
LNK/ACT Green
Light Off The link through that port is not established or run at
10Mbps half / full duplex mode.
Table 2-1: LED Indicators from Management module front panel
#
Notice: 1. Press the RESET button for 2 seconds. The Managed Media Converter Chassis will reboot
automatically.
2. Press the RESET button for 10 seconds. The Managed Media Converter Chassis will back to
the factory default mode; the entire configuration will be erased.
10
Produktspecifikationer
| Varumärke: | Planet |
| Kategori: | Inte kategoriserad |
| Modell: | MC-1610MR |
Behöver du hjälp?
Om du behöver hjälp med Planet MC-1610MR ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad Planet Manualer
9 April 2025
4 April 2025
11 Mars 2025
22 Februari 2025
22 Februari 2025
6 Februari 2025
6 Februari 2025
6 Februari 2025
6 Februari 2025
6 Februari 2025
Inte kategoriserad Manualer
- Klarstein
- Inventum
- Lexivon
- Pawa
- Edilkamin
- American BioTech Supply
- Dunlop
- Tascam
- Ferm
- Somfy
- Posiflex
- Bose
- Numatic
- GoXtreme
- Aukey
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
