GB

List of pictograms used

Please read the operating instructions!

CE mark indicates conformity with

relevant EU directives applicable for

this product.

Spiral Labyrinth Construction Kit

Introduction

We congratulate you on the purchase of

your new product. You have chosen a high

quality product. The instructions for use

are part of the product. They contain important in-

formation concerning safety, use and disposal. Be-

fore using the product, please familiarise yourself

with all of the safety information and instructions for

use. Only use the product as described and for the

specified applications. If you pass the product on to

anyone else, please ensure that you also pass on all

the documentation with it.

Intended use

This product is suitable for discovering the world of

technology through play. It is solely intended for pri-

vate use. The product is not intended for commercial

use.

GBGBGBGB

Environmental damage through

incorrect disposal of the batteries/

rechargeable batteries!

Batteries/rechargeable batteries may not be dis-

posed of with the usual domestic waste. They may

contain toxic heavy metals and are subject to haz-

ardous waste treatment rules and regulations. The

chemical symbols for heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead. That is

why you should dispose of used batteries/recharge-

able batteries at a local collection point.

Warranty

The product has been manufactured to strict quality

guidelines and meticulously examined before deliv-

ery. In the event of product defects you have legal

rights against the retailer of this product. Your legal

rights are not limited in any way by our warranty

detailed below.

The warranty for this product is 3 years from the

date of purchase. The warranty period begins on

the date of purchase. Please keep the original sales

receipt in a safe location. This document is required

as your proof of purchase.

Should this product show any fault in materials or

manufacture within 3 years from the date of purchase,

we will repair or replace it – at our choice – free of

charge to you. This warranty becomes void if the

product has been damaged, or used or maintained

improperly.

The warranty applies to defects in material or manu-

facture. This warranty does not cover product parts

subject to normal wear, thus possibly considered

consumables (e.g. batteries) or for damage to frag-

ile parts, e.g. switches, rechargeable batteries or

glass parts.

Warranty claim procedure

To ensure quick processing of your case, please

observe the following instructions:

Please have the till receipt and the item number

(IAN 405106_2110) available as proof of pur-

chase.

You will find the item number on the rating plate, an

engraving on the front page of the instructions for

use (bottom left), or as a sticker on the rear or bot-

tom of the product.

If functional or other defects occur, please contact

the service department listed either by telephone or

by e-mail.

You can return a defective product to us free of

charge to the service address that will be provided

to you. Ensure that you enclose the proof of purchase

(till receipt) and information about what the defect

is and when it occurred.

Service

Service Great Britain

Tel.: 08000569216

E-Mail: [email protected]

Inserting/changing batteries

Open the battery compartment

1

by loosening

the screw on the battery compartment cover us-

ing a small crosshead screwdriver (not included).

Insert the batteries in the battery compartment

1

and replace the old batteries with new ones.

Please note the correct polarity.

Put the battery compartment cover back on the

battery compartment

1

and attach it by screw-

ing the screw tightly onto the battery compart-

ment cover using a small crosshead screwdriver.

Use

The product is a simple electronic circuit. After as-

sembling the product and inserting the batteries,

power flows through it and the labyrinth moves.

The player starts with one ball

12

at the start of the

labyrinth and must find a route to the goal. Unlike

with a standard labyrinth, in this labyrinth gravity

plays a role. With the rotary control

2

, control the

labyrinth by guiding the ball with the help of gravity

to the goal.

Put the ball

12

in the labyrinth.

Activate the labyrinth by moving the rotary

control

2

in any direction.

Use the rotary control

2

to steer the ball

12

towards the goal of the labyrinth.

Left = anticlockwise

Middle = stop

Right = clockwise

Switch the product off after use and remove the

batteries from the battery compartment

1

.

Care and storage

Do not use harsh or aggressive cleaning agents.

Clean the product using a soft, dry cloth only.

Always store the product clean and dry and at

room temperature.

Disposal

The packaging is made entirely of recyclable materials,

which you may dispose of at local recycling facilities.

b

a

Observe the marking of the packaging

materials for waste separation, which are

marked with abbreviations (a) and num-

bers (b) with following meaning: 1–7:

plastics/20–22: paper and fibreboard/

80–98: composite materials.

The product and packaging materials are

recyclable, dispose of it separately for

better waste treatment. The Triman logo

is valid in France only.

Contact your local refuse disposal author-

ity for more details of how to dispose of

your worn-out product.

To help protect the environment, please

dispose of the product properly when it

has reached the end of its useful life and

not in the household waste. Information

on collection points and their opening

hours can be obtained from your local

authority.

Faulty or used batteries/rechargeable batteries

must be recycled in accordance with Directive

2006/66/EC and its amendments. Please return

the batteries/rechargeable batteries and/or the

product to the available collection points.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/recharge-

able

batteries can cause burns on

contact with the skin. Wear suitable protective

gloves at all times if such an event occurs.

In the event of a leakage of batteries/recharge-

able batteries, immediately remove them from

the product to prevent damage.

Only use the same type of batteries/rechargeable

batteries. Do not mix used and new batteries/

rechargeable batteries.

Remove batteries/rechargeable batteries if the

product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/recharge-

able battery!

Insert batteries/rechargeable batteries accord-

ing to polarity marks (+) and (-) on the battery/

rechargeable battery and the product.

Use a dry lint-free cloth or cotton swab to clean

the contacts on the battery/rechargeable battery

and in the battery compartment before inserting!

Remove exhausted batteries/rechargeable bat-

teries from the product immediately.

Rechargeable batteries should be charged

under adult supervision.

Installation

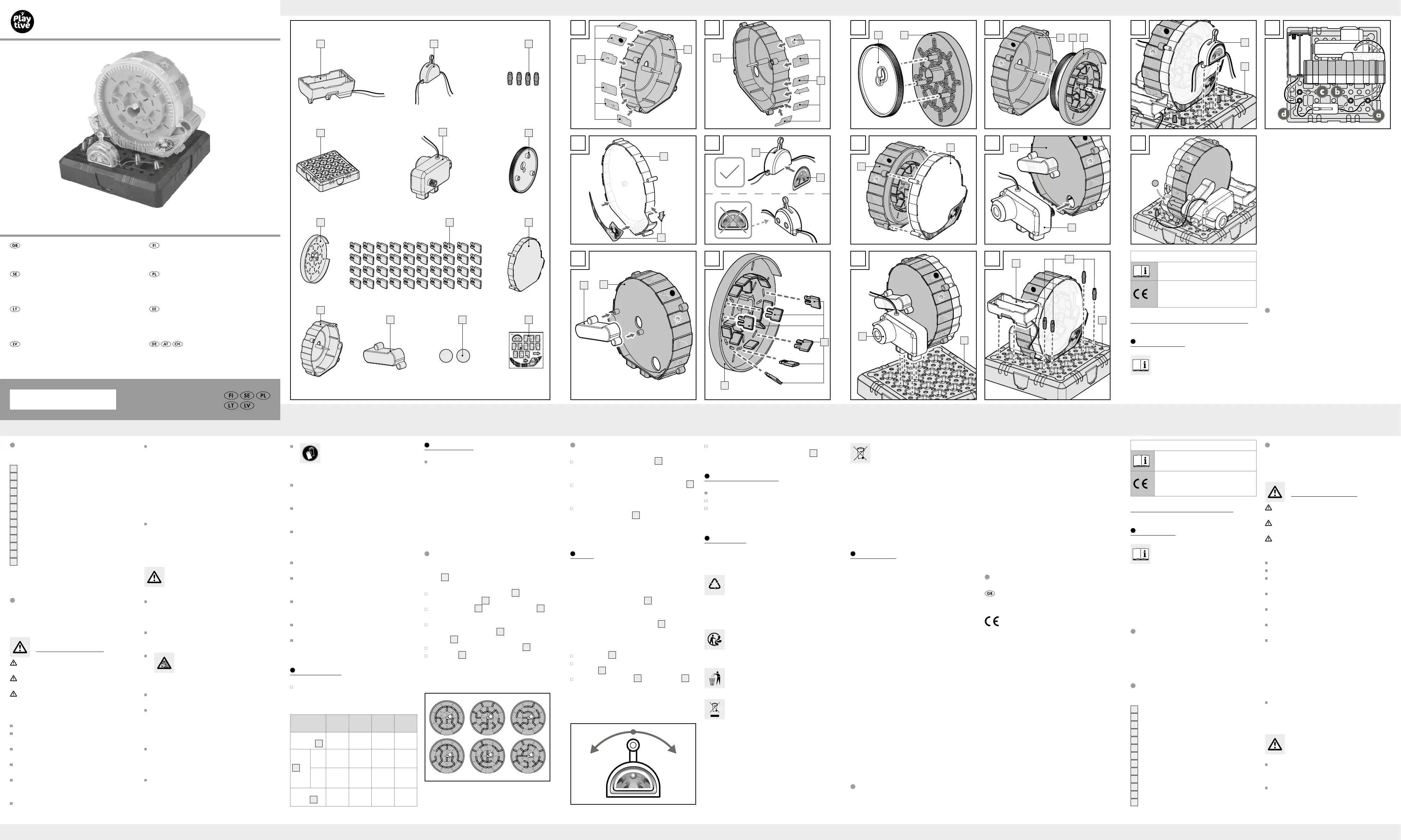

Follow the instructions as depicted in figures

A‒O.

Connection principle

Cable con-

nections

Spring

(a)

Spring

(b)

Spring

(c)

Spring

(d)

Battery com-

partment

1

redblack

Rotary

control

2

(front

view)

Left

side

redblack

Right

side

blackred

Motor

module

5

blackred

Before use

Before you insert the batteries and set up the

product, check again that all the electrical con-

nections are correctly set. Do not manipulate any

protective equipment such as the resistor built

into the battery compartment. Incorrectly set

connections which do not correspond to the

work instructions in these instructions for use

may lead to the overheating of batteries/ca-

bles, the explosion of the batteries or excessive

heating of individual components.

Creating a labyrinth

Create your own labyrinth. With the help of the

blocks

8

provided, you can create lots of different

combinations.

Open the front side of the wheel

9

and remove

the front side cover

7

.

Insert the blocks

8

in the front side cover

7

(see Fig. F).

When you are satisfied with your labyrinth, re-

place the front side cover

7

on the back of the

wheel

10

.

Then lock the front side of the wheel

9

.

If the ball

12

in the labyrinth you have created

does not reach the goal even after several attempts

,

this means that you must redesign the labyrinth.

Examples of possible labyrinths

Scope of delivery and parts

description

1

Battery compartment x 1

2

Rotary control x 1

3

Spring contact strip x 4

4

Patch panel x 1

5

Motor module x 1

6

Back cover x 1

7

Front side cover x 1

8

Block x 40

9

Wheel front side x 1

10

Wheel back x 1

11

Drop gauge x 1

12

Ball x 2

13

Adhesive label x 1

1.5 V AA battery x 2

Instructions for use x 1

Technical data

Batteries: 2 x LR6 (AA)/1.5 V

Ambient temperature: +10 to +40 °C

Safety instructions

WARNING. Not suitable for children under

36 months. Small balls. Risk of choking.

WARNING. Supervision and support must

be provided by an adult.

WARNING. All packaging materials are not

part of the product and should always be re-

moved for safety reasons before the product

is given to children to play with.

Retain packaging for reference.

The product is suitable for children 8 years of

age and above.

Do not short circuit the battery connections or

spring clamps. This can lead to overheating.

Do not fix the motor or the moving parts in place.

This can lead to overheating.

The wires of the individual components must

not be inserted into a power socket. Danger

of electric shock!

The toy is not to be connected to more than the

recommended number of power supplies.

Before you insert the batteries and set up the

product, check again that all the electrical con-

nections are correctly set. Do not manipulate

any protective equipment such as the resistor

built into the battery compartment. Incorrectly

set connections which do not correspond to the

work instructions in these instructions for use

may lead to the overheating of batteries/ca-

bles, the explosion of the batteries or excessive

heating of individual components.

If you will not be using the product any more

and you wish to take it apart again, first switch

off the product and take the batteries out of the

battery compartment.

Safety instructions for

batteries/rechargeable

batteries

DANGER TO LIFE! Keep batteries/recharge-

able batteries out of reach of children. If acci-

dentally swallowed seek immediate medical

attention.

Swallowing may lead to burns, perforation of

soft tissue, and death. Severe burns can occur

within 2 hours of ingestion.

DANGER OF EXPLOSION! Never

recharge non-rechargeable batteries.

Do not short-circuit batteries/recharge-

able batteries and/or open them. Overheating,

fire or bursting can be the result.

Never throw batteries/rechargeable batteries

into fire or water.

Do not exert mechanical loads to batteries/

rechargeable batteries.

Risk of leakage of batteries/rechargeable

batteries

Avoid extreme environmental conditions and

temperatures, which could affect batteries/

rechargeable batteries, e.g. radiators/direct

sunlight.

If batteries/rechargeable batteries have leaked,

avoid contact with skin, eyes and mucous mem-

branes with the chemicals! Flush immediately

the affected areas with fresh water and seek

medical attention!

SPIRAL LABYRINTH CONSTRUCTION KIT

IAN 405106_2110

1

1 x

2

1 x

3

4 x

7

1 x

8

40 x

9

1 x

10

1 x

11

1 x

12

2 x

13

1 x

E

11

10

4

1 x

5

1 x

6

1 x

MN

O

2

C

9

13

B

10

13

D

2

13

F

7

8

G

6

7

H

6

10

7

I

10

9

J

10

5

K

5

4

L

3

1

4

4

A

10

13

FI

Merkkien selitykset

Lue käyttöohje!

CE-merkintä ilmaisee yhdenmukaisuuden

tätä tuotetta koskevien asiaankuuluvien

EU-direktiivien kanssa.

Tarvikesetti Spiral Labyrinth

Johdanto

Onnittelemme sinua uuden tuotteen han-

kinnasta. Valitsit erittäin korkealaatuisen

tuotteen. Käyttöohje on osa tätä tuotetta.

Se sisältää tärkeitä turvallisuusohjeita sekä käyttöä

ja hävitystä koskevia ohjeita. Tutustu ennen tuotteen

käyttöä huolellisesti kaikkiin käyttöja turvallisuusoh-

jeisiin. Käytä tuotetta ainoastaan ohjeen mukaan ja

siinä mainittuihin tarkoituksiin. Anna kaikki ohjeet

mukaan, jos luovutat tuotteen edelleen.

Tarkoituksenmukainen käyttö

Tuote soveltuu teknologian maailmaan tutustumiseen

leikin avulla. Tuote on tarkoitettu vain yksityiskäyttöön.

Tuotetta ei ole tarkoitettu kaupalliseen käyttöön.

Osien kuvaus ja toimituksen

sisältö

1

Paristolokero x 1

2

Kääntösäädin x 1

3

Jousikosketin x 4

4

Asennusalusta x 1

5

Moottori-moduuli x 1

6

Takaosan suojus x 1

7

Etuosan suojus x 1

8

Lohko x 40

9

Pyörän etuosa x 1

10

Pyörän takaosa x 1

11

Laskukaista x 1

12

Kuula x 2

13

Tarra x 1

1,5 V:n AA-paristo x 2

Käyttöohje x 1

Tekniset tiedot

Paristot: 2 x LR6 (AA)/1,5 V

Ympäristön lämpötila: +10 – +40 °C

Turvallisuusohjeet

HUOMIO. Ei sovellu alle 3-vuotiaille lapsille.

Sisältää pieniä kuulia. Tukehtumisvaara.

HUOMIO. Tarvitsee aikuisen henkilön valvon-

nan ja tuen.

HUOMIO. Koska pakkausmateriaalit eivät ole

osa tuotetta, ne tulisi aina poistaa turvallisuus-

syistä ennen kuin tuote annetaan lapsille.

Säilytä pakkaus myöhempää tarvetta varten.

Tuote soveltuu 8 vuotta täyttäneille lapsille.

Älä oikosulje paristojen napoja ja jousiliittimiä.

Tämä voi johtaa ylikuumenemiseen.

Älä lukitse moottoria tai liikkuvia osia. Tämä voi

johtaa ylikuumenemiseen.

Yksittäisten komponenttien metallilankoja ei saa

työntää pistorasiaan. Sähköiskun vaara!

Tuotetta ei saa liittää useampaan virtalähteeseen

kuin suositeltu määrä.

Ennen kuin asetat paristot paikalleen ja otat tuot-

teen käyttöön, tarkista uudelleen, että kaikki säh-

köliitännät ovat oikein. Älä käsittele suojalaitteita,

kuten paristolokeroon rakennettua PTC-vastusta.

Virheelliset liitännät, jotka eivät ole käyttöohjeen

mukaisia, voivat johtaa paristojen/johtojen ylikuu-

menemiseen, paristojen räjähtämiseen tai yksit-

täisten osien liialliseen kuumenemiseen.

Kun et enää käytä tuotetta ja haluat purkaa sen,

kytke tuote ensin pois päältä ja poista paristot

paristolokerosta.

Paristoja/akkuja koskevat

turvallisuuohjeet

HENGENVAARA! Pidä paristot/akut lasten

ulottumattomissa. Pariston/akun nielaisseen hen-

kilön on välittömästi otettava yhteyttä lääkäriin!

Nieluun joutuminen voi johtaa palovammoihin,

pehmytkudoksen puhkeamiseen ja kuolemaan.

Vakavat palovammat voivat ilmaantua 2 tunnin

sisällä nielemisestä.

SPIRAL LABYRINTH CONSTRUCTION KIT

Assembly, operating and safety instructions

TARVIKESETTI SPIRAL LABYRINTH

Asennus-, käyttö- ja turvallisuusohjeet

ZESTAW DO SAMODZIELNEGO

SKŁADANIA - SPIRAL LABIRYNTH

Wskazówki montażu, obsługi i bezpieczeństwa

BYGGSATS SPIRAL LABYRINTH

Monterings-, bruks- och säkerhetsanvisningar

KONSTRAVIMO RINKINIS

„SPIRAL LABYRINTH“

Nurodymai dėl montavimo, naudojimo ir saugumo

KONSTRUKTOR SPIRAL LABYRINTH

Montaaži-, käsitsemis- ja ohutusjuhised

BAUSATZ SPIRAL LABYRINTH

Montage-, Bedienungs- und Sicherheitshinweise

KONSTRUKTORS „SPIRAL LABYRINTH“

Montāžas, lietošanas un drošības norādījumi

Produktspecifikationer
