OWNER’S MANUAL
RZR® 570
RZR® 570 EPS
WARNING
Read, understand, and follow all of the instructions and safety
precautions in this manual and on all product labels.
Failure to follow the safety precautions
could result in serious injury or death.
WARNING
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm.
For videos and more information
about a safe riding experience with
your Polaris vehicle, scan this QR
code with your smartphone.
1
WELCOME
Thank you for purchasing a POLARIS vehicle, and welcome to our
world-wide family of POLARIS enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions,
upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and
recreational products.
We believe POLARIS sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of
experience have gone into the engineering, design, and development of
your POLARIS vehicle, making it the finest machine we’ve ever
produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Review the
safety DVD that came with your vehicle. Polaris also recommends that
all drivers take the ROHVA safety e-course and a ROHVA hands-on
safety training course (www.rohva.org).
Your manual contains instructions for minor maintenance, but
information about major repairs is outlined in the POLARIS Service
Manual and can be performed by a factory certified Master Service
Dealer® (MSD) Technician.
Your POLARIS dealer knows your vehicle best and is interested in your
total satisfaction. Your POLARIS dealership can provide for all of your
service needs during, and after, the warranty period.
• Snowmobiles • RZR® sport vehicles
• All-terrain vehicles (ATVs) • GEM® electric vehicles
• Low emission vehicles (LEVs) • VICTORY® motorcycles
• ®RANGER utility vehicles • INDIAN® motorcycles
• BRUTUS® work vehicles • POLARIS POWER® generators
• SLINGSHOT® three wheel
motorcycles
• POLARIS DEFENSE® combat
vehicles
2
POLARIS® and RZR® are trademarks of POLARIS Industries Inc.
Copyright 2017 POLARIS Industries Inc. All information contained within this
publication is based on the latest product information at the time of publication. Due to
constant improvements in the design and quality of production components, some minor
discrepancies may result between the actual vehicle and the information presented in
this publication. Depictions and/or procedures in this publication are intended for
reference use only. No liability can be accepted for omissions or inaccuracies. Any
reprinting or reuse of the depictions and/or procedures contained within, whether whole
or in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are provided as
translations of the original instructions.
Printed in U.S.A.
2018 RZR 570/RZR 570 EPS Owner’s Manual
P/N 9928359
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features and Controls . . . . . . . . . . . . . . . . . . . 24
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Winch Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Emission Control Systems . . . . . . . . . . . . . . . 82
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 132
POLARIS Products. . . . . . . . . . . . . . . . . . . . . 132
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 133
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 143
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
4
INTRODUCTION
The RZR is an off-road vehicle. Familiarize yourself with all laws and
regulations concerning the operation of this vehicle in your area.
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
5
INTRODUCTION
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. Your POLARIS vehicle is not a toy and can
be hazardous to operate. This vehicle handles differently than cars, trucks or
other off-road vehicles. A collision or rollover can occur quickly, even during
routine maneuvers like turning, or driving on hills or over obstacles, if you fail to
take proper precautions.
• Read this owner’s manual and review the safety DVD that came with your
vehicle. A free extra copy of the DVD can be obtained by contacting your local
POLARIS dealer. Understand all safety warnings, precautions and operating
procedures before operating the vehicle. Keep this manual with the vehicle.
• This vehicle is an ADULT VEHICLE ONLY. You MUST be at least age 16 and
have a valid driver’s license to operate this vehicle.
• All riders must be able to sit with backs against the seat, both feet flat on the
floor and both hands on the steering wheel (if driving) or on a passenger hand
hold.
• Always use the cab nets (or doors) while riding in this vehicle. Always keep
hands, feet and all other body parts inside the vehicle at all times.
• Always wear a helmet, eye protection, gloves, long-sleeve shirt, long pants
and over-the-ankle boots.
• Never use this vehicle with drugs or alcohol, as these conditions impair
judgment and reduce operator reaction time.
• Complete the New Operator Driving Procedures outlined on pages 58-59.
Never allow a guest to operate this vehicle until the guest has completed the
New Operator Driving Procedures.
European Vibration and Noise
The driver-perceived noise and hand/arm and whole body vibration levels of this
machinery is measured per prEN 15997.
The operating conditions of the machinery during testing:
The vehicles were in like-new condition. The environment was controlled as
indicated by the test procedure(s).
The uncertainty of vibration exposure measurement is dependent on many
factors, including:
• Instrument and calibration uncertainty
• Variations in the machine such as wear of components
• Variation of machine operators such as experience or physique
• Ability of the worker to reproduce typical work during measurements
• Environmental factors such as ambient noise or temperature
WARNING
6
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a POLARIS key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Vehicle Identification Number: ______________________________________________
Engine Serial Number: ___________________________________________________
Key Number ____________________________________________________________
Engine Serial Number
Key
Number
Vehicle Identification Number
Stamp (Left Front Frame)
Manufacturing Data Label
(Right Front Fender Area)
7
SAFETY
Safety Training
Safety training is a top priority for POLARIS. POLARIS strongly
encourages you and any family members who will be riding this vehicle
to take a training course.
Your POLARIS vehicle is considered an off-road vehicle. Familiarize
yourself with all laws and regulations concerning the operation of this
vehicle in your area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance
program is designed to ensure that all critical components on your
vehicle are thoroughly inspected at specific intervals.
ROHVA (Recreational Off-Highway Vehicle Association) provides both
an online safety e-course and a hands-on safety course in some areas. To
access this valuable training, visit www.rohva.org.
• For more information about recreational off-road vehicle safety in
North America, visit www.rohva.org or call POLARIS at 1-800-342-
3764.
• For more information about recreational off-road vehicle safety out-
side North America, visit www.rohva.org, contact an authorized
POLARIS dealer or visit the POLARIS web site at www.polaris.com.
8
SAFETY
Safe Riding Gear
The driver and all passengers must wear helmet, eye protection, gloves,
long-sleeve shirt, long pants, over-the-ankle boots and seat belt at all
times. Protective gear reduces the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding this
POLARIS vehicle, always wear a helmet that meets or exceeds
established safety standards.
Approved helmets in the USA and Canada bear a
U.S. Department of Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial number will also be
displayed on the label.
E
4
051039
0006.31
Helmet
Eye Protection
Gloves
Over-the-Ankle
Boots
Long Pants
Long
Sleeves
9
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection.
Whenever riding this POLARIS vehicle, always wear shatterproof
goggles or use a shatterproof helmet face shield. POLARIS
recommends wearing approved Personal Protective Equipment (PPE)
bearing markings such as VESC 8, V-8, Z87.1, or CE. Make sure
protective eye wear is kept clean.
Gloves
Wear gloves for comfort and for protection from sun, cold weather and
other elements.
Boots
Wear sturdy over-the-ankle boots for support and protection. Never ride
a POLARIS vehicle with bare feet or sandals.
Clothing
Wear long sleeves and long pants to protect arms and legs.
Rider Comfort
Under certain operating conditions, heat generated by the engine and
exhaust system can elevate temperatures in the driver and passenger cab
area. The condition occurs most frequently when a vehicle is being
operated in high ambient temperatures at low speeds and/or high load
conditions for an extended period of time. The use of certain
windshield, roof and/or cab systems may contribute to this condition by
restricting airflow. Any discomfort due to heat buildup in this area can
be minimized by wearing proper riding apparel and by varying speeds to
increase airflow.
10
SAFETY
Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions of the labels on the vehicle carefully. If
any of the labels depicted in this manual differ from the labels on your
vehicle, always read and follow the instructions of the labels on the
vehicle.
If an informational or graphic label becomes illegible or comes o, your
POLARIS dealer can assist to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge. The part number is
printed on the label.
Proper Use Warning
WARNING
Require Proper Use of Your Vehicle
Do your part to prevent injuries:
• Do not allow careless or reckless driving.
• Make sure operators are 16 or older with a
valid driver’s license.
• Do not let people drive or ride after using
alcohol or drugs.
• Do not allow operation on public roads (unless
designated for off-highway vehicle access) -
collisions with cars and trucks can occur.
• Do not exceed seating capacity: 2 occupants.
7179978
Fuel Transport Warning
WARNING
NEVER carry fuel or other flammable liquids
on this vehicle. Failure to follow this instruction
could lead to serious burn injuries or death
7185278
Proper Use
Warning
11
SAFETY
Safety Labels and Locations
Seat Belt/Drive Responsibly Warning
WARNING
Improper vehicle use can result in
SEVERE INJURY or DEATH
Be Prepared
• Fasten seat belts.
• Wear an approved helmet and protective
gear.
• ALWAYS use cab nets and/or doors.
• Each rider must be able to sit with back
against seat, feet flat on the floor, and
hands on steering wheel or hand holds.
Stay completely inside the vehicle.
Drive Responsibly
Avoid loss of control and rollovers:
• Avoid abrupt maneuvers, sideways sliding,
skidding or fishtailing, and never do donuts.
• Slow down before entering a turn.
• Avoid hard acceleration when turning, even
from a stop.
• Plan for hills, rough terrain, ruts and other
changes in traction and terrain.
• Avoid paved surfaces.
• Avoid sidehilling (riding across slopes).
Be Sure Riders Pay Attention and Plan Ahead
If you think or feel the vehicle may tip or roll, reduce your risk of injury:
• Keep a firm grip on the steering wheel or hand holds and brace yourself.
• Do not put any part of your body outside of the vehicle for any reason.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS
AND WARNINGS. ALWAYS REVIEW SAFETY VIDEO AND TAKE ROHVA
TRAINING (rohva.org).
7179988
Seat Belt/Drive
Responsibly
Warning
Rollovers have caused
severe injuries and death,
even on flat, open areas.
12
SAFETY
Safety Labels and Locations
Load/Passenger/Tire Pressure Warning
WARNING
• Never carry passengers in cargo box.
• Passengers can be thrown off. This can
cause serious injury or death.
WARNING
IMPROPER TIRE PRESSURE OR
OVERLOADING CAN CAUSE LOSS OF
CONTROL RESULTING IN SERIOUS
INJURY OR DEATH.
• Reduce speed and allow greater
distance for braking when carrying
cargo.
• Overloading or carrying tall, off-center, or unsecured loads will increase your
risk of losing control. Loads should be centered and carried as low as
possible in box.
• For stability on rough or hilly terrain, reduce speed and cargo.
Fuel Transport Warning
WARNING
NEVER carry fuel or other flammable liquids
on this vehicle. Failure to follow this instruction
could lead to serious burn injuries or death
7185278
RZR 570
MAXIMUM CARGO BOX LOAD 300 lbs.
(136 kg)
TIRE PRESSURE IN PSI (KPa) 1 RIDER
FRONT 7 (48)
REAR 9 (62)
2 RIDERS
FRONT 8 (55)
REAR 10 (69)
MAXIMUM WEIGHT CAPACITY
INCLUDES WEIGHT OF OPERATOR, PASSENGER,
CARGO AND ACCESSORIES
740 lbs.
(336 kg)
Read Operation and Maintenance Manual for more detailed loading information.
Load/Passenger/Tire
Pressure Warning
13
SAFETY
Safety Labels and Locations
Shift Caution
CAUTION
To avoid transmission damage, shift only
when vehicle is stationary and at idle.
When vehicle is stopped, place shift in
the parked position.
APPLY BRAKE TO START
7174843
Storage Box Caution (LE Models)
CAUTION
Failure to follow these storage instructions
could result in injury or property damage.
Temperatures in this storage box can
exceed 150°F (65°C). Items such as
lighters, sealed gasses and electronics are
heat sensitive.
NEVER store such items in this box.
Shift Caution
Storage Box Caution
15
SAFETY
Safety Warnings
Failure to Inspect Before Operating
Failure to inspect and verify that the vehicle
is in safe operating condition before
operating increases the risk of an accident.
Always perform the pre-ride inspection
before each use of your vehicle to make
sure it's in safe operating condition. See
page 54.
Always follow the inspection and
maintenance procedures and schedules
described in this owner’s manual. See
page 83.
Protective Apparel
Riding in this vehicle without wearing an
approved helmet and protective eyewear
increases the risk of a serious injuries in the
event of an accident.
Always wear a helmet, eye protection,
gloves, long-sleeve shirt, long pants and
over-the-ankle boots.
Seat Belts
Riding in this vehicle without wearing the seat belt increases the risk of serious
injury in the event of rollover, loss of control, other accident or sudden stop. Seat
belts may reduce the severity of injury in these circumstances.
All riders must wear seat belts at all times.
Cab Nets
Riding in this vehicle without using the cab nets (or doors, if equipped) increases
the risk of serious injury or death in the event of an accident or rollover. Always
use the cab nets (or doors) while riding in this vehicle. Always keep hands and
feet inside the vehicle at all times.
16
SAFETY
Safety Warnings
Carrying Multiple Passengers
Never carry a passenger until you have operated this
vehicle for at least two hours and have completed the New
Operator Driving Procedures outlined on pages 58-59.
A passenger must always be seated in a passenger seat
with seat belt secured. Carrying more than one passenger
in a 2-seat vehicle can affect the operator’s ability to steer
and operate the controls, which increases the risk of loss
of control and accident or rollover. Never carry more than
one passenger in a 2-seat vehicle.
Operating With a Load on the Vehicle
The weight of both cargo and passengers impacts vehicle operation and
stability. For your safety and the safety of others, carefully consider how your
vehicle is loaded and how to safely operate the vehicle. Follow the instructions
in this manual for loading, tire pressure, gear selection and speed.
•Do not exceed vehicle weight capacities. The vehicle’s maximum weight
capacity is listed in the specifications section of this manual and on a label on
the vehicle. When more passenger weight is added, cargo weight may need to
be reduced accordingly.
• The recommended tire pressures are listed in the specifications section of this
manual and on a label on the vehicle.
Always follow these guidelines:
Under ANY of these conditions: Do ALL of these steps:
Passenger and/or cargo exceeds half the
maximum weight capacity
1. Slow down.
2. Verify tire pressure.
3. Use extra caution when
operating.
Operating in rough terrain
Operating over obstacles
Climbing an incline
Towing
17
SAFETY
Safety Warnings
Passengers in the Cargo Box
Carrying a passenger in the cargo box could
result in a fall from the vehicle or contact with
moving components. Never allow a
passenger to ride in the cargo box. A
passenger must always be seated in a
passenger seat with seat belt secured
Operating on Pavement
This vehicle's tires are designed for off-road use only, not for use on pavement.
Operating this vehicle on paved surfaces (including sidewalks, paths, parking
lots and driveways) may adversely affect the handling of the vehicle and may
increase the risk of loss of control and accident or rollover. Avoid operating the
vehicle on pavement. If it's unavoidable, travel slowly, travel short distances and
avoid sudden turns or stops.
Operating on Public Roads
Operating this vehicle on public streets,
roads or highways could result in a collision
with another vehicle. Never operate this
vehicle on any public street, road or highway,
including dirt and gravel roads (unless
designated for off-highway use).
Operating at Excessive Speeds
Operating this vehicle at excessive speeds
increases the operator's risk of losing
control. Always operate at a speed that's
appropriate for the terrain, the visibility and
operating conditions, your skills and
experience and your passengers’ skills and
experience.
18
SAFETY
Safety Warnings
Turning Improperly
Turning improperly could cause loss of traction, loss of control, accident or
rollover. Always follow proper procedures for turning as described in this
owner’s manual.
Avoid sharp turns. Never turn while applying heavy throttle. Never make abrupt
steering maneuvers. Practice turning at slow speeds before attempting to turn at
faster speeds.
Jumps and Stunts
Exhibition driving increases the risk of an
accident or rollover. DO NOT do power slides,
“donuts”, jumps or other driving stunts. Avoid
exhibition driving.
Improper Hill Climbing
Improper hill climbing could cause loss of
control or rollover. Use extreme caution
when operating on hills. Always follow
proper procedures for hill climbing as
described in this owner's manual. See
page 62.
Descending Hills Improperly
Improperly descending a hill could cause
loss of control or rollover. Always follow
proper procedures for traveling down hills
as described in this owner’s manual. See
page 63.
19
SAFETY
Safety Warnings
Crossing Hillsides
Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or rollover. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a hillside is unavoidable, always follow proper procedures as
described in this owner's manual. See page 63.
Stalling While Climbing a Hill
Stalling or rolling backwards while climbing a
hill could cause a rollover. Maintain a steady
speed when climbing a hill.
If you lose all forward speed:
Apply the brakes gradually until the vehicle
is fully stopped. Place the transmission in
reverse and slowly allow the vehicle to roll
straight downhill while applying light brake
pressure to control speed.
Operating in Unfamiliar Terrain
Failure to use extra caution when operating
on unfamiliar terrain could result in an
accident or rollover.
Unfamiliar terrain may contain hidden rocks,
bumps, or holes that could cause loss of
control or rollover.
Travel slowly and use extra caution when
operating on unfamiliar terrain. Always be
alert to changing terrain conditions.
20
SAFETY
Safety Warnings
Operating Improperly in Reverse
Improperly operating in reverse could result in a
collision with an obstacle or person. Always
follow proper operating procedures as outlined
in this manual. See page 66.
Before shifting into reverse gear, always check
for obstacles or people behind the vehicle.
When it's safe to proceed, back slowly.
Improper Tire Maintenance
Operating this vehicle with improper tires or with improper or uneven tire
pressure could cause loss of control, accident or rollover.
Always use the size and type of tires specified for your vehicle. Always maintain
proper tire pressure as described in this owner's manual and on safety labels.
Skidding or Sliding
Failure to use extra caution when operating on
excessively rough, slippery or loose terrain
could cause loss of traction, loss of control,
accident or rollover. Do not operate on
excessively slippery surfaces. Always slow
down and use additional caution when
operating on slippery surfaces.
Skidding or sliding due to loss of traction can
cause loss of control or rollover (if tires regain
traction unexpectedly). Always follow proper
procedures for operating on slippery surfaces
as described in this owner's manual. See page 61.
Operating Over Obstacles
Improperly operating over obstacles
could cause loss of control or rollover.
Before operating in a new area, check
for obstacles. Avoid operating over
large obstacles such as large rocks and
fallen trees. Always follow the proper
procedures outlined in this manual
when operating over obstacles. See
page 65.
21
SAFETY
Safety Warnings
Operating Through Water
Operating through deep or fast-flowing
water can cause loss of traction, loss of
control, rollover or accident. Never operate
in fast-flowing water or in water that
exceeds the floor level of the vehicle.
Always follow proper procedures for
operating in water as described in this
owner’s manual. See page 64.
Wet brakes may have reduced stopping
ability. After leaving water, test the brakes. Apply them lightly several times while
driving slowly. The friction will help dry out the pads.
Operating on Frozen Bodies of Water
Severe injury or death can result if the
vehicle and/or the operator fall through the
ice. Never operate the vehicle on a frozen
body of water unless you have first verified
that the ice is sufficiently thick to support
the weight and moving force of the vehicle,
you and your passenger, and your cargo,
together with any other vehicles in your
party.
Always check with local authorities and
residents to confirm ice conditions and
thickness over your entire route. Vehicle
operators assume all risk associated with
ice conditions on frozen bodies of water.
Operating a Damaged Vehicle
Operating a damaged vehicle can result in an accident. After any rollover or
other accident, have a qualified service dealer inspect the entire machine for
possible damage, including (but not limited to) seat belts, rollover protection
devices, brakes, throttle and steering systems.
22
SAFETY
Safety Warnings
Improper Cargo Loading
Overloading the vehicle or carrying/towing
cargo improperly may cause changes in
stability and handling, which could cause
loss of control or an accident.
• Always follow the instructions in this
owner’s manual for carrying cargo. See
page 68.
• Never exceed the stated load capacity for
this vehicle. See page 12.
• Cargo should be properly distributed and
securely attached. See page 68.
• Reduce speed when carrying cargo or pulling a trailer. Allow a greater distance
for braking.
Refueling
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always turn off the engine when refueling.
• Always refuel outdoors or in a well ventilated area free of any source of flame
or sparks.
• Always use an approved gasoline container to store fuel and remove the
container from the vehicle before filling to avoid fuel ignition due to electrical
static discharge.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap and
water and change clothing.
23
SAFETY
Safety Warnings
Exposure to Exhaust
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
Operate this vehicle only outdoors or in well-ventilated areas.
Hot Exhaust Systems
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system. Use caution when traveling through tall grass, especially dry grass, to
avoid debris build-up around the exhaust system.
Unauthorized Use of the Vehicle
Leaving the keys in the ignition can lead to unauthorized use of the vehicle by
someone under the age of 16, without a drivers license, or without proper
training. This could result in an accident or rollover. Always remove the ignition
key when the vehicle is not in use.
Equipment Modifications
Your POLARIS vehicle is designed to provide safe operation when used as
directed. Modifications to your vehicle may negatively impact vehicle stability.
Failure of critical machine components may result from operation with any
modifications, especially those that increase speed or power. This vehicle may
become less stable at speeds higher than those for which it is designed. Loss of
control may occur at higher speeds.
Do not install any non-POLARIS-approved accessory or modify the vehicle for
the purpose of increasing speed or power. Any modifications or installation of
non-POLARIS-approved accessories could create a substantial safety hazard
and increase the risk of bodily injury.
The POLARIS limited warranty on your POLARIS vehicle will be terminated if
any non-POLARIS-approved equipment and/or modifications have been added
to the vehicle that increase speed or power.
The addition of certain accessories, including (but not limited to) mowers,
blades, tires, sprayers, or large racks, may change the handling characteristics
of the vehicle. Use only POLARIS-approved accessories, and familiarize
yourself with their function and effect on the vehicle.
25
FEATURES AND CONTROLS

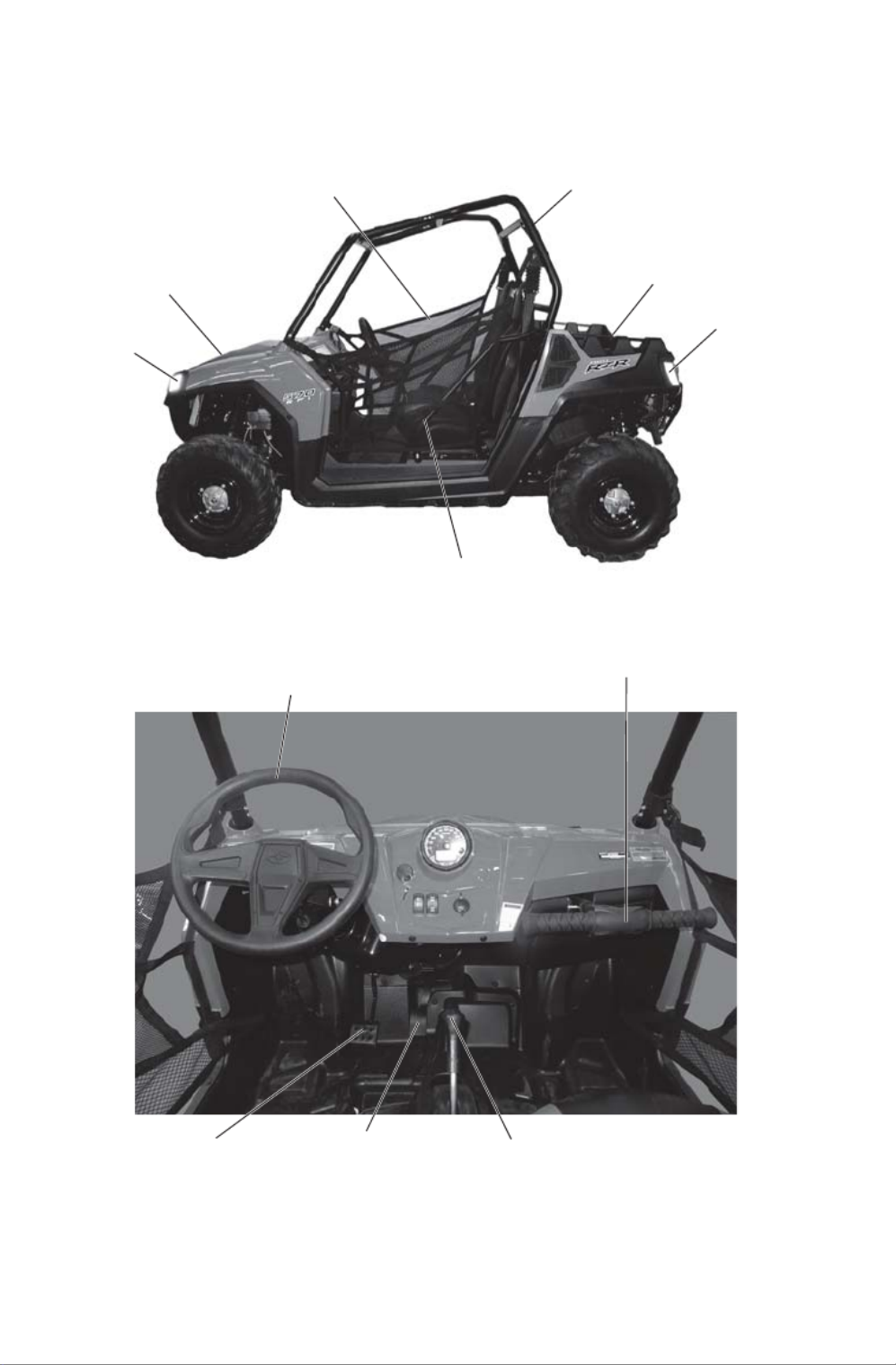

Component Locations
Trailer Receiver Hitch Bracket
This vehicle is equipped with a receiver hitch bracket for a trailer hitch.
Trailer towing equipment is not supplied with this vehicle.
To avoid injury and property damage, always heed the warnings and
towing capacities outlined on pages 68-70.
Radiator Access/Grill Removal
The front grill can be removed to clean debris from the radiator. Push
down on the two tabs and pivot the grill outward to remove it.
Service Access Panels
The engine access panel is located behind the seats on the frame of the
vehicle. Remove the seats and remove the access panel to reach some
serviceable engine components
The rear access panel is located in the bed of the cargo box. Remove this
access panel to access the air box and spark plug.
Receiver Hitch Brush
Guard
Radiator
26
FEATURES AND CONTROLS
Steering Wheel
The steering wheel can be tilted
upward or downward for rider
preference.
Lift and hold the steering wheel
adjustment lever while moving
the steering wheel upward or
downward. Release the lever
when the steering wheel is at the
desired position.
Passenger Hand Hold
Always adjust the hand hold to a comfortable position for your
passenger before operating. Make sure the adjustment pin and retainer
are securely installed after making adjustments.
1. Remove the retainer from the end of the adjustment pin.
2. Remove the pin from the post.
3. Slide the post inward or outward to the desired position.
4. Reinstall the pin through the post mounting hole, adapter bushing
hole, both post adjustment holes and lastly through the remaining
bushing hole and post mounting hole.
5. Reinstall the retainer to the pin.
Adjustment Lever
Adjustment
Position Holes
Post Mounting
Holes
Adjustment
Pin
Pin
Retainer
Adapter
Bushing
27
FEATURES AND CONTROLS
Hood
Remove the hood to access
the radiator cap, coolant
overflow bottle and sealed
storage box (LE model).
1. Turn the hood fasteners
1/4 turn.
2. Grasp the upper hood
edge and pull upward to
disengage the hood from
the vehicle.
3. Pivot the hood forward
and lift upward to
disengage the lower
hood hooks.
4. Lift the hood away from
the vehicle.
Cab Nets
All RZR models are equipped
with cab nets, which may differ
slightly in appearance from
those shown.
Riding in this vehicle without
using the cab nets (or doors, if
equipped) increases the risk of
serious injury or death in the
event of an accident or rollover.
Cab nets (or doors) must be
used by both operator and pas-
sengers at all times. Make sure
all latches are secure before
operating the vehicle.
Always inspect cab nets and latches for tightness, wear and damage
before each use of the vehicle. Use the strap adjusters to tighten any
loose straps. Promptly replace worn or damaged cab nets and latches
with new cab nets and latches.
Sealed Storage Box
(LE Only)
Radiator
Cap Overflow
Bottle
Cab Net Latches
28
FEATURES AND CONTROLS
Fuel Cap
The fuel tank filler cap is located on the right
side of the vehicle near the passenger seat.
When refueling, always use either leaded or
unleaded gasoline with a minimum pump
octane number of 87 R+M/2 octane. Do not
use fuel with ethanol content greater than 10
percent, such as E-85 fuel.
Seats
Before operating the vehicle, always push
down on all seat backs to ensure the latches
are secure.
Seat Adjustments
Loosen (do not remove) the four screws located on the seat bottom.
Slide the seat forward or rearward to the desired position. Tighten the
screws to 4 ft. lbs. (5.4 Nm). Do not overtighten.
Seat Removal
1. Pull up on the seat latch lever located
under the rear edge of the seat.
2. Tilt the seat forward.
3. Lift the seat upward to remove it from
the vehicle.
4. Reverse this procedure to reinstall the
seat. Make sure the seat tabs at the
front edge of the seat slide under the
seat retainer bar.
5. Press down firmly at the rear of the
seat to engage the rear latch.
Fuel Cap
Seat Latch
29
FEATURES AND CONTROLS
Seat Belts
This POLARIS vehicle is equipped with seat belts for all riders. Always
make sure the seat belts are secured for the operator and passenger
before riding. The driver’s seat belt is equipped with a seat belt
interlock. Vehicle speed will be limited to 15 MPH (24 km/h) if the seat
belt is not secured.
3-Point Seat Belt
To wear the 3-point seat belt properly, follow this procedure:
1. Pull the seat belt latch downward and across your chest toward the
buckle at the inner edge of the seat. The belt should fit snugly across
your hips and diagonally across your chest. Make sure the belt is not
twisted.
2. Push the latch plate into the buckle until it clicks. Pull up on the
strap to tighten.
3. Press the red release latch on the buckle to release the seat belt.
Seat Belt Height Adjuster (if equipped)
A breakthrough in comfort, the seat belt height
adjuster reduces neck rub and works as a
shock absorber for your shoulder. The height
adjuster consists of an adjuster (1) and a rail
(2). (3) designates the adjustment zone.
HOW TO ADJUST THE HEIGHT OF YOUR SEAT
BELT FOR DESIRED COMFORT AND PROPER
FIT
continued on next page
1
2
3
Proper location
of shoulder belt
Wrong Wrong
30
FEATURES AND CONTROLS
Seat Belts
Seat Belt Height Adjuster (if equipped)
STEP 1
Stretch the seat belt height adjuster toward the
front of the vehicle.
STEP 2
While continuing to stretch the seat belt
height adjuster, slide the adjuster up or down,
rocking it side to side if necessary, until you
reach the desired height. This may require
both hands. Do not attempt to adjust while
vehicle is in motion.
NOTE: Adjustment becomes easier with
repeated use.
CLEANING INSTRUCTIONS: The seat belt height adjuster can be
cleaned with water.
STEP 1
STEP 2
31
FEATURES AND CONTROLS
Seat Belts
Seat Belt Inspection
Inspect all seat belts for proper operation before each use of the vehicle.
1. Push the latch plate into the buckle until it clicks. The latch plate
must slide smoothly into the buckle. A click indicates that it's
securely latched.
2. Push the red release latch in the middle of the buckle to make sure it
releases freely.
3. Pull each seat belt completely out and inspect the full length for any
damage, including cuts, wear, fraying or stiffness. If any damage is
found, or if the seat belt does not operate properly, have the seat belt
system checked and/or replaced. Your authorized POLARIS dealer
can assist.
4. To clean dirt or debris from
the seat belts, sponge the
straps with mild soap and
water. Do not use bleach,
dye or household
detergents.Use a garden
hose to flush out the
retractor and latch housings
regularly.
Retractor
Housing
Latch Housings
32
FEATURES AND CONTROLS
Switches
Auxiliary Outlet
The vehicle is equipped with a 12-volt accessory outlet on the dash. Use
the outlet to power an auxiliary light or other optional accessories or
lights. For service, the dash outlet connection is under the dash.
AWD
Switch
12V Accessory
Outlet
Ignition Switch
Light Switch (Base Model) Instrument Cluster
Light Switch
(LE Model)
33
FEATURES AND CONTROLS
Switches
Ignition Switch/Light Switch (Base Model)
Use the ignition switch to start the engine and to turn the lights on or off.
The key can be removed from the switch when it is in the OFF position.
Ignition Switch (LE Model)
The ignition switch is a three-position, key-operated switch. The key
can be removed from the switch when it is in the OFF position.
Light Switch (LE Model)
The ignition switch key must be in the
ON/RUN position to operate the
headlights. Press the top of the rocker
switch toward the dash to place the
headlights on high beam. Move the
rocker switch to the center position to
place the headlights on low beam. Press
the bottom of the rocker switch to turn off
the headlights.
OFF Turn the key to the OFF position to stop the engine. Electrical
circuits are off.
LIGHTS ON Electrical circuits are on. Electrical equipment can be used.
LIGHTS OFF Electrical circuits are on. Electrical equipment can be used.
START Turn the key to the START position to engage the electric
starter. See page 56 for starting procedures.
OFF The engine is off. Electrical circuits are off, except Acc, 12V.
ON Electrical circuits are on. Electrical equipment can be used.
START Turn the key to the START position to engage the electric
starter. The key returns to the ON position when released.
HIGH
OFF
LOW
34
FEATURES AND CONTROLS
Switches
All Wheel Drive (AWD) Switch (if equipped)
The AWD Switch has two positions:
• All Wheel Drive (AWD)
• Two Wheel Drive (2WD).
Press the top of the rocker switch to engage All
Wheel Drive. Press the bottom of the switch to
operate in two wheel drive.
See page 40 for AWD operating instructions.
AWD/Differential Lock Switch (if equipped)
The AWD/Differential Switch has
three positions:
• All Wheel Drive (AWD)
• Differential Lock (2WD)
• Differential Unlock (TURF mode)
Press the top of the rocker switch to
engage All Wheel Drive (AWD). See
page 42 for operating instructions.
Move the rocker switch to the center position to lock the differential and
operate in rear wheel drive. Press the bottom of the switch to unlock the
differential and allow the two rear drive wheels to operate
independently. See page 42 for differential lock operating instructions.
WARNING! Never operate in TURF mode (if equipped) while operating on a hill
or other irregular terrain. Always move the AWD switch to AWD before
ascending or descending a hill. See page 43.
AWD
2WD
AWD
Differential Lock
Differential Unlock
35
FEATURES AND CONTROLS
Gear Selector
P: Park
R: Reverse
N: Neutral
L: Low Gear
H: High Gear
To change gears, stop the vehicle,
and with the engine idling, move the
lever to the desired gear. Do not
attempt to shift gears with engine
speed above idle or while the vehicle
is moving.
Tip: Maintaining shift linkage adjustment is important to assure proper
transmission function. Your POLARIS dealer can assist in resolving any
shifting problems.
NOTICE: Do not attempt to shift the transmission while the vehicle is moving or
damage to the transmission could result. Always shift when the
vehicle is stationary and the engine is at idle.
Using Low Range
Always shift into low gear for any of the following conditions.
• Operating in rough terrain or over obstacles
• Loading the vehicle onto a trailer
• Towing heavy loads
Gear Selector
36
FEATURES AND CONTROLS
Brake Pedal
Depress the brake pedal to
slow or stop the vehicle.
Apply the brakes while
starting the engine.
Throttle Pedal
Push the pedal down to
increase engine speed. Spring
pressure returns the pedal to
the rest position when
released. Always check that
the throttle pedal returns
normally before starting the engine.
Tip: If the throttle pedal and brake pedal are applied simultaneously, engine
power may be limited.
Throttle
Pedal
Brake
Pedal
37
FEATURES AND CONTROLS
Park Brake Lever (if equipped)
Always apply the service brakes before engaging or releasing the park
brake. To help prevent the vehicle from rolling, set the park brake when
parking the vehicle. When the park brake is set and the park brake
indicator is illuminated, engine speed is limited. If the accelerator is
applied, this limiting feature prevents operation, which protects the park
brake pads from excessive wear.
Tip: This feature will not operate
properly if the park brake
connector or switch (under the
hood) malfunctions or
becomes disconnected, or if
the switch has moved. Check
for disconnection, then see
your dealer or other qualified
service person promptly if this
feature fails to operate
properly.
1. To set the park brake, apply
the brakes.
2. Pull the park brake lever
upward as far as possible.
3. To release the park brake,
apply the brakes. Press the
park brake release inward
and move the lever
downward as far as possible.
Park Brake
Lever
Park Brake
Release
38
FEATURES AND CONTROLS
Rollover Protective Structure (ROPS)
The Rollover Protective Structure
(ROPS) on this vehicle meets
OSHA 1928.53 rollover
performance requirements. Always
have authorized service personnel
or your POLARIS dealer
thoroughly inspect the ROPS if it
ever becomes damaged in any way.
No device can assure occupant
protection in the event of a rollover.
When used with seat belts and cab
nets, the ROPS helps prevent
occupants from being ejected from
the vehicle. Always follow all safe
operating practices outlined in this
manual to avoid vehicle rollover.
WARNING! Vehicle rollover could cause severe injury or death. Always avoid
operating in a manner that could result in vehicle rollover.
ROPS Label
39
FEATURES AND CONTROLS
Electronic Power Steering (EPS)
Electronic power steering (if
equipped) engages when the ignition
key is turned to the ON position. EPS
remains engaged whether the vehicle
is moving or idle.
The EPS warning indicator briefly
illuminates when the key is turned to
the ON position. See page 45.
To conserve battery power, the EPS
will shut down 5 minutes after the
engine is stopped if the key remains
in the ON position. The EPS warning
indicator will illuminate to indicate
the EPS has shut down.
If the light remains on after starting the engine, the EPS system is
inoperative. Your POLARIS dealer can assist.
Power Steering Unit
(under cover)
42
FEATURES AND CONTROLS
All Wheel Drive/Rear Differential System
Disengaging AWD
Move the AWD switch to the center or bottom position to disengage
AWD. If the switch is turned off while the front hubs are driving, they
will not release until the rear wheels regain traction.
In some situations, the front gearcase may remain locked after turning
the AWD switch off. If this occurs, you may notice increased steering
effort and some vehicle speed restriction. Perform the following
procedure to unlock the front gearcase.
1. Stop the vehicle.
2. Operate in reverse for at least 10 feet (3 m).
3. Stop completely.
4. Shift into low gear and drive forward.
5. If the front gearcase remains locked after following these
instructions, see your dealer for service.
Locking the Differential
NOTICE: Damage to the differential can occur if it is engaged while the vehicle
is traveling at high speeds or while the rear wheels are spinning.
Slow the vehicle to nearly stopped before engaging the differential.
Locking the differential in slippery or low traction conditions helps
improve traction. Move the rocker switch to the center position (2WD)
to lock the differential and operate in rear wheel drive. See illustration
below.
43
FEATURES AND CONTROLS
All Wheel Drive/Rear Differential System
Unlocking the Dierential/TURF Mode (LE Models Only)
When operating in TURF mode, the
inside rear wheel will rotate
independently from the outside wheel
during turns. Operate in TURF mode
only as needed to protect smooth, level
surfaces from tire damage. DO NOT
operate in TURF mode when climbing
or descending hills, when sidehilling, or
when operating on uneven, loose, or
slippery terrain such as sand, gravel, ice,
snow, obstacles, and water crossings.
Always operate in AWD on these types
of terrain.
WARNING! Operating in TURF mode (if
equipped) when on sloped, uneven, or loose
terrain could cause loss of control and result
in serious injury or death. One rear wheel
may slip and lose traction or may lift up and
grab when it touches the ground again.
Press the bottom of the switch to unlock the differential and allow the
rear drive wheels to operate independently. This mode of operation is
well suited to turf driving or whenever aggressive traction is not
required.
Extreme Use Battery
An optional extreme use battery may be available for your model. If the
performance of the factory-installed battery is inadequate due to
operation in extreme cold or due to extended use of multiple electrical
accessories, your POLARIS dealer can assist. Ask your dealer to
provide any installation procedures that may differ for an extreme use
battery.
44
FEATURES AND CONTROLS
Instrument Cluster
High water pressure may damage components. Wash the vehicle by
hand or with a garden hose using mild soap. Do not use alcohol to clean
the instrument cluster. Do not allow insect sprays to contact the lens.
Speedometer
The speedometer displays vehicle speed in either miles per hour (MPH)
or kilometers per hour (km/h). See page 48.
Mode Button
Use the MODE button to toggle through mode options. See page 48 for
operation of the modes.
Rider Information
Center
Speedometer Indicator Lamps
MODE
Button
45
FEATURES AND CONTROLS
Instrument Cluster
Indicator Lamps
Lamp Indicates Condition
Vehicle
Speed
When standard mode is selected, speed displays in
miles per hour.
When metric mode is selected, speed displays in
kilometers per hour.
Over
Temperature
This lamp illuminates to indicate an overheated
engine. If the indicator flashes, the overheating
condition remains, and the system will automatically
reduce engine power.
EPS Warning
(if equipped)
This indicator illuminates briefly when the key is
turned to the ON position. If the light remains on, the
EPS system is inoperative. Your POLARIS dealer can
assist.
Neutral This lamp illuminates when the transmission is in
neutral and the ignition key is in the ON position.
High Beam (if
equipped)
This lamp illuminates when the headlamp switch is
set to high beam.
Helmet/Seat
Belt
This lamp flashes for several seconds when the key is
turned to the ON position. The lamp is a reminder to
the operator to ensure all riders are wearing helmets
and seat belts before operating.
Check Engine This indicator appears if an EFI-related fault occurs.
Do not operate the vehicle if this warning appears.
Serious engine damage could result. Your POLARIS
dealer can assist.
48
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Use the MODE button to toggle through the
information area options.
Display Units (Standard/Metric)
The display can be changed to show either
standard or metric units of measurement for
each of the following settings.
Tip: To exit the set-up mode, turn the key off. Wait 5 seconds, then turn the key
on. The gauge display the mode that was displayed prior to setting the
units.
1. Turn the key to the OFF position.
2. Press and hold the MODE button while turning the key to the ON
position.
3. When the display flashes the distance setting, tap the MODE button
to advance to the desired setting.
4. Press and hold the MODE button to save the setting and advance to
the next display option.
5. Repeat the procedure to change remaining display settings.
Standard Display Metric Display
Distance Miles Kilometers
Fuel U.S. Gallons Liters, Imperial Gallons
Temperature Fahrenheit Celsius
Time 12-Hour Clock 24-Hour Clock
MODE
Button
49
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Clock Mode
Tip: The clock must be reset any time the battery has been disconnected or
discharged.
1. Turn the key to the ON position. Use the MODE button to toggle to
the odometer display.
2. Press and hold the MODE button until the hour segment flashes.
Release the button.
3. With the segment flashing, tap the MODE button to advance to the
desired setting.
4. Press and hold the MODE button until the next segment flashes.
Release the button.
5. Repeat steps 3-4 twice to set the 10-minute and 1-minute segments.
After completing the 1-minute segment, step 4 will save the new
settings and exit the clock mode.
6. Turn the key to the OFF position.
Odometer Mode
The odometer records and displays the distance traveled by the vehicle.
Trip Meter Mode
The trip meter records the distance traveled by the vehicle if reset before
each trip. To reset, select the trip meter mode. Press and hold the MODE
button until the meter resets to zero. In the Rider Information Center, the
trip meter display contains a decimal point, but the odometer displays
without a decimal point.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
Engine Temperature Mode
This mode displays current temperature of the coolant.
Tachometer Mode
The engine RPM is displayed digitally.
Tip: Small fluctuations in the RPM from day to day may be normal because of
changes in humidity, temperature and elevation.
50
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Programmable Service Interval
When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. The service interval is
programmed at 50 hours at the factory. Use the following procedure to
change the service interval.
1. Press the MODE button until remaining service hours display.
2. Press and hold the MODE button.
3. When the service hours flash, press and release the MODE button to
advance the hours to the desired setting (including OFF). Press and
hold the MODE button to set the new service hour interval.
Diagnostic Display Mode
The EFI diagnostic display mode is for informational purposes only.
Your POLARIS dealer can provide for all major repairs.
The diagnostic mode is accessible only when the check engine warning
indicator activates after the key has been turned on. Leave the key on if
you want to view the active code (failure code).
The diagnostic mode becomes inaccessible if the key is turned off and
on and the warning indicator is no longer active. This allows the
determination of persistent as well as intermittent faults.
Inactive codes are stored in the history of the unit.
51
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Engine Error Codes
The error screen displays
only when the CHECK
ENGINE light is on or
when it goes on and off
during one ignition cycle.
Error codes are not stored.
When the key is turned
OFF, the code and
message is lost, but will
reappear if the fault
reoccurs after restarting
the engine.
If the CHECK ENGINE
light illuminates, retrieve
the error codes from the
display.
1. If the error codes are not displayed, use the MODE button to toggle
until “Ck ENG” displays on the main line of the display.
2. Press and hold the MODE button to enter the diagnostics code
menu.
3. Record the three numbers displayed in the gear position, clock and
odometer displays.
4. Press the MODE button to advance to the next error code.
5. Press and hold the MODE button to exit the diagnostics code menu.
6. Your authorized POLARIS dealer can provide code details and
diagnosis.
Suspect Parameter
Number (SPN)
Error Code
Number (0-9)
Failure Mode Indicator (FMI)
52
OPERATION
Failure to operate the vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
Vehicle Break-in Period
The break-in period for your new POLARIS vehicle is the first 25 hours
of operation, or the time it takes to use the first two tanks full of
gasoline. No single action on your part is as important as a proper break-
in period. Careful treatment of a new engine and drive components will
result in more efficient performance and longer life for these
components. Perform the following procedures carefully.
NOTICE: Excessive heat build-up during the first three hours of operation will
damage close-fitted engine parts and drive components. Do not
operate at full throttle or high speeds during the first three hours of
use.
Use of any improper oils may cause serious engine damage.
POLARIS Premium 4 Synthetic Oil is specifically formulated for your
4-cycle engine.
Engine and Drivetrain Break-in
1. Fill the fuel tank with gasoline. See page 28. Always exercise
extreme caution whenever handling gasoline.
2. Check the oil level. See page 91. Add the recommended oil as
needed to maintain the oil level in the safe operating range.
3. Complete the New Operator Driving Procedures outlined on pages
58-59.
4. Avoid aggressive use of the brakes. See Brake System Break-in on
page 53.
5. Vary throttle positions. Do not operate at sustained idle.
6. Pull only light loads.
WARNING
53
OPERATION
Vehicle Break-in Period
Engine and Drivetrain Break-in
7. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 54.
8. During the break-in period, change both the oil and the filter at 25
hours or one month.
9. Check fluid levels of transmission and all gearcases after the first 25
hours of operation and every 100 hours thereafter.
Brake System Break-in
Apply only moderate braking force for the first 50 stops. Aggressive or
overly forceful braking when the brake system is new could damage
brake pads and rotors.
PVT Break-in (Clutches/Belt)
A proper break-in of the clutches and drive belt will ensure a longer life
and better performance. If a belt fails, always clean any debris from the
duct and from the engine compartment.
Standard Break-In
Drive at slower speeds for the first 50 miles (80 km) of operation. Carry
only light loads. Avoid aggressive acceleration, high-speed operation
and prolonged operation at a specific RPM during this period.
Sand/Dune Break-In
Drive in low gear for the first 5 miles (8 km) of operation. Avoid
prolonged low speed operation at high throttle. Avoid aggressive
acceleration, high-speed operation and prolonged operation at a specic
RPM during this period.
56
OPERATION
Starting the Engine
1. Position the vehicle on a level surface outdoors or in a well-
ventilated area.
2. Sit in the driver's seat and fasten the seat belt. Secure the cab nets.
3. Place the transmission in PARK. Engage the park brake (if
equipped).
4. Apply the brakes. Do not press the throttle pedal while starting the
engine.
5. Turn the ignition key to the START position. Engage the starter for
a maximum of five seconds. Release the key when the engine starts.
6. If the engine does not start within five seconds, return the ignition
switch to the OFF position and wait ve seconds. Repeat steps 5
and 6 until the engine starts.
7. Vary the engine RPM slightly with the throttle to aid in warm up
until the engine idles smoothly.
NOTICE: Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating the vehicle.
8. Release the park brake before driving (if equipped).
Stopping the Engine
1. Release the throttle pedal completely and brake to a complete stop.
2. Place the transmission in PARK.
3. Turn the engine off.
4. Slowly release the brake pedal and make sure the transmission is in
PARK before exiting the vehicle.
5. Engage the park brake (if equipped).
WARNING! A rolling vehicle can cause serious injury. Always place the
transmission in PARK and engage the park brake (if equipped) when stopping
the engine.
Braking
1. Release the throttle pedal completely. (When the throttle pedal is
released completely and engine speed slows to near idle, the vehicle
has no engine braking.)
2. Press on the brake pedal evenly and firmly. Practice starting and
stopping (using the brakes) until you're familiar with the controls.
59
OPERATION
New Operator Driving Procedures
13. Apply the brakes and shift into low gear.
14. Check your surroundings and determine your path of travel.
15. Release the park brake (if equipped).
16. Keeping both hands on the steering wheel, slowly release the brakes
and depress the throttle with your right foot to begin driving.
17. Drive slowly at first. On level surfaces, practice starting, stopping,
turning, maneuvering, using the throttle and brakes and driving in
reverse. Learn how the vehicle handles when making both left and
right turns at a slow speed.
WARNING! Operating in TURF mode (if equipped) when on sloped, uneven, or
loose terrain could cause loss of control and result in serious injury or death.
One rear wheel may slip and lose traction or may lift up and grab when it
touches the ground again.
18. Increase speed only after mastering all maneuvers at a slow speed.
19. After you become skilled at making turns and begin to operate at
faster speeds, follow these precautions:
• Avoid sharp turns.
• Never turn while applying heavy throttle.
• Never make abrupt steering maneuvers.
• Operate at speeds appropriate for your skills, the conditions and
the terrain.
• DO NOT do power slides, “donuts”, jumps or other driving
stunts.
60
OPERATION
Driving with a Passenger
1. Complete the New Operator
Driving Procedures outlined
on pages 58-59.
2. Perform the pre-ride
inspection. See page 54.
3. Do not carry more than one
passenger in a 2-seat vehicle.
Additional passengers can
affect the operator’s ability
to steer and operate the
controls.
4. All riders must be able to sit with backs against the seat, both feet
flat on the floor and both hands on the steering wheel (if driving) or
on a passenger hand hold.
5. The driver and all passengers must wear helmet, eye protection,
gloves, long-sleeve shirt, long pants, over-the-ankle boots and seat
belt at all times. See page 8.
6. Make sure all passengers secure their seat belts.
7. Make sure all cab nets are properly secured.
8. Allow a passenger to ride only in the passenger seat.
9. Slow down. Always travel at a speed appropriate for your skills,
your passenger’s skills and operating conditions. Avoid unexpected
or aggressive maneuvers that could cause discomfort or injury to a
passenger.
10. Vehicle handling may change with a passenger and/or cargo on
board. Allow more time and distance for braking.
11. Always follow all operating guidelines as outlined on safety labels
and in this manual.
62
OPERATION
Driving Uphill
Whenever traveling uphill, follow these precautions:
1. Always check the terrain carefully before ascending any hill. Never
drive on hills with excessively slippery or loose surfaces.
2. Never operate in TURF mode (if equipped) while operating on a hill
or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.
3. Avoid excessively steep hills. If ascending a steeper grade is
unavoidable, engage all-wheel drive before ascending.
4. Drive straight uphill.
5. Proceed at a steady rate of speed and throttle opening. Never open
the throttle suddenly.
6. Avoid unnecessary changes in speed or direction.
7. Never go over the crest of a hill at high speed. An obstacle, a sharp
drop, or another vehicle or person could be on the other side of the
hill.
8. If the vehicle stalls while climbing a hill, apply the brakes. Place the
transmission in reverse and slowly allow the vehicle to roll straight
downhill while applying light brake pressure to control speed.
63
OPERATION
Driving on a Sidehill (Sidehilling)
Driving on a sidehill is not recommended. Improper procedure could
cause loss of control or rollover. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a hill is unavoidable, follow these precautions:
1. Engage all-wheel drive.
2. Never operate in TURF mode (if equipped) while operating on a hill
or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.
3. Drive slowly and use extreme caution.
4. If the vehicle begins to overturn, or if it feels as if it may overturn,
immediately turn downhill.
5. Avoid obstacles and changes in terrain that may lower or raise one
side of the vehicle or cause the vehicle to slide.
6. If the vehicle begins to slide downhill, immediately turn downhill to
stop the slide, or stop the vehicle and maneuver slowly and
carefully until the vehicle can be driven straight downhill.
Driving Downhill
Whenever descending a hill, follow these precautions:
1. Avoid excessively steep hills.
2. Never operate in TURF mode (if equipped) while operating on a hill
or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.
3. Slow down. Never travel down a hill at high speed.
4. Always check the terrain carefully before descending a hill. Never
drive on hills with excessively slippery or loose surfaces.
5. Always descend a hill with the transmission in forward gear. Never
descend a hill with the transmission in neutral.
6. Avoid traveling down a hill at an angle, which would cause the
vehicle to lean sharply to one side. Travel straight downhill.
7. Apply the brakes lightly to aid in slowing.
64
OPERATION
Driving Through Water
Your vehicle can operate through
water with a maximum
recommended depth equal to
floor level. Follow these
precautions when operating
through water:
1. Determine water depth and
current before entering
water.
2. Choose a crossing where the
water level is lowest and
where both banks have
gradual inclines. Never
operate in water that exceeds
the maximum recommended depth.
WARNING! The large tires on your vehicle may cause the vehicle to float in
deep or fast-flowing water, which could result in loss of traction, loss of control,
rollover or accident.
3. Wet brakes may have reduced stopping ability. After leaving water,
test the brakes. Apply them lightly several times while driving
slowly. The friction will help dry out the pads.
NOTICE: Major engine damage can result if the vehicle is not thoroughly
inspected after operation in water. Perform the services outlined in
the maintenance chart. See page 83. Give special attention to engine
oil, transmission oil, demand drive fluid, rear gearcase oil (if
equipped), and all grease fittings.
If your vehicle becomes immersed or is operated in water that
exceeds the floor level, service is required before starting the engine.
Your POLARIS dealer can provide this service. If it's impossible to
bring the vehicle in before starting the engine, perform the service
outlined on page 117, and take the vehicle in for service at the first
opportunity.
Floor Level
65
OPERATION
Driving Over Obstacles
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for
hazards such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar
terrain. Not all obstacles are immediately visible.
4. Avoid operating over large obstacles such as large rocks and fallen
trees. If unavoidable, use extreme caution and operate slowly.
5. Always have a passenger dismount and move away from the vehicle
before operating over an obstacle that could cause a rollover.
Produktspecifikationer
| Varumärke: | POLARIS |
| Kategori: | Inte kategoriserad |
| Modell: | RZR 570 (2018) |
Behöver du hjälp?
Om du behöver hjälp med POLARIS RZR 570 (2018) ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad POLARIS Manualer
3 Mars 2025
3 Mars 2025
8 Februari 2025
8 Januari 2025
8 Januari 2025
8 Januari 2025
8 Januari 2025
8 Januari 2025
8 Januari 2025
7 Januari 2025
Inte kategoriserad Manualer
- Inte kategoriserad Cougar
- Inte kategoriserad IClever
- Inte kategoriserad Fisher Price
- Inte kategoriserad Arturia
- Inte kategoriserad Aligator
- Inte kategoriserad Beghelli
- Inte kategoriserad Procare
- Inte kategoriserad OptiTrack
- Inte kategoriserad Edbak
- Inte kategoriserad Swan
- Inte kategoriserad Kraftwerk
- Inte kategoriserad Vitek
- Inte kategoriserad Sabo
- Inte kategoriserad Neopower
- Inte kategoriserad Millennia
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
