Sida 1/5
BD Series In/Outdoor IP65 Speaker 100V
Ref. nr.: 952.126, 952.128, 952.130, 952.132
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSŁUGI
V1.3
3
UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are
present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing
materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original
factory box and packing.
If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched o until it has reached room temperature.
MOUNTING THE SPEAKER
See back of the manual for detailed illustrations.
Step 1: Unscrew both bolts that secure the bracket to the speaker.
Step 2: Attach the bracket to a suitable surface.
Step 3: Screw both undone bolts back in, securing the speaker to the bracket.
Step 4: Pull o the left side rear cover to expose the connector terminal. Connect the speaker to the output of the amplier
(Black = negative pole / Red = positive pole).
Make sure the audio system is turned o ( select N/C on rotary switch; Step 5) before making any connection. and
Step 5: Pull of the right side rear cover to expose the rotary selection switch. Adjust the rotary switch to 70V/100V or 8Ω
position (for directly operating the speaker at a low-impedance amplier output). When connecting several speakers, make sure
that all speakers have the same polarity and that the amplier is not overloaded.

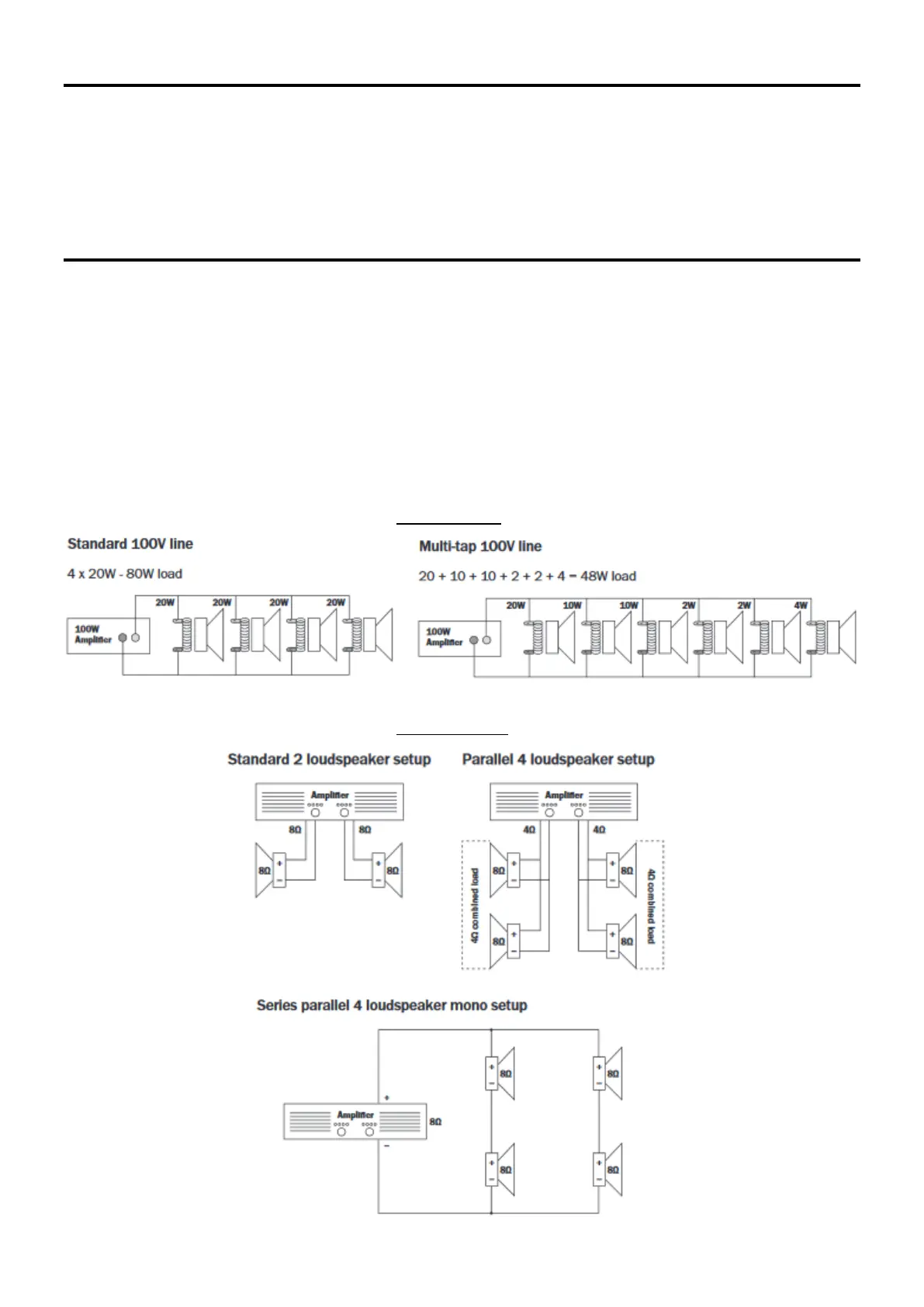

Connection examples
100V examples:
8Ohm examples:
14
