MULTI-PURPOSE DETECTOR

IAN 298736

MULTIFUNKTIONSDETEKTOR

Bedienungs- und Sicherheitshinweise

DAUGIAFUNKCIS DETEKTORIUS

Nurodymai dėl valdymo ir saugumo

RAKENNEILMAISIN

Käyttö- ja turvaohjeet

MULTIDETEKTOR

Bruksanvisning och säkerhetsanvisningar

WIELOFUNKCYJNY DETEKTOR

Wskazówki dotyczące obsługi i bezpieczeństwa

MULTI-PURPOSE DETECTOR

Operation and Safety Notes

GB Operation and

Safety Notes Page 5

FI Käyttö- ja turvaohjeet Sivu 28

SE Bruksanvisning och

säkerhetsanvisningar Sidan 49

PL Wskazówki dotyczące

obsługi i bezpieczeństwa Strona 71

LT Nurodymai dėl valdymo

ir saugumo Puslapis 95

DE / AT / CH Bedienungs- und

Sicherheitshinweise Seite 117

5 GB

Introduction ..................................Page 6

Intended use ....................................Page 6

Description of parts .........................Page 6

Technical data .................................Page 7

Scope of delivery .............................Page 7

Safety instructions ....................Page 8

General safety information .............Page 8

Information regarding inaccurate

measurement results ........................Page 10

Safety instructions for

batteries / rechargeable batteries...Page 11

Preparing for use ......................Page 13

Inserting / replacing the battery ......Page 13

Use ......................................................Page 13

Tip for distance measurement .........Page 13

Steps to do distance measurement ... Page 15

Addition of distances .......................Page 16

Measuring surface areas ................Page 17

Addition of surface areas ................Page 17

Measuring volumes .........................Page 18

Addition of volumes .........................Page 18

Locating concealed objects ............Page 19

Tips on measurement .......................Page 19

Locating wooden objects ................Page 22

Laser marking ...................................Page 23

Troubleshooting .........................Page 24

Cleaning and care .....................Page 25

Disposal ...........................................Page 25

Warranty ........................................Page 26

6 GB

Multi-Purpose Detector

Introduction

We congratulate you on the purchase of

your new product. You have chosen a

high quality product. The instructions for

use are part of the product. They contain

important information concerning safety,

use and disposal. Before using the prod-

uct, please familiarise yourself with all of

the safety information and instructions for

use. Only use the product as described

and for the speciﬁed applications. If you

pass the product on to anyone else,

please ensure that you also pass on all

the documentation with it.

Intended use

This product is intended for the detection

of metal, wood and live wires. The product

is not intended for commercial use.

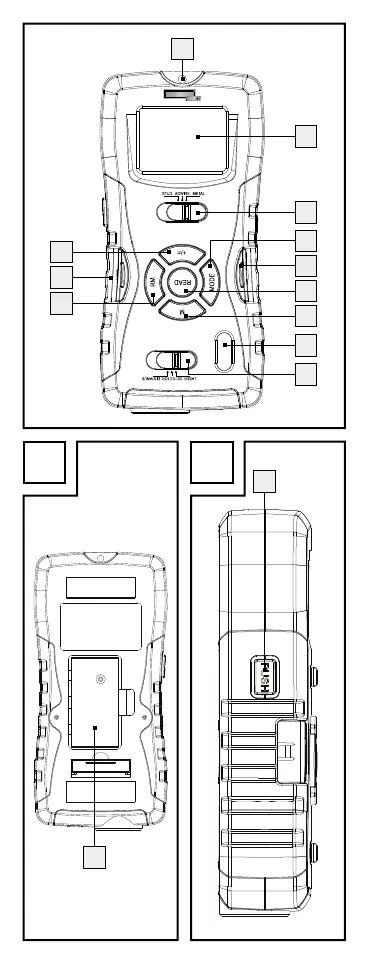

Description of parts

1 Measurement point

2 Display

3 Material switch STUD / AC WIRE /

METAL (wood / AC wire / metal)

4 MODE button

5 Stud button

6 READ button

7 M button (save)

8 Vial

9 Function switch LASER / DETECTOR /

DISTANCE

10 RM button (read memory)

11 Stud button

11 GB

pipes made of plastic or other non-

metallic materials with this product.

Safety instructions

for batteries /

rechargeable

batteries

DANGER TO LIFE! Keep batteries /

rechargeable batteries out of reach

of children. If accidentally swallowed

seek immediate medical attention.

DANGER OF EXPLO-

SION! Never recharge

non-rechargeable batteries.

Do not short-circuit batteries / recharge-

able batteries and / or open them.

Overheating, ﬁre or bursting can be

the result.

Never throw batteries / rechargeable

batteries into ﬁre or water.

Do not exert mechanical loads to

batteries / rechargeable batteries.

Risk of leakage of batteries /

rechargeable batteries

Avoid extreme environmental condi-

tions and temperatures, which could

aﬀect batteries / rechargeable batter-

ies, e.g. radiators / direct sunlight.

If batteries / rechargeable batteries

have leaked, avoid contact with skin,

eyes and mucous membranes with

the chemicals! Flush immediately the

aﬀected areas with fresh water and

seek medical attention!

13 GB

Preparing for use

Inserting / replacing

the battery

Note: Remove the foil from battery be-

fore inserting into battery compartment 13 .

Open the battery compartment 13

on the back of the product.

Remove the spent battery, if necessary.

Insert a new 9 V block battery into the

battery compartment. Check the po-

larity of the battery during insertion!

Ensure that the band for easy removal

of the battery lies under the 9 V block

battery. Press the battery ﬁrmly into

battery compartment.

Close the battery compartment again.

The battery compartment lid locks

noticeably and audibly into place.

Note: When the battery symbol ap-

pears in the display

, replace the batte

ry.

With a weak battery you may receive an

inaccurate or false measurement result.

Use

Tip for distance

measurement

In order to avoid measuring errors, please

note the following information:

The measurement is performed by ultra-

sound, which travels from the ultrasonic

sender / receiver 16 in a conical manner.

The ultrasound is reﬂected from the target

area and received by the ultrasonic receiver.
