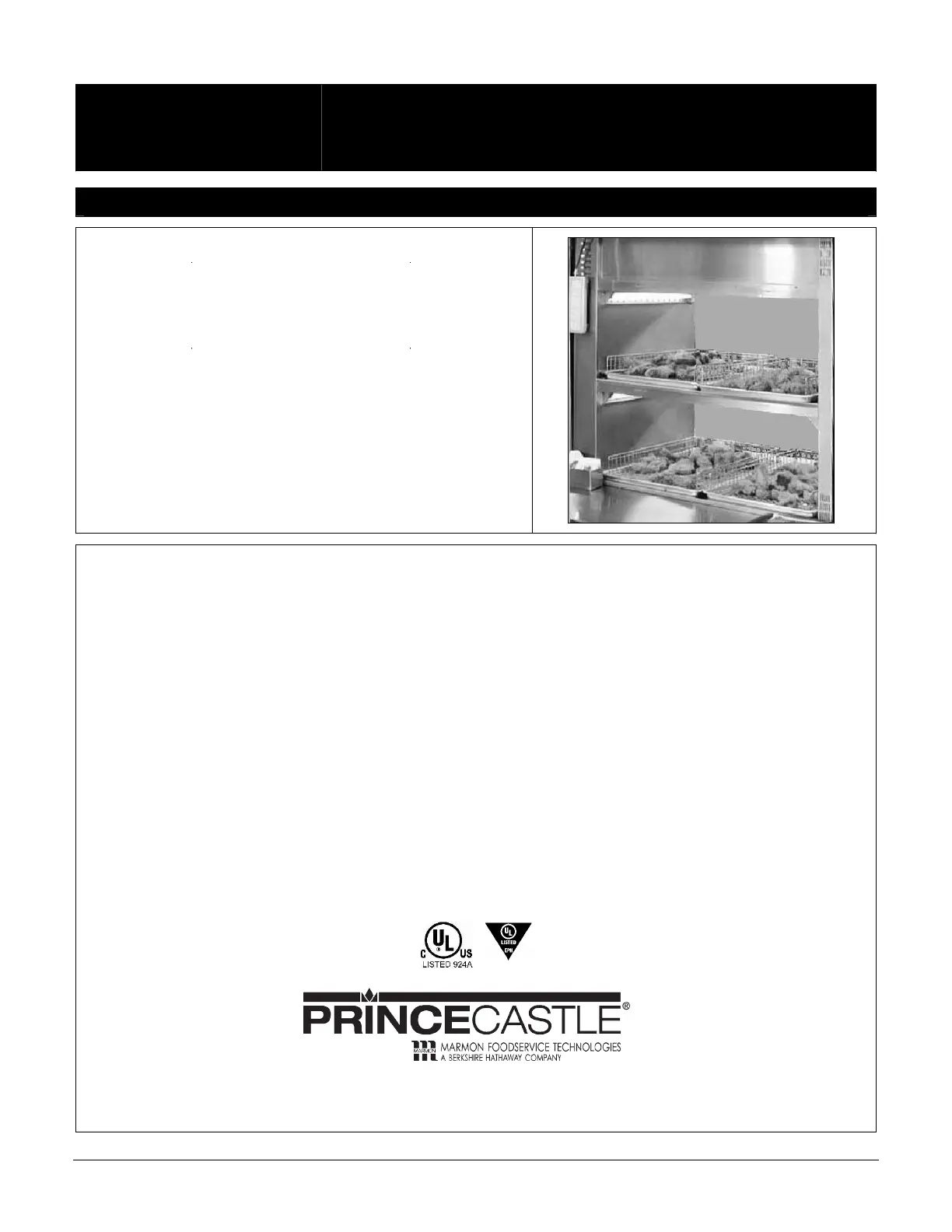

Operation
Manual
Chicken Holding Bin
DHB2PT-44D
Product Identification
Prince Castle's DHB2PT-44D Chicken Holding Bin is
designed to hold all your bone-in fried chicken better
than ever before. Capable of holding up to 360 pieces of
chicken, the DHB2PT-44D is designed to both hold
and merchandise your chicken in a dual line store
format.
TABLE OF CONTENTS
355 East Kehoe Blvd. • Carol Stream, IL 60188
Phone: 630-462-8800 • Toll Free: 1-800-PCASTLE
www.PrinceCastle.com
Product Identification ........................................... 1
Safety Information ............................................... 2
I m p o r t a n t ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
I n s t a l l a t i o n / Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
I n i t i a l S t a r t u p .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
R e c o m m e n d e d Settin g s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
R e s e t t i n g t o F a c t o r y D e f a u l t s . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C o n t r o l Panel ..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 4
P r o g r a m m i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
C l e a n i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
T r o u b l e s h o o t i n g . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 6
P a r t s & S e rvi c e . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 7
W i r i n g D i agram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 9
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation, not
to exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without cost
to the customer for parts and labor. This warranty covers on-location service
(i.e. trip charges and/or mileage). Travel mileage is limited to 100 miles
(200 Kilometers) round trip (one trip warranty) from an authorized service
agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime
premium (the incremental amount) will be charged to the customer.
•
Damage caused by carelessness, neglect and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion
to correct voltage is the customer’s responsibility.
•
This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty period.
Chicken Holding Bin
DHB2PT-44D
Printed in USA 05/19 © 2019
2
528-503 RevJ_EN
Safety Information Important!
WARNING
Indicates information important to the proper operation of the
unit. Failure to observe may result in damage to the equipment
and/or severe bodily injury or death.
CAUTION
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
Prince Castle reserves the right to change specifications and
product design without notice. Such revisions do not entitle the
buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Installation / Setup
Remove the unit from the carton and inspect for signs of
damage. If there is damage to the unit:
• Notify the carrier within 24 hours of delivery,
• Save carton and packaging materials for inspection purposes,
•
NOTE: When installing this unit, the a
mbient temperature at the
mounting site should not excee
d 37.8°C (100°F).
CAUTION
All electrical connections must be in accordance with local
electrical codes and any other applicable codes.
Plug the unit into an applicable electrical receptacle.
Contact your local dealer, or if purchased directly, the Prince
Castle Sales Department at 1-800-722-7853 opt 1 or
630-462-8800 opt 1 to arrange for a replacement unit.
A. Place the bin on a counter or workstation.
1

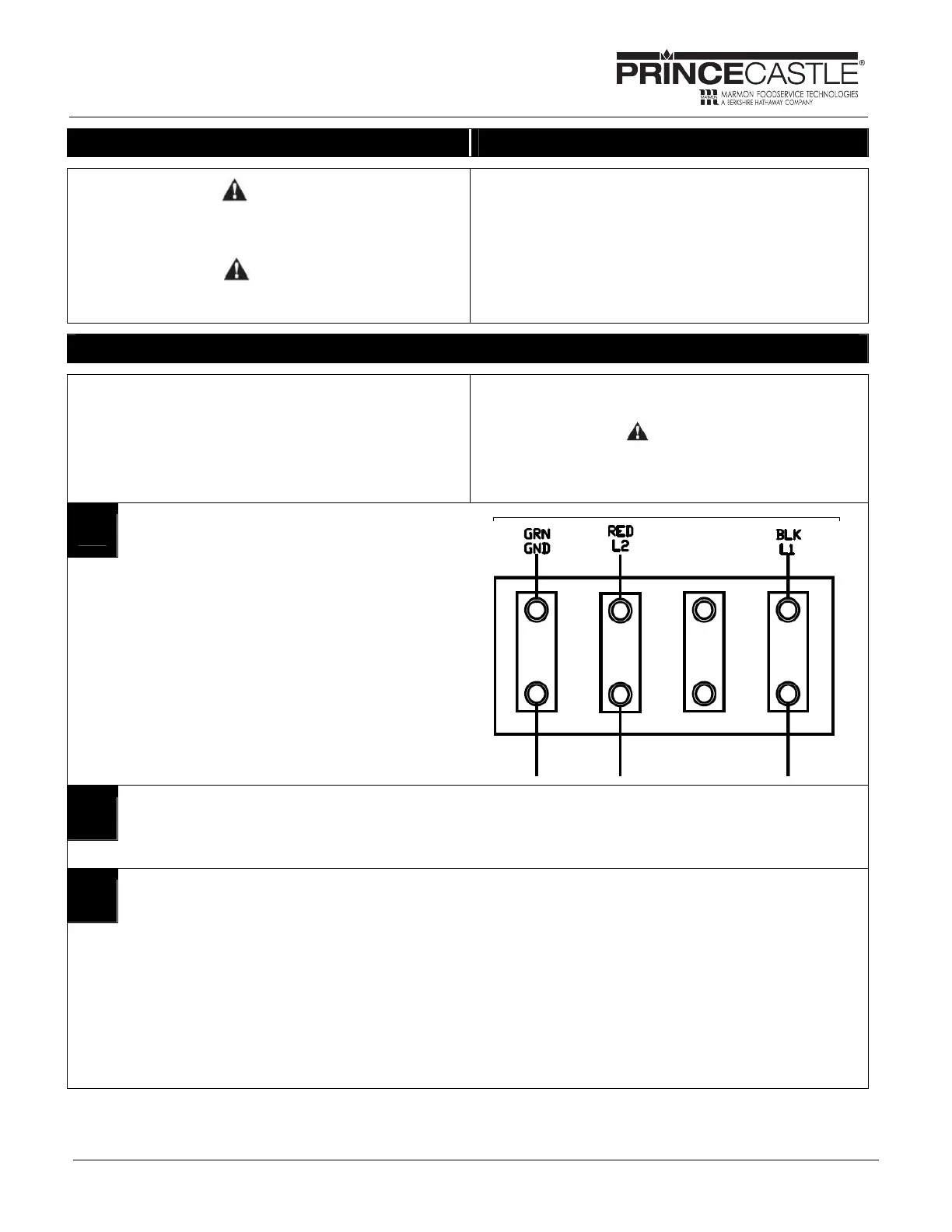

B. Make power connection to the terminal block on
the top of the bin. Required voltage is 208 TO 240
VOLTS SINGLE PHASE, and the connections are
L1, L2, and Earth Ground (see figure of wiring
diagram).
The bin draws 31 amps at 208 or 35 amps at 240
volts during the 35 min. warm-up.
The current drops to approximately half when the
heaters reach the set-point temperature.
2
A. Turn the power switches ON.
B. Allow 35 mins. for warm-up.
3
Environmental Issues
Airflow through the bin will adversely affect the
performance of the bin. Sources of airflow include:
• Air conditioning vents
• Air currents
• Make-up air Inflows
• Drive-through window
None of the above should be directing airflow towards the
bin or through the cavities of the bin. To check for airflow,
remove a pan from a hot steam table and watch the
direction of the steam coming out of the steam table.
The direction the steam flows is an indicator of the airflow
direction and its intensity. Th
ere is no airflow if the steam
flows straight up as it dissipates. There is an intense airflow
if the steam quickly changes direction and flows parallel to
the floor.
If there is airflow, check for the source(s). It is recommended
that air diverters be installed to direct the airflow away from
the bin.
Do NOT reduce the amount of cooled air brought into the
building. Direct the flow of air away from the cavities of the
Chicken Holding Bin.
RED 8AWG
BLK 8AWG
GRN 8AWG
