INSTRUCTIONS FOR USE

Pro-Ject Elemental

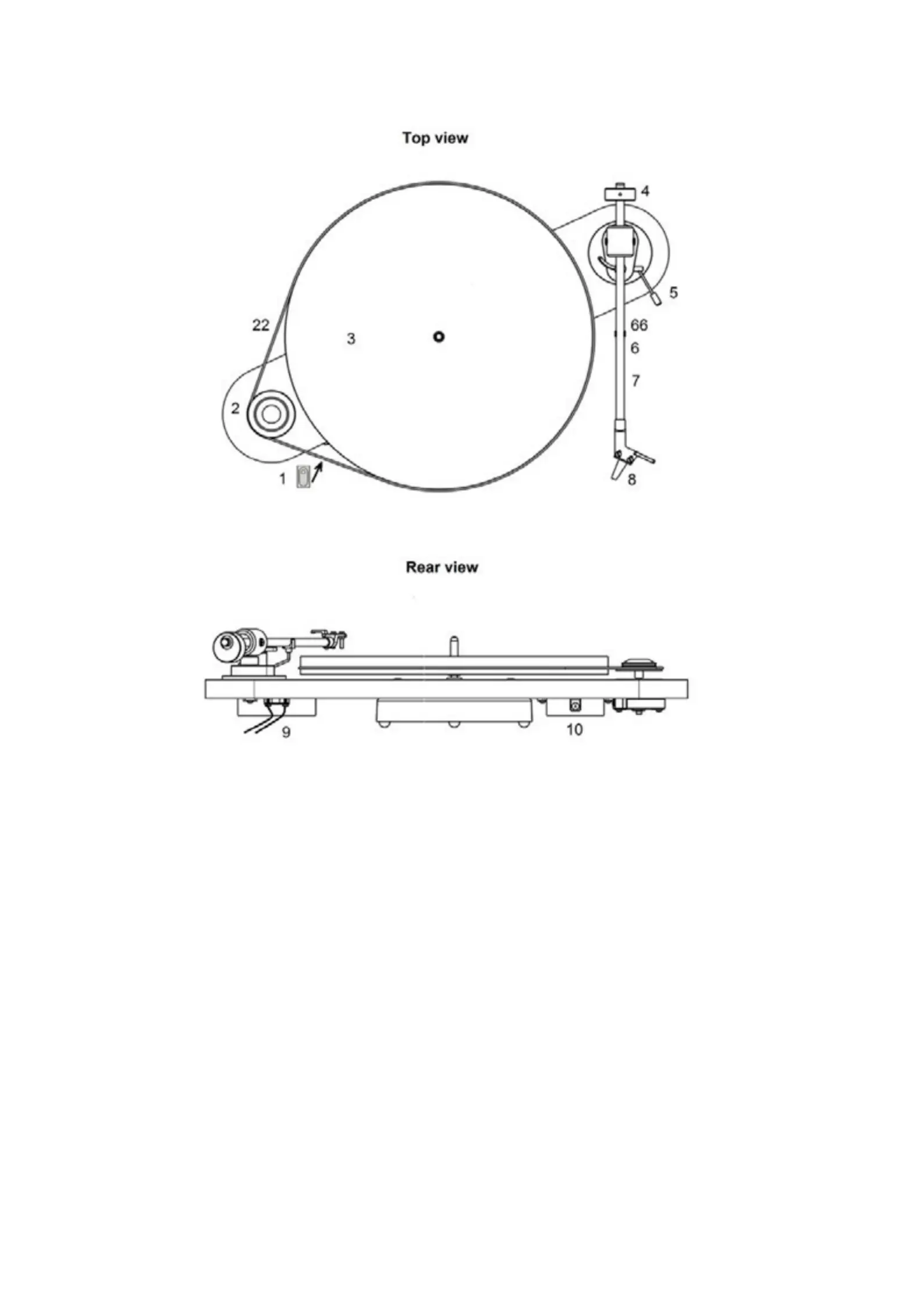

Controls, features and connections

1 Power switch

2/22 Stepped drive pulley and drive belt *

3 Platter with felt mat *

4 Tonearm counterweight

5 Tonearm lift lever

6/66 Tonearm rest and removable transport lock

7 Tonearm tube

8 Headshell with finger lift and fitted Ortofon OM 5E cartridge

9 Signal output cable

10 Power supply socket

Power supply (not shown) *

Hexagonal allen wrench (not shown) *

Pro Elemental-Ject

Dear music lover,

thank you for purchasing a record player from Pro-Ject Audio Systems.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

** Your turntable has been delivered wit cartridge, please ignore the h a factory fitted and adjusted

cartridge set up instructions unless changing the cartridge at a later date.

During assembly and ad if not carefully placed in a suitable justment of the deck small parts could be lost,

receptacle. Before starting assembly make yourself acquainted with the parts listed above and correspondingly

numbered in the technical drawings above. Separately packed items are marked with an asterisk *.

Safety instructions

AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the

voltage in your area meets the voltage requirements printed on the power supply.

The power supply is used to disconnect the unit from the mains. Make sure that the power supply is easily

accessible at all times.

Never handle the device, the power supply while your hands are wet or damp.

Avoid letting liquids enter the device or the power supply. Never place any item containing liquid,

such as a flower vase on or near the device. Never spill any liquid on the device or the power supply.

Never place any naked flame sources, such as lighted candles on or near the device. The product shall not

be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.

Keep plastic bags away from children to prevent any risk of suffocation.

Set- up

The deck is supplied partially disassembled and carefully packaged for safe transport. Carefully remove all

parts from the transport packaging.

Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.

Fit the drive belt (22) around the platter (3) and the smaller diameter part of the motor pulley (2). Avoid

getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the platter and the belt.

Fit the felt mat over the spindle of the platter (3). Remove the transport lock (66) from the tonearm tube.

Store the transport lock in the original packaging so they are available for any future transportation.

Cartridge downforce adjustment

The counterweigh 5,5g. The counterweight is t (4) supplied is suitable for cartridges weighing between 3,5 -

pre- set perfectly from the factory.

Connection to the amplifier

The record player has a captive tonearm signal lead (9 ) for connection to the amplifier. Use the Phono input

(sometimes labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching

and amplification for the type of cartridge used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.

Produktspecifikationer

Varumärke:	Pro-Ject
Kategori:	DJ-utrustning
Modell:	Elemental
Vikt:	2750 g
USB-version:	2.0
Modell:	Remdriven skivtallrik
Produktmått (B x H x D):	430 x 90 x 300 mm
Linjeutgångar (RCA):	1
Produktens färg:	Red, Translucent
Antal USB-portar:	1
Strömförbrukning (vanlig):	5 W
Kabel inkluderad:	RCA, USB
Nominella hastigheter:	33, 45 RPM
Wow och flutter:	0.14 %
Armlängd:	218.5 mm
Diameter, skivtallrik:	300 mm
