INSTRUCTIONS FOR USE

Pro-Ject RPM 5.1

PRO-JECT RPM 5.1

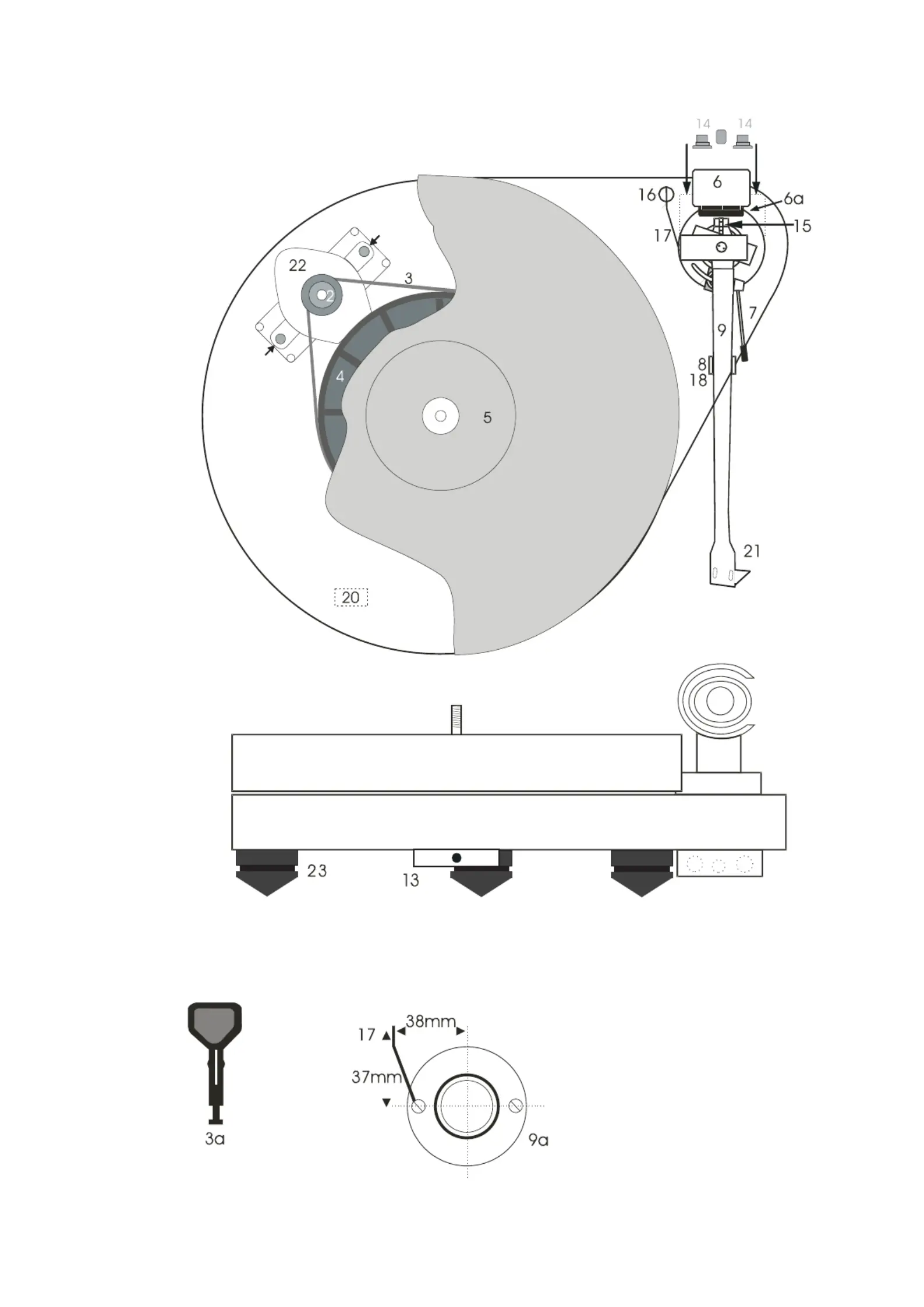

Controls, features and connections

1 Motor transportation screw (marked red)

2 Stepped drive pulley

3 Drive belt * 3a Hook *

4 Hub

5 Platter *

6 Tonearm counterweight * 6a Downforce scale

7 Tonearm lift lever

8/18 Tonearm rest and removable transport lock

9 Tonearm tube 9a Tonearm base

13 Power supply socket

14 Phono output sockets and earth connection

15 Anti-skating weight adjustment scale

16 Anti-skating weight *

17 Anti-skating weight support hoop

20 Power switch

21 Headshell with finger lift and optional fitted cartridge Ortofon 2M Red

22 Motor

23 Adjustable tip-toe feet with anti-scratch cups *

Screw-down record clamp (not shown) *

Connection cable (not shown) *

Power supply (not shown) *

Single adapter (not shown) *

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

The record player is supplied with a factory fitted and adjusted cartridge as an option.

** The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a

different model at a later date.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable

receptacle. Before starting assembly make yourself acquainted with the parts listed above and correspondingly

numbered in the technical drawings above. Separately packed items are marked with an asterisk *.

Produktspecifikationer

Varumärke:	Pro-Ject
Kategori:	DJ-utrustning
Modell:	RPM 5.1 2M
Vikt:	6500 g
Snabbstartsguide:	Ja
Produktmått (B x H x D):	371 x 145 x 300 mm
Produktens färg:	Svart
Strömförbrukning (vanlig):	2 W
Nätaggregatstyp:	AC
Signal/brusförhållande (SNR):	-70 dB
AC-adapter, inspänning:	100 - 240 V
Pickup armlängd:	230 mm
AC-adapter, frekvens:	50/60 hz
Nominella hastigheter:	33, 45, 78 RPM
Funktion:	Manuell
Diameter, skivtallrik:	300 mm
Platter vikt:	1750 g
Pickup armtyp:	Pro-Ject 9cc
