Tristand

• 3x M8 nuts

�

Size without feet (W x D x H): 328 x 328 x 678 mm

Size with feet (W x D x H): 328 x 328 x 700 mm

Top plate surface (W x D): 150 x 142 mm

Weight per Tristand: 5 kg

Maximum load per Tristand: 20 kg

• 1x base plate

�

• 2x steel proles�

(marked no. 1)

�

• 2x steel proles�

(marked no. 2)

�

• 4x M4x14 allen screws

�

• 1x 2,5mm allen key

�

• 3x spike feet

�

• 3x cups for spike feet

�

• 1x top plate

�

Before assembly please make sure all parts are included.

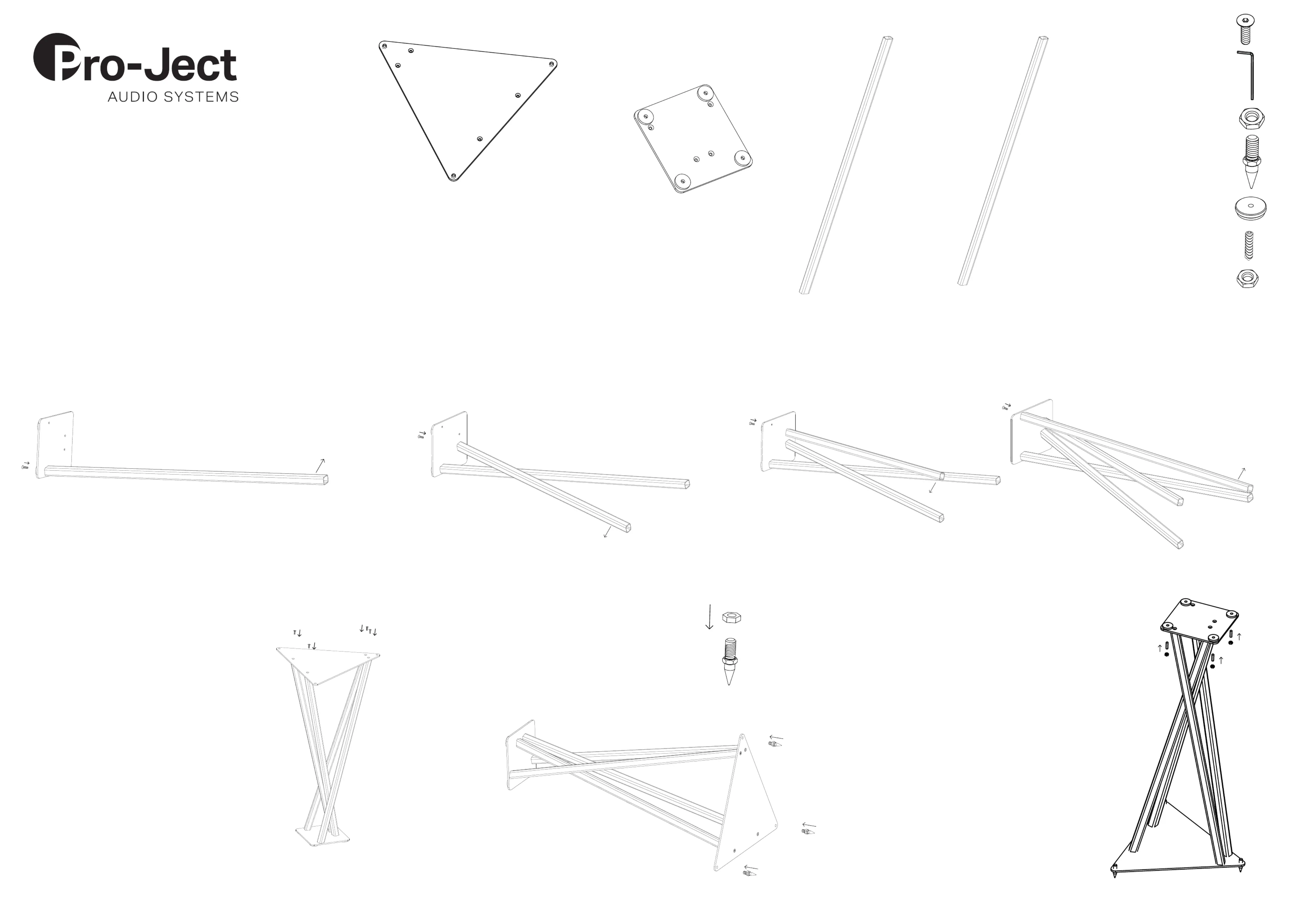

Step 1

As shown in the picture below, take the top

plate and one of the two steel proles �

marked with no. 1 and attach them together.

Screw the top plate and steel prole together �

(using a M4x14 screw and the included allen

key), but do not tighten the screw completely

yet.

Steel prole points in that direction�

Step 2

Take another steel prole now with mark no.2, �

and attach it in the opposite direction to the

previous one into the hole above the rst �

steel prole (as shown in the picture below). �

Don't tighten the screws completely.

Steel prole points in that direction�

Steel prole points in that direction�

Step 3

Repeat step 2 with another steel prole.�

Step 4

Repeat step 1 with another steel prole �

marked no. 1 in the same direction as in step

1.

Steel prole points in that direction�

Step 5

Take the base plate and put it on the steel

proles from the other side. Align the threads �

with the holes in the base and screw them

together. At rst don't tighten the screws �

completely. Once you have all screws in the

threads, tighten them. Afterwards, also

tighten the screws on the top plate (steps 1 –

4).

Pro-JectAudioSystemsisadivisionofAudioTuningVertriebsGmbHMargaretenstrasse98,A-1050Vienna,Austria

Step 6

Screw the nuts onto the spike feet.

Then screw the feet into the base. Carefully

lift the assembled Tristand up, place it on the

ground and put the cups under the spike feet.

You can now tighten or loosen the spike feet

to ensure the base is level (use a spirit level if

necessary).

Step 7

Now you are ready to place the speaker on

the Tristand. You have two options on how to

do that.

1) Directly place the speaker onto the

microporous rubber pads on top plate.

2) Screw the M5x20 spikes into the threads

located in the middle of the microporous

rubber pads. Adjust the height until the

speaker has a proper stand and lock the

screw with a nut from the bottom.

• 4x M5x20 spikes

�

• 4x M5 nuts

�
