PureLink LU-EHD-111 Bruksanvisning

PureLink Kablar för PC och kringutrustning LU-EHD-111

Läs gratis den bruksanvisning för PureLink LU-EHD-111 (2 sidor) i kategorin Kablar för PC och kringutrustning. Guiden har ansetts hjälpsam av 18 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 9.5 recensioner. Har du en fråga om PureLink LU-EHD-111 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/2

K n o w - H o w . Q u a l i t y . D e s i g n .

I n n o v a t i o n G e r m a n E n t e r p r i s e s .

Always carry at least one of these products with you to the job site

HDMI systems can be very dicult to troubleshoot. PureLink has three unique products, the HDMI Extender (in this manual, LU-EHD-111),

the HDMI Communicator (LU-CHD-110) and the HDMI Audio Extractor (LU-AHD-111) to eliminate the most common HDMI problems. To save

your and your clients‘ valuable time, we recommend you to carry at least one each of our PureLink troubleshooting tools with you all the time.

So when you encounter a problem, you can just apply one of them to x the problem right away.

Mechanical

Overall male plug

width

18.5 mm

Overall male plug

height

9 mm

Overall male plug

length

15 mm

Overall female

enclosure width

28 mm

Overall female

enclosure height

11 mm

Overall female

enclosure length

58 mm

Overall product length 150 mm

Retaining force

(both male/female)

6.5 kg typical

Contact pin gold

plating

0.76 μm

Top metal shell gold

plating

0.05 μm

Contact pin pitch 1.00 mm

Troubleshoot rst – apply the right product for the problem

First plan and install the HDMI system without including the troubleshooting tools. If you experience any problems, follow these steps to deter-

mine them and apply the right solution:

1 First bring the source device next to the display and connect the two directly with a short HDMI cable.

2 Lower the source device output data rate (primarily the resolution) by one step (e.g., from 1080p to 1080i/720p, or from 1080i/720p to 480p)

then reconnect the source device back to its original.

3 If you now are able to receive picture and sound, the problem you had was most likely bandwidth or cable length related; most likely one of the

HDMI cables was too long. Unplug the connector of that cable from the TV (sink) and plug it into the LU-EHD-11 HDMI Extender in between that

cable and the TV (sink) input. You should have picture and sound now. If the problem is still existent, contact your distributor directly.

4 If you still do not have picture or sound after step 2, the problem is most likely the communication (also known as DDC, HDCP, handshaking)

between the units. Unplug the cable from your TV (or receiver); plug in the LU-EHD-111 HDMI Communicator in between that cable and the TV

(or receiver) input. You should have picture and sound now. If the problem is still existent, contact your distributor directly.

General

Connector type Input: HDMI Type A female

Output: HDMI Type A male

Signal processing Equalization, no re-clocking

Where to apply

the product

TV (sink) end

Power supply Not needed; draws power from source

Warranty 3 years replacement

For local support, please contact your reseller directly.

Luxi

TM HDMI Extender –

User Manual

LU-EHD-111

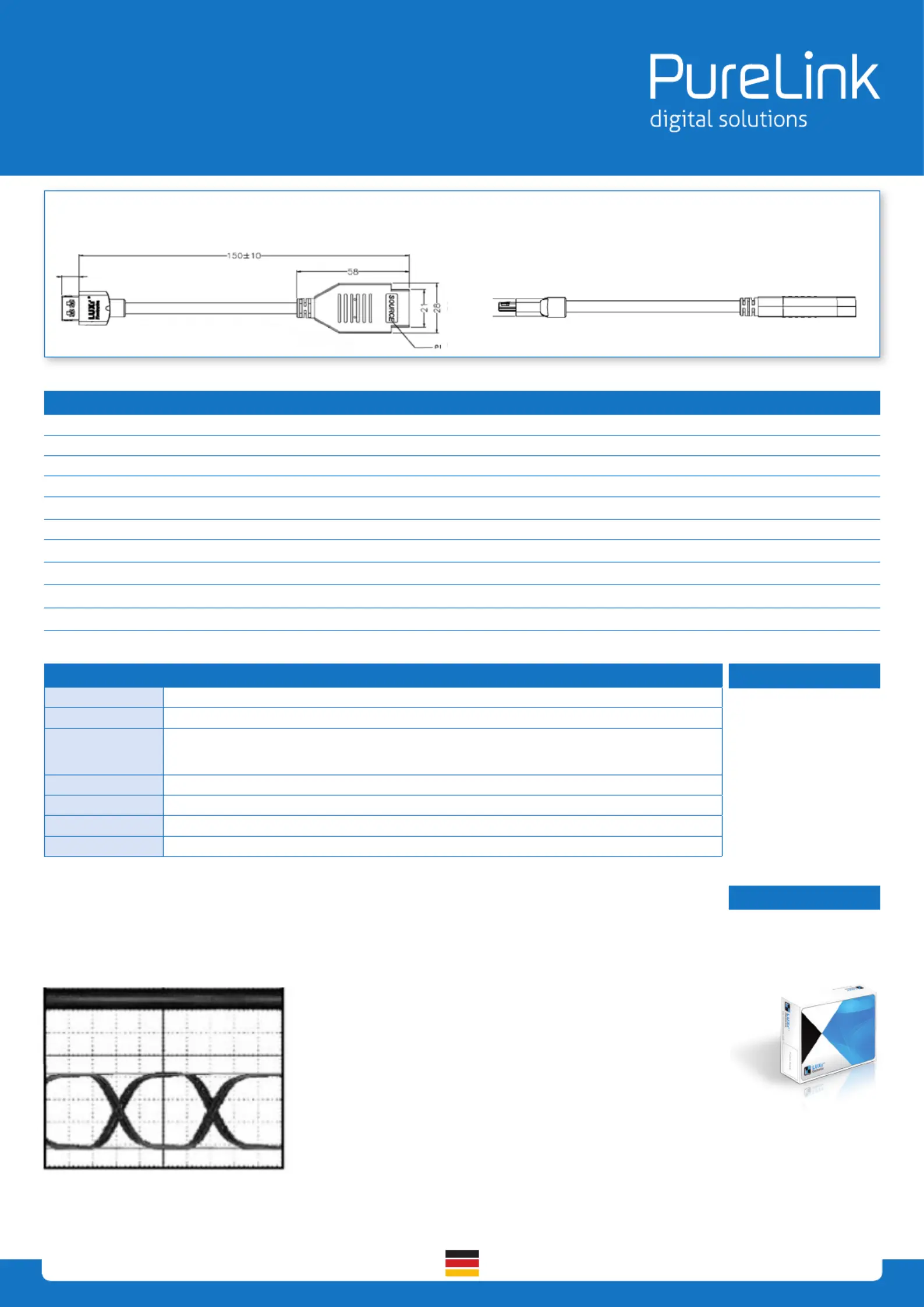

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .



•

•

•

•

•

•

•

•

•

•



 

 













 

 

 

 

Packaging



 



 



 



 



 



 

• 



• 



Product Drawing

 

Package Content

Luxi

HDMI Extender –

User Manual

LU-EHD-111

 

P350mV / div

152ps / div

DATA RATE = 1.65Gbps

40dB CABLE SKIN-EFFECT LOSS AT 825 MHz
