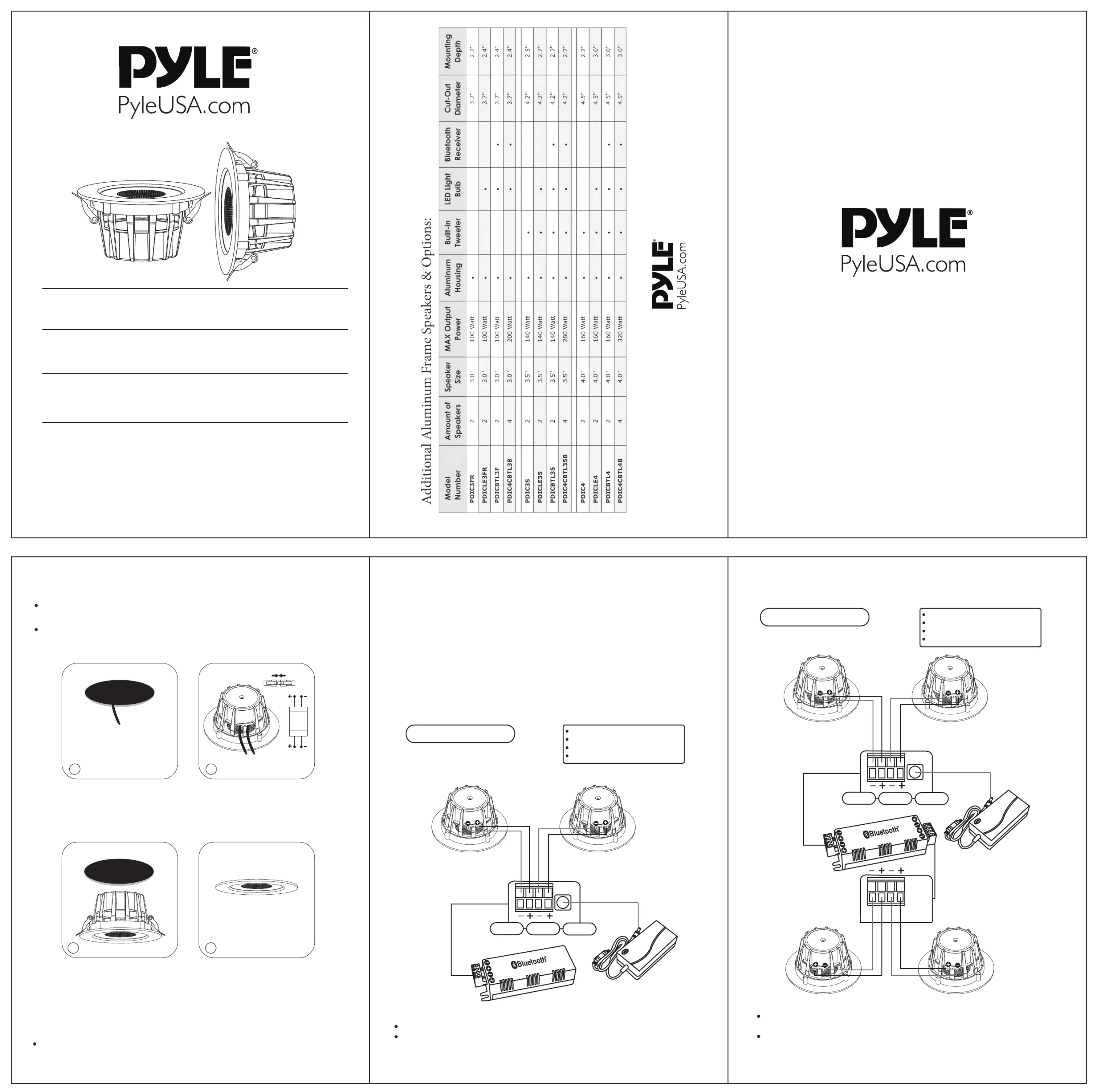

Installation And Use Instructions

Use Place

This product for indoor lighting LED and music player integration products, specic

installation please refer to the following gure.

This product is suitable for use in indoor home, touring car ,commercial shop decoration,

hotels and other indoor places.

Before installing the product, for your personal safety, be sure to cut o the main

power switch.

4.As shown in Picture 4, turn on

the light switch, you can have both

of the music and light.

3.After connecting wires correctly,

pull upwards the speaker spring,

and push the speaker into the

mounting hole, as shown in Picture 3.

3 4

1.Cut the ceiling according to the

template, as shown in Picture 1.

2.Picture 2-1 is the speaker wire

terminal; Picture 2-2 is LED wire

port, connects to the port in

Picture 2-3; Picture2-4 is LED

transformer input.

1 2

LED

Control

100-220V

INPUT

OUTPUT

2-2

2-4

2-3

2-1

PDIC3FR

PDICBTL3F

PDIC4CBTL3B

PDIC35

PDICBTL35

PDIC4CBTL35B

PDIC4

PDICLE3FR PDICLE35 PDICLE4

PDICBTL4

PDIC4CBTL4B

ALUMINUM ALLOY-FRAME SPEAKER

INSTALLATION MANUAL

Aluminum Alloy-Frame Speakers,4-Channel Bluetooth

Wireless Technology,5W LED Light

Aluminum Alloy-Frame Speakers,2-Channel Bluetooth

Wireless Technology,5W LED Light

Aluminum Alloy-Frame Speakers,5W LED Light

Aluminum Alloy-Frame Speakers

1600-63rd Street

Brooklyn,NY 11204 USA

Thank you for purchasing this PYLE Aluminum Alloy-Frame speaker system.

Bluetooth Wireless Technology,5W LED LightIt is astate-of-the-art product carefully

designed and manufactured for your installationneeds,and has been thoroughly

tested to ensure consistent and reliable perfor-mance.

If you have any question about the installation or operation of your PYLE

Aluminum Alloy-Frame speaker system.Bluetooth Wireless Technology,5W LED

LightIt which are not answered by this manual,contactyour dealer immediately.

As shown is Picture C, port (1)(2) connect to the negative pole of speaker in Picture A,

port (3)(4) connect to the positive pole of speaker in Picture B,port (5) connects to power

adapter in Picture D’s D1port.

As shown in pictures, A is speaker, B is speaker, C is bluetooth controller, D is power adapter.

2 CHANNEL

Bluetooth Connection Diagram

A B

-L+

-R+

DC12V

1 2 3 4

234

Amplification

Bluetooth Version:4.0

Bluetooth Network Name:Pyle

Bluetooth Network Password:‘0000’

Bluetooth Wireless Range:30’+Feet

As shown is Picture C, port (1)(2) connect to the negative pole of speaker in Picture A,

port (3)(4) connect to the positive pole of speaker in Picture B,port (6)(7) connect to the

positive pole of speaker in Picture E,port (8)(9) connect to the positive pole of speaker in

Picture F,port (5) connects to power adapter in Picture D’s D1port.

As shown in pictures, A is speaker, B is speaker, C is bluetooth controller, D is power adapter,

E is speaker, F is speaker.

4 CHANNEL
