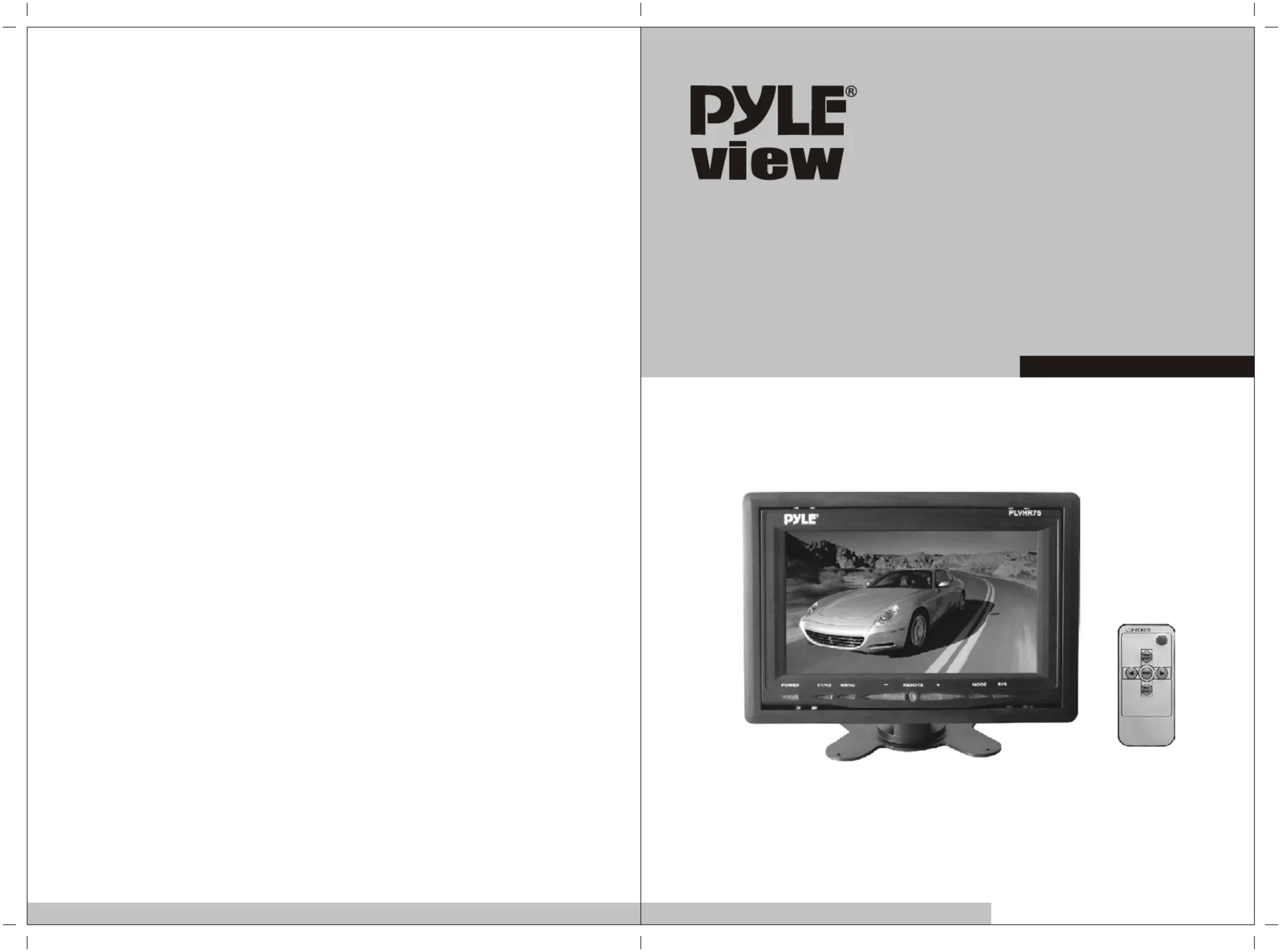

7" Widescreen TFT/LCD Video Monitor

w/Headrest Shroud and Stand

PLVHR75

H T T P : / / W W W . P Y L E A U D I O . C O M

Instruction Manual

1 x headrest shroud

1 x instruction manual

1 x bracket

1 x remote control

2 x connection wire

1. When connect the electric power wires, you should make clear about the

positive and negative electrode ( the red one is positive and the black

is negative). If you wrongly connected the fuse in the filter box will be

broken protectively. Please replace the fuse in same parameter.

2. Because the LCD screen is the main component It should be paid

attention to be damp-proof.

3. The device must be installed firmly to prevent falling of device that will

possibly cause injury and device-broken.

4. The connecting-point of direct current (12V) should connect on the Main

line of storage battery as possible as it can , for keeping this device in

normal operation and be away from the large voltage drop influence.

5. There is high voltage cluster in this machine, if you are the professional

person, should never to take part the machine if malfunction and

contact the dealer in time.

Attentions:

Accessories

Thank you for purchasing the TFT LCD color monitor. To enjoy the features

of this device and to ensure years of trouble-free operation, please read

this manual carefully and follow the instructions.

Front Panel

Remote control

Power ON/OFF

Analog variable increase

Menu button

V1/V2 conversion

Analog variable decrease

Switch for mode

Specification

Screen Size:

Resolution:

System:

Power source:

Power consumption:

Video Input:

Operating Temperature:

Storage Temperature:

Headrest bracket

Suitable for any kinds of car

seats. Easy and conveniently

installation without damage

to the seats. Length can be

adjusted(as Picture).

7 inch

1440xRGBx234

NTSC/PAL

DC 12V

<9W

Composition video signal

0°C ~ 60°C

-20°C ~ 80°C

Installation Diagram

1. Power ON/OFF

2. V1/V2 switch

3. Activation of menu indicator

4. Negative adjustment

(Yellow) Video 1 input

(Red) Audio right input

(White) Audio left input

(Black) Grounding

(Red) Battery +12V

(Yellow) Video 2 input

(Green) ACC Wire

1 2 3 4 5 6 7 8

5. Remote sensor

6. Positive adjustment

7. 16:9/4:3 display switch

8. Image rotation

Produktspecifikationer

Varumärke:	Pyle
Kategori:	Övervaka
Modell:	PLVHR75
Vikt:	- g
Bredd:	184.1 mm
Djup:	22.86 mm
Höjd:	120.6 mm
Skärm diagonal:	7 "
Upplösning:	1440 x 234 pixlar
Ljusstyrka:	- cd/m²
Inbyggda högtalare:	Nej
Fjärrkontroll ingår:	Ja
Produktens färg:	Svart
Analogt signalformatsystem:	NTSC, PAL
Temperatur vid drift:	0 - 60 ° C
Inbyggd TV mottagare:	Nej
