TS-x62, TS-x64
TS-262
TS-462
TS-264
TS-464
TS-664
User Guide
Document Version: 3
25/08/2022
Contents
1. Product Overview
About the TS-x62 and TS-x64....................................................................................................................................3
Hardware ............................................................................................................................................3Specications
Package Contents...................................................................................................................................................... 6
Components............................................................................................................................................................... 7
Front Panel.............................................................................................................................................................7
Rear Panel.............................................................................................................................................................. 9
System Board.......................................................................................................................................................12

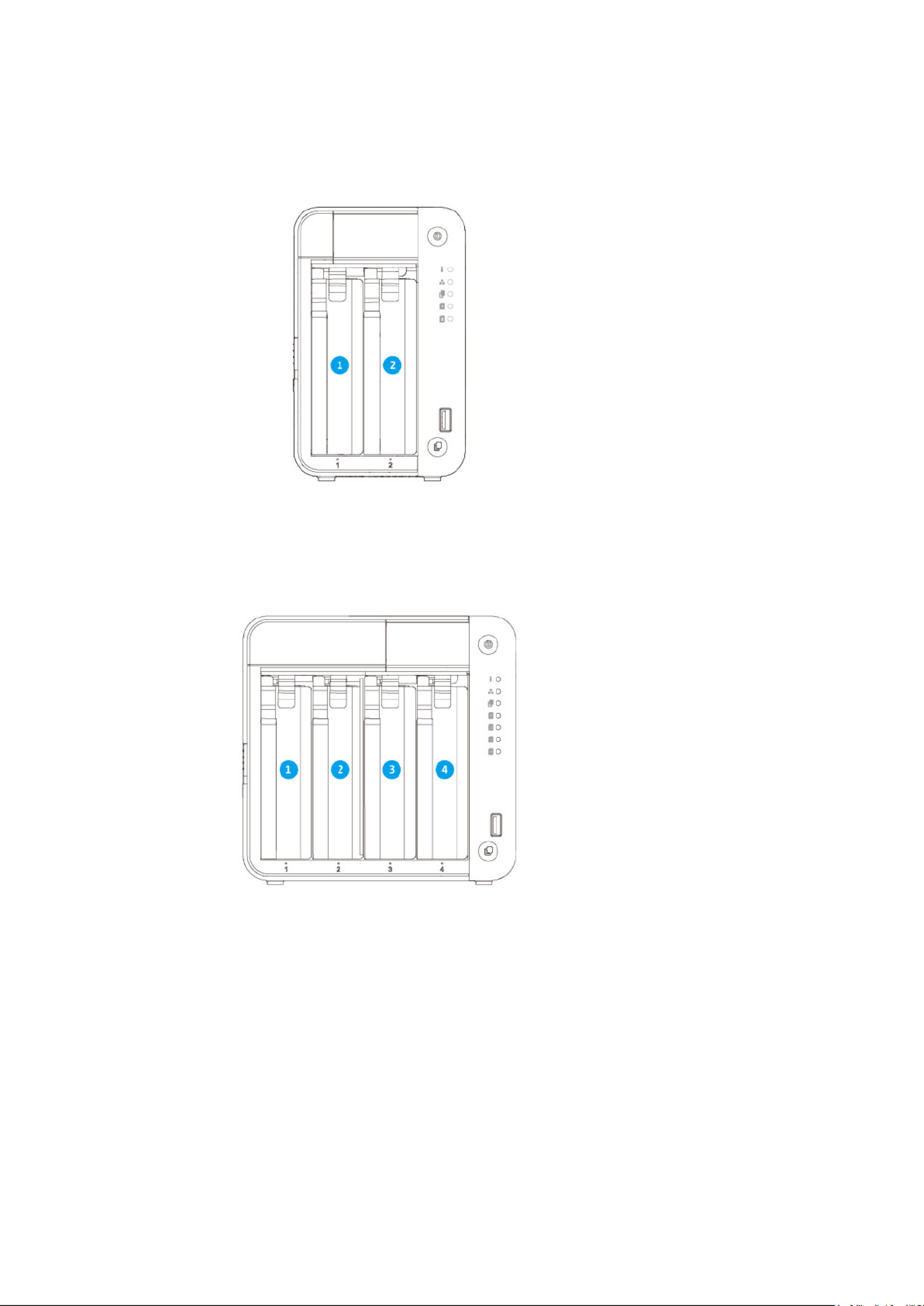

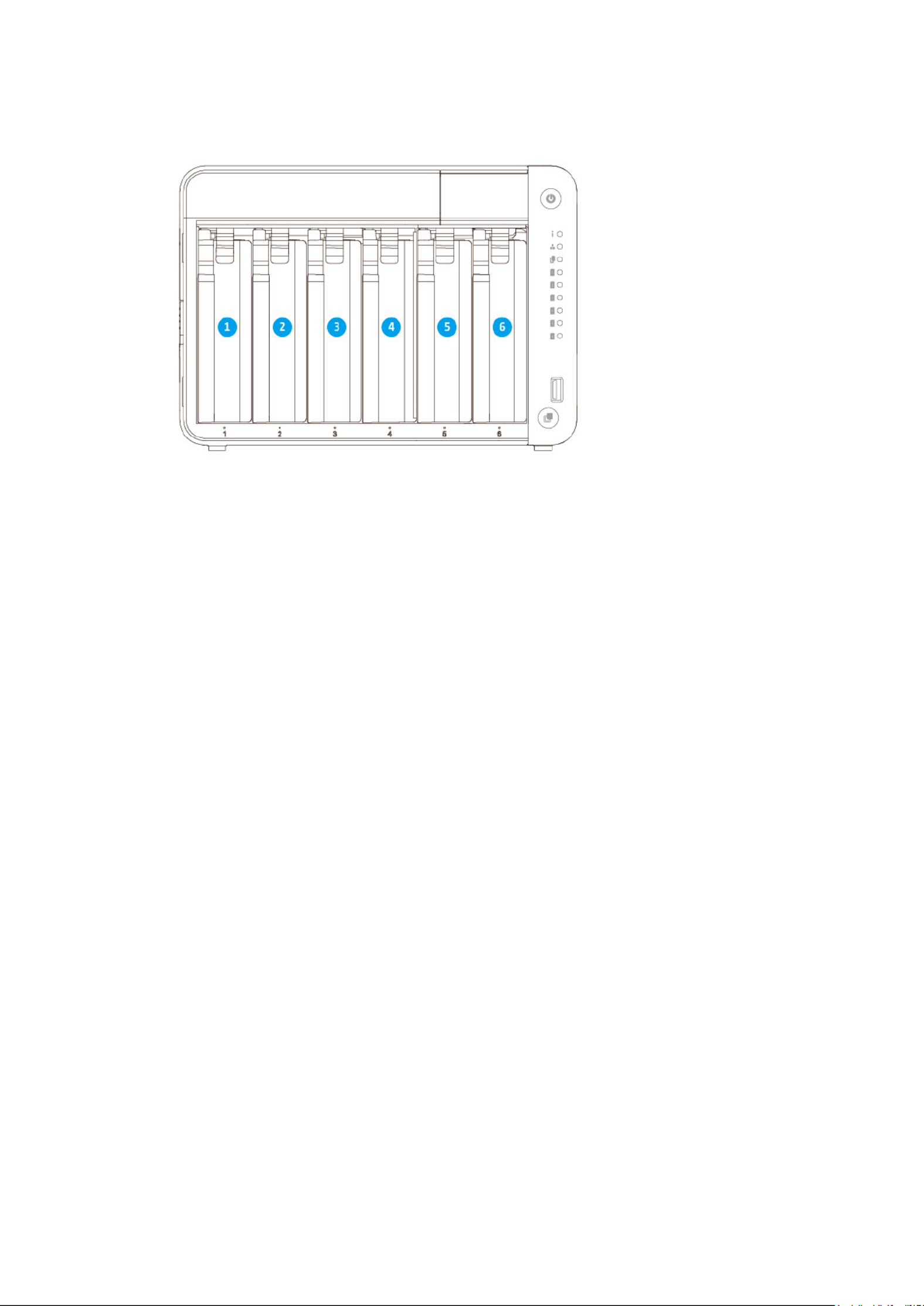

Front Drive Numbering...................................................................................................................................... 14
Safety Information...................................................................................................................................................15
Installation Requirements...................................................................................................................................... 16
Setting Up the NAS.................................................................................................................................................. 16
2. Installation and Conguration
Hardware Installation..............................................................................................................................................18

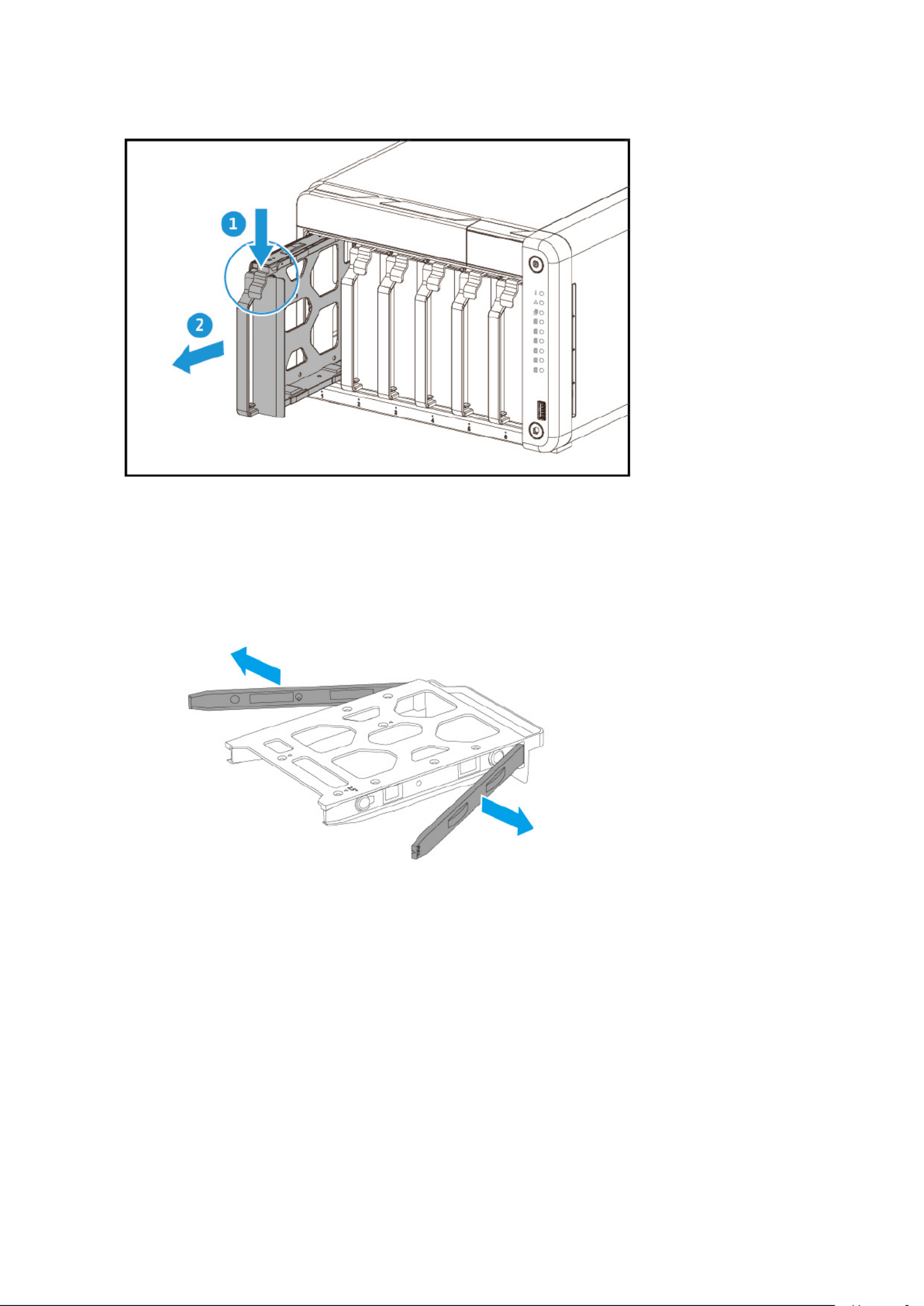

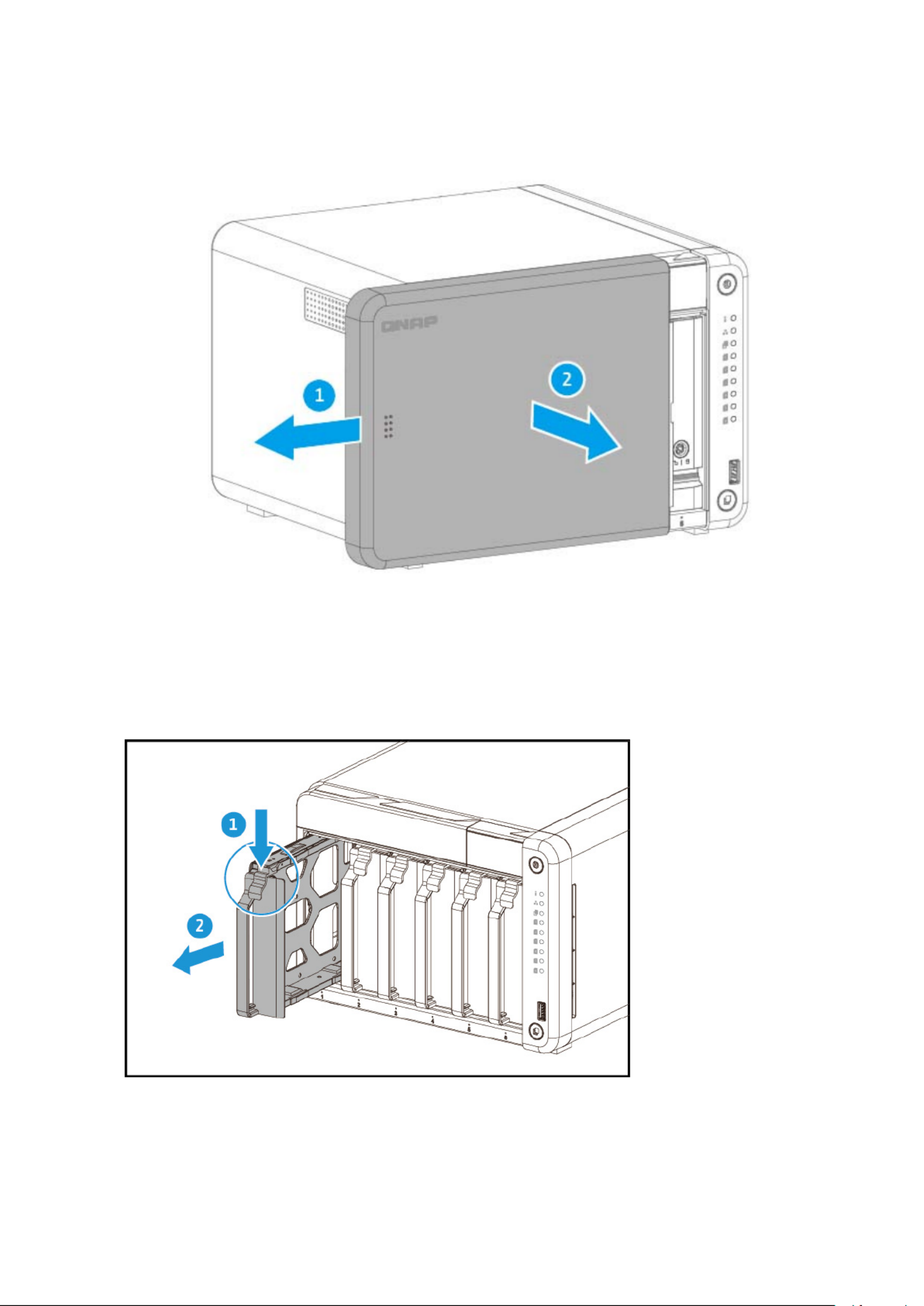

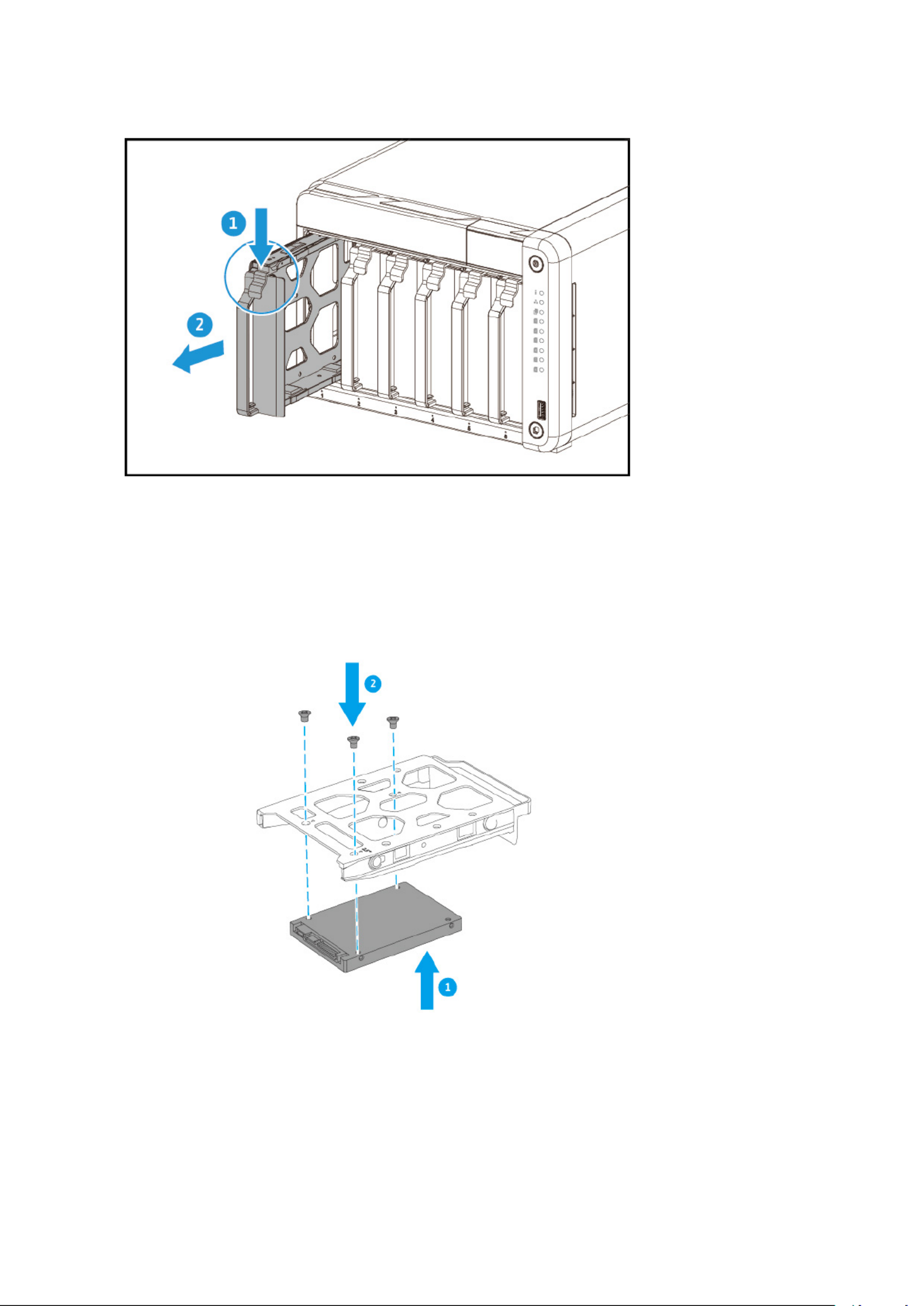

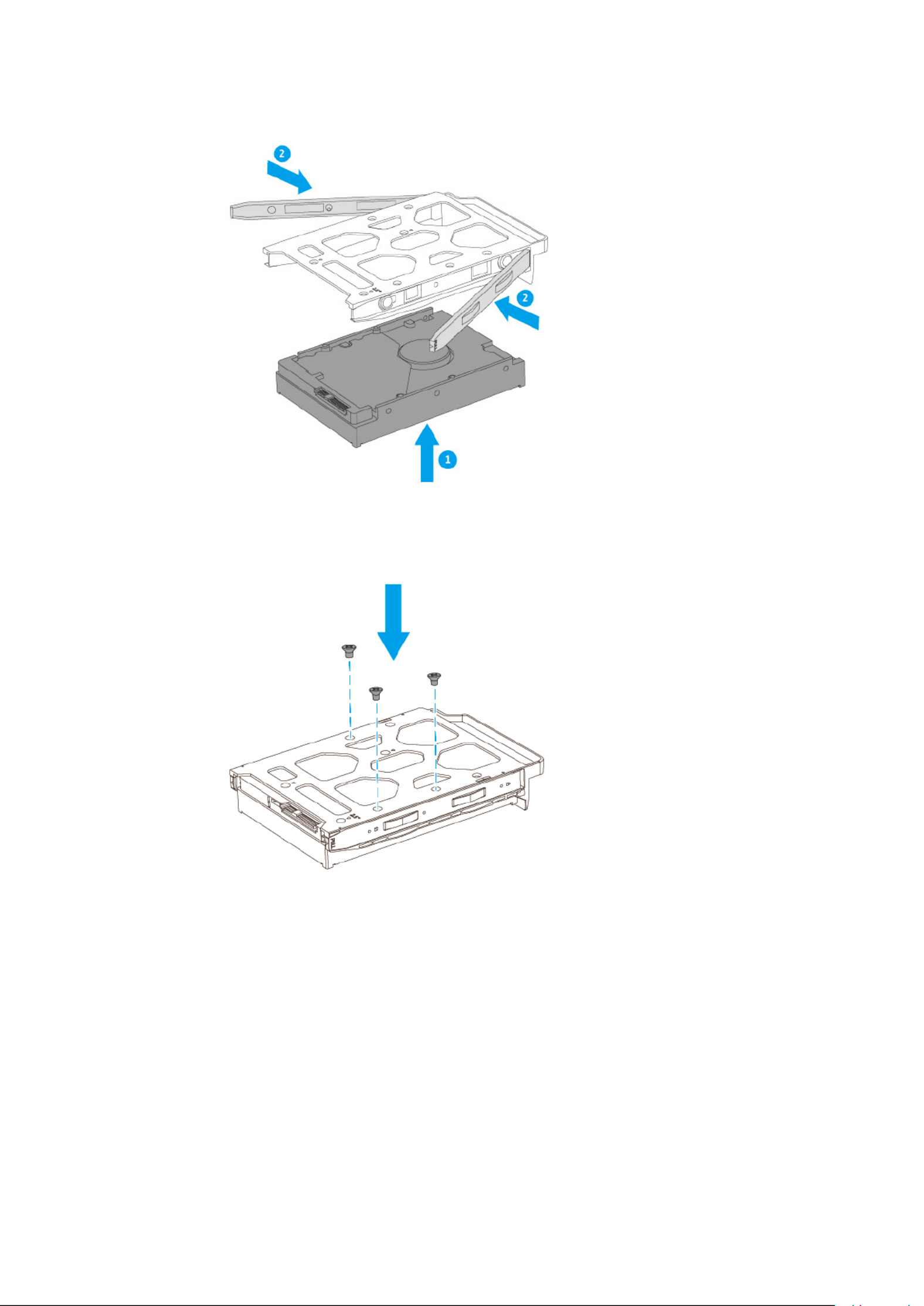

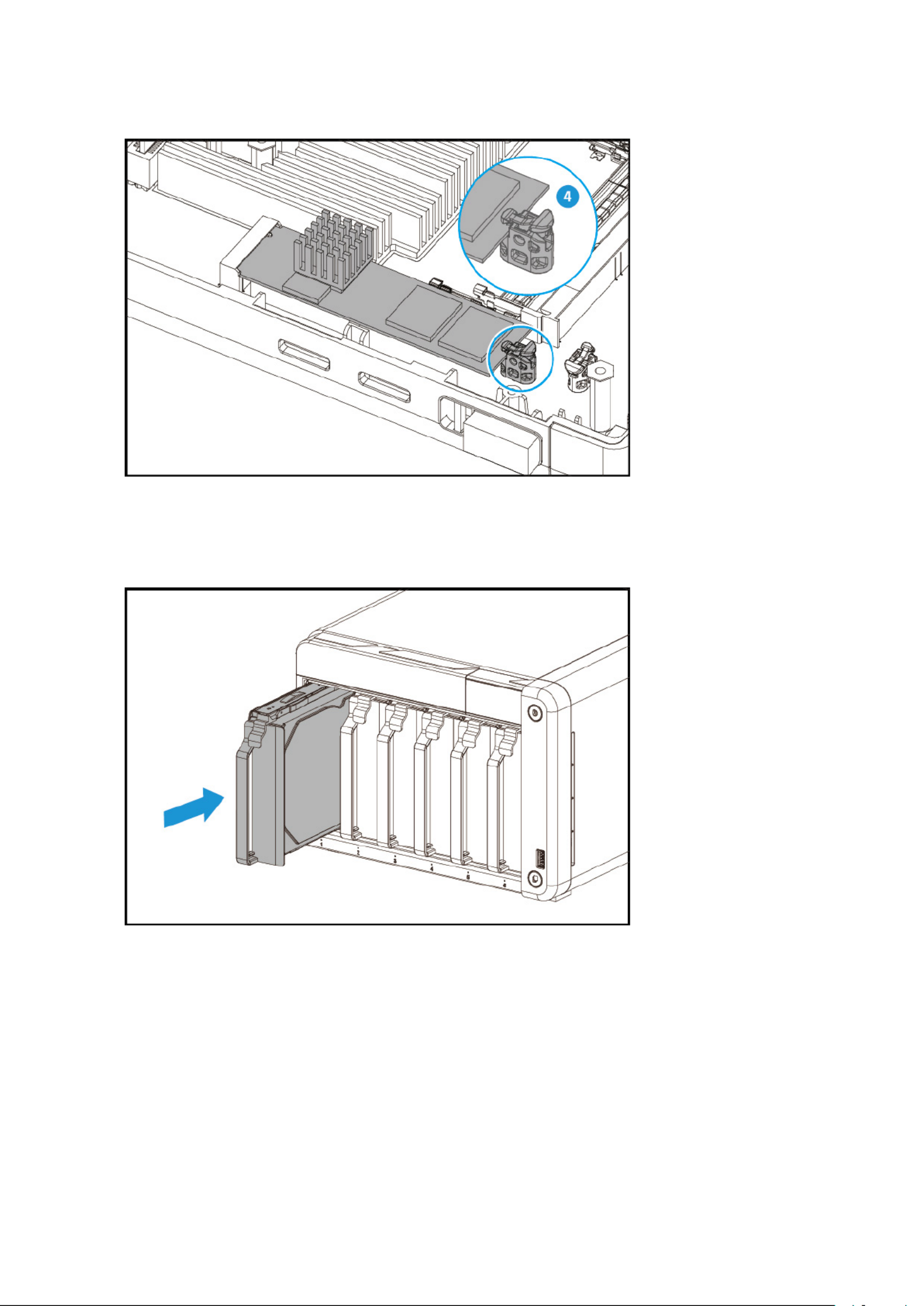

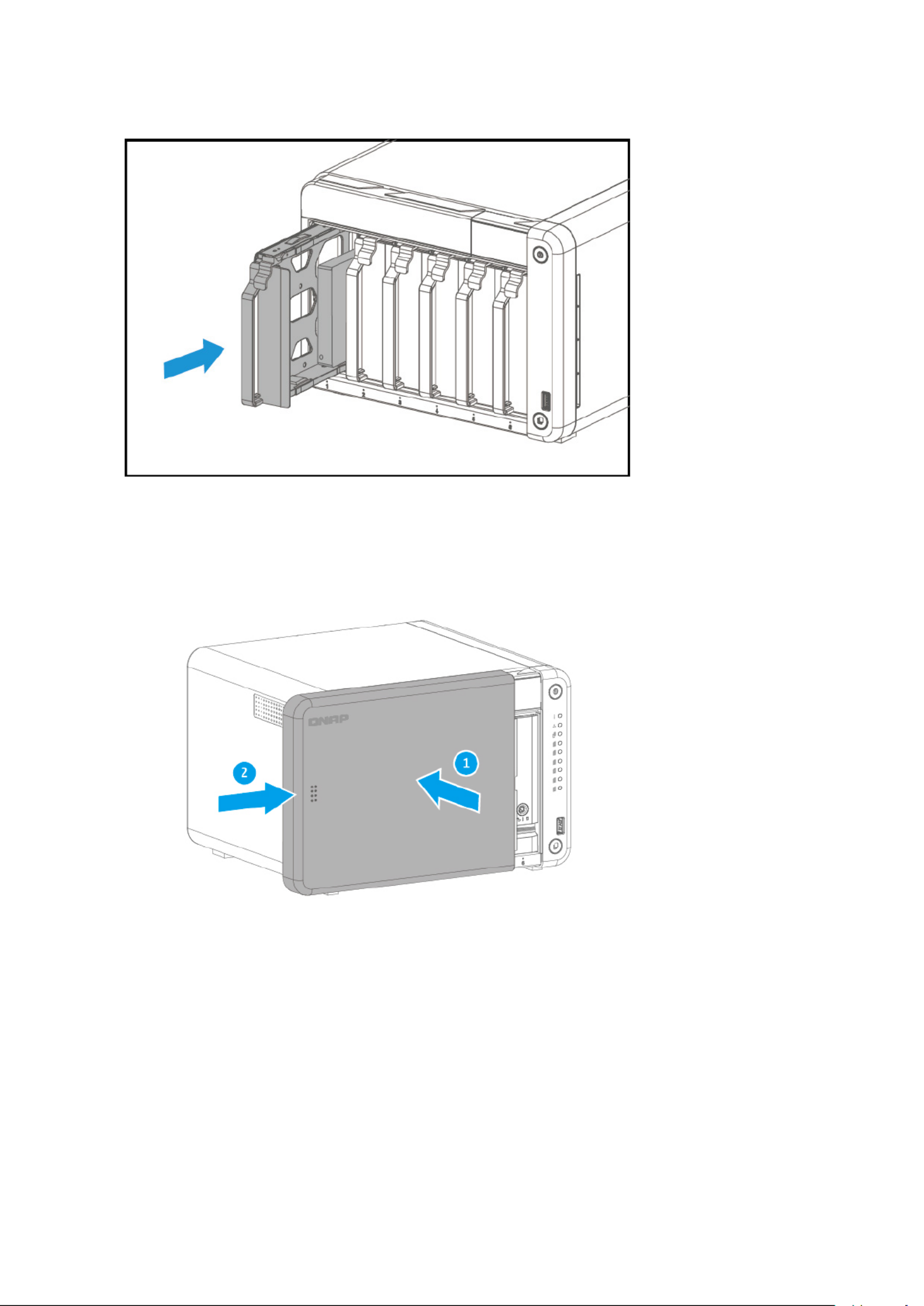

Drive Installation.................................................................................................................................................18
Replacing Memory Modules (TS-462, TS-464, TS-664).................................................................................... 32
Installing Expansion Cards.................................................................................................................................38
Expansion Unit Installation................................................................................................................................44
QTS Installation........................................................................................................................................................47
Installing QTS Using Pro...................................................................................................................... 48Qnder
Installing QTS Using the Cloud Key...................................................................................................................50
Installing QTS Using an HDMI Connection...................................................................................................... 53
3. Basic Operations
Power Button........................................................................................................................................................... 55
Reset Button.............................................................................................................................................................55
USB One Touch Copy Button.................................................................................................................................. 56
LEDs...........................................................................................................................................................................56
Audio Alert................................................................................................................................................................ 58
4. NAS Migration
NAS Migration Requirements.................................................................................................................................59
Status and Setting Changes after NAS Migration................................................................................................59
Migrating a NAS....................................................................................................................................................... 60
Migrating NAS Data Using HBS 3...........................................................................................................................61
Preparing the Destination NAS......................................................................................................................... 61
Creating a One-Way Sync Job.............................................................................................................................62
Importing Local Users or Group Settings to the Destination NAS................................................................63
5. Troubleshooting
Forcing Pro or myQNAPcloud to Locate the NAS.................................................................................. 65Qnder
Hot-swapping Failed Drives....................................................................................................................................65
Recovering Unintentionally Removed Hard Drives............................................................................................. 66
Support and Other Resources................................................................................................................................66
6. Glossary
Cloud Key.................................................................................................................................................................. 67
myQNAPcloud.......................................................................................................................................................... 67
myQNAPcloud Link..................................................................................................................................................67
TS-x62, TS-x64 User Guide
1
Qnder Pro............................................................................................................................................................... 67
QNAP ID.................................................................................................................................................................... 67
QTS.............................................................................................................................................................................67
7. Notices
Limited Warranty..................................................................................................................................................... 68
Disclaimer................................................................................................................................................................. 68
GNU Public License..................................................................................................................................................68
CE Notice...................................................................................................................................................................76
UKCA Notice..............................................................................................................................................................76
FCC Notice.................................................................................................................................................................76
VCCI Notice............................................................................................................................................................... 77
BSMI Notice.............................................................................................................................................................. 77
SJ/T 11364-2006........................................................................................................................................................77
2
1. Product Overview
This chapter provides basic information about the QNAP device.
About the TS-x62 and TS-x64
The TS-x62 and TS-x64 QNAP NAS series include hardware optimized for dedicated backup jobs, AI-driven
applications, multimedia streaming, and VPN services. The Intel® Celeron® CPU includes an integrated GPU
which an HDMI resolution of up to 4K at 60 Hz, and boosts the performance of AI-driven applicationsoers
such as QuMagie and DA Drive Analyzer. The QTS operating system additionally provides modern security
protections and fast caching with M.2 SSDs. The TS-x62 and TS-x64 series are multipurpose NAS devices
suitable as personal backup servers, work-from-home VPN tools, or multimedia management servers.
Hardware Specications
Warning
If your QNAP product has hardware defects, return the product to QNAP or a QNAP-
authorized service center for maintenance or replacement. Any attempt to repair or
perform maintenance procedures on the product by you or an unauthorized third party
invalidates the warranty.
QNAP is not responsible for any damage or data loss caused by unauthorized
modications and installation of unsupported third-party applications.
For details, see the QNAP Warranty Terms and Conditions.
Ordering P/N CPU Pre-installed memory Drive bays
TS-262-4G Intel® Celeron® N4505 4 GB RAM (non-
expandable)
2 x 3.5-inch SATA 6 Gbps
TS-264-8G Intel® Celeron® N5105/
N5095
8 GB RAM (non-
expandable)
2 x 3.5-inch SATA 6 Gbps
TS-462-2G Intel® Celeron® N4505 2 GB RAM: 1 x 2 GB DDR4
SODIMM
4 x 3.5-inch SATA 6 Gbps
TS-464-4G Intel® Celeron® N5105/
N5095
4 GB RAM: 1 x 4 GB DDR4
SODIMM
4 x 3.5-inch SATA 6 Gbps
TS-664-4G Intel® Celeron® N5105/
N5095
4 GB RAM: 1 x 4 GB DDR4
SODIMM
6 x 3.5-inch SATA 6 Gbps
Important
• Use only QNAP memory modules to maintain system performance and stability. For
NAS devices with more than one memory slot, use QNAP modules with identical
specications.
• Using unsupported modules may degrade performance, cause errors, or prevent the
operating system from starting.
•
To avoid potential injury or damage to components, do not touch the fans while the
NAS is connected to a power source.
TS-x62, TS-x64 User Guide
Product Overview 3
Component TS-262, TS-462 TS-264, TS-464, TS-664
SSD cache
acceleration
support
Supported
Hot-swapping The device supports hot-swapping drives except for the following:
M.2 SSDs
Network
2.5 Gigabit network
interface
1 x 2.5 GbE RJ45 2 x 2.5 GbE RJ45
Note
The 2.5 Gigabit Ethernet port supports the following network
connectivity speeds: 2.5 GbE, 1 GbE, 100 Mb, and 10 Mb.
External I/O Ports & Expansion Slots
USB ports • Front: 1 x USB 3.2 Gen 2 Type-A
Note
This USB port supports One Touch Copy.
• Rear: 1 x USB 3.2 Gen 2 Type-A
• Rear: 2 x USB 3.2 Gen 1 Type-A
PCIe slots 1 x PCIe 3.0 x2
Tip
For the list of compatible drive models and expansion cards, go to
https://www.qnap.com/compatibility.
HDMI ports 1 x HDMI 2.0 (up to 4096 x 2160 resolution at 60 Hz)
Interface
Buttons • Power
• Reset
• USB One Touch Copy
Dimensions
Form factor Tower
Dimensions (H x W
x D)
• TS-262:
168 x 105 x 226 mm
(6.61 x 4.13 x 8.90 in)
• TS-462:
168 x 170 x 226 mm
(6.61 x 6.69 x 8.90 in)
• TS-264:
168 x 105 x 226 mm
(6.61 x 4.13 x 8.90 in)
• TS-464:
168 x 170 x 226 mm
(6.61 x 6.69 x 8.90 in)
• TS-664:
168 x 235 x 226 mm
(6.61 x 9.25 x 8.90 in)
TS-x62, TS-x64 User Guide
Product Overview 5
Component TS-262, TS-462 TS-264, TS-464, TS-664
Net weight • TS-262:
1.55 kg (3.41 lbs)
• TS-462:
2.26 kg (4.98 lbs)
• TS-264:
1.55 kg (3.41 lbs)
• TS-464:
2.26 kg (4.98 lbs)
• TS-664:
2.9 kg (6.39 lbs)
Others
Power supply unit • TS-262:
65W, 100-240V AC, 50/60 Hz
• TS-462:
90W, 100-240V AC, 50/60 Hz
• TS-264:
65W, 100-240V AC, 50/60 Hz
• TS-464:
90W, 100-240V AC, 50/60 Hz
• TS-664:
120W, 100-240V AC, 50/60 Hz
System battery CR2032 lithium battery (3V, 225 mAh)
Warning
• This battery is a button battery. If swallowed, a lithium button
battery can cause severe or fatal injuries within 2 hours. Keep
batteries out of reach of children.
• To avoid potential battery explosion, causing injury or damage
to components, ensure that you replace the existing battery
with a battery of the same type.
Fans • TS-262:
1 x 70 mm, 12V DC smart fan
• TS-462:
1 x 120 mm, 12V DC smart fan
• TS-264:
1 x 70 mm, 12V DC smart fan
• TS-464:
1 x 120 mm, 12V DC smart fan
• TS-664:
2 x 90 mm, 12V DC smart fan
Operating
temperature
0˚C to 40˚C (32˚F to 104˚F)
Relative humidity • Non-condensing relative humidity: 5% to 95%
• Wet-bulb temperature: 27˚C (80.6˚F)
Security slot Kensington security slot
Tip
Model are subject to change without prior notice. To see the latestspecications
specications, go to https://www.qnap.com.
Package Contents
Item Quantity
TS-x62/TS-x64 1
TS-x62, TS-x64 User Guide
Product Overview 6
Item Quantity
Drive trays • TS-262, TS-264: 2
• TS-464, TS-462: 4
• TS-664: 6
Screws for 2.5-inch drives • TS-262, TS-264: 8
• TS-464, TS-462: 16
• TS-664: 24
Screws for 3.5-inch drives • TS-262, TS-264: 8
• TS-464, TS-462: 16
• TS-664: 24
AC power adapter 1
Power cord 1
Cat 5e Ethernet cable 1
Quick Installation Guide (QIG) 1
Components
Front Panel
TS-262, TS-264
No. Component No. Component
1 Power button 5 Drive 1 LED
2 Status LED 6 Drive 2 LED
3 LAN LED 7 USB 3.2 Gen 2 One Touch Copy Type-A port
4 USB LED 8 USB One Touch Copy button
TS-x62, TS-x64 User Guide
Product Overview 7
TS-462, TS-464
No. Component No. Component
1 Power button 6 Drive 2 LED
2 Status LED 7 Drive 3 LED
3 LAN LED 8 Drive 4 LED
4 USB LED 9 USB 3.2 Gen 2 One Touch Copy Type-A port
5 Drive 1 LED 10 USB One Touch Copy button
TS-664
No. Component No. Component
1 Power button 7 Drive 3 LED
TS-x62, TS-x64 User Guide
Product Overview 8
No. Component No. Component
2 Status LED 8 Drive 4 LED
3 LAN LED 9 Drive 5 LED
4 USB LED 10 Drive 6 LED
5 Drive 1 LED 11 USB 3.2 Gen 2 One Touch Copy Type-A port
6 Drive 2 LED 12 USB One Touch Copy button
Rear Panel
TS-262
No. Component No. Component
1 PCIe cover 7 2.5 Gigabit Ethernet port (RJ45)low-prole
2 Reset button 8 2.5 Gigabit Ethernet speed LED
3 USB 3.2 Gen 2 Type-A port 9 Power input
4 USB 3.2 Gen 1 Type-A ports 10 Kensington security slot
5 HDMI 2.0 port 11 System fan
6 2.5 Gigabit Ethernet activity LED - -
TS-x62, TS-x64 User Guide
Product Overview 9
TS-264
No. Component No. Component
1 PCIe cover 7 2.5 Gigabit Ethernet speed LEDlow-prole
2 Reset button 8 Power input
3 USB 3.2 Gen 2 Type-A port 9 Kensington security slot
4 USB 3.2 Gen 1 Type-A ports 10 2.5 Gigabit Ethernet activity LED
5 HDMI 2.0 port 11 System fan
6 2.5 Gigabit Ethernet ports (RJ45) - -
TS-462
TS-x62, TS-x64 User Guide
Product Overview 10
No. Component No. Component
1 PCIe cover 7 2.5 Gigabit Ethernet activity LEDlow-prole
2 Reset button 8 Power input
3 USB 3.2 Gen 2 Type-A port 9 2.5 Gigabit Ethernet speed LED
4 USB 3.2 Gen 1 Type-A ports 10 System fan
5 HDMI 2.0 port 11 Kensington security slot
6 2.5 Gigabit Ethernet port (RJ45) - -
TS-464
No. Component No. Component
1 PCIe cover 7 2.5 Gigabit Ethernet activity LEDlow-prole
2 Reset button 8 Power input
3 USB 3.2 Gen 2 Type-A port 9 2.5 Gigabit Ethernet speed LED
4 USB 3.2 Gen 1 Type-A ports 10 System fan
5 HDMI 2.0 port 11 Kensington security slot
6 2.5 Gigabit Ethernet ports (RJ45) - -
TS-x62, TS-x64 User Guide
Product Overview 11
TS-664
No. Component No. Component
1 PCIe cover 7 2.5 Gigabit Ethernet speed LEDlow-prole
2 Reset button 8 2.5 Gigabit Ethernet activity LED
3 USB 3.2 Gen 2 Type-A port 9 Power input
4 USB 3.2 Gen 1 Type-A ports 10 Kensington security slot
5 HDMI 2.0 port 11 System fan
6 2.5 Gigabit Ethernet ports (RJ45) 12 System fan
System Board
TS-262, TS-264
TS-x62, TS-x64 User Guide
Product Overview 12
Note
This image does not include the chassis.
No. Component No. Component
1 PCIe slot (PCIe Gen 3.0 x 2) 3 M.2 SSD slot 2
2 M.2 SSD slot 1 - -
TS-462, TS-464, TS-664
Note
This image does not include the chassis.
No. Component No. Component
1 PCIe slot (PCIe Gen 3.0 x 2) 4 M.2 SSD slot 1
2 Memory slot 1 5 M.2 SSD slot 2
3 Memory slot 2 - -
TS-x62, TS-x64 User Guide
Product Overview 13
Front Drive Numbering
TS-262, TS-264
TS-462, TS-464
TS-x62, TS-x64 User Guide
Product Overview 14
TS-664
Safety Information
The following instructions help ensure personal safety and environmental safety. Read these instructions
carefully before performing any operation.
General Instructions
• The device should be stored in a secure location with restricted access, controlled through the use of a
tool, lock and key, or any means of security.
• Only skilled, and authorized persons with knowledge of all restrictions, safety precautions,qualied,
and installation and maintenance procedures should have physical access to the device.
• To avoid potential injury or damage to components, ensure that the drives and other internal system
components have cooled before touching them.
• Observe electrostatic discharge (ESD) procedures to avoid potential injury or damage to components.
Power
• To reduce the risk of re or electric shock, ensure that you only connect the power cord to a properly
grounded electrical outlet.
• To avoid serious injuries, a trained service technician must disconnect all PSU cords from the device
before installing or replacing system components.
System Battery
• This product contains a button battery.
• If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours.
• Keep batteries out of reach of children.
• If you think batteries may have been swallowed or placed inside any part of the body, seek immediate
medical attention.
TS-x62, TS-x64 User Guide
Product Overview 15
• To avoid potential battery explosion, causing injury or damage to components, ensure that you replace
the existing battery with a battery of the same type.
• Dispose of used batteries properly according to local regulations or the instructions of the battery
manufacturer.
Moving Parts
•
Moving fan blades: Keep your body parts away from moving fan blades while the device is connected
to a power source.
•
Moving components: Keep your body parts away from other moving components.
• The device is not suitable for use in locations where children are likely to be present.
Installation Requirements
Category Item
Environment • Room temperature: 0˚C to 40˚C (32˚F to 104˚F)
• Non-condensing relative humidity: 5% to 95%
• Wet-bulb temperature: 27˚C (80.6˚F)
• Flat, anti-static surface without exposure to direct sunlight, liquids,
or chemicals
• Free from objects that may obstruct device ventilation or apply
pressure to the device or power cord
Hardware and peripherals • Storage drives
For the list of compatible drive models, go to https://
www.qnap.com/compatibility.
• Network cable
Tools • Flat head screwdriver
• Anti-static wrist strap
Setting Up the NAS
Important
Read all safety requirements and information carefully before setting up the NAS or
installing NAS components.
1. Place your NAS device in an environment that meets the requirements.
For details, see .Installation Requirements
2. Install drives.
TS-x62, TS-x64 User Guide
Product Overview 16
For details, see the following topics:
•Installing 2.5-inch Drives on 3.5-inch Trays
•Installing 3.5-inch Hard Drives on 3.5-inch Trays
•Installing M.2 Solid-State Drives
3. Optional: Connect expansion units.
For details, see .Expansion Unit Installation
4. Connect the power cord and all applicable cables.
5. Power on the NAS.
6. Install QTS.
For details, see QTS Installation.
7. Log on to QTS.
TS-x62, TS-x64 User Guide
Product Overview 17
2. Installation and Conguration
This chapter provides hardware and installation and specic rmware conguration steps.
Hardware Installation
This section provides information on installing drives, replacing memory modules, installing expansion
cards, and connecting expansion units.
Drive Installation
The NAS is compatible with 3.5-inch and 2.5-inch hard drives, 2.5-inch solid-state drives, and M.2 solid-state
drives.
Installing 2.5-inch Drives on 3.5-inch Trays
Warning
• Installing a drive deletes all data on the drive.
•
Moving fan blades: Keep your hands and other body parts away from moving fan
blades.
• Observe electrostatic discharge (ESD) procedures to avoid damage to components.
1. Power the NAS.o
2. Remove the front cover.

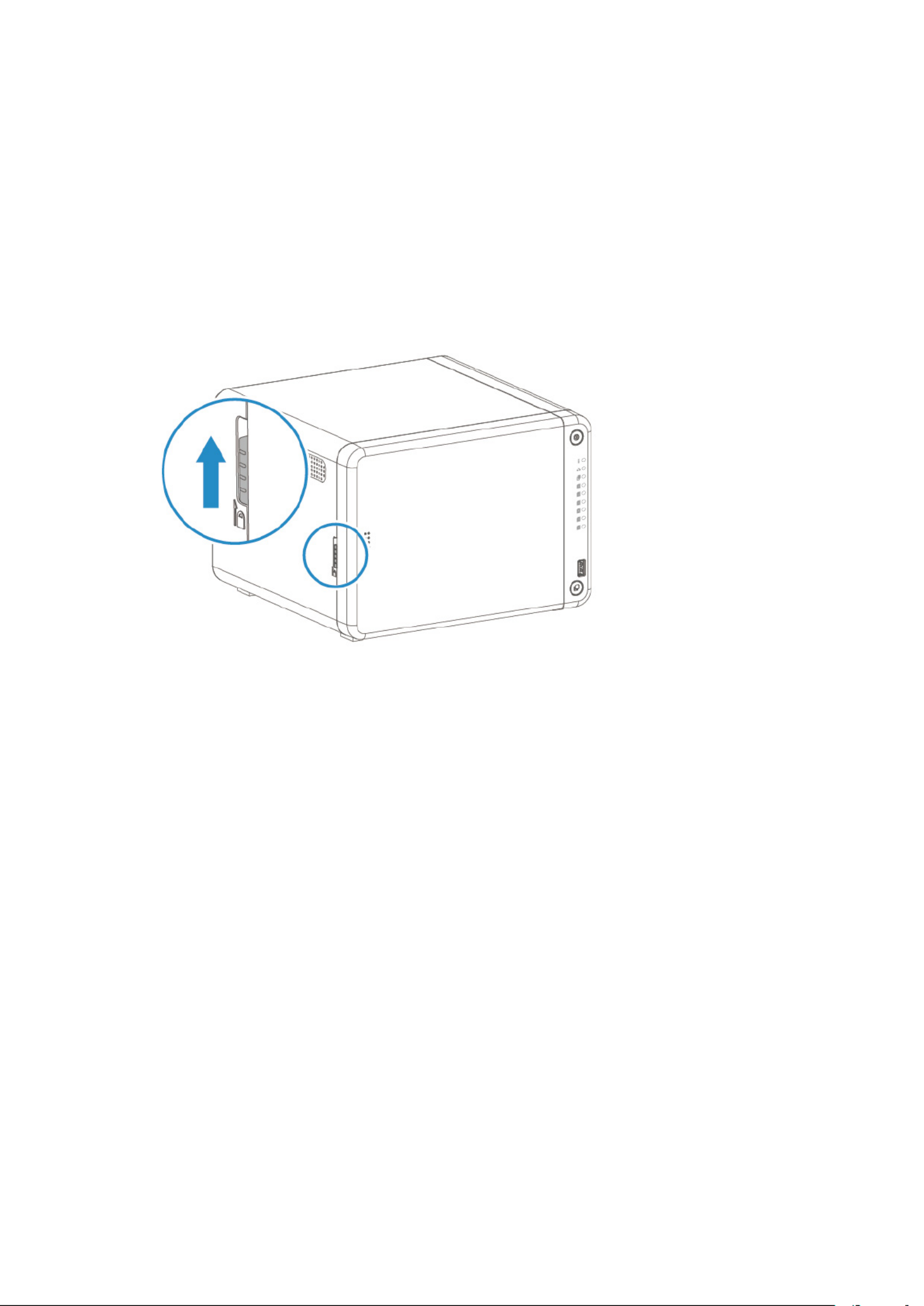

a. Locate the locking mechanism on the left side of the NAS.
b. Slide the lock up to release the front cover.
TS-x62, TS-x64 User Guide
Installation and Conguration 18
c. Slide the front cover to the left and then pull.
3. Remove the drive tray.
a. Remove a drive tray by simultaneously pressing the latch and pulling the tray.
TS-x62, TS-x64 User Guide
Installation and Conguration 19
4. Install a drive on the tray.
a. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
b. Attach the screws.
5. Insert the tray into the bay.
TS-x62, TS-x64 User Guide
Installation and Conguration 20

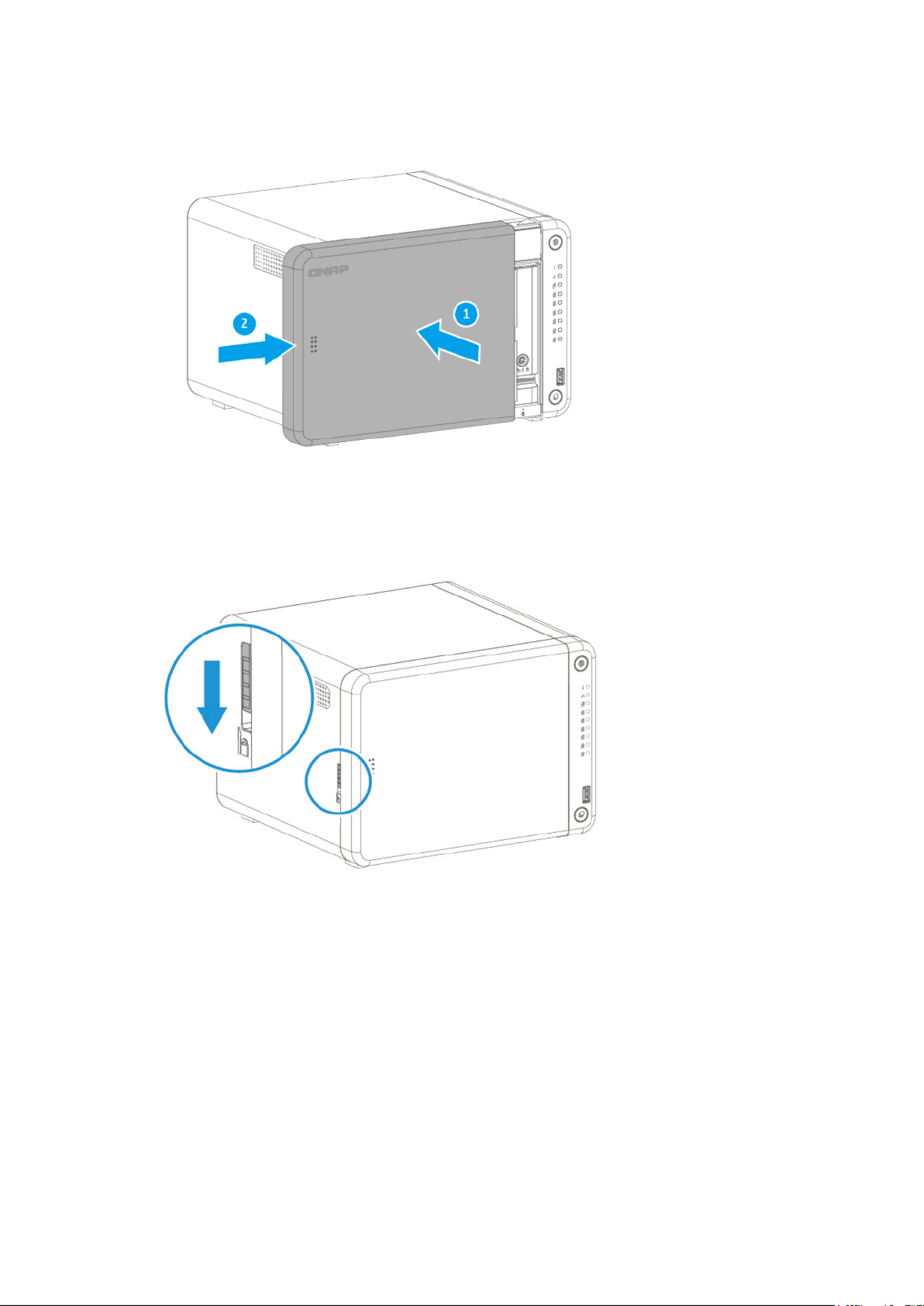

6. Attach the front cover.
a. Align the front cover with the grooves on the case and then slide to the right.
b. Slide the lock down to secure the front cover.
TS-x62, TS-x64 User Guide
Installation and Conguration 21
7. Power on the NAS.
Installing 3.5-inch Hard Drives on 3.5-inch Trays
Warning
• Installing a drive deletes all data on the drive.
•
Moving fan blades: Keep your hands and other body parts away from moving fan
blades.
• Observe electrostatic discharge (ESD) procedures to avoid damage to components.
1. Power the NAS.o

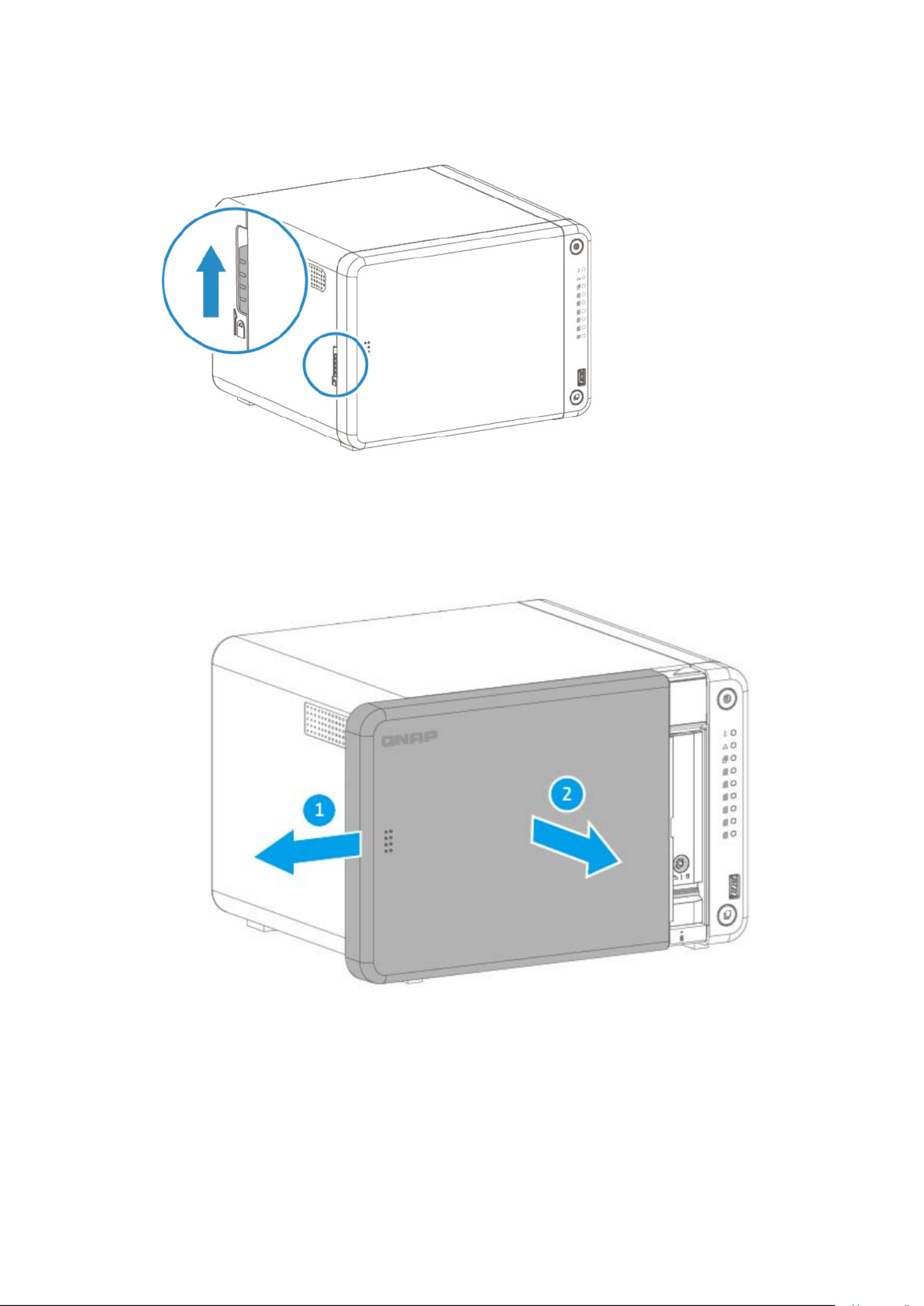

2. Remove the front cover.
a. Locate the locking mechanism on the left side of the NAS.
b. Slide the lock up to release the front cover.
TS-x62, TS-x64 User Guide
Installation and Conguration 22
c. Slide the front cover to the left and then pull.
3. Remove the drive tray.
a. Remove a drive tray by simultaneously pressing the latch and pulling the tray.
TS-x62, TS-x64 User Guide
Installation and Conguration 23
4. Install a drive on the tray.
a. Remove the fastening panels from the sides of the drive tray.
b. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
c. Attach the fastening panels to lock the drive to the tray.
TS-x62, TS-x64 User Guide
Installation and Conguration 24
d. Optional: Attach the screws to further secure the drive.
5. Insert the tray into the bay.
TS-x62, TS-x64 User Guide
Installation and Conguration 25
6. Attach the front cover.
a. Align the front cover with the grooves on the case and then slide to the right.
b. Slide the lock down to secure the front cover.
TS-x62, TS-x64 User Guide
Installation and Conguration 26
7. Power on the NAS.
Installing M.2 Solid-State Drives
Warning
• Only personnel should perform the following steps. Failure to followqualied
instructions can result in serious injury or death.
• Observe electrostatic discharge (ESD) procedures to avoid damage to components.
•
Moving fan blades: Keep your hands and other body parts away from moving fan
blades.
•
Other moving components: Keep your hands and other body parts away from other
moving components.
Important
• The NAS has two M.2 SSD slots. For a list of compatible M.2 SSDs, go to https://
www.qnap.com/compatibility.
• QNAP recommends installing heatsinks on the M.2 SSD controllers to enhance cooling
eciency and to ensure consistent performance.
• Before installing non-QNAP heatsinks, ensure that they are of the appropriate size and
shape.
TS-x62, TS-x64 User Guide
Installation and Conguration 27
1. Power the NAS.o
2. Disconnect the power cord from the electrical outlet.
3. Disconnect all cables and external attachments.
4. Remove the front cover.
a. Locate the locking mechanism on the left side of the NAS.
b. Slide the lock up to release the front cover.
c. Slide the front cover to the left and then pull.
TS-x62, TS-x64 User Guide
Installation and Conguration 28
7. Optional: Install an additional M.2 SSD.
8. Slide each drive tray back into the NAS.
9. Attach the front cover.
a. Align the front cover with the grooves on the case and then slide to the right.
TS-x62, TS-x64 User Guide
Installation and Conguration 31
b. Slide the lock down to secure the front cover.
10. Connect all cables and external attachments.
11. Connect the power cord to the electrical outlet.
12. Power on the NAS.
Replacing Memory Modules (TS-462, TS-464, TS-664)
The TS-462, TS-464, and TS-664 have two memory slots. You can increase the memory capacity of the NAS
by upgrading the memory modules. When using two modules, use only QNAP modules of the same type
and capacity to maintain system performance and stability. You can purchase QNAP memory modules from
authorized resellers.
TS-x62, TS-x64 User Guide
Installation and Conguration 32
Warning
• Only personnel should perform the following steps. Failure to followqualied
instructions can result in serious injury or death.
• Observe electrostatic discharge (ESD) procedures to avoid damage to components.
1. Power the NAS.o
2. Disconnect the power cord from the electrical outlet.
3. Disconnect all cables and external attachments.
4. Remove the front cover.
a. Locate the locking mechanism on the left side of the NAS.
b. Slide the lock up to release the front cover.
c. Slide the front cover to the left and then pull.
TS-x62, TS-x64 User Guide
Installation and Conguration 33
5. Remove each drive tray.
a. Remove a drive tray by simultaneously pressing the latch and pulling the tray.
6. Remove an existing module.
TS-x62, TS-x64 User Guide
Installation and Conguration 34
Note
The following installation images do not include the chassis.
a. Push the retention clips outward simultaneously to release the module.
b. Verify that the module has tilted upward and is completely released from the slot.
Warning
Attempting to remove a module that is not completely released may damage the module and
the system board.
c. Hold the module by the edges.
d. Carefully slide the module out of the slot.
TS-x62, TS-x64 User Guide
Installation and Conguration 35
Note
This image shows the TS-664 connected to two TR-004U USB expansion units.
3. Power on the expansion units.
4. Power on the NAS.
5. Verify that the expansion units are recognized by the NAS.
a. Log on to QTS as administrator.
b. Main Menu Storage & Snapshots Overview SystemGo to > > > .
c. Verify that the expansion units are listed.
Connecting SATA Expansion Units
The NAS supports connecting one SATA expansion unit. For required accessories details, see Expansion Unit
Installation
1. Power the NAS.o
2. Install a host bus adapter on the PCIe slot.
For details, see Installing Expansion Cards
Note
The QNAP QXP host bus adapter is required for connecting the SATA JBOD enclosure to a host
device. Third-party host bus adapters are not compatible with QNAP JBOD enclosures.
3. Connect the expansion unit to the NAS using the following topology.
TS-x62, TS-x64 User Guide
Installation and Conguration 46
11. NextClick .
The screen appears.Set the date and time
12. Specify the time zone, date, and time using any of the following methods:
Tip
QNAP recommends connecting to an NTP server to ensure that the NAS follows the
Coordinated Universal Time (UTC) standard.
Methods User Actions
Synchronize with computer or device time Select Same as the computer/device time
The NAS time will be the same as your computer or
device used to the time.congure
Enter manually Select .a. Input Manually
b. Specify the date and time.
The NAS date and time will be the same as the
congured time.
Synchronize with an Internet time server
automatically
Click Synchronize with an Internet time server
automatically.
The NAS time will be the same as the NTP server.
13. NextClick .
The screen appears.Congure the network settings
14. Congure the network settings using any of the following methods.
Methods User Actions
Obtain an IP address automatically (DHCP) Obtain an IP address automatically (DHCP)Select
The system automatically detects and thecongures
IP address settings.
Use static IP address a. Use static IP addressSelect .
The IP address conguration page appears.
b. Specify the following IP address congurations:
• Interface
• IP Address
• Subnet Mask
• Default Gateway
• Primary DNS server
• Secondary DNS server
15. NextClick .
The page appears.Thunderbolt Connection
Note
This page only appears if your device supports Thunderbolt. You will need to connect your
device to a computer using a Thunderbolt cable.
16. NextClick .
TS-x62, TS-x64 User Guide
Installation and Conguration 52
LED Status Description
System Status Flashes green and red
alternately every 0.5
seconds
• A drive is being formatted.
• The device is being initialized.
• The operating system is being updated.
• RAID rebuilding is in progress.
• Online RAID Capacity Expansion is in progress.
• Online RAID Level Migration is in progress.
Red • A drive is invalid.
• A disk volume has reached its full capacity.
• A disk volume is about to reach its full capacity.
• A system fan is not functioning.
• An error occurred when accessing (read/write) the
data.
• A bad sector is detected on the hard drive.
• The device is in degraded read-only mode (two
member drives failed in RAID 5 or RAID 6 but the data
can still be read).
• A hardware self-test error occurred.
Flashes red every 0.5
seconds
The device is in degraded mode (one member drive failed
in RAID 1, RAID 5, or RAID 6).
Flashes green every 0.5
seconds
• The device is not congured.
• A drive is not formatted.
Green The device is ready.
O • All drives are in standby mode.
• The device is powered o.
LAN Orange The network connection is operating at 1 Gbps.
Flashes orange The device is being accessed from the network.
O The device is not connected to a network.
Drive Flashes red Data is being accessed, and during the process a drive
read/write error occurred.
Red A drive read/write error occurred.
Flashes green Data is being accessed.
Green The drive is ready.
O No drive was detected.
Multi-Gigabit
speed
Green The network connection is operating at 2.5 Gbps.
Orange • The network connection is operating at 1 Gbps.
• The network connection is operating at 100 Mbps.
O The network connection is operating at 10 Mbps.
TS-x62, TS-x64 User Guide
Basic Operations 57
Produktspecifikationer
| Varumärke: | QNAP |
| Kategori: | I den |
| Modell: | TS-664 |
| Produktens färg: | Silber |
| Förpackningens-bredd: | 135 mm |
| Förpackningsdjup: | 20 mm |
| Verpackungshöhe: | 145 mm |
| Ursprungsland.: | China |
| Fästtyp: | Wand |
| Höchstgewichtskapazität: | 30 kg |
| Minimum Bildschirmgröße: | 10 Zoll |
| Maximale Bildschirmgröße: | 30 Zoll |
| Anzahl der Display unterstützt: | 1 |
| Minimalt VESA-fäste: | 50 x 50 mm |
| Maximalt-VESA-fäste: | 100 x 100 mm |
| Antal produkter per fraktlåda: | 20 Stück(e) |
| Längd på fraktlåda: | 210 mm |
| Bredd på fraktlåda: | 440 mm |
| Höjd på fraktlådan: | 200 mm |
| Vikt fraktlåda: | 13500 g |
| Nettovikt av huvudlåda: | 11600 g |
| Antal per europall: | 740 Stück(e) |
| Varustaxnummer (HS): | 7326909890 |
| Abstand zur Wand (max): | 15 mm |
| Nettogewicht Verpackung: | 580 g |
Behöver du hjälp?
Om du behöver hjälp med QNAP TS-664 ställ en fråga nedan och andra användare kommer att svara dig
I den QNAP Manualer
16 Oktober 2024
14 Oktober 2024
11 Oktober 2024
10 Oktober 2024
6 Oktober 2024
4 Oktober 2024
3 Oktober 2024
2 Oktober 2024
21 September 2024
20 September 2024
I den Manualer
- Toshiba
- LG
- Dell
- Western Digital
- Veritas
- Buffalo
- ZyXEL
- Approx
- Allnet
- Mustang
- Freecom
- Infortrend
- Terra
- IoSafe
- Synology
Nyaste I den Manualer
6 September 2025
5 September 2025
5 September 2025
4 September 2025
4 September 2025
1 September 2025
1 September 2025
31 Augusti 2025
31 Augusti 2025
10 Augusti 2025
