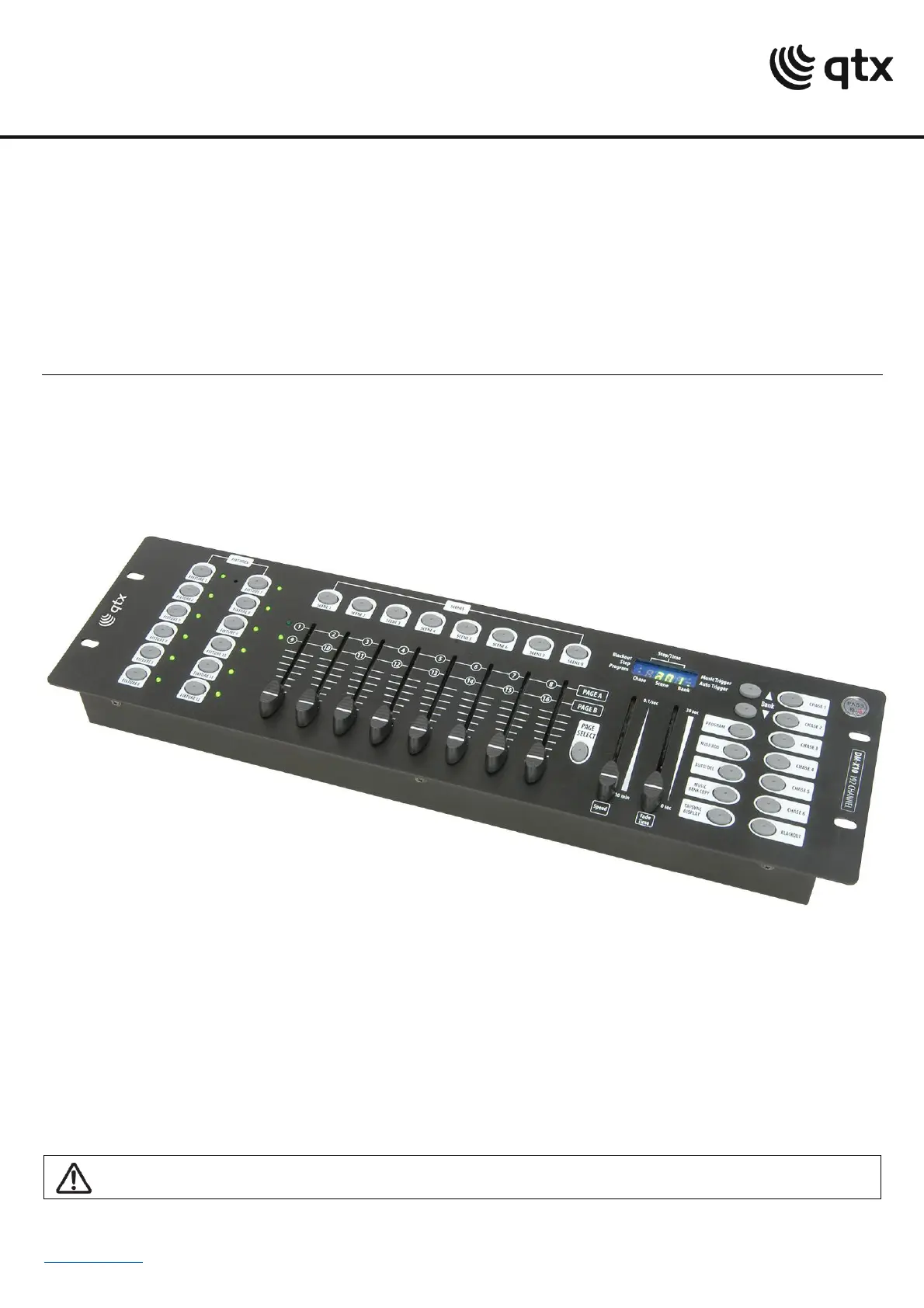

www.avsl.com 154.091UK User Manual
DM 10-X
192 Channel DMX Controller
Item ref: 154.091 UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
2 154.091UK User Manual
Contents
Getting started
1.1 What is included 3 ……………………………………………………………………………………………………………………………………….
1.2 Unpacking instructions 3 ……………………………………………………………..……………………………………………………………….
1.3 Safety instructions 3 ..........................................................…………..……………………………………………………………….
Introduction
2.1 Features 3 ..........................................................…………..……………………………………………………………….……………
2.2 General overview 4 ............ ................................. …………..……………………………………………………………….……………
2.3 Product overview 4 .............................................…………..……………………………………………………………….……………
2.4 Common terms 5 .............................................…………..……………………………………………………………….………………
Operating instructions
3.1 Setup
3.1.1 Setting up the System....................................................................... 5 ..…………………………………….………………
3.1.2 Fixture Addressing.......................................................................... 5 ..……………………………………….………………
3.2 Operation
3.2.1 Manual Mode
...
.............................................................................. 6 ………………………………………….……..………
3.2.2 Review Scene or Chase.......................................................................... 6 ………………………………….……..………
3.3 Programming
3.3.1 Entering program mode.................................................................. 7 ………………………………………….……..………
3.3.2 Create a scene.............. ........................................................................... 7 …………..……………………………….…
3.3.3 Running a program........................................................................ 7 ………………………………………….……..………
3.3.4 Check Program.............................................................................. 7 ………………………………………….……..………
3.3.5 Editing a Program.......................................................................... 8 ………………………………………….……..………
3.3.6 Copy a Program............................................................................. 8 ………………………………………….……..………
3.4 Chase Programming
3.4.1 Create a chase............................................................................... 8 ………………………………………….……..………
3.4.2 Running a Chase............................................................................ 8 ………………………………………….……..………
3.4.3 Checking a Chase........................................................................... 8 ………………………………………….……..………
3.4.4 Edit Chase ........................................................................................................... 9 (Copy Bank Into Chase)…
3.4.5 Edit Chase (Copy Scene Into Chase................................................. 9 ………………………………………….……..………
3.4.6 Edit Chase (Insert Scene Into a Chase)........................... ................... ……………………………………….……..……… 9
3.4.7 Delete a scene in a Chase............................................................... 9 ………………………………………….……..………
3.4.8 Delete a Chase............................................................................... 9 ………………………………………….……..………
3.4.9 Delete all Chase Programs.............................................................. 9 ………………………………………….……..………
3.5 Scene Programming (steps)
3.5.1 Insert a scene................................................................................ ………………………………………….……..……… 10
3.5.2 Copy a scene................................................................................. ………………………………………….……..……… 10
3.5.3 Delete a scene............................................................................... ………………………………………….……..……… 10
3.5.4 Delete all scenes........................................................................ ………………………………………….………...……… 10
3.6 Playback
3.6.1 Running in Sound-Mode............................................................ ………………………………………….………...……….. 11
3.6.2 Running in Auto-Mode........ ........................................................... .. ……………………………………………………..… 11
3.6.3 Blackout................................................................................................................................................... 11
Appendix
4.1 DMX Primer………………………………………………………………………………………………………………………………………………. 12
4.2 Fixture Linking............................................................................................................................................. 12
4.3 DMX dipswitch quick reference chart........................................................................................................... .. 13
4.4 Technical specifications ............................................................................................................................... 14
3 154.091UK User Manual
Getting started
1.1 What is included
• DM-X10 controller
• DC 9-12V 500mA, 90V~240V Power Adapter
• Manual
1.2 Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts
are present, and have been received in good condition. Notify the shipper immediately and retain packing
material for inspection if any parts appear damaged from shipping or the carton itself shows signs of
mishandling. Save the carton and all packing materials. In the event that a unit must be returned to the
factory, it is important that the unit be returned in the original factory box and packing.
1.3 Safety Instructions
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage and that the line voltage you are
connecting to is not higher than that stated on decal or rear panel of the fixture.
This product is intended for indoor use only!
To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no
flammable materials close to the unit while operating.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing lamp or fuse and be sure to replace
with same lamp source.
In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance cent . Always use the same type spare parts. re
Don t connect the device to a dimmer pack.
Make sure power cord is never crimped or damaged.
Never disconnect power cord by pulling or tugging on the cord.
Introduction
2.1 Features
* Universal DMX-512 Controller
* Controls 12 intelligent lights of up to 16 channels
* 30 banks of 8 scenes, 240 scenes total
* 6 sets of chases containing 240 scenes
* Execute multiple chases simultaneously
* Beat-activation, tap sync, auto run
* Polarity selector
