Sida 1/8

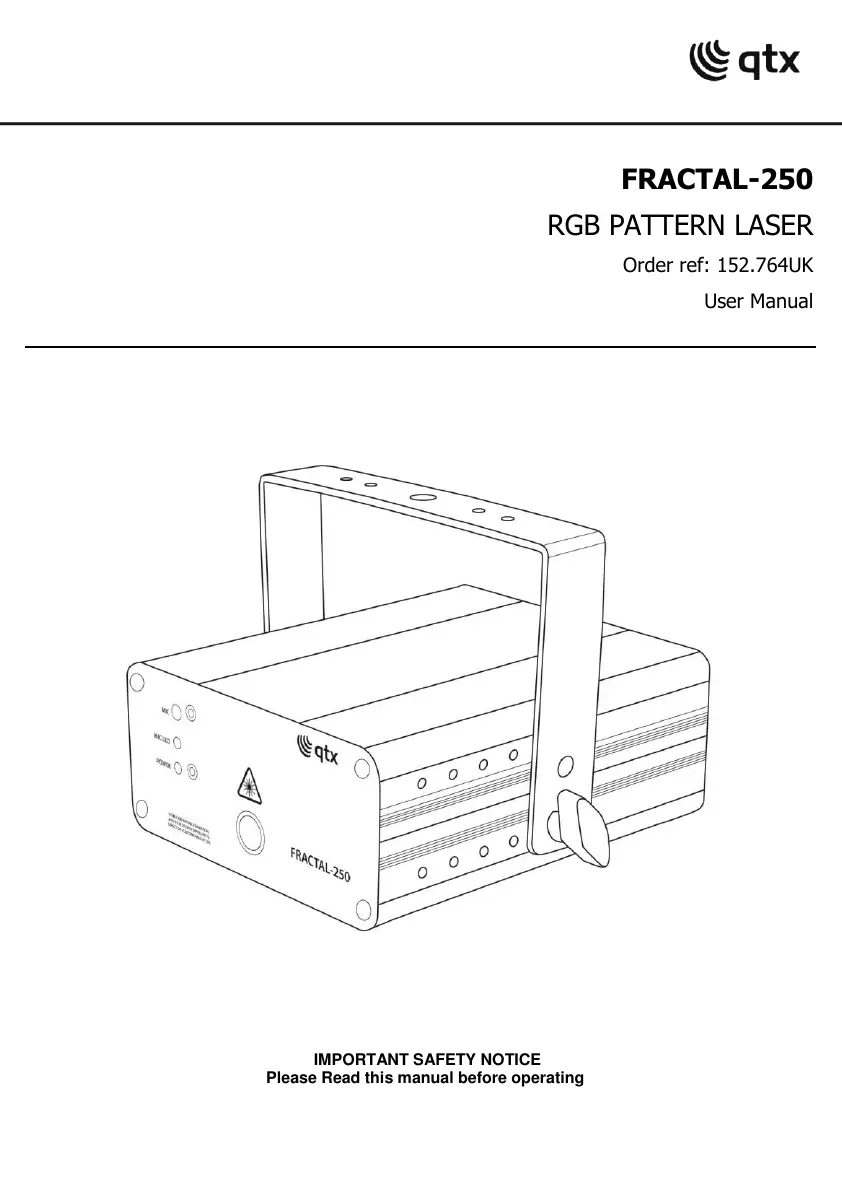

FRACTAL-250
RGB PATTERN LASER
Order ref: 152.764UK
User Manual
IMPORTANT SAFETY NOTICE
Please Read this manual before operating
VERSION 1.0
IMPORTANT SAFETY NOTICE
Please Read this manual before operating
VERSION 1 0
Powered by TCPDF (www.tcpdf.org)
152.764UK User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Introduction
Thank you for choosing THE FRACTAL-250 laser as part of your effects lighting equipment.
This product has been designed to project multi-point and pinwheel geometric patterns in 3
colours across a wide area. Please read and retain this manual to achieve the best results from
your purchase and avoid damage through misuse.
CAUTION
• Please read this manual fully before installing or operating this product as it contains
important safety information relating to its installation and operation.
• This Class 3B laser product emits hazardous levels of optical radiation and will
cause injury to the eyes if viewed directly.
• This product is not suitable for projection directly at audiences or other personnel.
• This product must not be used for any form of audience scanning application and is for
professional use only.
Important information
This product is a Class 3B laser and should only be installed and used by personal who are
trained in the management of laser radiation and are able to operate in accordance within the
guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of
Lasers used for Display purposes”.
Copies of this guide can be downloaded from the HSE website:
www.hse.gov.uk/pubns/priced/hsg95.pdf
This product contains no user-serviceable parts. Under no circumstances should any attempt
be made by the user to dismantle or modify it in any way.
152.764UK User Manual
Installation instructions
This product must be securely mounted with adequate fixings to hold the weight. If mounted
at height, use a safety wire attached to a secondary fixing point. Position the aperture so that
its emission is always directed away from people and objects that are able to reflect the
emission towards people. In this regard, the separation distances of 3 metres vertically and
2.5 metres horizontally, cited in HS(G)95 and shown below must be observed.
Unpacking
Please check the contents to ensure that the product has been received in good condition.
Fractal-250 laser
Mounting bracket and screws
IEC power lead(s)
Safety lock keys
If you find any accessory is missing or the product has arrived with any problems, please
contact your retailer at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this
item yourself as this will invalidate the warranty. We recommend you keep the original
package and proof of purchase for any possible replacement or returned demand.
Setting up
1. Unpack the laser ensuring all packaging and tape is removed.
2. Always test the laser before fixing in a permanent location.
3. Connect the IEC mains plug and switch the rear power switch on.
4. Insert the safety key and turn to a quarter turn clockwise. At this point ensure that no
one is exposed to laser radiation.
5. Select which mode you want to operate the laser in.
6. Leave the laser to run for 10 minutes before installing in its location.
