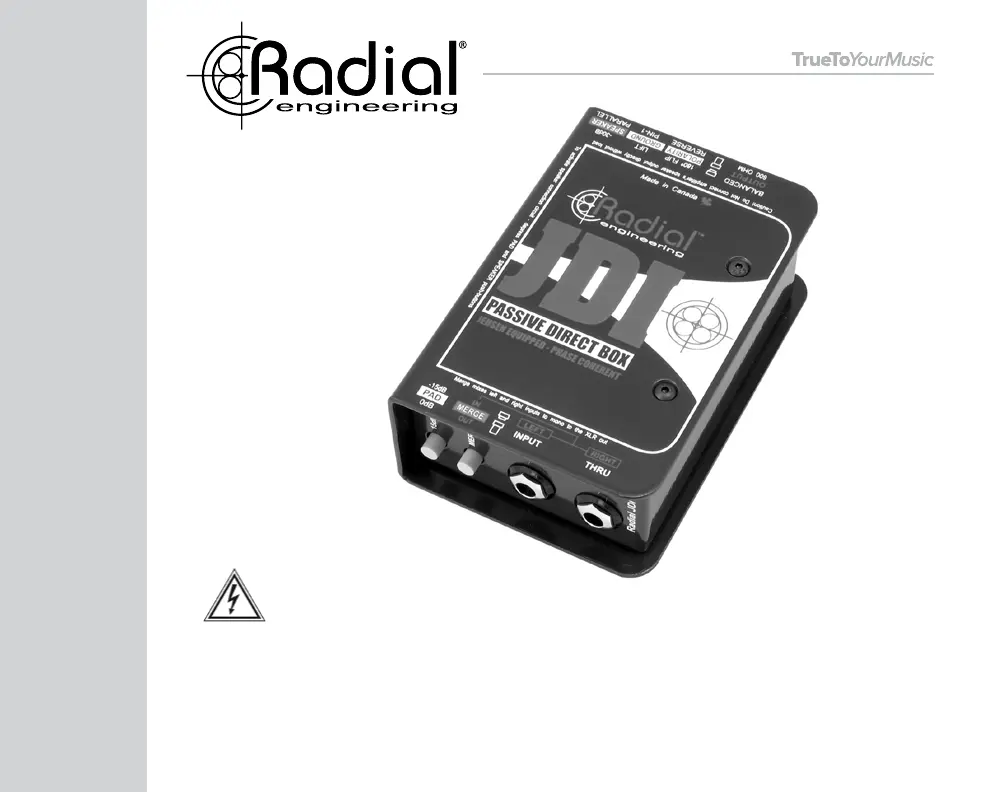

Sida 1/18

User Guide

Radial Engineering

1638 Kebet Way, Port Coquitlam BC V3C 5W9 tel: 604-942-1001 • fax: 604-942-1010

email: info@radialeng.com • web: www.radialeng.com

Radial Engineering is a division of (JP CableTek Electronics Ltd.)C•TEC

and

www.radialeng.com

RADIAL JDI & DUPLEX USER GUIDE

TABLE OF CONTENTS PAGE

1. Introduction .................................................................................1

2. JDI feature set ............................................................................2

3. JDI quick start ...........................................................................3

4. Direct box basics .........................................................................4

5. Features and functions ...............................................................7

6. Other cool uses for your JDI .................................................... 11

7. Frequently asked questions ......................................................12

8. Block diagram and speciﬁcations ..............................................15

Warranty ......................................................................Back cover

Radial Engineering

1638 Kebet Way, Port Coquitlam BC V3C 5W9

tel: 604-942-1001 • fax: 604-942-1010

email: info@radialeng.com • web: www.radialeng.com

Radial Engineering Ltd. is a division of C•T

(JP CableTek Electronics Ltd.)

Features and speciﬁcations are subject to change without notice.

Part 1 - Introduction

Congratulations on your purchase of the world’s ﬁnest direct box! The

Radial JDI Mk3 is the latest version of the highly acclaimed JDI

and is without a doubt the ﬁnest passive direct box available

today. The JDI is very unique in that it does not color or alter

the sound in any way. This ensures the natural tone and

harmonic balance is retained, bringing out the very essence

of the instrument.

The JDI Duplex is a two-channel (stereo) version of

the JDI with two totally independent and isolated PC

boards. This allows the Duplex to be used with two

sources without causing ground contamination or

crosstalk. For simplicity, this manual will discuss

the JDI. All features and functions on the Duplex are

identical to those of the JDI.

Both direct boxes employ the Jensen JT-DBE

transformer for unmatched audio performance,

exceptional noise rejection and high signal handling.

This makes them ideal for acoustic guitar, bass and

keyboards. In fact, just about any audio signal is

transformed gracefully without artifact.

We advise that you read through this manual before using

the JDI so that you can maximize it’s potential. Please log

onto the Radial Engineering website at www.radialeng.com

for further details and updates. We invite you to forward any

comments, questions or suggestions to info@radialeng.com

- we’d love to hear from you.

Enjoy!

True to the Music

Radial Engineering JDI User Guide
