Sida 1/2
www.radialeng.com

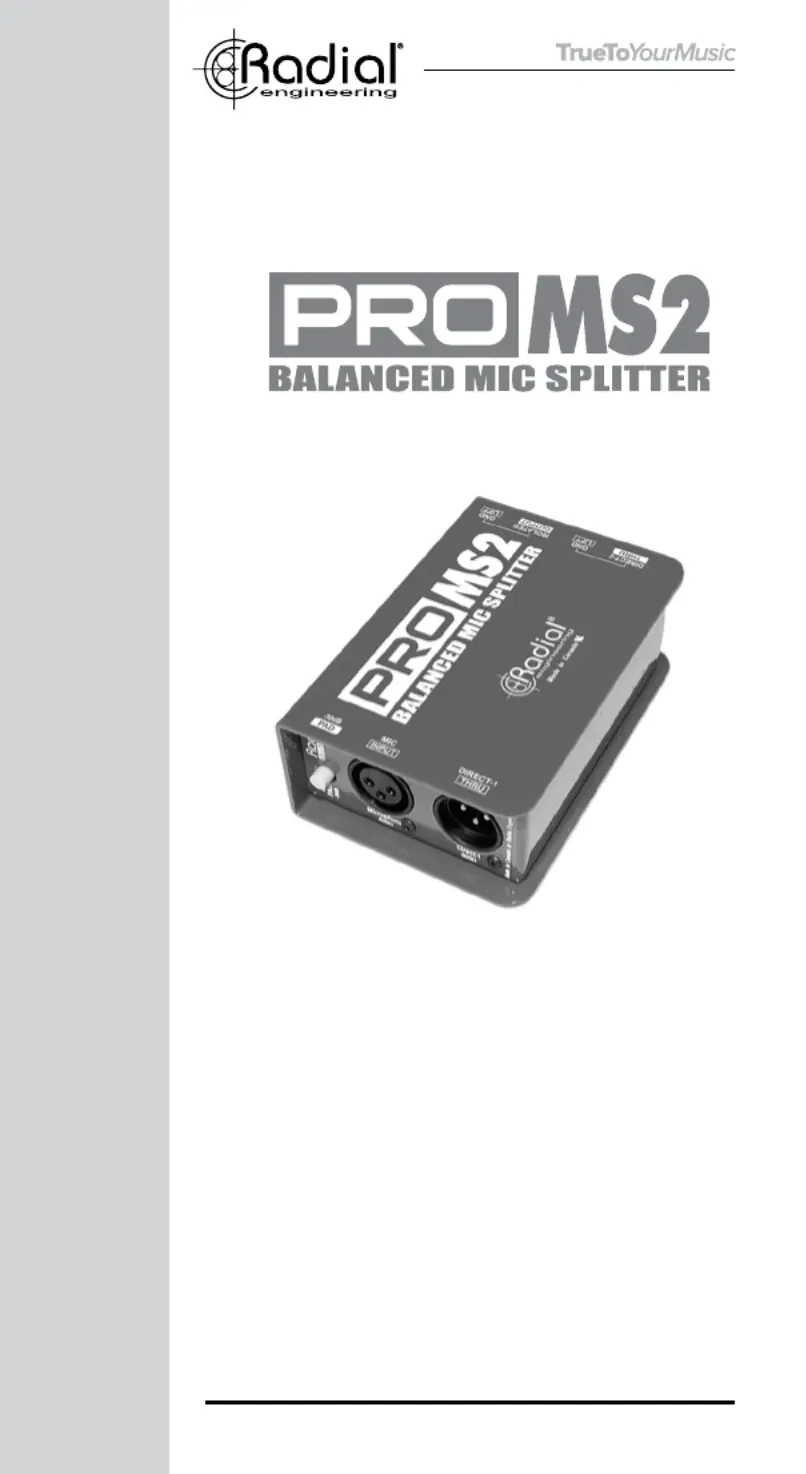

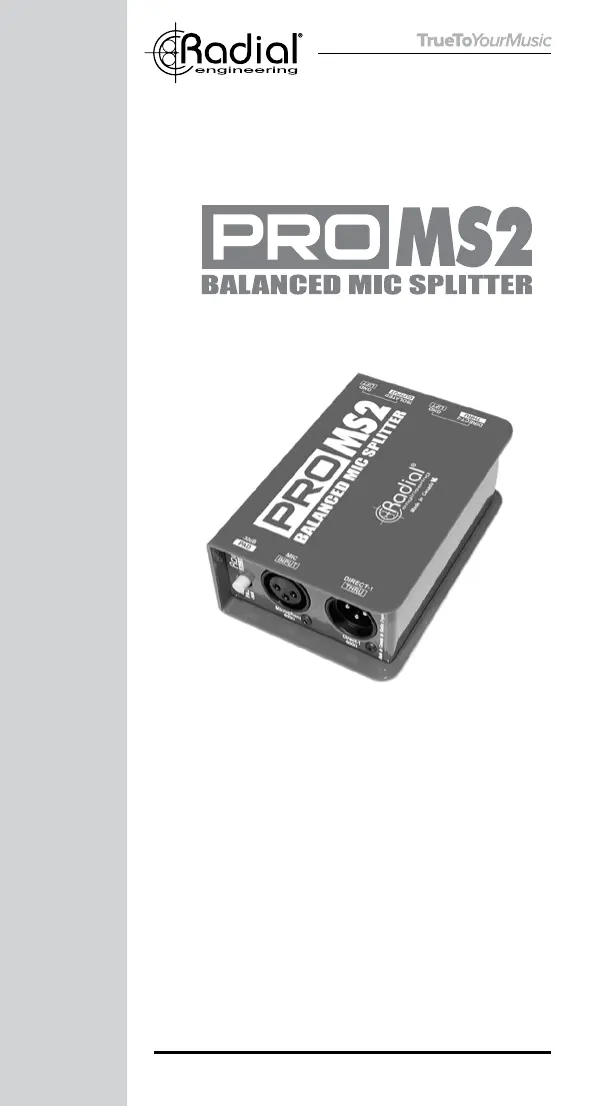

USER GUIDE
© Copyright 2013 all rights reserved.
Specications and appearance
are subject to change without notice.
Part# R870 1056 00 / 04-2025
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada
tel: 604-942-1001 • fax: 604-942-1010
info@radialeng.com
Radial Engineering Ltd. ProMS2 Microphone Splitter
FEATURES
1. -30dB PAD: Allows balanced +4dB
line-level sources to connect to the
ProMS2 input.
2. Mic input: Used to connect a low
impedance, balanced, microphone or
direct box.
3. Direct-1 thru: A parallel direct
output used to bridge the mic or D.I.
to the primary mixing console.
4. Bookend design: 14 gauge steel
outer shell creates protective zone
around connectors and switches.
5. Full-bottom no-slip pad: This
provides electrical isolation and
plenty of ‘stay-put’ friction to keep the
ProMS2 in one place.
6. Direct-2 output: Equipped with
ground lift. Used to bridge the signal
to an additional audio device.
7. Lift (Direct-2): Disconnects
pin-1 (ground) on the direct-2 XLR
output to help reduce hum and buzz
caused by ground loops.
8. Isolated output: Transformer-
isolated to eliminate ground loop hum
and buzz. Used to bridge the balanced
mic signal to a second audio system.
9. Lift (Isolated output): Disconnects
pin-1 (ground) on the isolated XLR
output to help further reduce hum and
buzz caused by ground loops.
10. St e e l I- b e am : E n cl o s u r e
eliminates stress that could torque
the PC board.
11. Military-grade PCB: Double-sided
PCB with plated through-holes is
bolted to welded steel standoffs.
12. Eclipse: High performance mic
bridging transformer offers outstanding
au d i o pe r f or m a n c e . F e a t u r es
mu-metal shield for protection against
stray electromagnetic elds.
96 7 8
1 52 3 4
10 11 12
