USER GUIDE
Radial Engineering Ltd.
SB5W Direct Box
™
SB5W Direct Box
™
FEATURES
RADIAL ENGINEERING 3 YEAR
TRANSFERABLE LIMITED WARRANTY
RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and
workmanship and will remedy any such defects free of charge according to the terms of this warranty.
Radial will repair or replace (at its option) any defective component(s) of this product (excluding nish and
wear and tear on components under normal use) for a period of three (3) years from the original date of
purchase. In the event that a particular product is no longer available, Radial reserves the right to replace
the product with a similar product of equal or greater value. In the unlikely event that a defect is uncovered,
please call 604-942-1001 or email service@radialeng.com to obtain a RA number (Return Authorization
number) before the 3 year warranty period expires. The product must be returned prepaid in the original
shipping container (or equivalent) to Radial or to an authorized Radial repair center and you must assume
the risk of loss or damage. A copy of the original invoice showing date of purchase and the dealer name
must accompany any request for work to be performed under this limited and transferable warranty.
This warranty shall not apply if the product has been damaged due to abuse, misuse, misapplication,
accident or as a result of service or modication by any other than an authorized Radial repair center.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE HEREOF
AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD
DESCRIBED ABOVE OF THREE YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR
ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE
OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU LIVE AND WHERE THE
PRODUCT WAS PURCHASED.
SB5W
™
User Guide - Part No. R870 1218 00 • © Copyright 2014 all rights reserved.
Specications and appearance are subject to change without notice.
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam BC V3C 5M5
tel: 604-942-1001 • fax: 604-942-1010
info@radialeng.com • www.radialeng.com
RADIAL SB5W WALL MouNT DIREcT Box SpEcIFIcATIoNS
SB5W
Wall Mount
Direct Box

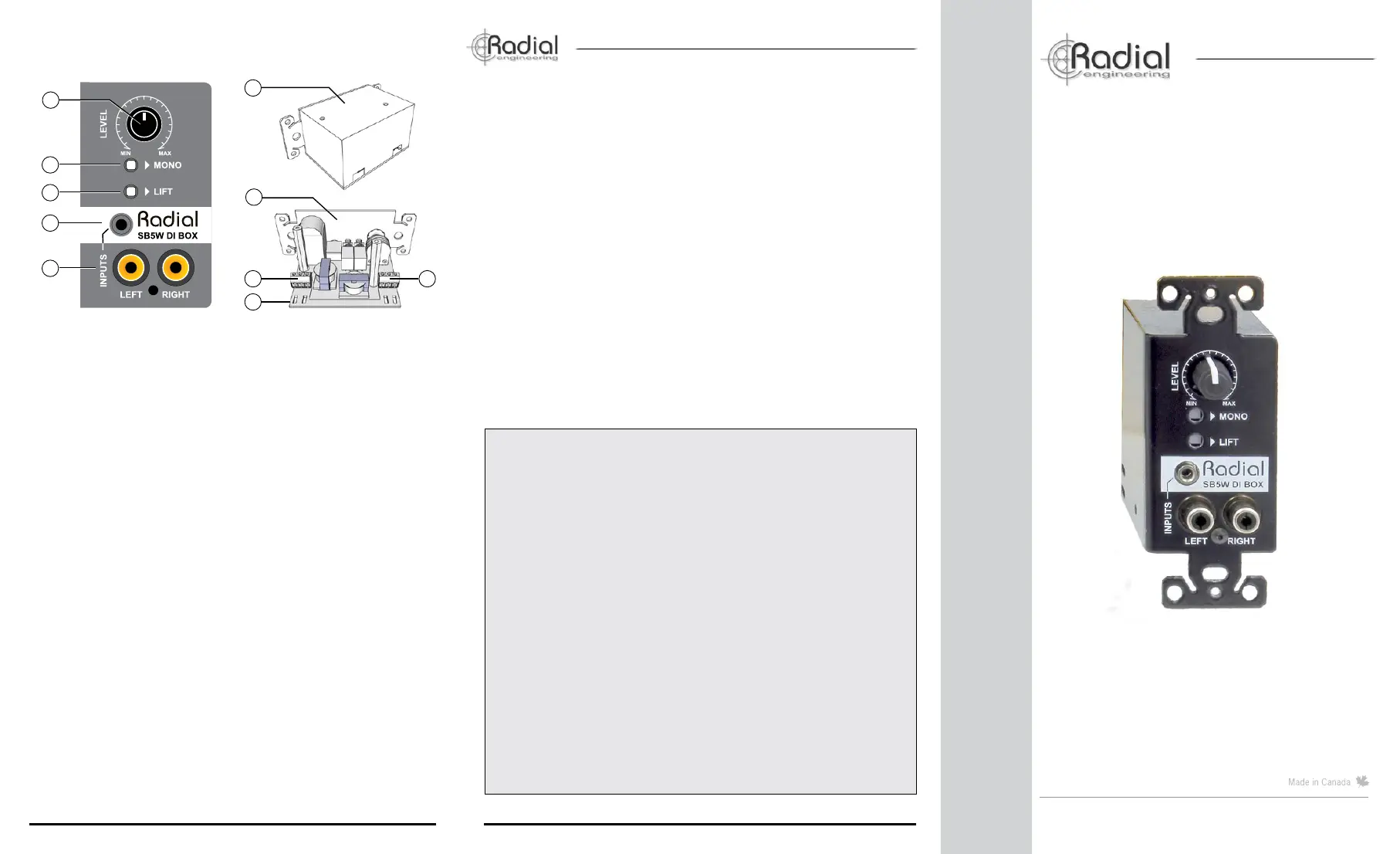

1. LEVEL: Let’s you adjust the volume level of your source
device.
2. MONO: Mixes the left and right inputs together and
outputs a mono signal to the PA system.
3. LIFT: Disconnects the audio ground of both channel outputs
to eliminate hum and buzz created by ground loops.
4. 3.5MM INPUT: Stereo mini-phone jack lets you connect
mobile devices such as laptop computers, MP3 players
or tablets. Plugging in here will deactivate the RCA
connectors.
5. RCA INPUT: A stereo pair of RCA inputs lets you connect
a wide range of consumer electronics such as CD/DVD
players and digital players/recorders.
6. STEEL ENCLOSURE COVER: Protects the audio circuit
from electro-magnetic and radio interference.
7. HEAVY DUTY FRAME: The PCB and cover mount to a
ridgid 14-guage steel L-frame that’s powder-coated for
long life.
8. OUTPUT TERMINALS: Balanced left and right mic-level
outputs connections are made via two screw-down
terminals.
9. TIE-WRAP HOLD-DOWNS: Slots cut in the steel frame
for tie-wraps (included) help secure the cable and provide
strain relief for the connectors.
Frequency response �����������������������������������������20Hz to 18kHz +/- .5dB
Total harmonic distortion ����������������������������������0.01% THD 20Hz to 20kHz
Stereo input ������������������������������������������������������Unbalanced high-Z -10dB
Input connections ���������������������������������������������� RCA and 3.5mm TRS
Stereo output ����������������������������������������������������AES standard balanced 600-Ohm,
mic-level, pin-2 hot
Output connection ��������������������������������������������� Screw terminals
Input level����������������������������������������������������������Variable from innity
Power requirement��������������������������������������������None, completely passive
Mounting �����������������������������������������������������������Fits single gang electrical junction box
4
7
2
3
5
1
8 8
9
6
