y Dante Network Interface for Four Audio Inputs and Two Audio Outputs
y Two Inputs and Outputs on XLR Jacks on Front Panels
y Two Inputs on Rear Panel Detachable Terminal Block
y Module is Configured and Adjusted Using Network Control Software
y Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
y Each Input Gain is Selected by Software
y Mic Gain: 35 dB, 42 dB or 59 dB
y Line Gain: Unity or 12 dB
y 48 V Mic Phantom (P48) Selected by Software
y Converts Two Dante Network Audio Signals to Line Level
y Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
y Studio Quality, Low-Noise Performance
y High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
y Legendary RDL Analog Filtering Enhances Superb Audio Performance

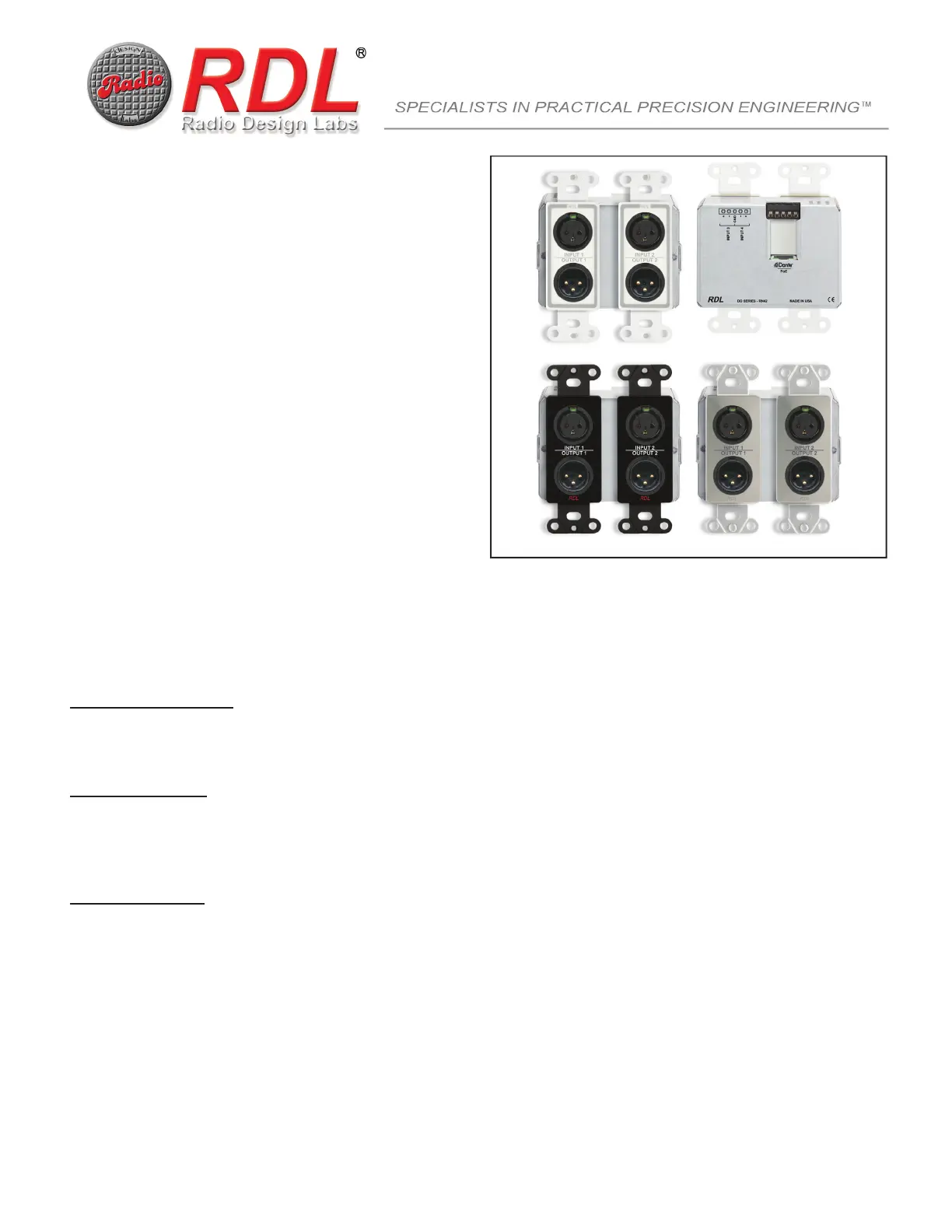

Model DD SERIES-RN42
Wall-Mounted Bi-Directional
Mic/Line Dante Interface 4x2
APPLICATION: The DD-RN42 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the
front panels, two balanced line inputs on a rear-panel detachable terminal block and two balanced line outputs on front-panel XLR jacks.
The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN42 fits a standard US dual-gang
electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN42 is PoE powered, and is
available in multiple finishes with optional customized graphics.
Mic/Line to network section
The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the
mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled
when an input is set for mic level.
Line to network section
The two rear-panel balanced or unbalanced inputs are each converted to a separate Dante network transmit channel. Control software
sets the gain for an input level of either +4 dBu or -10 dBV. RDL Decora
®
-style jack plates matching the appearance of the DD-RN42 are
optionally available for connection of various audio sources to the rear-panel inputs. An input plate may be located together with the DD-RN42
in a triple gang box or may be mounted remotely in a single box.
Network to line section
Two Dante audio channels are converted to balanced line level feeding front-panel XLR jacks. Each output provides +4 dBu balanced for a
network digital audio level of -18 dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum
attenuation of 62 dB then OFF. The outputs are connected through a detachable terminal block.
Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.
The DD-RN42 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled
through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.
The DD-RN42’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value
in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in
demanding installations. Designed to outperform. Built to last.
DD-RN42
DDB-RN42 DDS-RN42
RDL • 659 6th St. • Prescott, AZ., USA 86301 • (928) 443-9391 • FAX (928) 443-9392 • www.rdlnet.com
Model DD SERIES-RN42
Wall-Mounted Bi-Directional
Mic/Line Dante Interface 4x2
This product is not specified to provide basic insulation from network cabling not installed wholly within
the same building structure or terminated on equipment earthed to a different earthing network.

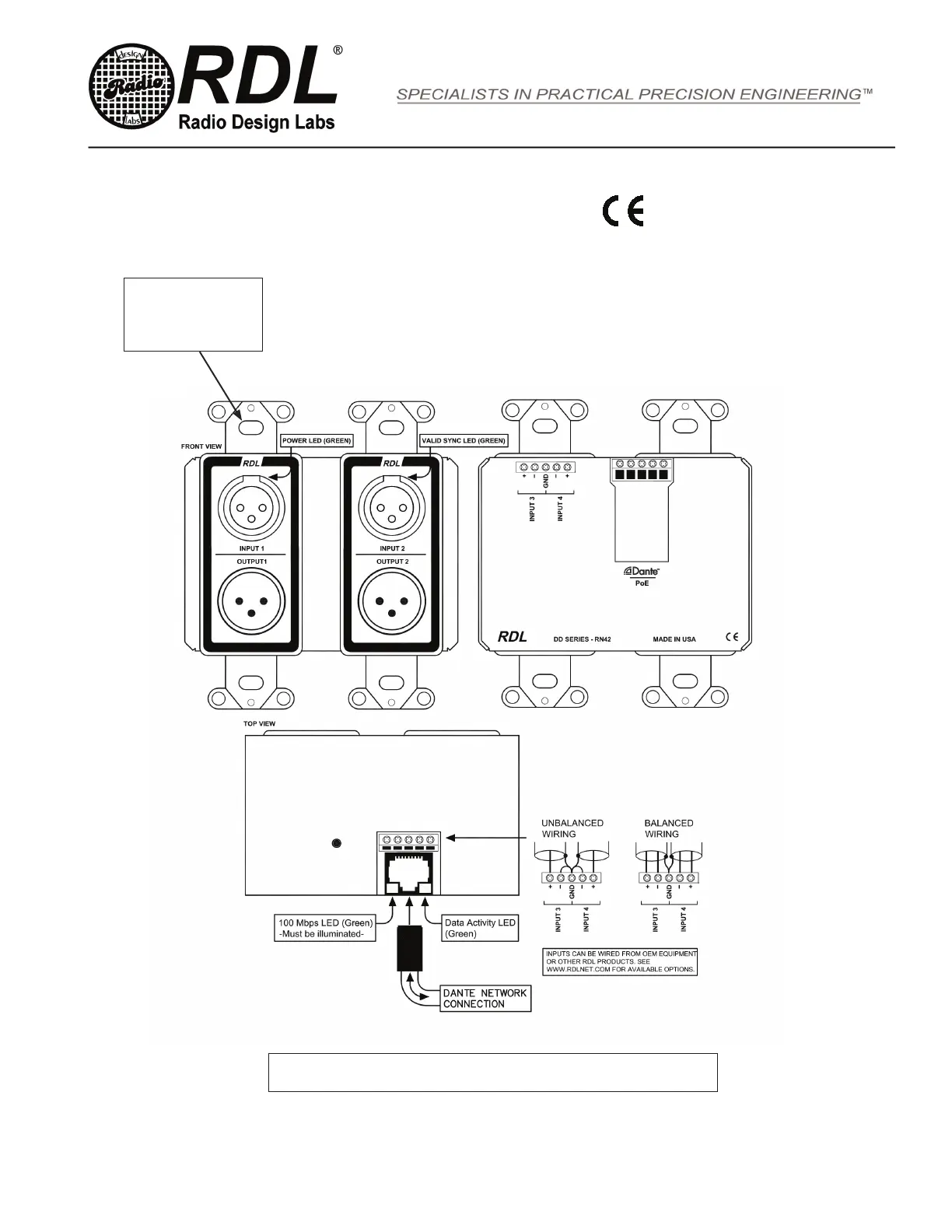

Fasten this unit into a wall box
or chassis by threading the four
mounting screws (included) into
the corresponding holes in the
wall box/chassis.
Radio Design Labs Technical Support Centers
U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506
Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
Installation/Operation
Declaration of Conformity available from rdlnet.com.
Sole EMC specications provided on product package.
Specications are subject to change without notice.
