reecta GmbH, Merkurstr. 8, 72184 Eutingen, Germany

www.reecta.de

Projector Motorized Lift Manual

(Caelos 100, 200, 300 & 300X)

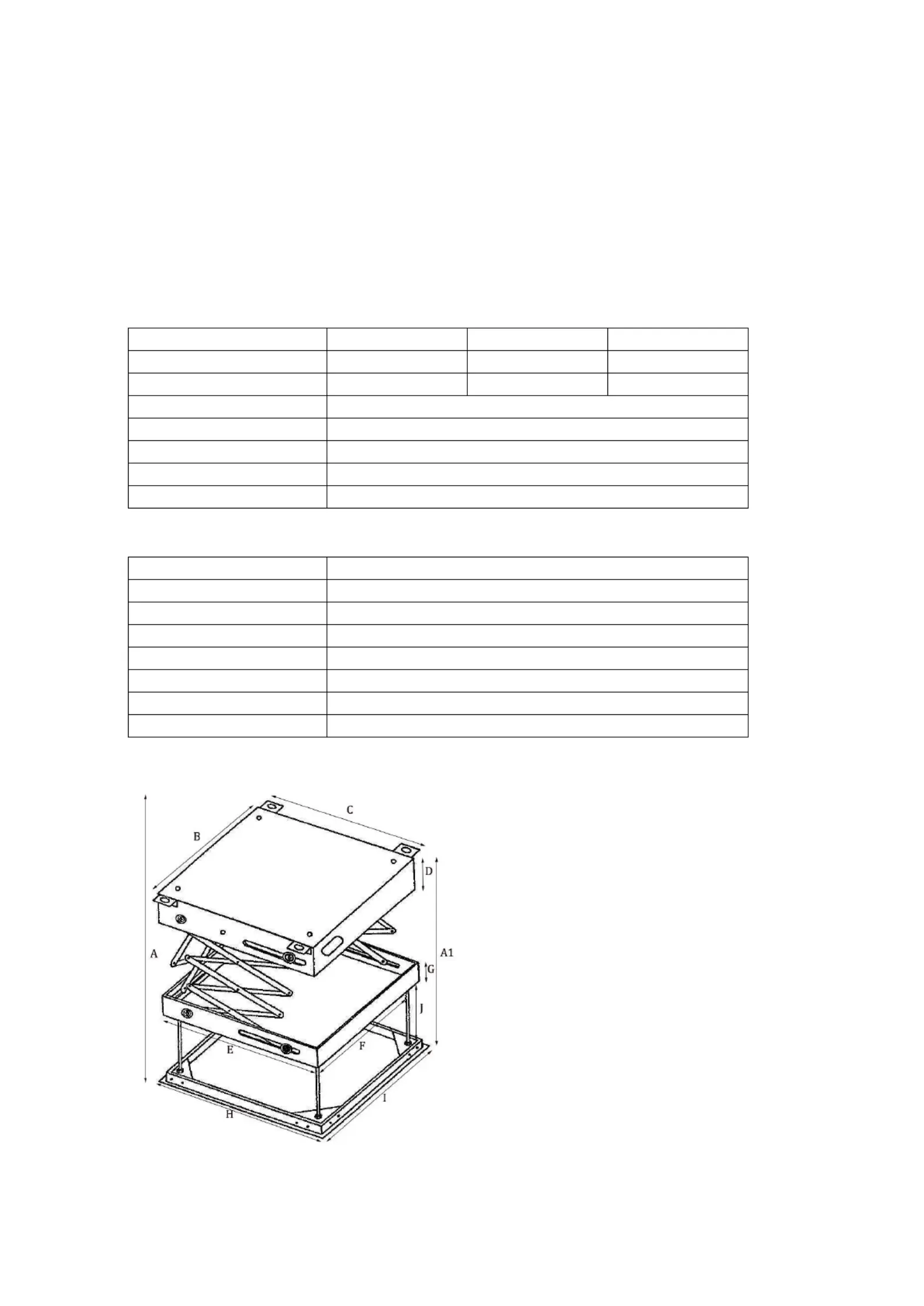

Specications

Model: Caelos 100, 200, 300

Technical data

Caelos 100

Caelos 200

Caelos 300

Max Running Distance

430-1000mm

490-2000mm

5 -3000mm 50

Net Weight

17Kg

18Kg

19Kg

Load Capacity

15KG

Running Speed

53mm/sec

Operate Method

Manual or Remote Control

Power consumpon

130W

Voltage

220V/110V, 50/60HZ

Model: Caelos 300X

Technical data

Caelos 300X

Max Running Distance

750-3000mm

Net Weight

34Kg

Load Capacity

38KG

Running Speed

53mm/sec

Operate Method

Manual or Remote Control

Power consumpon

260W

Voltage

220V/110V, 50/60HZ

reecta GmbH, Merkurstr. 8, 72184 Eutingen, Germany

www.reecta.de

Model

Lift Measurement

A(max.)

A1(min.)

Caelos 100

100

7.5

Caelos 200

200

7.5

Caelos 300

300

7.5

Caelos 300X

300

7.5

Annex list

1. Remote control transmitter x1PC

2. Remote control receiver x1PC

3. Projector bracket x 1set

4. Screw set: 1bag

5. Long Screw: 4P CS

6. Down holding bolt: 4PCS

Warnings

Prepare the necessary tools for installation.

This lift must be installed by two or more people.

Check whether the products are damaged, annex are completed

Read this manual carefully before installation and operation.

Make sure the voltage is suitable for products.

Check the installation place is strong enough to bear the products.

Ensure there is enough space to make products run well.

Only professionals are allowed to do the installation and maintenance.

Preparation before installation

1. According to the installation environment (projector lift, xed bracket, height of

projector, thick of ceiling) to choose a right model of a projector lift.

2. Assemble the lift before installation as per drawing:

3. Check and ensure the projector motorized lift run well (if there is remote control, please

check it) before installation.

reecta GmbH, Merkurstr. 8, 72184 Eutingen, Germany

www.reecta.de

Installation of the lift

1. Prepare AC power supply of 110V/220V/240V ready

2. Use 4pcs M8 down holding bolt to x the lift rm to the concrete roof of the building.

Concrete Roof

Ceiling

3. Open the ceiling 3CM larger each side than size of this projector lift’s chassis.

4. Connect the lift with AC power supply

5. Adjust the motor to make the highest and lowest position of the lift t the height of the

ceiling and the ideal working position of the lift

Method: Through the Red hole, turning the regulator clockwise to increased uplink,

counterclockwise to reduce the uplink. Through the white hole, tuning clockwise to

increase downlink, counterclockwise to reduce the downlink.

6. Assemble projector brackets and the projector as is shown:

Projector bracket

Projector
