Longbow_Manual_08-14.indd 1 8/18/14 3:42 PM

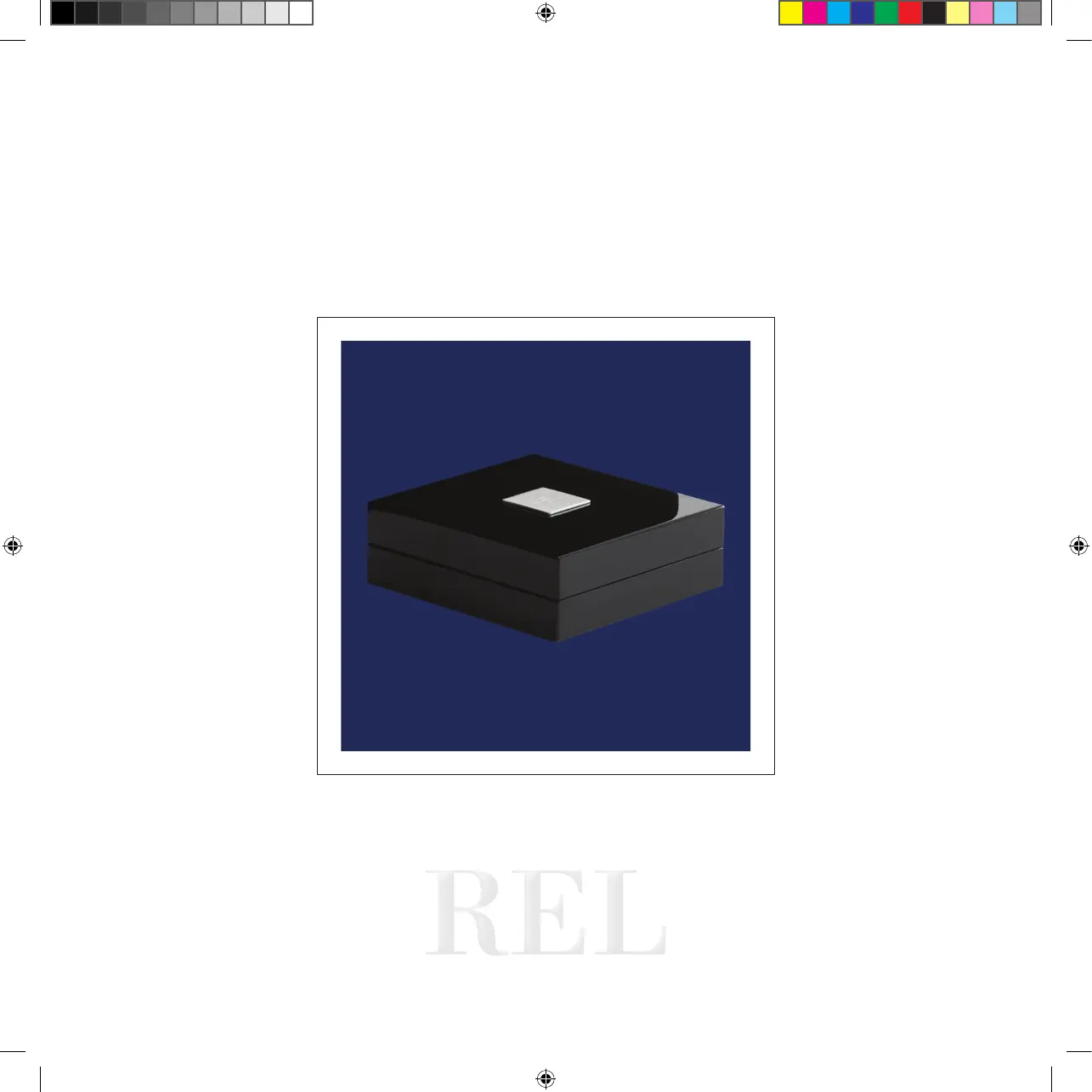

Operang Instrucons for the

Longbow

Transmitter

REL Acouscs Limited

North Road, Bridgend industrial Estate . Bridgend, CF31 3TP . United Kingdom

Telephone: +44 (0)1 656 768 777 . Fax: +44 (0) 1 656 766 093

Web: www.rel.net

Longbow_Manual_08-14.indd 2-3 8/18/14 3:42 PM

Once our team achieved the requisite high standards for performance we demand of all REL subwoofers, we

turned our aenon to connecvity methods. We asked consumers and industry professionals for input, and

almost universally, the feedback was a request for wireless connecvity that matched the sonic performance

of REL sub bass systems.

In order to achieve high quality wireless, the REL team found a new chipset remarkable for its speed and

lack of delay. Building on this foundaon our engineering team took to the task of creang Longbow™, REL’s

latest delivery method. Longbow™’s wireless system uses a proprietary security codec that ensures exceponal

protecon of the signal, while using zero digital compression—the bane of convenonal wireless systems.

This results in a dynamic, ultra wide bandwidth sound with almost zero delay. Praccally speaking, a REL sub

bass system equipped with Longbow™ can be connected to very high end hard-wired systems with none of

the delay issues that plague garden variety wireless systems. Addionally, the REL team was able to maintain

all of the HIGH-LEVEL and reference theater connecvity via wireless protocol. Yet another breakthrough

for REL!

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two condions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operaon.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital Device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that the interference will not

occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be

determined by turning the equipment o and on, the user is encouraged to try and correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separaon between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

REL Longbow™ Transmier

1 Power Switch: Used to turn on and o REL Longbow™ transmier.

2 Power Adapter Socket: DC input socket that accepts a detachable power adapter.

3 HIGH-LEVEL INPUT (Neutrik® Speakon® Socket): Use to connect HIGH-LEVEL to the main front amplier

speaker terminals.

4 LOW-LEVEL INPUT: Used to connect LOW-LEVEL to the output of a preamplier, integrated amplier or

receiver ONLY when HIGH-LEVEL INPUT cannot be properly connected. (For home cinema, use.1/LFE INPUT).

5 .1/LFE INPUT: Used to connect to the .1/LFE OUTPUT from a 5.1 amplier of processor. Should be used in

conjuncon with REL HIGH-LEVEL connecon for the ulmate theater experience.

6 Antenna Socket: Connecon for wireless antenna.

7 Pair Switch: Used to pair REL Longbow™ transmier with REL cabinet.

The REL Longbow™ transmier is intended to be used with the REL Serie S subwoofer cabinet. The transmier

will require power from a AC wall plug using the power adapter cable supplied.

Two antennas are supplied. One should be screwed onto the SMA connecon on the control panel of the

REL Longbow™ transmier and the other onto the SMA connecon on the top le of the Serie S back panel.

It is not possible to use the Longbow™ wireless connecon and a direct connecon simultaneously. Using

both wired and wireless connecons simultaneously could result in damage and voids all warranes.

Always switch your system o before disconnecng any wires.

Wireless REL Longbow Panel Connecon Legend

21 3

Connecng Up

4 75 6

Longbow_Manual_08-14.indd 4-5 8/18/14 3:42 PM
