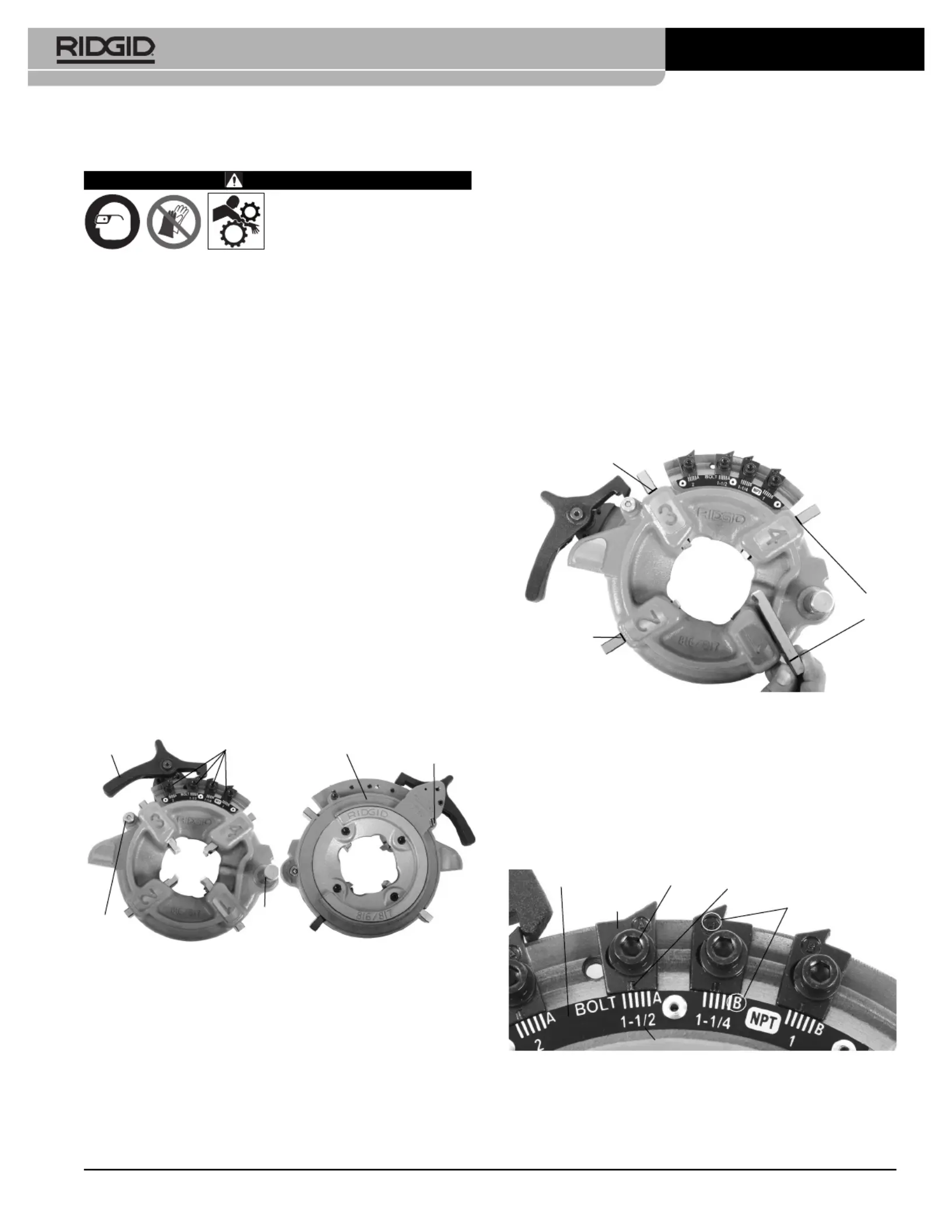

Sida 1/4
Semi-Automatic Die Head
Instructions
WARNING
Read these instructions and
the warnings and instruc -
tions for all equipment and
material be ing used before
operating this tool to reduce the risk of serious person-
al injury.
•Do not wear gloves, loose clothing, or jewelry when
operating machine. Keep sleeves and jackets buttoned.
Clothing can be caught by the pipe or tool resulting in
entanglement.
•Keep hands away from rotating pipe and parts. Allow the
machine to come to a complete stop before touching the
pipe or tool. This reduces the risk of en tanglement, crushing
or striking injuries.
If you have any question concerning this RIDGID
®
product:
– Contact your local RIDGID distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find your
local RIDGID contact point.
– Contact Ridge Tool Technical Service Department at rtctech-
services@emerson.com, or in the U.S. and Canada call
(800) 519-3456.
Description
The RIDGID
®
Universal Semi-Automatic Die Heads include
Model 816 NPT and 817 NPT Die Heads. These die heads can
be quickly adjusted from size to size and are manually opened
for user specified thread length. The die heads operate with a
system of four Position Blocks on the cam plate. Each block can
be adjusted and set independently, allowing the operator to
change sizes quickly and accurately.
The 816 Die Head is for
1
/
8
" to
3
/
4
" and 817 die head is for 1" to
2" size range. Both use RIDGID Universal dies.
The Semi-Automatic Die Heads can be used on RIDGID equip-
ment such as the 1215, 1233 535, 535A, 300 Compact Thread -
ing Machines and 300 Power Drive.

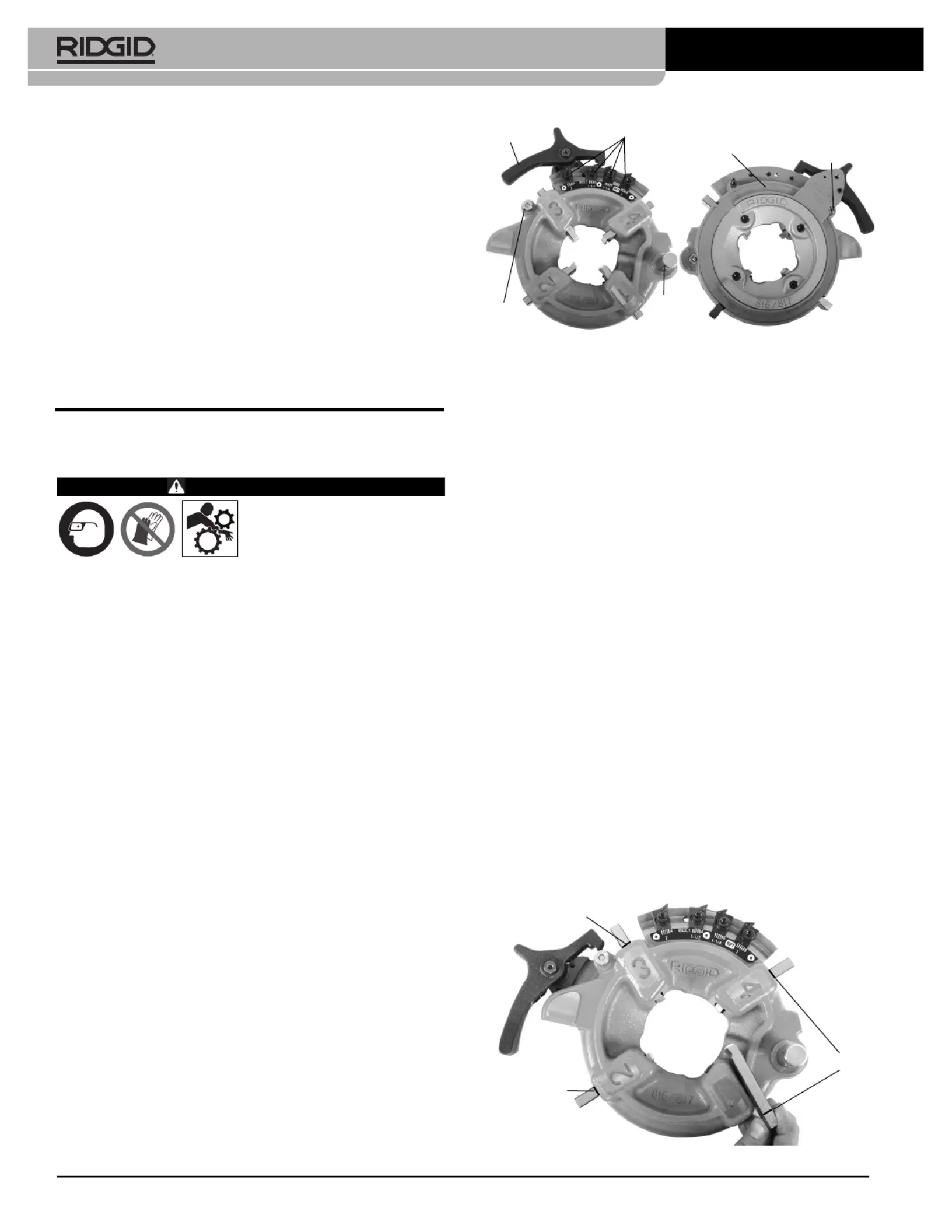

Figure 1 – Semi-Automatic Die Head
Inspection/Maintenance
Clean the die head to aid inspection and improve control.
Inspect the die head before each use for proper assembly,
wear, damage or other issues that could affect safe use.
Inspect the cutting edges of the dies. Dull or damaged cutting
tools increase required force, produce poor quality threads
and increase the risk of injury. If any problems are found, do not
use until corrected.
Set-Up/Operation
Make sure all equipment is inspected and set up per its instruc-
tions.
Always cut a test thread to confirm proper thread size after
changing/adjusting the dies.
Inserting/Changing the Dies
Die Heads require one set of dies for each of the following
pipe size ranges: (
1
/
8
"), (
1
/
4
" and
3
/
8
"), (
1
/
2
” and
3
/
4
") and (1" through
2"). Die heads cannot be used for BSPT threads.
See the
RIDGID catalog
for dies available for your die head.
1. Place the die head with numbers facing up.
2. Depress handle so that cam plate rests against the change
die stop
(Figure 1)
. The cam plate/handle assembly is
spring loaded and will move when depressed.
3. Pull the plunger knob and rotate the handle and cam
plate counter-clockwise until it stops.
4. Remove dies from the die head.
5. Insert appropriate dies into the die head, numbered edge
up until the indicator line is flush with the edge of the
diehead
(see Figure 2)
. Numbers on the dies must corre-
spond with those on the die head slots. Always change
dies as sets – do not mix dies from different sets.
Figure 2 – Inserting Dies
6. Move the handle clockwise so that the plunger knob is flush
against the die head. Adjust die insertion as needed to
allow movement.
Adjusting Thread Size
1. Install the die head per the
Threading Machine Instructions
and move the die head into threading position.
2. Loosen the screw for the position block for desired pipe size.
3. Start with the position block index line on the middle size
bar mark.

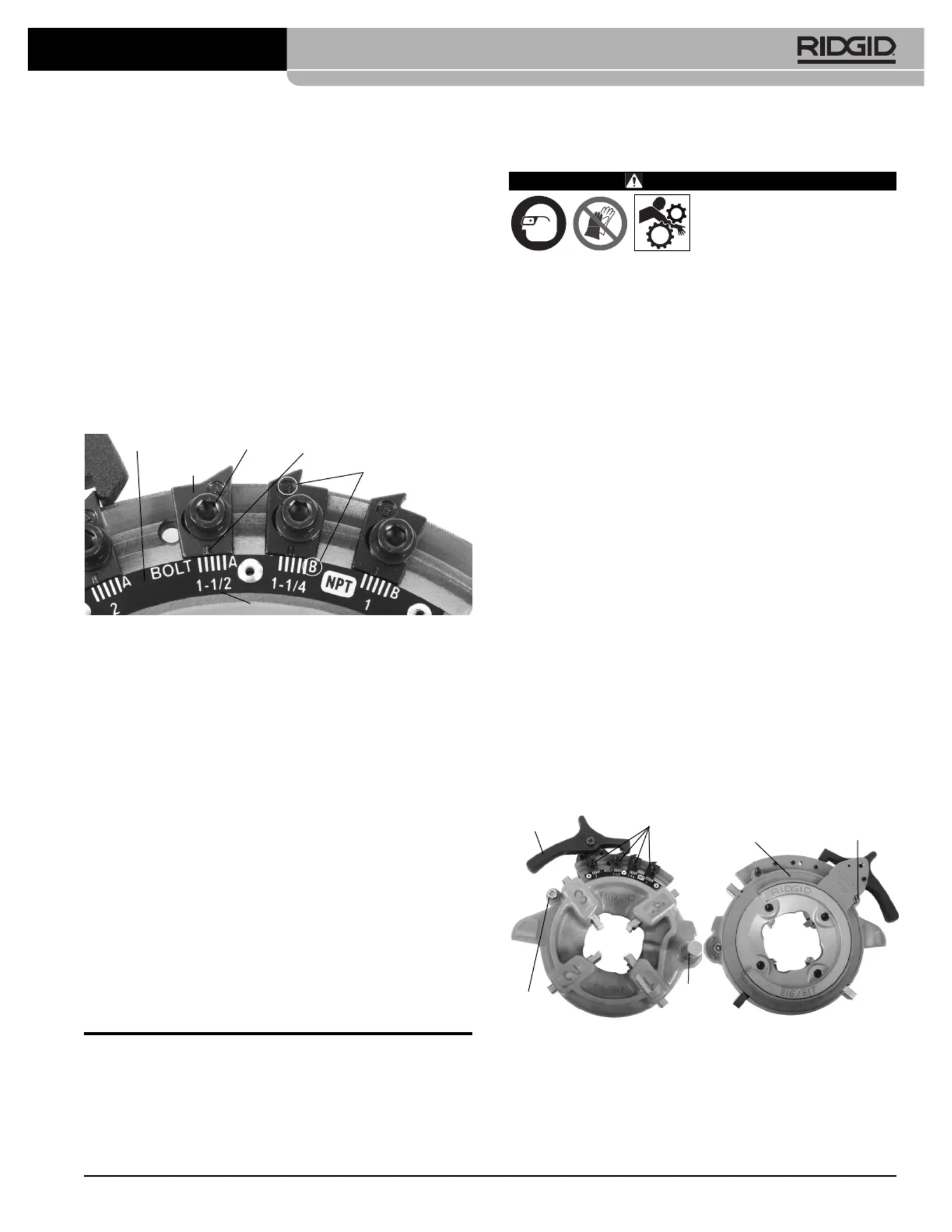

Figure 3 – Adjusting Thread Size
4. If thread size needs to be adjusted, set the index line
slightly off the mark on size bar in the direction of the
handle for larger diameter thread, (less turns of fitting
engagement) or away from handle for smaller thread
diameter (more turns of fitting engagement).
Semi-Automatic Die Head Instruction Sheet
Plunger
Knob
Handle
Position Blocks
Change Die
Stop
Post
Front (Closed)
Back (Open)
Indicator
Line
Position
Block
Pipe Size
Index Line
Screw
Position
Block
Type
Cam Plate
Size Bar
Indicator Line
Indicator Line
999-995-049.10
REV. A
Printed 2/15
EC40770
©2015, RIDGID, Inc.
The Emerson logo and RIDGID logo are registered trademarks of Emerson Electric Co. or RIDGID, Inc. in the U.S. and other countries.
All other trademarks belong to their respective holders.
