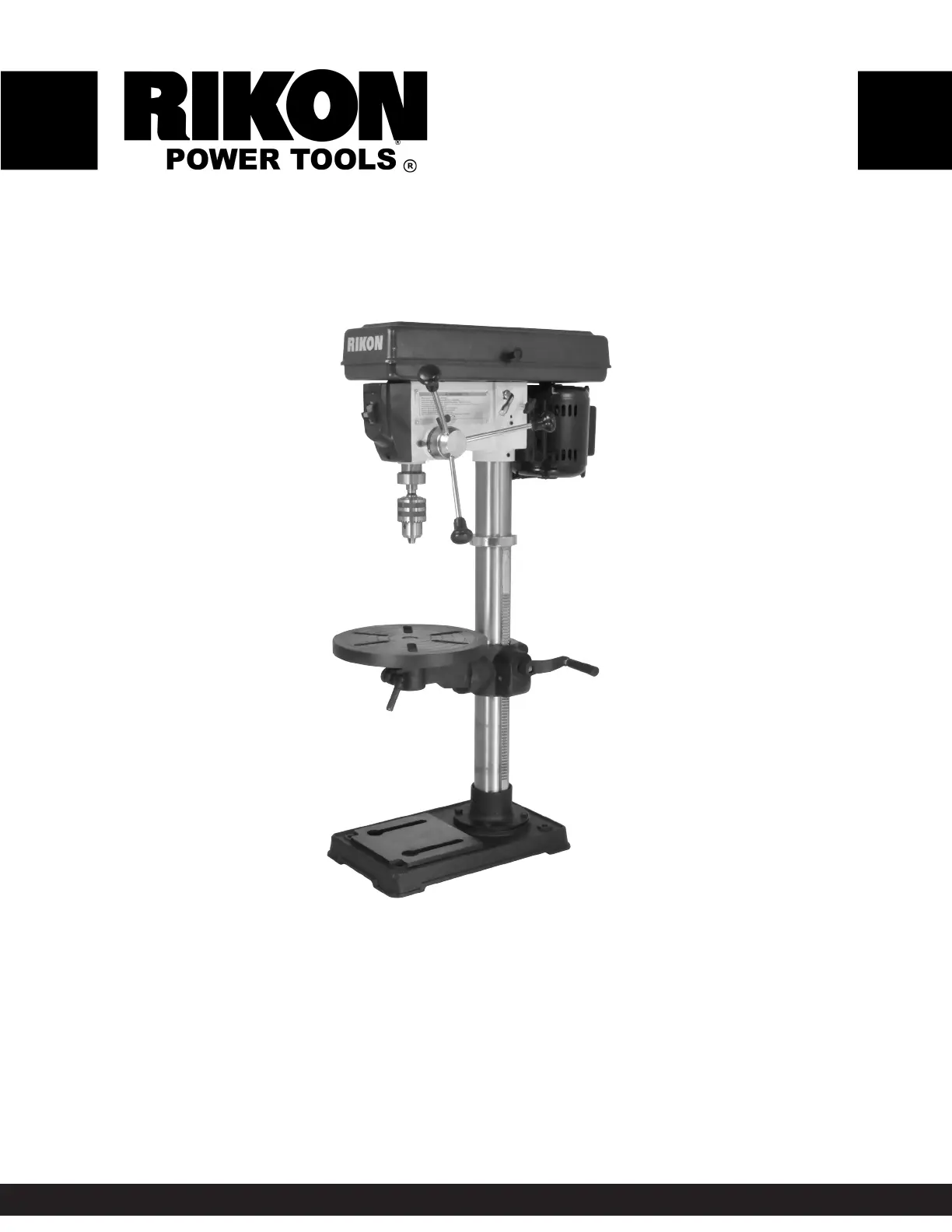

Bench Drill Press
Operator’s Manual
www.rikontools.com
30-120M4
30-120
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
The serial number can be found on the specication label on the rear of your machine.
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current model when the
manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon
Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in
this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.
Motor .......................................................................................................... 1/2 HP
Motor Speed (no load).......................................................................... 1,720 RPM
Volts ............................................................................................................. 120 V
Amps, Hertz ....................................................................................... 7.5 A, 60 Hz
Swing ................................................................................................................ 13”
Chuck Size ...................................................................................................... 5/8”
Chuck Taper .................................................................................................... JT3
Drilling Capacity .............................................................................................. 5/8”
Spindle Travel .............................................................................................. 3-1/8”
Spindle Taper .................................................................................................. MT2
Head Rotates ................................................................................................. 360°
Speed Range (RPM) ........................................................................... 220 - 3600
Speeds .............................................................................................................. 16
Quill Diameter ............................................................................... 2-3/16” (55mm)
Table Size ..................................................................................... 11-3/16” Round
Table Tilts ..................................................................................... 90° Left & Right
Table Rotates ................................................................................................. 360°
Maximum Chuck to Table ........................................................................... 16-1/4”
Maximum Chuck to Base ........................................................................... 24-5/8”
Column Diameter ............................................................................ 2-7/8” (74mm)
Height ............................................................................................................... 42”
Base Size .................................................................................... 17-3/4” x 10-1/2”
Net Weight ................................................................................................ 102 lbs.
Specications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6
Getting To Know Your Machine ..............................................................................................7
Contents of Package .....................................................................................................7 - 8
Installation ......................................................................................................................8
Assembly .................................................................................................................... 9 - 12
Adjustments...............................................................................................................13 - 14
Maintenance ....................................................................................................................15
Electricals & Wiring Diagram .......................................................................................5 & 15
Troubleshooting .........................................................................................................16
Accessories ..........................................................................................................17
Warranty ..........................................................................................................................17
Parts Diagram .................................................................................................................18
Parts List ................................................................................................................19
