CORD COVER ASSEMBLY INSTRUCTIONS:

1. Remove mounting plate (A) from backplate (B) by removing screws (C).

2. Determine desired location for light fixture on wall. Hold mounting plate (A) in a

level position against the wall. Using a pencil, mark the location of the mounting

holes in mounting plate (A) onto the wall.

3. Drill small holes at marked locations on the wall. Holes should be sized so they

accommodate wall anchors (J), provided. Insert wall anchors into drilled holes.

4. Affix mounting plate (A) to the wall by threading mounting screws (D) through

holes in mounting plate (A) and into wall anchors.

5. Slide backplate (B) over mounting plate (A). Thread screws (C) back into holes

at the top and bottom of backplate (B) to secure fi xture to the mounting surface.

6. Thread cord cover (G) into nipple (F) at the bottom of the backplate. Thread

cord cover (H) onto cord cover (G).

7. Follow steps 15 - 18 from direct wire assembly instructions, below.

8. Insert three prong plug (I) into wall outlet.

DIRECT WIRE ASSEMBLY INSTRUCTIONS:

1. SHUT OFF THE ELECTRICAL SUPPLY FROM THE MAIN FUSE

BOX/CIRCUIT BREAKER. IT IS RECOMMENDED THAT A LICENSED

ELECTRICIAN INSTALL THIS FIXTURE.

2. Remove mounting plate (A) from backplate (B) by removing screws (C).

3. Cut three prong plug (I) from the end of the electrical cord.

4. Remove cord covers (G) and (H) from the electrical cord. From the back side of

backplate (B), pull the electrical cord up through nipple (F).

5. Cut the cord to the desired length for making an electrical connection. At least

six inches of wire will be needed to make proper electrical connection.

6. Carefully unscrew nipple (F) from backplate (B). Thread plug (E) into the hole

vacated by the electrical cord and nipple (F).

7. Carefully pull the wiring from wall outlet box. Thread the wires through the

center hole in mounting plate (A).

8. Affix mounting plate (A) to wall outlet box with mounting screws (D) provided.

9. Lift fixture to mounting plate and make proper electrical connections described

in steps 10 - 12. A LICENSED ELECTRICIAN IS RECOMMENDED.

10. Connect ground (green or silver in color) wire from fixture to ground wire in

the outlet box. Fasten wires together with wire nut (K) and tightly wrap the

connection with electrical tape.

11. Attach hot wire from fixture (black in color or smooth side of wire) to hot wire

from outlet box. Fasten wires together with wire nut (K) and tightly wrap

connection with electrical tape.

12. Attach neutral wire from fixture (white in color or ribbed side of wire) to neutral

wire from outlet box. Fasten wires together with wire nut (K) and tightly wrap

connection with electrical tape.

13. Carefully push wire connections back into the wall outlet box. Slide backplate

(B) over mounting plate (A).

14. Thread screws (C) into vacant holes at the top and bottom of backplate (B) to

secure the fixture to the mounting surface.

15. Remove finial (L) from harp (N). Squeeze harp (N) inward and place into the

opening of saddle (O).

16. Place shade (M) onto harp (N). Thread fi nial (L) back onto the harp to secure

the shade to the fixture.

17. Install one 100W max. Type A, medium base bulb into the socket.

18. Reconnect main electrical supply at the fuse box/circuit breaker and test fixture.

* To clean, use a soft dry cloth. Do not use any chemical or abrasive cleaners. *

2824

IMPORTANT SAFETY INSTRUCTIONS:

* These instructions are provided for your safety. It’s important that all safety

instructions are read before beginning installation of fixture.

* We STRONGLY recommend installation by a licensed electrician.

* Turn o power at switch before replacing bulbs.

* Do not connect the electricity until lamp is fully assembled.

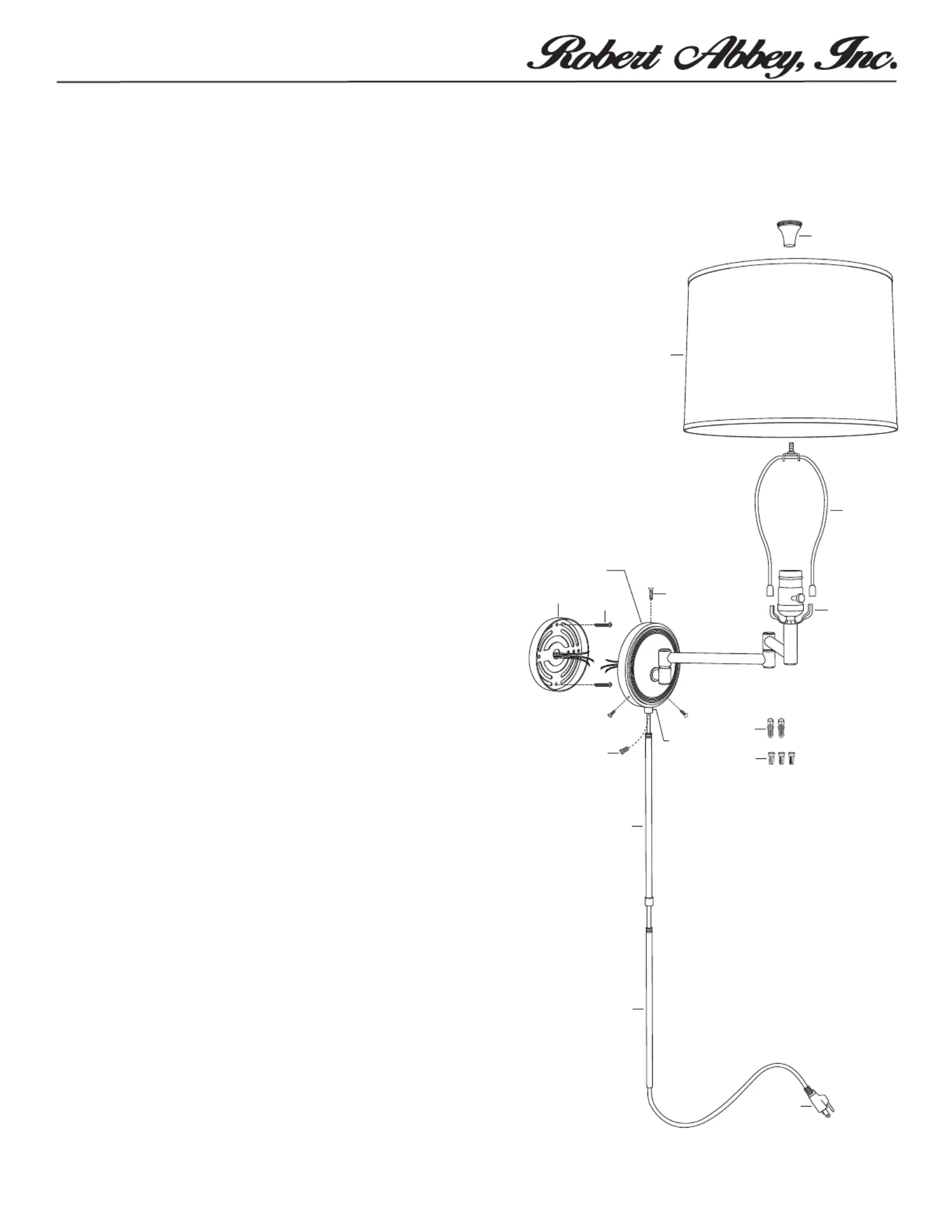

(F)

(E)

(G)

(H)

(I)

(K)

(J)

(C)

(D)

(A)

(B)

(L)

(M)

(N)

(O)

ASSEMBLY INSTRUCTIONS FOR YOUR

SOFIA SWING ARM SCONCE
