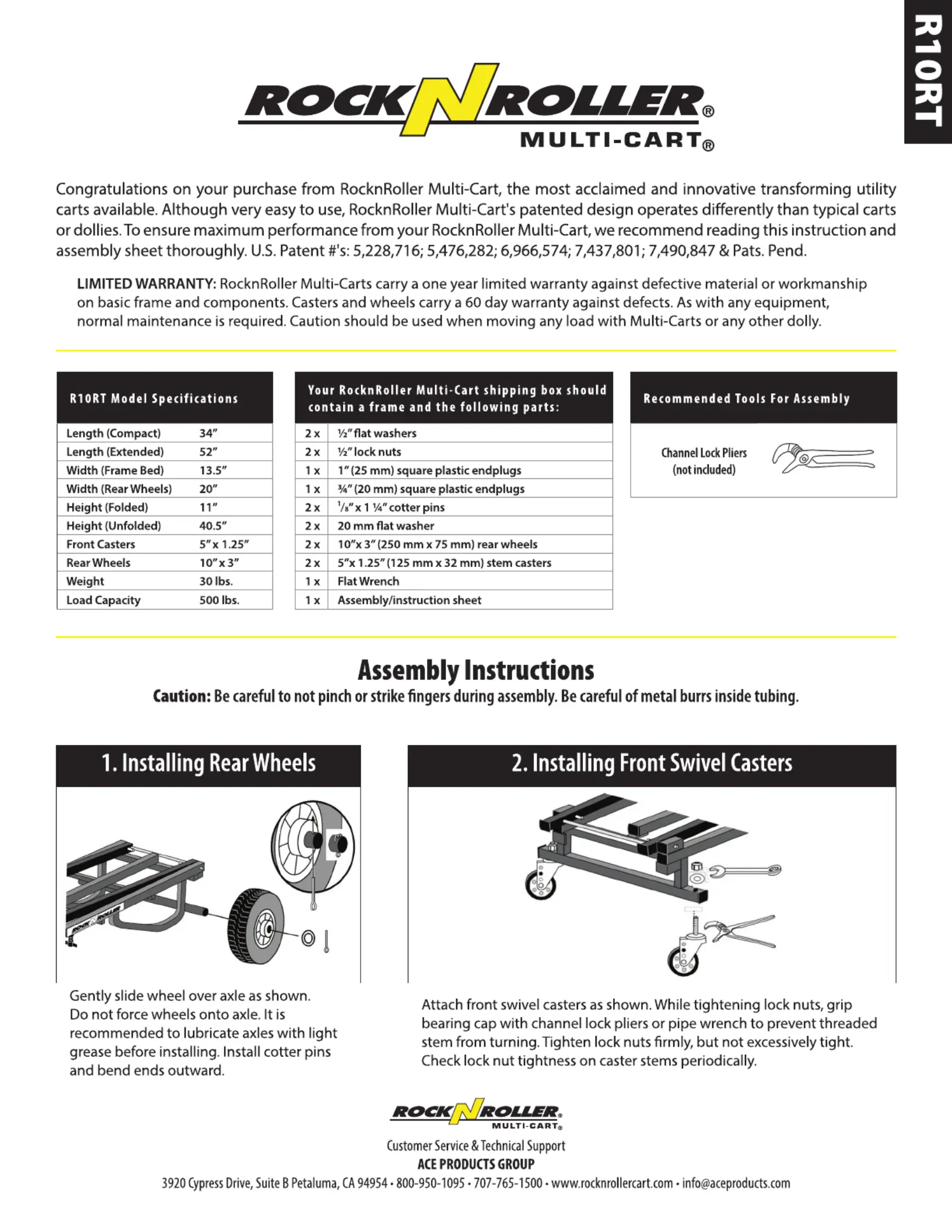

R10RT Model Specifications
Your RocknRoller Multi-Cart shipping box should
contain a frame and the following parts:
Recommended Tools For Assembly
Length (Compact) 34” 2 x½” at washers
Length (Extended) 2 x½” lock nuts52”
Channel Lock Pliers
(not included)
Width (Frame Bed) 1 x 1” (25 mm) square plastic endplugs13.5”
Width (Rear Wheels) 20”1 x¾” (20 mm) square plastic endplugs
Height (Folded) 2 x” x 1 ¼” cotter pins11”1/8
Height (Unfolded) 2 x20 mm at washer40.5”
Front Casters 5” x 1.25”2 x10”x 3” (250 mm x 75 mm) rear wheels
Rear Wheels 10” x 3”2 x5”x 1.25” (125 mm x 32 mm) stem casters
Weight 30 lbs.1 xFlat Wrench
Load Capacity 500 lbs.1 xAssembly/instruction sheet
1. Installing Rear Wheels
Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
2. Installing Front Swivel Casters
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts rmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.
