Sida 1/2

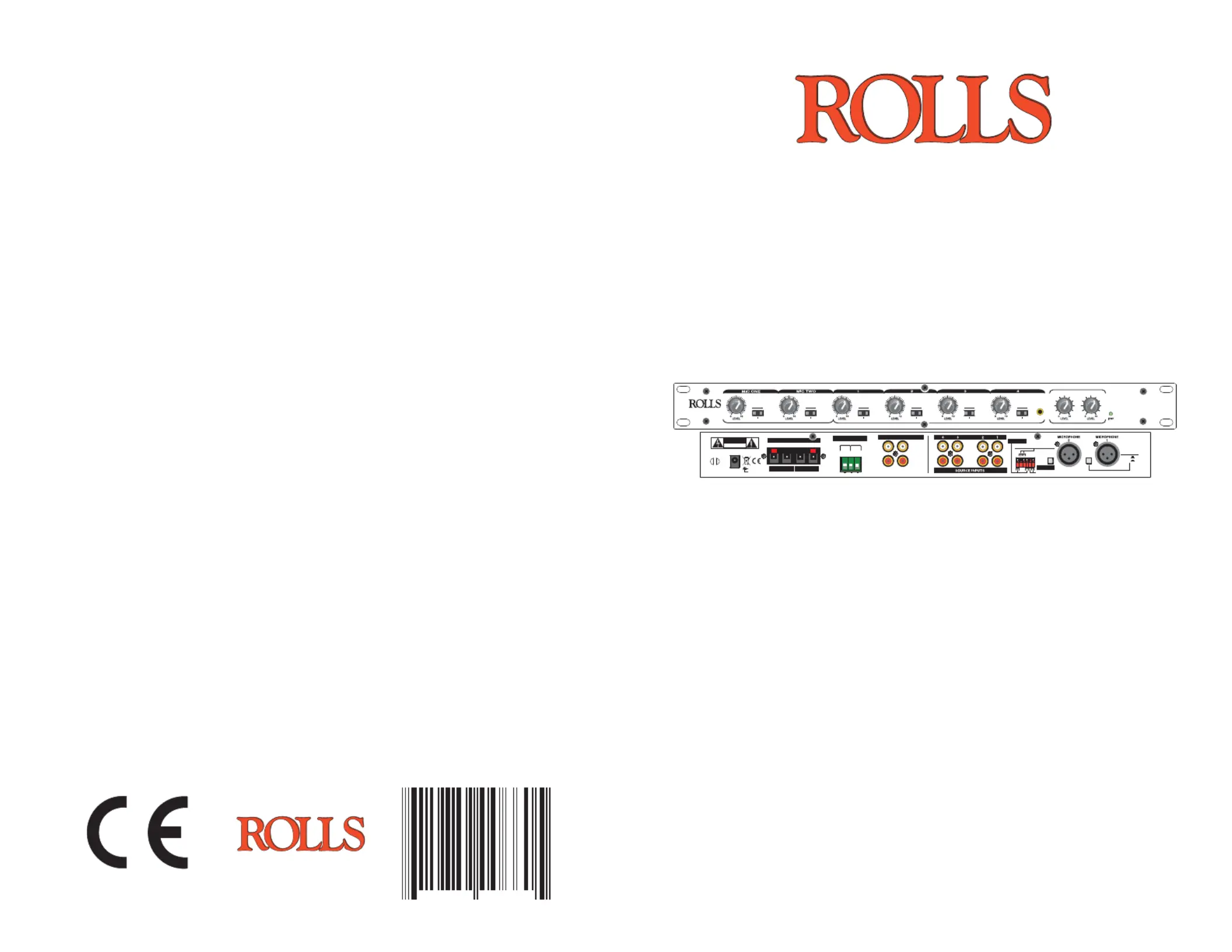

MA66
2 ZONE
20 + 20 watt
Mixer/Amplifi er
Quick Start Guide
Salt Lake City, Utah
8/12
MA66
2 Zone Mixer/Power Amplifi er
FEATURES
- Two XLR balanced inputs with phantom power
- Four stereo Source inputs, including a front panel 3.5mm input
- Remote pad control for each channel
- RCA pre and post Outputs
- Master Output Level control for each channel
- Low noise, effi cient operation
- All in a singal rack space
- Class D high effi ciency amp
The MA66 is a 2 Zone mixer with a 20 + 20 watt high effi ciency
amp. Class D low radiated heat locations.
W
W
W
WARNING:
ARNING:
ARNING:
ARNING:WARNING:
THE MINIMUM SPEAKER IMPEDANCE IS 4
OHMS FOR EACH CHANNEL.
IF YOU CONNECT AND USE THE MA66 WITH A LOWER
SPEAKER IMPEDANCE THAN LISTED ABOVE YOU
WILL DAMAGE THE UNIT AND POSSIBLY OTHER
EQUIPMENT THAT IS CONNECTED TO THE MA66.
IN
4
OFF=UP
ON=DOWN
www.rolls.com
LINE LEVEL OUTPUTS
+
-
RISQUE DE CHOC - NE PAS ENLEVER
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
-
+
VDC
MA66
2 Zone Mixer - Amp
20 X 20 watts
OUTPUTS
REMOTE PAD
ZONE 1
ZONE 2
PRE
POST
MASTER VOLUME
ZONE
BOTH
1
2
TALK OVER ZONE ASSIGNMENT
T.O. RELEASE TIME
PHANTOM POWER
-
+
ZONE 1
ZONE 2
ZONE 1
ZONE 2
MASTER VOLUME
2 1
COMM.
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
WARNING:
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. TO REDUCE
THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
MIC/LINE
LONG=UP
SHORT=DOWN
MIC/LINE
INPUT LEVEL
MIC
LINE
PS24
75889 00660
6 5
W
W
W
WARNING:
ARNING:
ARNING:
ARNING:
WARNING: DO NOT GROUND THE SPEAKER OUTPUT
TERMINALS. THE SPEAKER TERMINALS MAY NOT BE
AT GROUND POTENTIAL.
SPECIFICATIONS
Input Impedance: Mic: 600 Ohms XLR balanced
Source: 22K Ohms RCA
Max Input Level: Mic: -14 dBV Mic level
RCA: +24 dBV
Total - In/Out Connectors: 2: XLR, 6: Stereo RCA, 1: 3.5mm
Phantom Power: +15 VDC
RCA Output Level: +17 dBV max (impedance 1K Ohm)
Output Power: 20 Watts @ 4 Ohms/Per Zone
12 Watts @ 8 Ohms/Per Zone
Max Gain: Mic: 70 dB
Source: 30 dB
Noise Floor: - 80 dB, THD: <.025%,
S/N Ratio: 96 dB
Power Output: 20 Watts X 2 (4 Ohms)
Voltage Gain: 32 dB
Maximum Supply Voltage: 30 VDC
THD: .05% typical
EIN: 3 mV
Effi ciency: 85%
Bandwidth: 20Hz - 25 kHz
Size: 19” x 1.75” x 4” (48.3 x 4.5 x 10 cm)
Weight: 7 lbs. (2.3 kg)

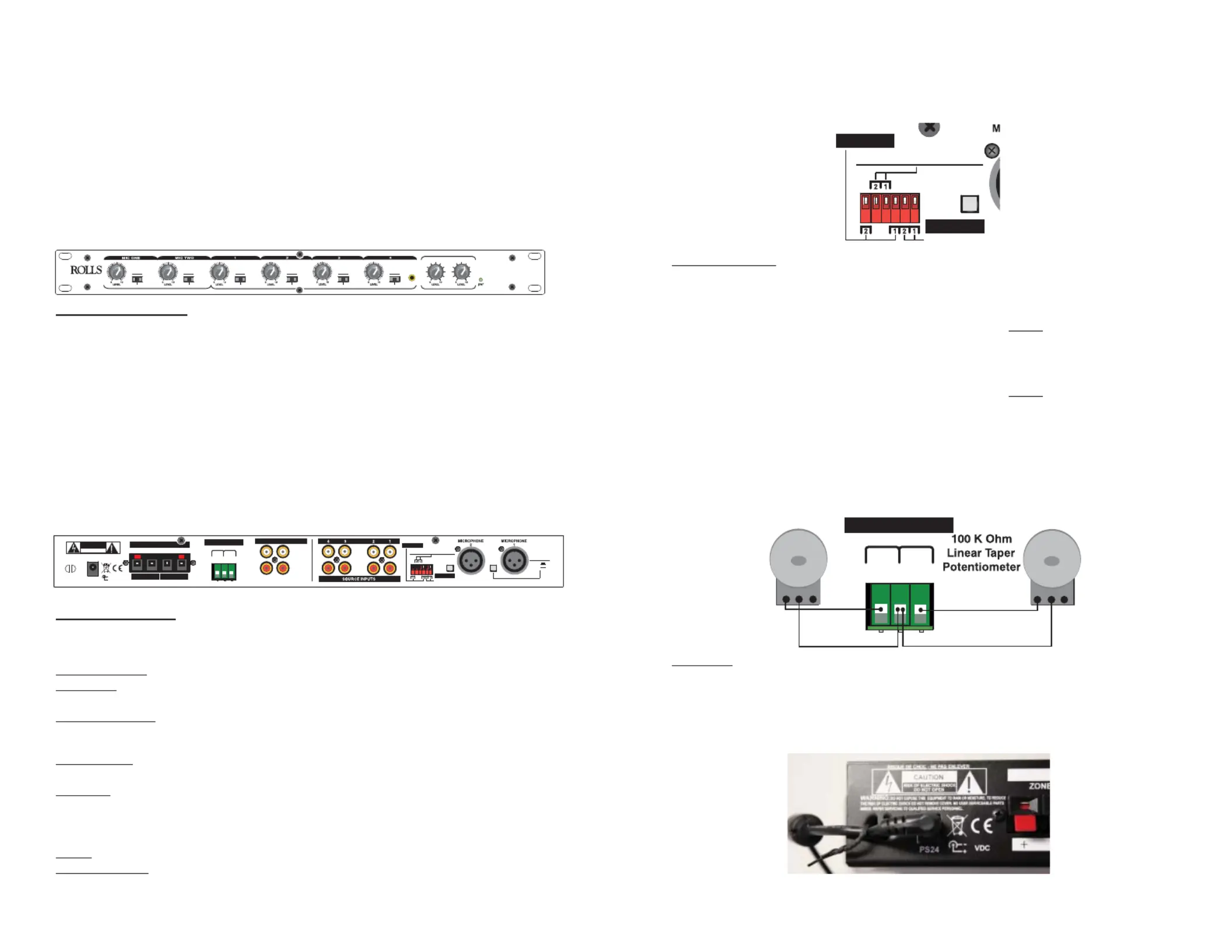

INTRODUCTION
Thank you for your purchase of the MA66 2 zone mixer / 20 X 20 watt Power Amplifi er.
REAR PANEL
PS24: For connection to the included power supply.
SPEAKER OUTPUTS: Push terminals for connection to speaker wire.
REMOTE PAD: 3 Pin barrier strip for connection to a remote potentiometer for volume pad control. 100K Ohm audio taper
potentiometer is recommended.
LINE LEVEL OUTPUTS: RCA line level outputs.
POST MASTER: Is the output that is after (post) Master Volume controls on the front panel.
PRE MASTER: Is the output that is before (pre) Master Volume controls on the front panel.
SOURCE INPUTS: Stereo RCA jacks, Channels 1 - 4, for connection to stereo sources such as AM/FM tuners, MP3 play-
ers, cd players, or video players.
DIP SWITCH: Contains the small switches for engaging Mic 1 and 2 phantom power, the priority (Talk Over) functions,
and the Talk Over Release Time select.
NOTE: The release time is eected by this setting, plus the level of input signal - the higher the input signal, the longer the
release time.
Mic 1 - 2: XLR inputs for dynamic or condenser microphones, or balanced line-level signals.
MIC/LINE SWITCHES: For selection of mic or line level inputs to the XLR 1 and 2 inputs (Pad is 30 dB).
FRONT PANEL
Mic 1 - 2 LEVEL: Adjust the level of signal from the corresponding Mic Input.
1 - 4 LEVEL: Adjust the level of signal from the corresponding source Input.
ZONE: Sets the zone output for the channel indicated.
ZONE 1: Signal for that channel will be sent to Zone 1 output.
ZONE 2: Signal for that channel will be sent to Zone 2 output.
BOTH: Signals for that channel will be sent to both Zone 1 and Zone 2 outputs.
IN 4: 3.5mm Input jack to Source Input 4.
Source 1 - 4: Adjust the volume of input from the RCA Source Inputs, and the 3.5mm in.
MASTER VOLUME 1&2: Adjusts the overall volume of the MA66 Main Outputs.
pwr: LED indicating power is applied to the MA66 and the unit is on.
CONNECTION / OPERATION
DESCRIPTION
NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWL-
EDGE OF AUDIO ELECTRONICS, BALANCED AND UNBALANCED CON-
NECTIONS, AND PROPER SIGNAL LEVEL SETTING.
INSPECTION / WARRANTY
1. Unpack and inspect the MA66 box and package.
If obvious physical damage is noticed, contact the carrier immediately to make a damage claim. We suggest saving the
shipping carton and packing materials for safely transporting the unit in the future.
2. Please visit our web site at www.rolls.com and click on the Register Your Warranty Here button, or complete the War-
ranty Registration Card and return it to the factory.
IN
4
www.rolls.com
MA66
2 Zone Mixer - Amp
20 X 20 watts
ZONE 1
ZONE 2
MASTER VOLUME
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
ZONE
BOTH
1
2
OFF=UP
ON=DOWN
LINE LEVEL OUTPUTS
+
-
RISQUE DE CHOC - NE PAS ENLEVER
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
-
+
VDC
OUTPUTS
REMOTE PAD
PRE
POST
TALK OVER ZONE ASSIGNMENT
T.O. RELEASE TIME
PHANTOM POWER
-
+
ZONE 1
ZONE 2
ZONE 1
ZONE 2
MASTER VOLUME
2 1
COMM.
WARNING:
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. TO REDUCE
THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
MIC/LINE
LONG=UP
SHORT=DOWN
MIC/LINE
INPUT LEVEL
MIC
LINE
PS24
DIP SWITCH SETTINGS
- PHANTOM POWER: If a microphone requires phantom power, move the Mic channel’s corresponding PHANTOM
POWER DIP switch to the down position. This applies 24 volts phantom power to the indicated microphone.
- Talk Over Zone Assignment 1: When in the ON position, all program material on ZONE 1 will be “ducked” or muted when
signal is present on MICROPHONE 1 or MICROPHONE 2. As a note at least one of the mics must be set to Zone 1 to talk
over. This function is used for paging.
- Talk Over Zone Assignment 2: When in the ON position, all program material on ZONE 2 will be “ducked” or muted when
signal is present on MICROPHONE 1 or MICROPHONE 2. As a note at least one of the mics must be set to Zone 2 to talk
over. This function is used for paging.
- T.O. Release Time 1: This adjusts the Talk Over Release time for Zone 1.
- T.O. Release Time 2: This adjusts the Talk Over Release time for Zone 2.
Down = Long release time UP = Shorter release time
Connect low impedance microphones to the Mic inputs (or line level XLR signals with the mic/line switch set to the proper
setting). Connect source signals such as CD players, MP3 players or video players to the RCA Source Inputs. Connect
3.5mm sources to the front panel input.
The slotted holes in the back of the MA66 are for the attachment of a wire tie (included on the PS24 cord) or a small zip
tie (not included), for power cord strain relief as needed. Just thread the tie thru the holes and attach the cord.
REMOTE PAD: 3 Pin barrier strip for connection to a remote potentiometer for volume pad control. 100K Ohm audio taper
potentiometer is recommended (others will work).
2: Connection to potentiometer to pad Zone 2.
COMM: Common Ground for connection to pots.
1: Connection to potentiometer to pad Zone 1. As illustrated. As a note if the potentiometer pad is working
opposite of what you intended just reverse the wires going to that potentiometer.
OFF=UP
ON=DOWN
TALK OVER ZONE ASSIGNMENT
T.O. RELEASE TIME
PHANTOM POWER
MIC/LINE
LONG=UP
SHORT=DOWN
2 1
COMM.
REMOTE PAD
