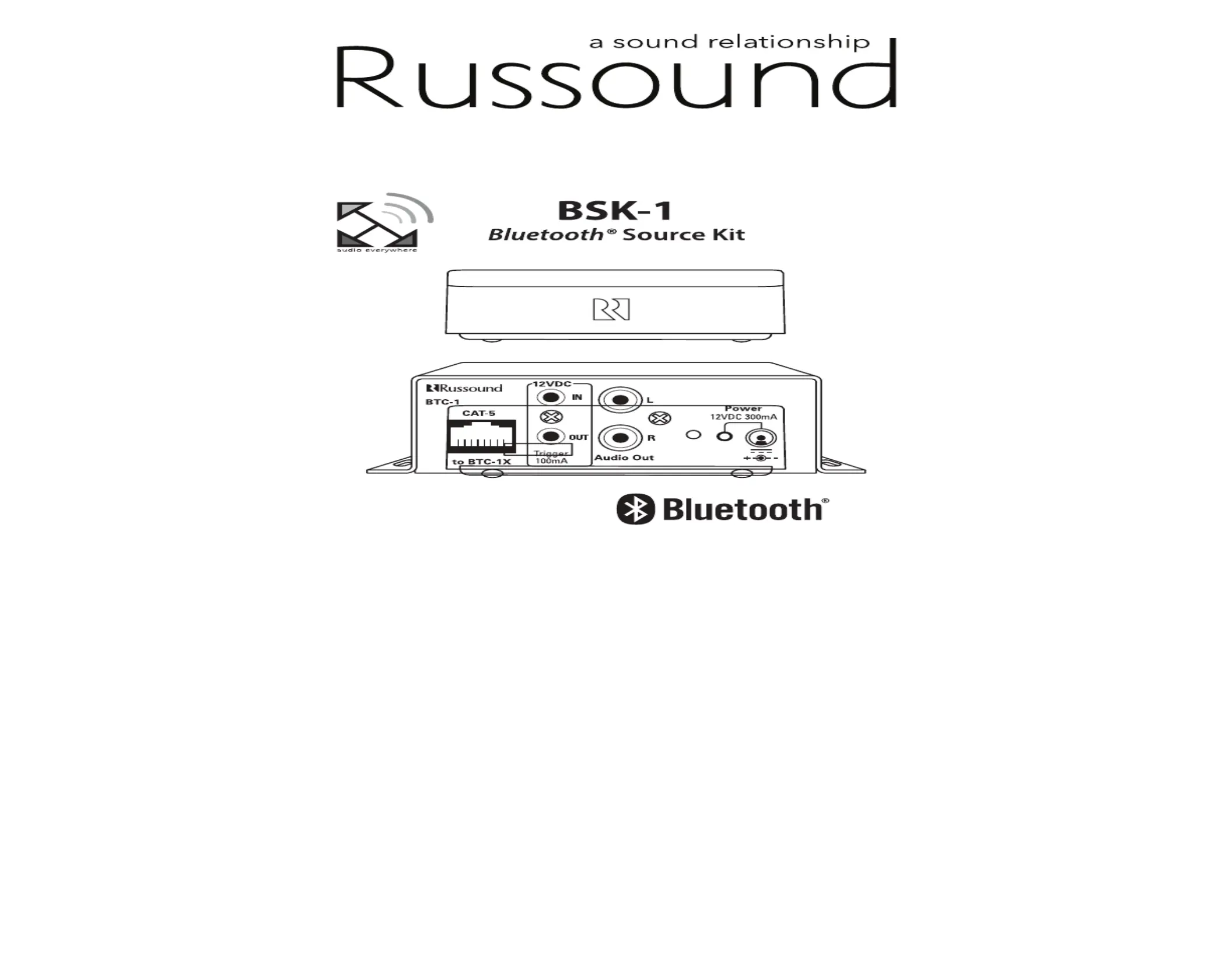

Overview

The BSK-1 Source Kit enables the user of a portable Bluetooth

media player, smartphone, or other equipped device Bluetooth

to wirelessly transmit audio content to any typical audio

system. The BTC-1X Remote Transceiver connects to the BTC-1

Termination Box via a single CAT-5 cable. The CAT-5 cable both

powers the transceiver and transmits audio signals from the

BTC-1 Termination Box which is then connected to any amplier

or receiver for audio and 12VDC trigger signals. On Russound

multiroom audio systems, it can be designated either as a

global source for the multiroom system or as a local source for

an individual "Primary Zone" with automatic control over zone

power, source selection and volume level.

The compact BTC-1X Remote Transceiver can sit on a at

surface or be placed in a standard electrical box in an ideal

location so that the user can connect and move throughout the

listening area without interrupting the audio stream. Housed in

a compact surface-mount metal box, the BTC-1 Termination Box

is connected directly to the amplier or receiver via RCA audio

patch cables and an optional 12VDC trigger cable.

Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA

tel 603.659.5170 • fax 603.659.5388 www.russound.com

e-mail: tech@russound.com

28-1369 09.14.20, Rev. 7

playback.

For Local Source congurations

The Local Source feature is designed for use when the

Primary Zone is in the O state and is not available if the

Primary Zone is already in use.

When an audio output signal from the BSK-1 is detected

by the MCA-Series controller, the Primary Zone will turn

on, select the BSK-1 source and set the zone's volume level

based on the settings made through WebCong software.

The volume on the source device should be at its highest

setting to assure the audio output level from the BSK-1 will

be strong enough to detect and activate the Local Source

feature. If the audio signal level is not strong enough

for the MCA-Series controller to detect, the local source

feature will not activate or, if already in use, will shut the

local source feature o after 10 minutes of no audio signal

detection.

For non-Local Source congurations

Turn on a zone and select the BSK-1 source input and

adjust the volume to the desired level. Audio from the

Bluetooth enabled source should be heard throughout the

zone.

Normal Use

Only one device at a time may be actively paired with

the BSK-1 in the multiroom system. Activate the Bluetooth

feature from the source device and connect or 'pair' with

the BSK-1 by selecting its assigned name. If being used as a

Local Source and the Primary Zone is in the O state, it will

automatically be turned on, select the BSK-1 source input

and volume level adjusted. Otherwise manually choose

your music and start playing. Choose the appropriate

source input on the Russound system and enjoy the music.

When nished, disconnect your device from the BSK-1 or

turn o the Bluetooth feature of the source device. If you

move your device out of range (15M without obstruction)

it will automatically sever the connection. If you are unable

to connect to the BSK-1, another device within range may

be connected.
