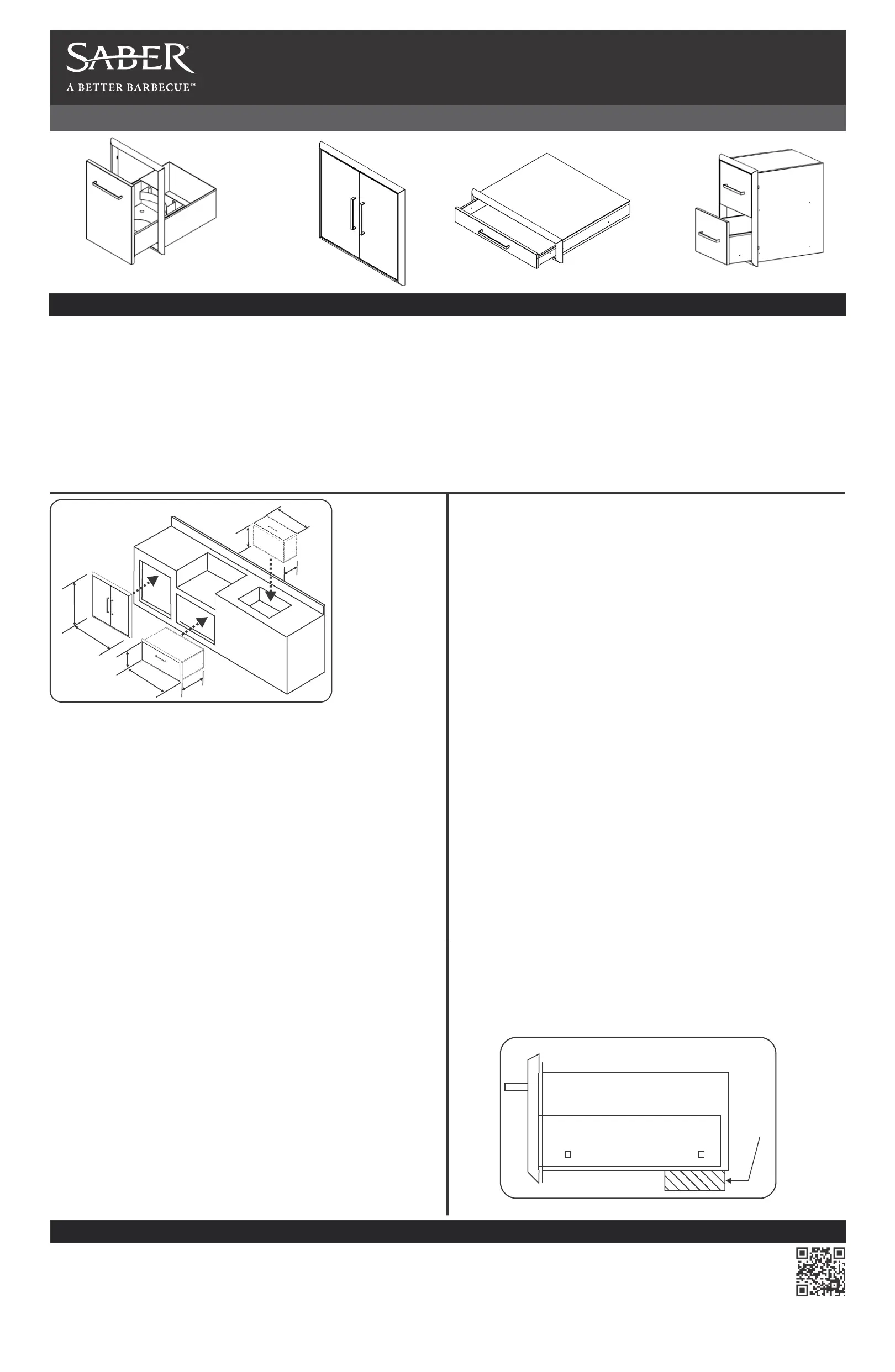

Assembly instructions © 2014
© 2014 Saber Grill, LLC., Columbus, GA 31902
Printed in China
11/19/13 • 80019706
For support and to register your
product, please visit us at:
www.sabergrills.com
If you have questions or need assistance during
installation, please call
1-888-94-SABER
(1-888-947-2237)
For patents see www.sabergrills.com/patents
To installer: Leave this manual with the product for future reference.
To consumer: Keep this manual for future reference.
Read all instrucons before starng installaon
Save these instrucons!
All units shown are to be installed by a
qualified, professional service technician
GENERAL INFORMATION
WARNING!
Ÿ For proper installaon, be sure to use the correct cutout dimensions as specified on page 2 for your specific product.
Ÿ We recommend that you use silicone caulk (not supplied) to seal the interface between the island and the trim work of your product.
Ÿ Some models shown may include an addional product guide or supplement sheet.
Ÿ CAUTION: Make sure your island is properly vented. See your grill’s product guide/owner’s manual for venng requirements. Consult your local
codes for addional direcon.
Ÿ If you have purchased the Propane Tank Drawer, Model number K00AA2914, be sure to read the addional supplement page supplied with it.
Figure 1 - Cut out Guide
For proper
installaon, be
sure to use the
correct cutout
dimensions as
specified for your
model number.
Locate your model
on page 2, then
reference figure 1
for correct
orientaon.
Drawers
Before installing your drawer, remove the drawer from its base by
carefully pulling it out of the frame. To release the drawer from the
drawer slides, press the white lever down on the right side and up on
the le side. Now pull the drawer completely out of the frame.
NOTE: it is recommended that you provide a secure surface for the
rear of the drawer frame to rest on. This will help support the
drawer’s weight, along with the weight of its contents. The surface
should be 1/8” higher than the front opening cutout. This will ensure
that your drawer sits level. See Figure 2.
1. Slide in and fasten the unit securely into the island enclosure using
appropriate hardware (not included) for your applicaon through
the screw slots in the top and boom of the drawer frame. Some
models have screws slots in the right and le sides of the drawer
frame.
2. Reaach the drawer by extending the drawer slides out
completely, the align the drawer onto the slides. Now push the
drawer closed. The slide will lock into posion. Test that the slides
are locked by pulling the drawer out - it should stop before
reaching the end of the slides.
PROPANE (LP)TANK DRAWER - MODEL NUMBER K00AA2914:
Refer to the supplement sheet provided with your propane tank
drawer for addional instrucons and for the required installaon
method of propane cylinders.
Drawer
Support
Side view of Drawer
Figure 2 - Drawer support
Doors
Slide in and fasten the unit securely into the island enclosure using
appropriate hardware (not included) for your applicaon through the
screw slots in the top, boom or sides of the door frame.
Care and Cleaning
®
Clean your product with Saber Stainless Steel Polish (part number
A00YY0312) to remove grease, dirt, or iron oxide deposits from the
surface of your product. Always wipe stainless steel products with the
grain.
If your product is installed in a locaon near the ocean or near a
swimming pool, it will be more suscepble to corrosion and must be
maintained and cleaned more frequently. Do not store chemicals
such as chlorine or ferlizer near your product.
Due to the nature of stainless steel, surface iron oxide deposits may
appear on the surface of your product. These deposits are normal
and can be removed with a quality stainless steel polish. Once
deposits are found, they should be removed promptly to reduce the
chance of permanent surface ping.
Following these recommendaons will ensure years of service and
®
beauty from your Saber stainless steel accessories.
width
width
Height
Depth
Height
Width
Depth
Drop-Ins
Slide the unit into the island enclosure cut out.
NOTE: The Ice Chest drop-in (K00AA3414) will require a drain line
(not included) to be plumbed outside the island enclosure.
Alternately, you can use the included plug and use the drop-in
without a drain line.
OUTDOOR KITCHEN COMPONENTS
Learn more at sabergrills.com
INSTALLATION GUIDE
DRAWERS, DOORS, &
DROP-IN ACCESSORIES
Consignes d'assemblage © 2014
Imprimé en Chine
Instrucciones de ensamblaje © 2014
Impreso en China

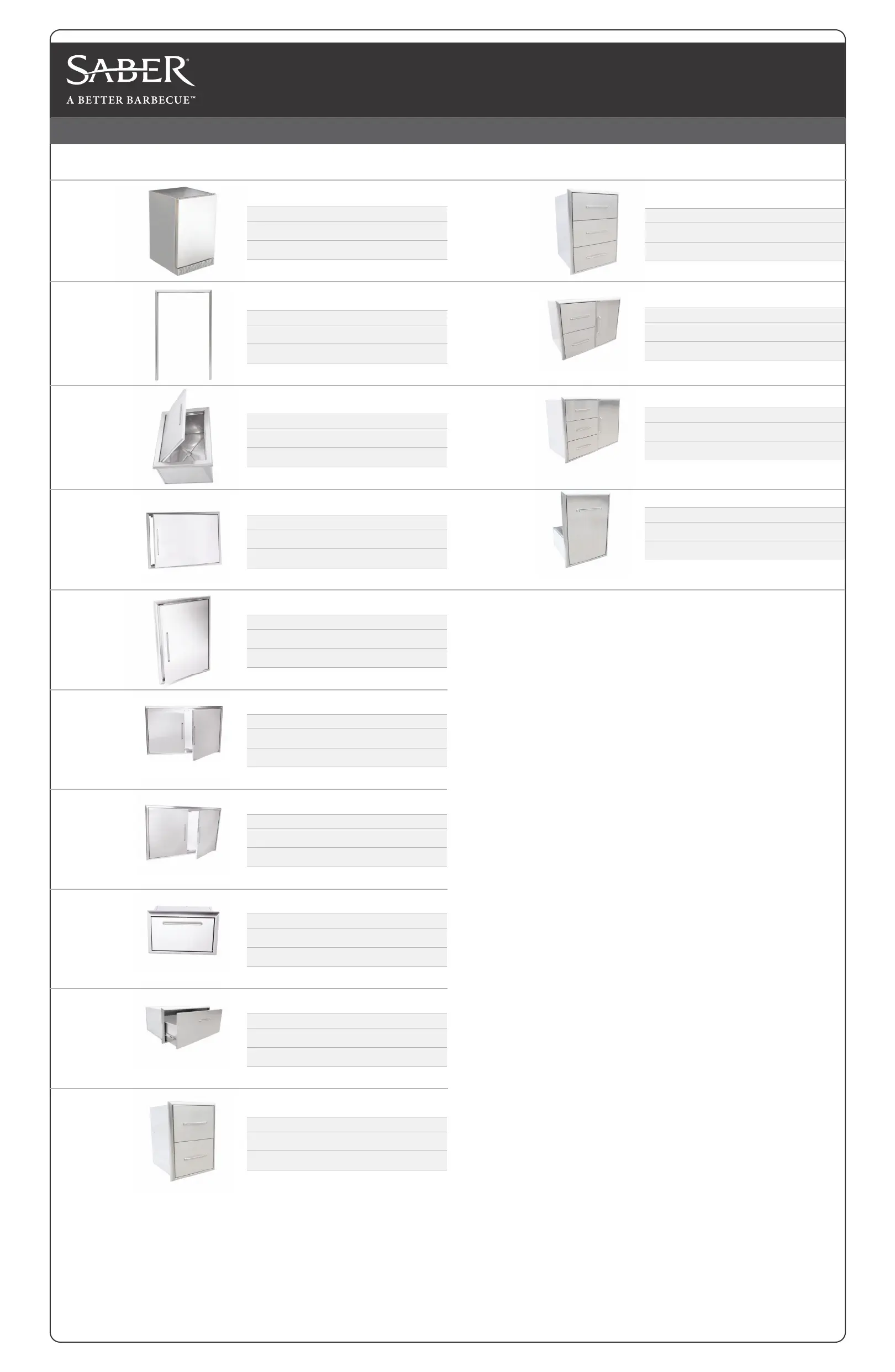

Height
H DW
33.75" 24.00"21.25"
CUT OUT
33.07" 22.64"20.47"
PRODUCT
H DW
33.75" 24.00"21.25"
CUT OUT
34.68" 0.79"23.10"
PRODUCT
H DW
12.01" 17.05"22.99"
CUT OUT
13.03" 18.23"24.09"
PRODUCT
K00AA3314
SABER
®
4.1 cu ft
Outdoor UL
Rated Stainless
Steel Refrigerator
K00AA3514
SABER
®
Trim Kit
for 4.1 cu ft
Refrigerator
K00AA3414
SABER
®
Drop-In
Ice Chest
H DW
17.13" 0.91"24.09"
CUT OUT
18.90" 1.85"25.91"
PRODUCT
H DW
24.09" 0.91"17.13"
CUT OUT
25.91" 1.85"18.91"
PRODUCT
H DW
20.28" 0.91"26.22"
CUT OUT
24.17" 1.89"30.16"
PRODUCT
H DW
20.28" 0.91"34.25"
CUT OUT
24.17" 1.89"38.07"
PRODUCT
H DW
7.99" 7.13"13.15"
CUT OUT
9.65" 8.07"14.84"
PRODUCT
H DW
3.74" 19.57"23.07"
CUT OUT
5.43" 20.67"24.80"
PRODUCT
H DW
20.28" 17.17"14.17"
CUT OUT
21.93" 18.11"15.94"
PRODUCT
K00AA2514
SABER
®
19" x 26"
Single Access
Door
K00AA2614
SABER
®
26" x 19"
Single Access
Door
K00AA2314
SABER
®
24" x 31"
Double Access
Doors
K00AA2414
SABER
®
24" x 39"
Double Access
Doors
K00AA2714
SABER
®
24"
Single Storage
Drawer
K00AA3014
SABER
®
Paper
Towel Holder
K00AA1914
SABER
®
Two
Drawer Cabinet
H DW
24.06" 17.17"16.65"
CUT OUT
25.59" 18.11"18.23"
PRODUCT
H DW
20.28" 17.20"28.66"
CUT OUT
21.93" 18.23"30.55"
PRODUCT
H DW
24.02" 17.17"33.66"
CUT OUT
25.75" 18.07"34.47"
PRODUCT
H DW
20.12" 15.98"13.50"
CUT OUT
21.85" 16.93"15.35"
PRODUCT
K00AA2814
SABER
®
Triple
Drawer Cabinet
K00AA3114
SABER
®
D
ouble
Drawer And
Door Combo
K00AA3214
SABER
®
Triple
Drawer And
Door Combo
K00AA2914
SABER
®
LP
Tank Drawer
OUTDOOR KITCHEN COMPONENTS
Learn more at sabergrills.com
