Salicru 6A0BT000002 Bruksanvisning

Salicru Inte kategoriserad 6A0BT000002

Läs gratis den bruksanvisning för Salicru 6A0BT000002 (32 sidor) i kategorin Inte kategoriserad. Guiden har ansetts hjälpsam av 26 personer och har ett genomsnittsbetyg på 4.8 stjärnor baserat på 13.5 recensioner. Har du en fråga om Salicru 6A0BT000002 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/32

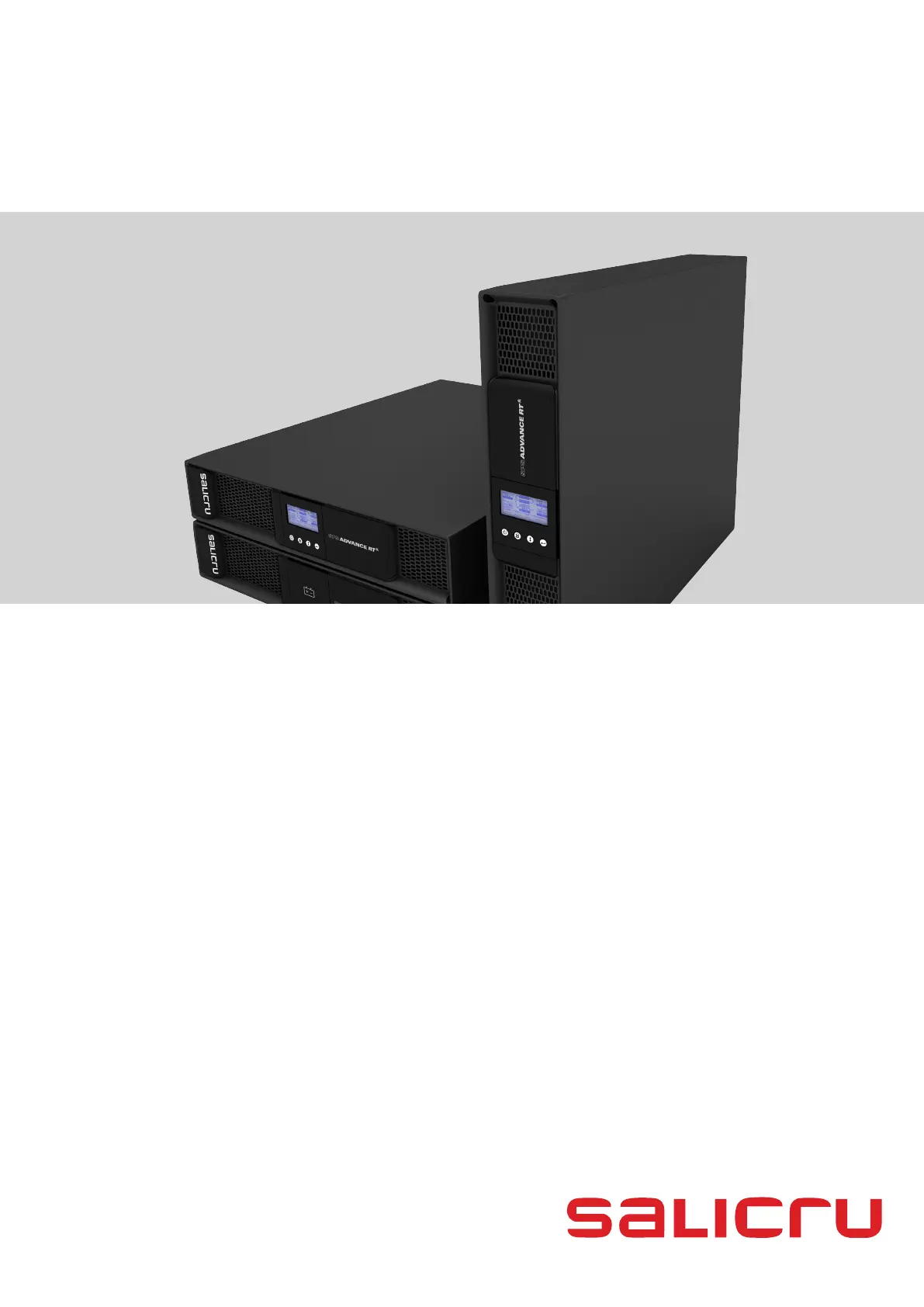

SPS.ADVANCE RT

UNINTERRUPTIBLE POWER SUPPLY

USER'S MANUAL

SALICRU

General index

1. Introduction.

1.1. Acknowledgement letter.

2. Information for safety.

2.1. Using this manual.

2.1.1. Conventions and used symbols.

3. Quality and standard guarantee.

3.1. Declaration of the management.

3.2. Standard.

3.3. Environment.

4. Presentation.

4.1. Views.

4.1.1. Equipment views.

4.1.2. Legend corresponding to the equipment views.

4.2. Definition of the product.

4.2.1. Nomenclature.

4.3. Description and operating principle.

4.3.1. Main features.

4.4. Options.

4.4.1. Isolation transformer.

4.4.2. External maintenance manual bypass.

4.4.3. Integration in IT networks by means of the SNMP adaptor.

4.4.4. AS400 card.

4.4.5. MODBUS protocol.

4.4.6. Extensible rail kit for rack cabinet assembling.

5. Installation.

5.1. To be considered in the installation.

5.2. Reception of the equipment.

5.2.1. Unpacking, content checking and inspection.

5.2.2. Storage.

5.2.3. Unpacking.

5.2.4. Vertical assembling -tower type- or rack.

5.2.4.1. Removing or fitting the beauty cover.

5.2.4.2. Rotation of control panel with LCD panel.

5.2.4.3. Vertical assembling -tower type-.

5.2.4.4. Vertical assembling -tower type- , with extended back up time

(battery module).

5.2.4.5. 19" rack cabinet assembling.

5.2.4.6. 19" rack cabinet assembling, with extended back up time (battery

module).

5.3. Connection.

5.3.1. Connection of input.

5.3.2. Connection of the IEC outlets.

5.3.3. Connection of the external batteries (extended back up time).

5.3.4. Connection of main input earth terminal ( ) and the earth bonding

terminal ( ).

5.3.5. EPO terminals in UPSs > 1kVA (Emergency Power Off).

5.3.6. Communication port.

5.3.6.1. RS232 and USB interface.

5.3.6.2. Smart slot.

5.3.6.3. AS400 Interface with DB9 output (option).

5.3.6.4. Protection against transient voltages for modem / ADSL / Fax / ...

lines.

5. 3.7. S of t wa re.

5.3.8. Considerations before commissioning with load connected.

6. Operating.

6.1. Start up.

6.1.1. Controls before commissioning.

6.2. UPS start up and shutdown.

6.2.1. Initial UPS start up.

6.2.2. UPS start up, with mains present.

6.2.3. Start up of the UPS, with no mains present.

6.2.4. UPS shutdown, with mains present.

6.2.5. UPS shutdown, with no mains present.

7. Control panel.

7.1. Functionalities.

7.1.1. Button functions.

7.1.2. Acoustic alarms.

7.1.3. UPS status and colour of the LCD panel, depending on the condition.

7.1.4. Graphics displayed in the LCD panel.

7.1.5. User settings.

7.1.6. Explanations about the user settings and other ones.

7.1.6.1. Operating modes.

7.1.6.2. IEC outlet groups.

7.1.6.3. Setting the UPS to connect it with "n" battery modules.

7.1.6.4. Setting the "Green" function.

8. Maintenance, warranty and service.

8.1. Maintenance of the battery.

8.1.1. Notes for installing and replacing the batteries.

8.2. UPS Trouble Shooting guide.

8.2.1. FAQ. Acoustic alarms.

8.2.2. FAQ. General indications.

8.3. WARRANTY CONDITIONS.

8.3.1. Warranty terms.

8.3.2. Out of scope of supply.

8.4. Technical service network.

9. Annexes.

9.1. Main general specifications.

9.2. Glossary.

Produktspecifikationer

Varumärke:	Salicru
Kategori:	Inte kategoriserad
Modell:	6A0BT000002
Rackmontering:	Ja
Kompatibla produkter:	Salicru SPS 2000 ADV RT
Rackkapacitet:	2U
Batteriteknik:	Slutna blybatterier (VRLA)
Produktens färg:	Svart
Formfaktor:	Rack / Torn
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Batterispänning:	12 V
Styrhjul:	Nej
Antal:	1
