AV Rack System
CFR1610
INSTRUCTION MANUAL
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the
item to your dealer; contact Customer Service. Never use damaged parts!
CAUTION: Avoid potential personal injuries and property damage!
°Please read through these instructions completely to be sure you’re comfortable with this easy install process.
°Do not use this product for any purpose not explicitly specified by manufacturer.
°Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
°If you do not understand these instructions or have doubts about the safety of the installation,
assembly or use of this product, contact Customer Service.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
CAUTION: Avoid potential personal injuries and
property damage!
°The wall must be capable of supporting five
times the weight of the rack and components or
accessories combined.
°DO NOT install into drywall alone.
400 lbs.
(181.4 kg)
150 lbs.
(68.0 kg)
FREE STANDING INSTALLS
(single or stacked)
WALL MOUNTED INSTALLS
includes any components
or accessories
includes any components
or accessories
CAUTION: To prevent tipping,
°Do not stack more than two (2) rack assemblies.
°If stacking racks of different weight ratings, the rack
with the highest rating needs to go on the bottom.
°Load the rack from the bottom up.
°Load the heaviest item in the rack first.
°Load 50% of the total weight in the lower 1/3 of the rack.
Rack Weight Limit:
DO NOT EXCEED
Customer Service
Americas: 800-359-5520 • 952-225-6013 • info@sanus.com
Europe, Middle East, and Africa: +31 (0) 495 580 852 • europe.sanus@legrand.com
Asia Pacific: 86 755 8996 9226 • sanus.ap@legrand.com
SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA
Rack Weight Limit:
DO NOT EXCEED

2
2.21in
56.1mm
16.00in
406.4mm
2.21in
56.1mm
0.54in
13.7mm
17.50in
444.5mm
10U HEIGHT
20.42in
518.6mm
17.82in
452.5mm
OPENING
1U SHELF
1.72in
43.7mm
19.00in
482.7mm
1U SHELF
REAR VIEW
FRONT AND SIDE VIEWS
12.12in
307.8mm

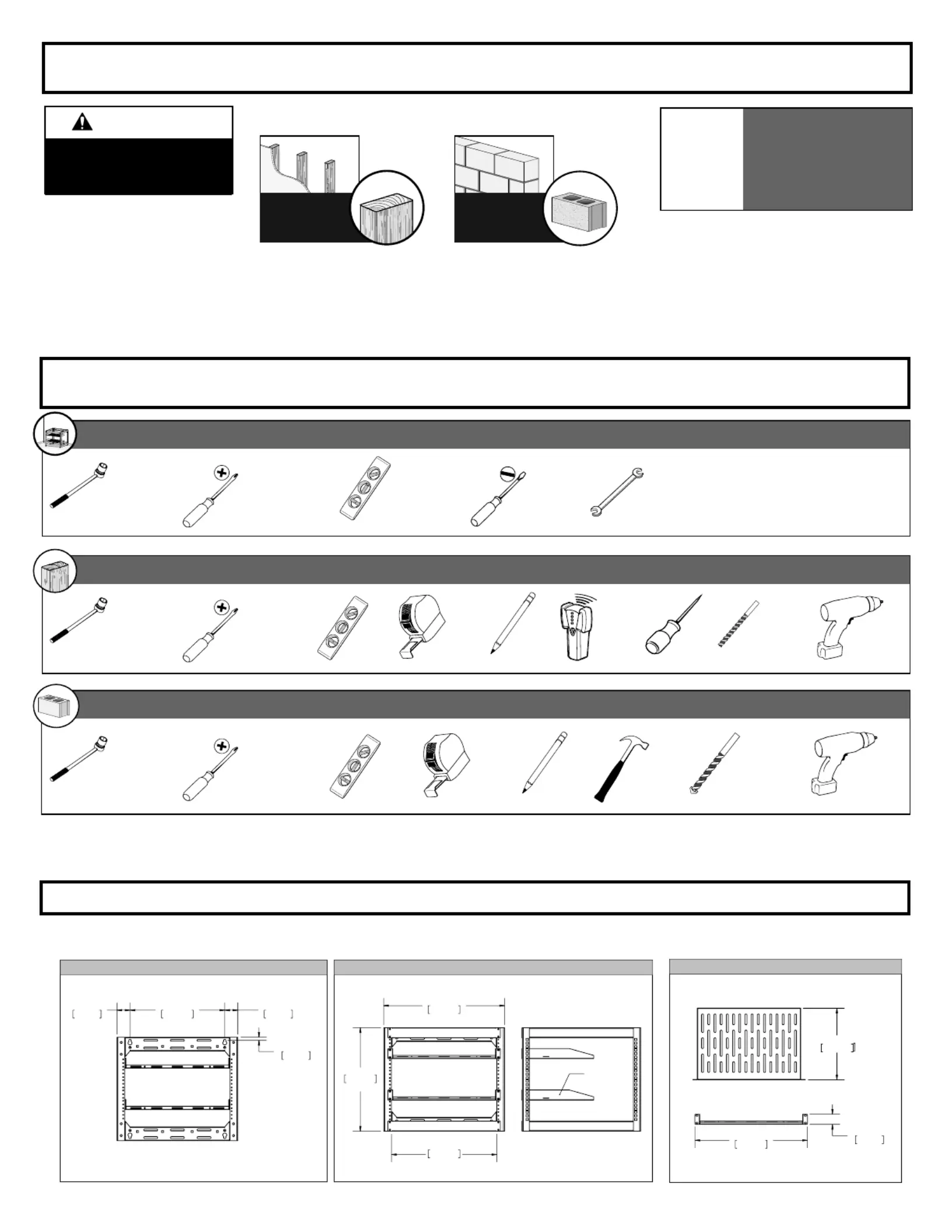

Required Tools
Technical Specifications
AwlStud
Finder
7/32 in.
(5.5 mm)
for wood
Drill Bit
Socket
Wrench
Socket
Wrench
Socket
Wrench
Hammer Drill Bit
3/8 in.
(10 mm)
for concrete
Wall-Mount Wood Stud Installation
Free-Standing Installation
Wall-Mount Concrete Installation
Pencil
Pencil
Level
Level
Level
Phillips
Screwdriver
Phillips
Screwdriver
Phillips
Screwdriver
Slotted
Screwdriver
11/16 in.
Wrench
Tape
Measure
Tape
Measure
Electric
Drill
Electric
Drill
1/2 in.
(13mm)
1/2 in.
(13mm)
1/2 in.
(13mm)
Verify Your Wall Construction - Only for Wall-mount Installs
Wood studs?
Solid Concrete/
Concrete Block?
Perfect!
Good to Go
Perfect!
Good to Go
CAUTION:
DO NOT install
into drywall alone
For questions,
contact
Customer Service.
?
*Illustrations may vary depending upon selected model.

3

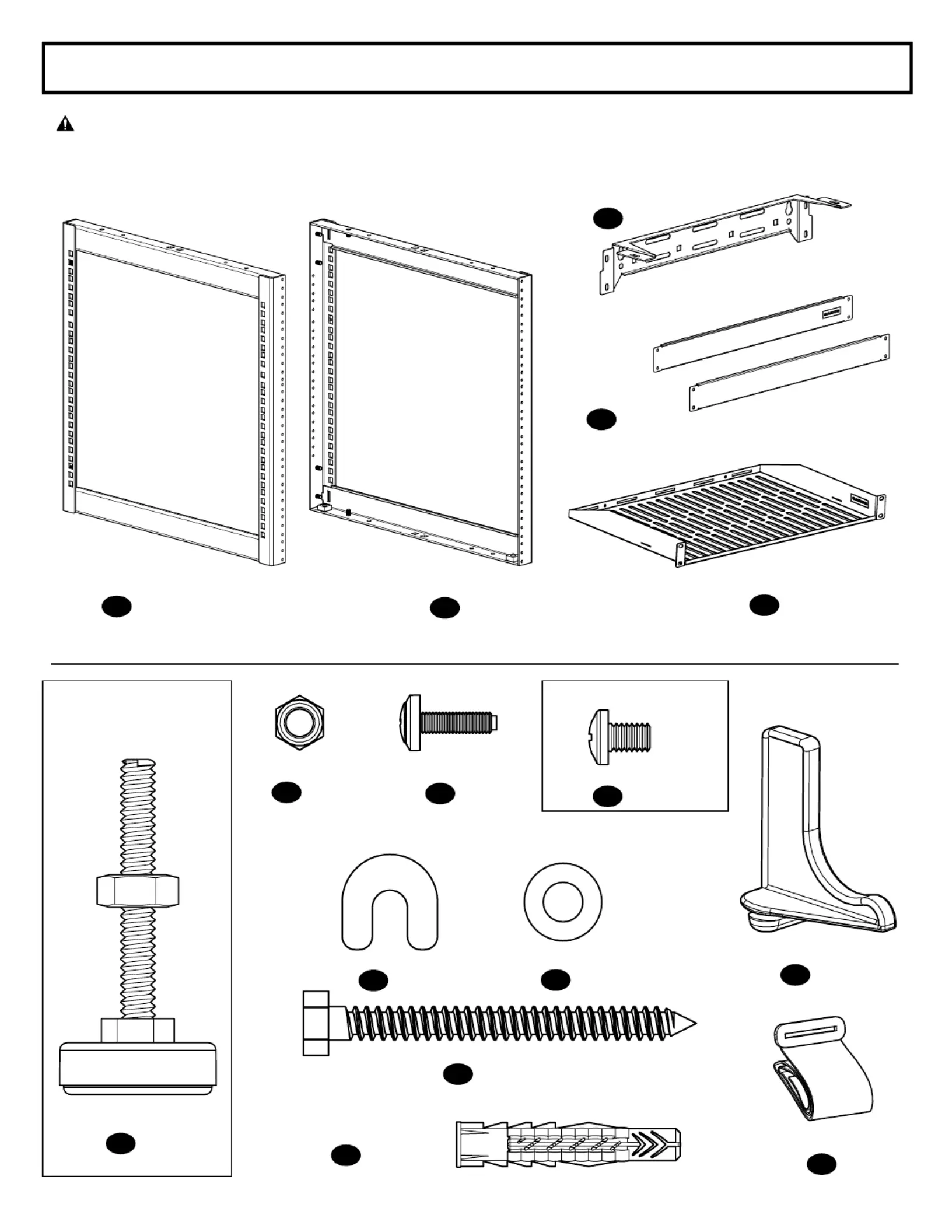

Supplied Parts
WARNING: This product contains small items that could be a choking hazard if swallowed. Keep these
items away from young children!
qty. 1
qty. 1
qty. 2
qty. 2
qty. 2
LEFT FRAME
RIGHT FRAME
BACK BRACE
FRONT BRACES
SHELF 1U
(12" deep)
1
2
3
4
5
qty. 4
qty. 12 qty. 25
qty. 2 qty. 2
qty. 4
qty. 4
qty. 4
qty. 2
U WASHER
LAG SCREW
RACK FOOT
For Free-standing Install
For Wall-mount Install
For Double-stacking Racks
SHELF BACKSTOP
#10-32 X 3/4 SCREW
HOOK AND LOOP
STRAP
CONCRETE ANCHOR
WASHER
6
13
15
14
12
10
11
9
8
7
5/16-18 NUT
1/4-20 X 3/8 SCREW
qty. 4
TOP
BOTTOM
