Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
Customer Service: 1-800-359-5520 • info@sanus.com • www.sanus.com
XAS1A
(6901-100148 <01>)
Thank you for choosing the Sanus Systems XAS1A. The XAS1A is designed to mount speakers on each side of a
VMDD26 VisionMount full motion TV mount. The XAS1A will support speakers weighing up to 11 kg (25 lbs.) each.
Do not use this product for any purpose not explicitly specied by Sanus Systems. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts about
the safety of the installation, contact Sanus Systems Customer Service or call a qualied contractor. Sanus
Systems is not liable for damage or injury caused by incorrect mounting, assembly, or use.
CAUTION
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
WARNING
6901-100148 <01>
1/4-20 x 2.0 in.
1/4-20 x 3/8-16 1/4-20 x 3/8-16
M4 x 35mm
1/4-20
1/4-20 Nyloc
1/4-20 x 0.5 in.
M4 x 16mm
1/4-20 x 0.75 in.
M4 M6 M6 M4 M6M4
1/4-20 x 1.5 in. 1/4-20 x 1.25 in.

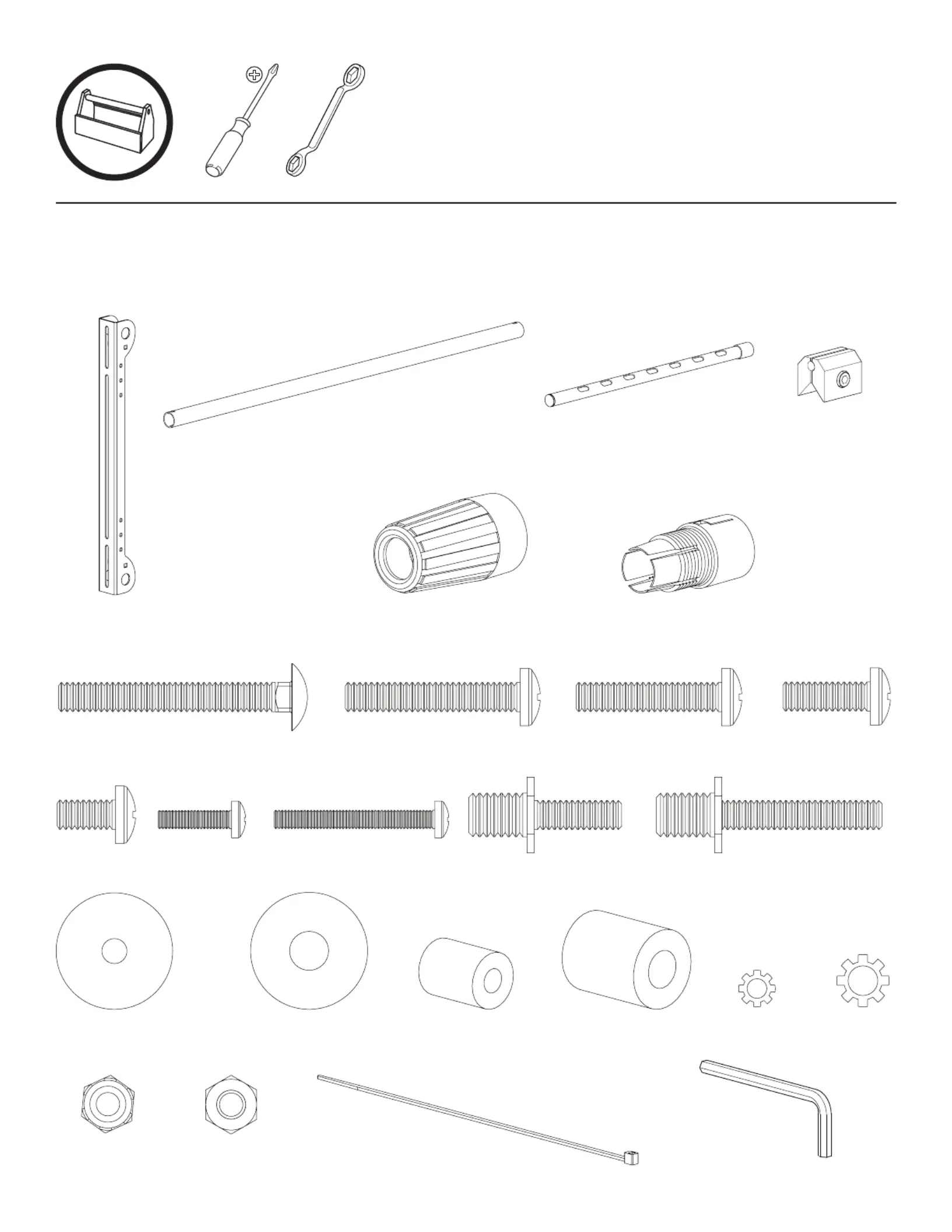

Supplied Parts and Hardware
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item
to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!
[01] x 2
[02] x 2
[05] x 4 [06] x 4
[04] x 4
[25] x 1
[03] x 4
[22] x 4
[16] x 4 [17] x 4 [18] x 4 [19] x 4 [20] x 4
[24] x 18[23] x 4
[21] x 4
[11] x 4 [12] x 4 [13] x 4 [14] x 4 [15] x 4
[07] x 4 [08] x 4 [09] x 4 [10] x 4
6901-100148 <01>
1: Preparation

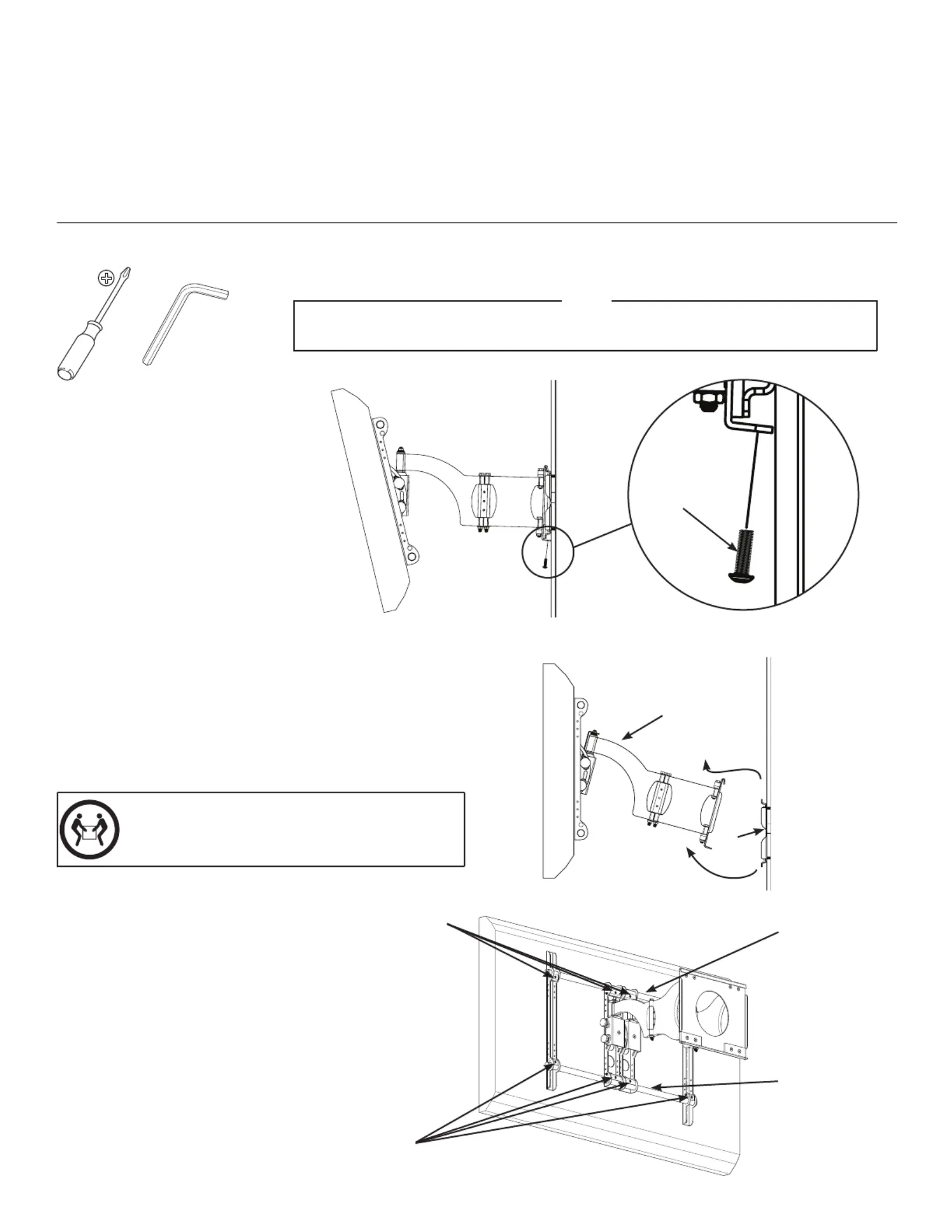

1- 1: New Installations
If you have purchased a VMDD26 VisionMount™ Full Motion Mount, but have not installed it, begin by following the large
VMDD26 installation instructions. Replace Cross Tube Installation Step 2: Cross Tube Installation with of the XAS1A instructions.
When completed, refer back to this Instruction manual, starting at Step 3: Install Extension Tubes.
1- 2: Existing Installations
Disconnect all electrical connections
and release all cables from any cable tie
downs. Remove the safety bolt [ ] as A
shown.
[A]
All graphics in this section are generic and are only used to illustrate a procedure.
NOTE
[B]
[C]
HEAVY! You will need assistance with this step.
Lift the TV and arm assembly [ ] off B
the wall plate [ ] as shown Lean the C
assembly against a wall or other vertical
surface.
Using an Allen Key, loosen the eight vise
assemblies [ ]. Remove the lower cross D
tube [ ]; then, remove the upper cross E
tube [ ] as shown.F
[25]
[E]
[F]
[D]
[D]
